Product Overview
Description
Long Range Stable Transceiver Module Full Duplex Wireless Communication
Products Description

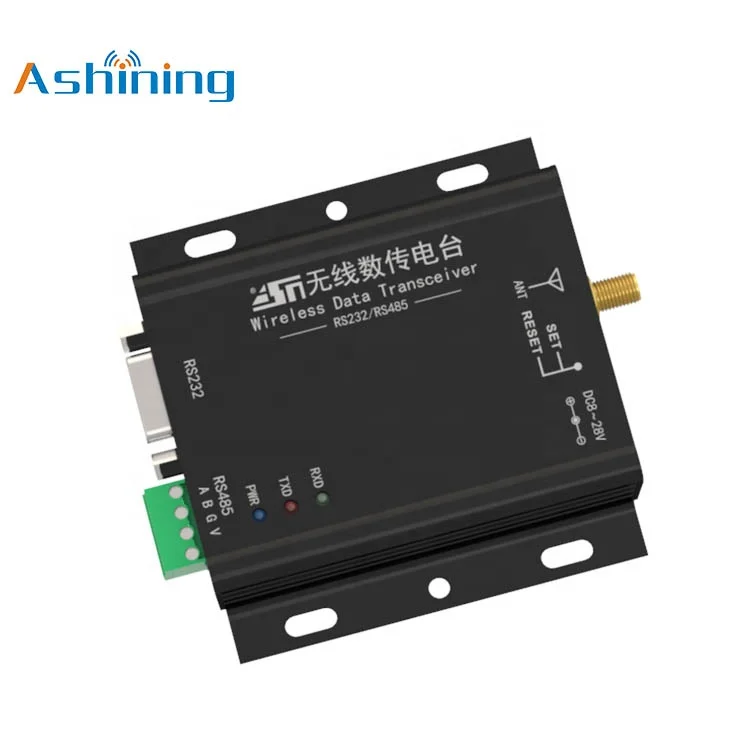

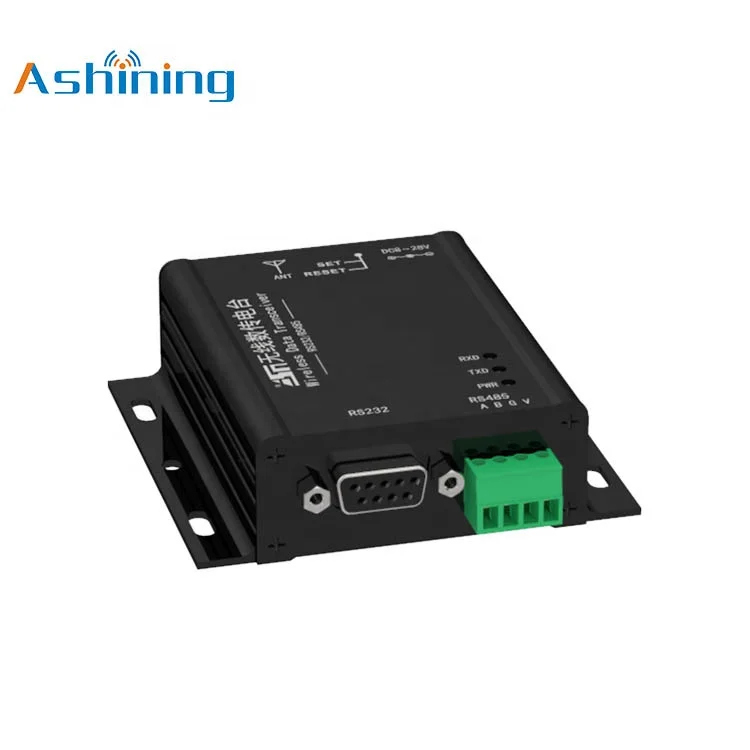

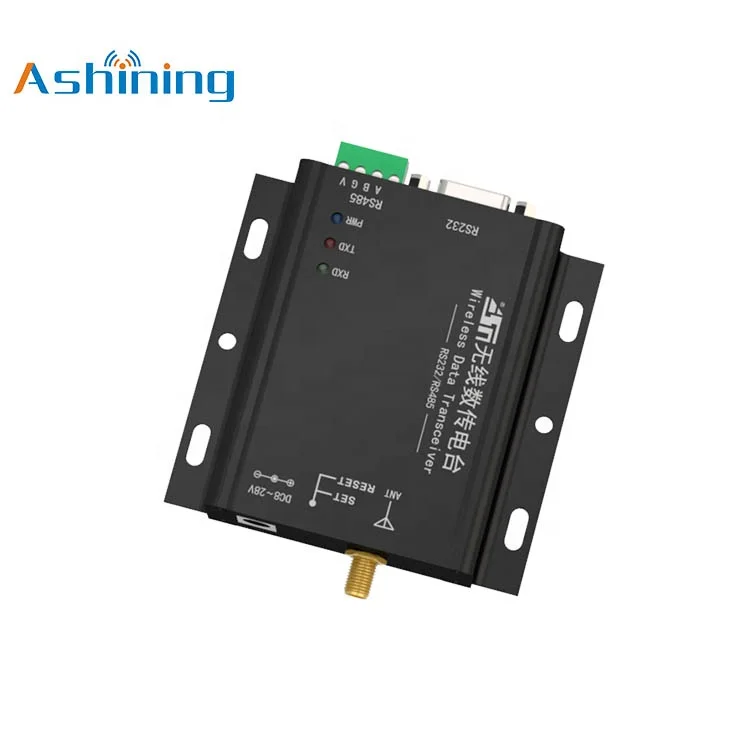

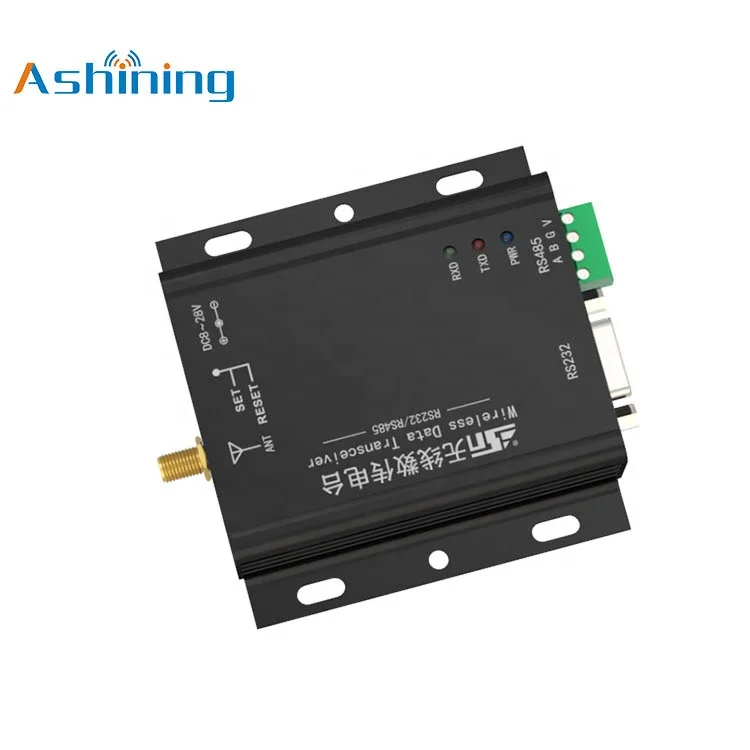

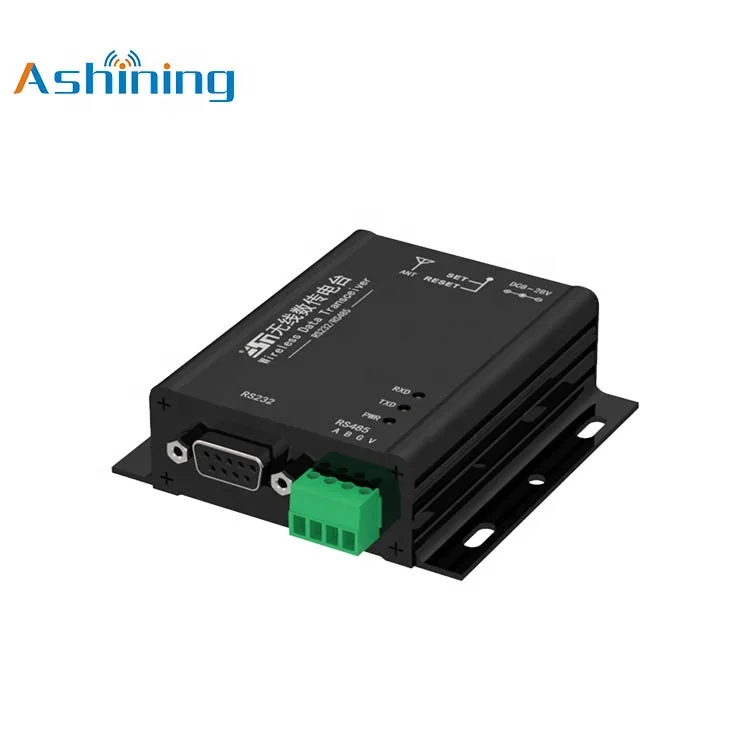

AS62-DTU20 is a 100mW industrial wireless data radio with high stability, operates at 433MHz. The radio adopts RF chip SX1278 and Lora spread spectrum transmission. It has RS232 and RS485 ports and features an efficient loop error correction algorithm, which has high coding efficiency and strong error correction capability, which greatly improves the anti-interference and stability of the radio.
| No. | Parameter name | Parameter values detail |
|---|---|---|
| 1 | DTU size | 95 * 84 * 25mm (Excluding the antenna) |
| 2 | Source of the devices | All components are imported from Japan, the United States, and Germany |
| 3 | Production craft | Lead-free, electrostatic bag packaging. |
| 4 | Interface mode | Standard RS232/485 interface |
| 5 | Operating frequency | 410 - 441MHz, 1000KHz step by step, factory default 433.0MHz |
| 6 | Power supply | 8V-28VDC |
| 7 | Measured distance | About 3000m (Test condition: sunny, open, the maximum power, Antenna gains 5dBi, higher than 2m, 2.4K air rate) |
| 8 | Transmission power | Maximum 20dBm (about 100mW) |
| 9 | Air rate | 6 levels adjustable (0.3, 1.2, 2.4, 4.8, 9.6, 19.2 Kbps) |
| 10 | Transmitting current | 160 mA |
| 11 | Receiving current | 68 mA |
| 12 | Communication Interface | RS232/485 interface, 8N1, 8E1, 8O1, from 1200 to 115200 a total of 8 baud rates |
| 13 | Transmitting length | Internal circular FIFO cache 256 bytes, internal automatic subcontract sending. Some airspeed and baud rate combinations can send packets of infinite length. |
| 14 | Receiving length | Internal ring FIFO cache 256 bytes, internal automatic subcontract sending. Some airspeed and baud rate combinations can send packets of infinite length. |
| 15 | DTU address | 65536 configurable addresses (easy to network, support for broadcasting and fixed transmission). |
| 16 | RSSI support | Built-in intelligent processing(users need no worries, it can be read by command if there is special need). |
| 17 | Receiving sensitivity | -130dbm at 2.4Kbps (receiving sensitivity has nothing to do with serial port baud rate or delay time). |
| 18 | Antenna type | Sucker antenna, glue stick antenna |
| 19 | Operation temperature | -40 - +85℃ |
| 20 | Operation humidity | 10% - 90% relative humidity, no condensation |
| 21 | Storage temperature | -40 - +125℃ |
