Product Overview

Description





Product Introduction

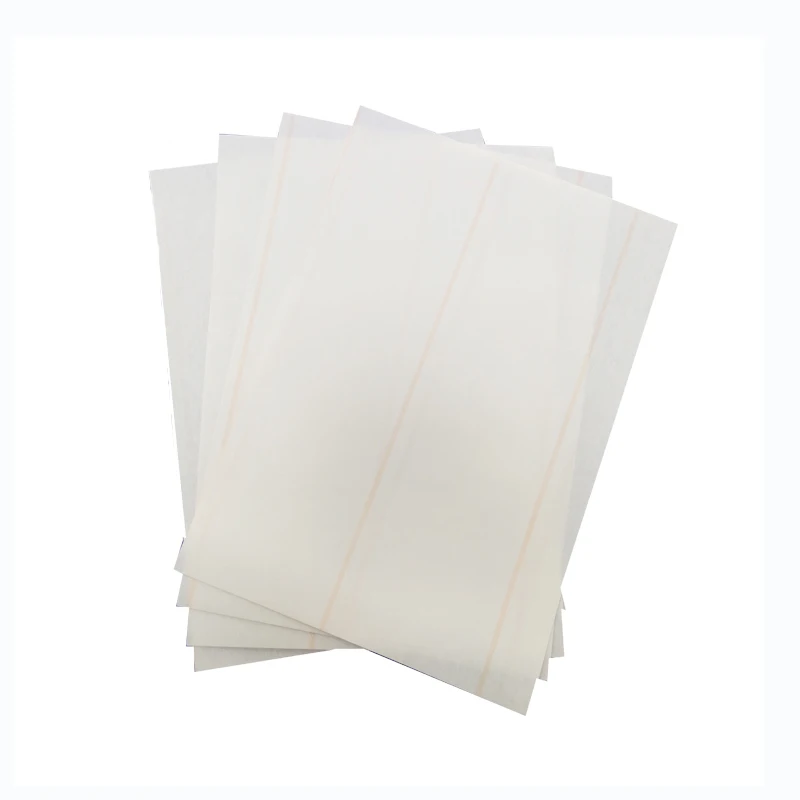

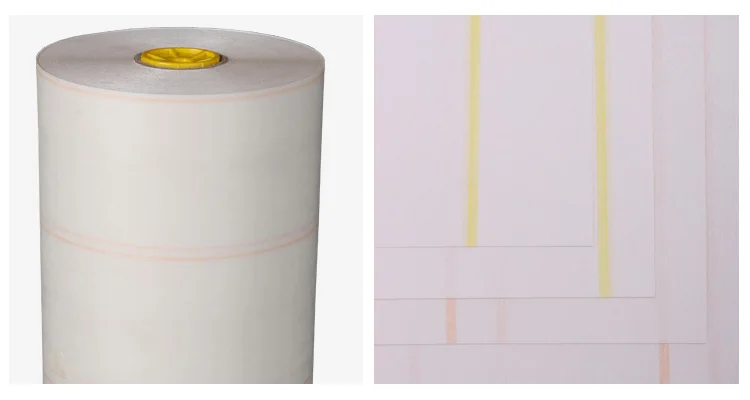

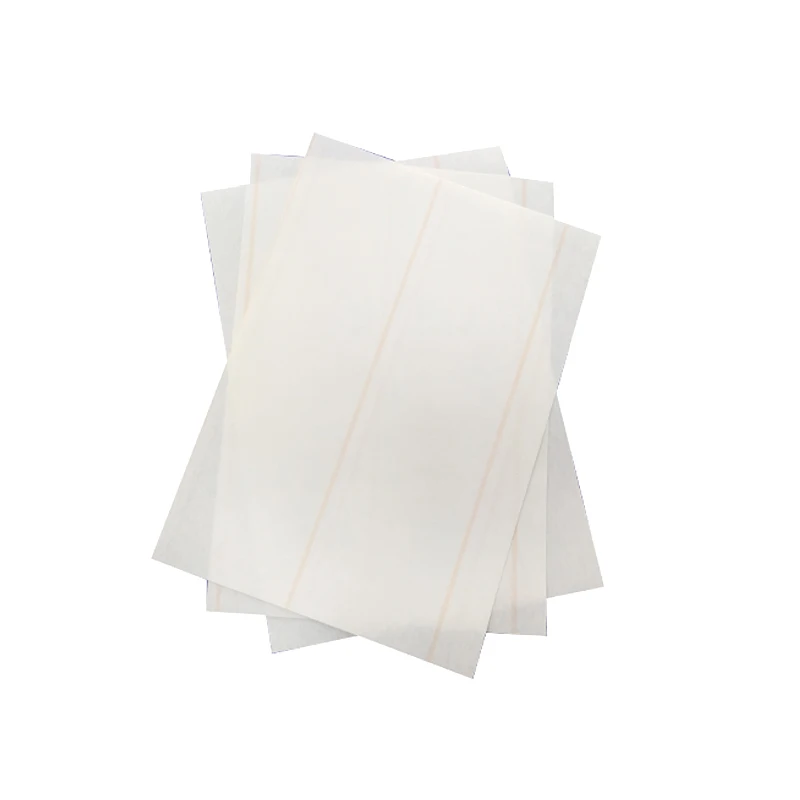

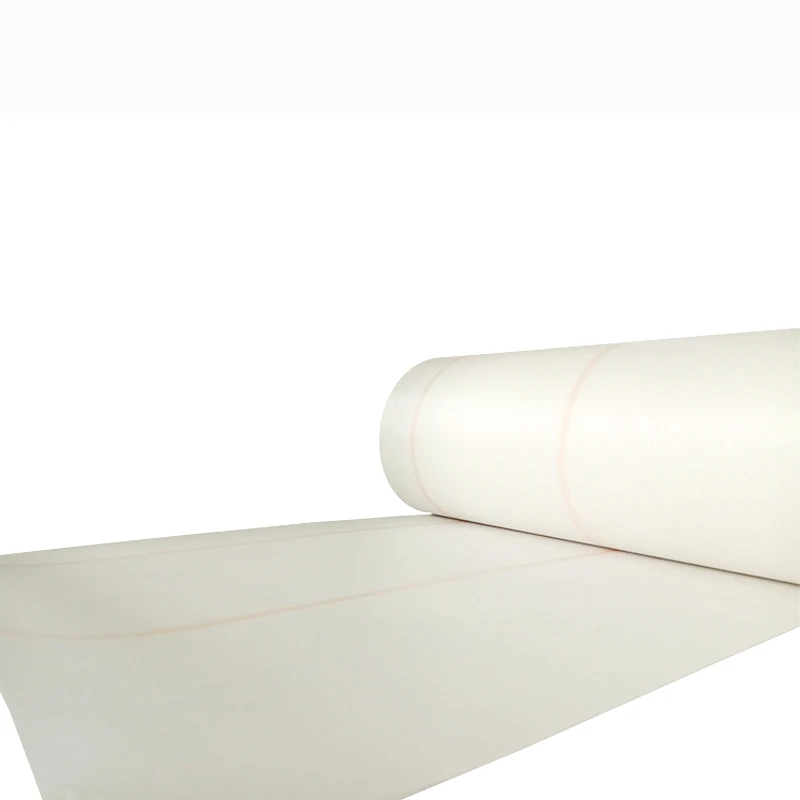

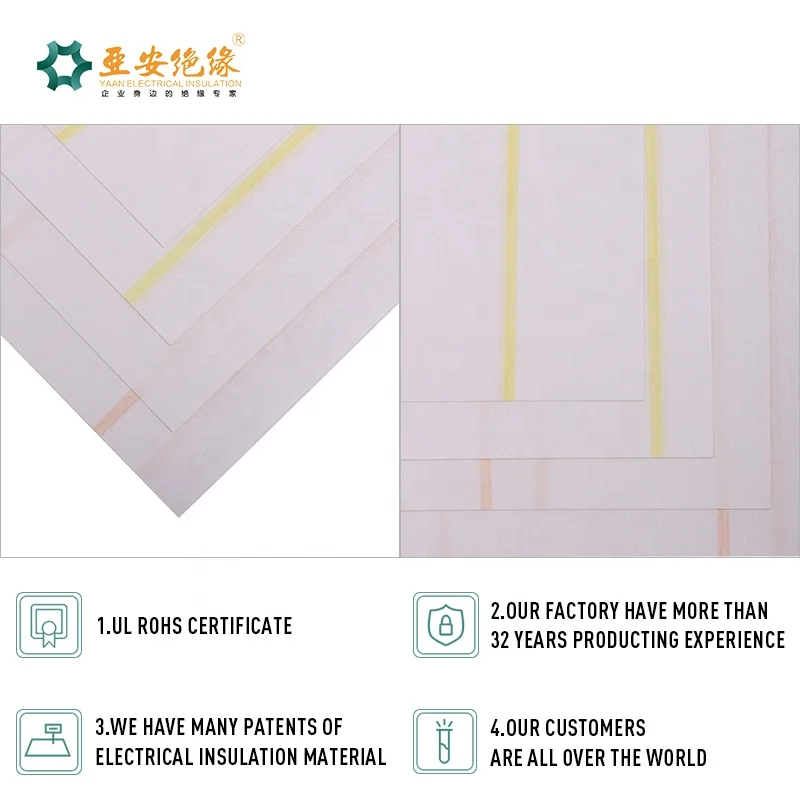

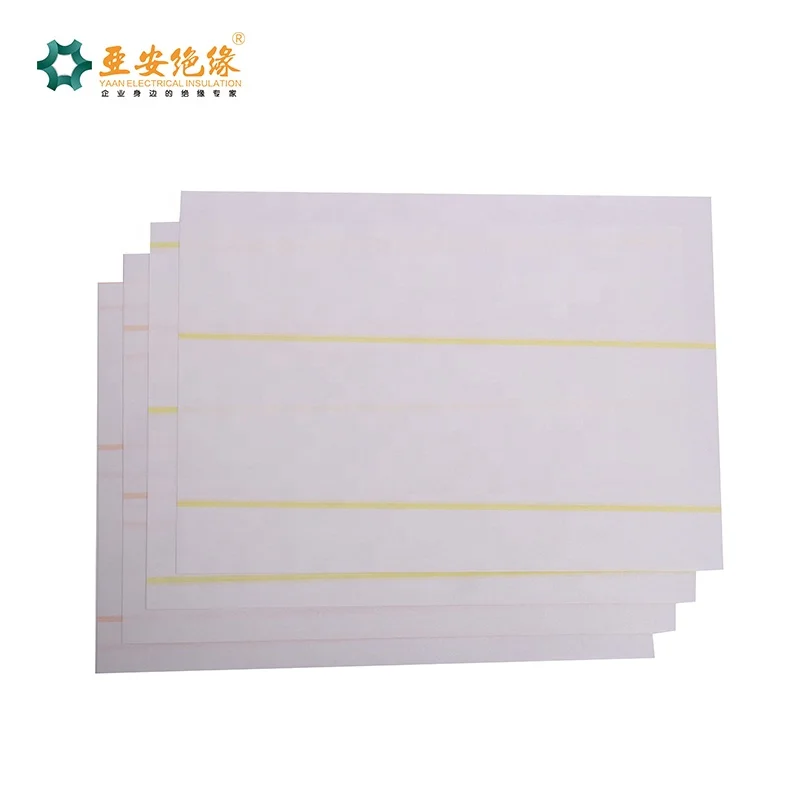

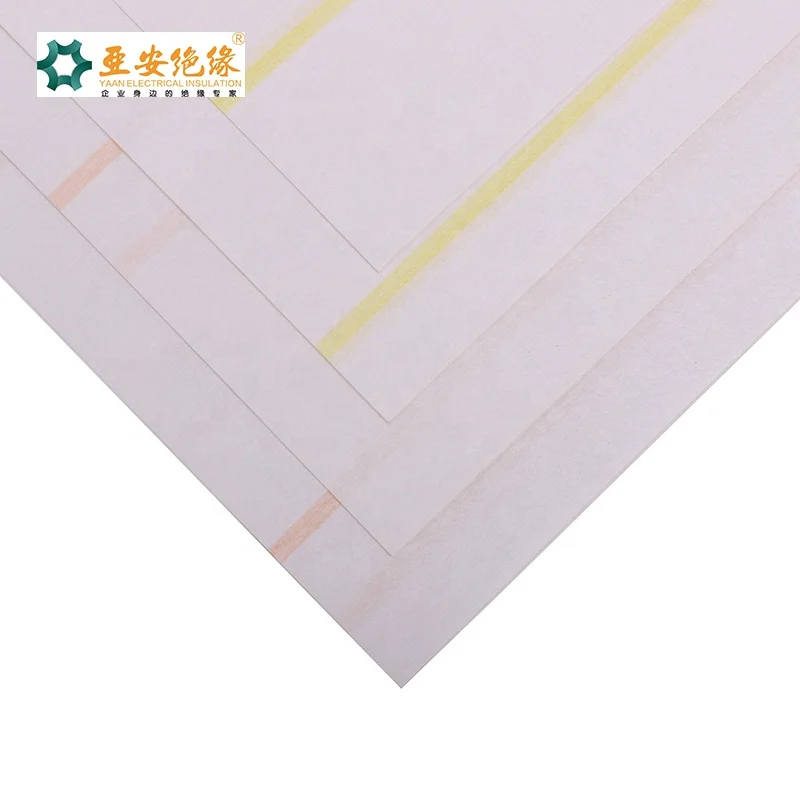

Flexible electrical chinese dupont nomex aramid ama insulation paper nomex paper AMA paper for F/H motor transformer



Type: AMA Aramid Paper Composite Insulating Materials
Insulation Grade: F
Domestic Aramid Paper + polyester film + domestic Aramid Paper
Width: normal width 914mm
Thickness: 0.15 mm-0.35mm

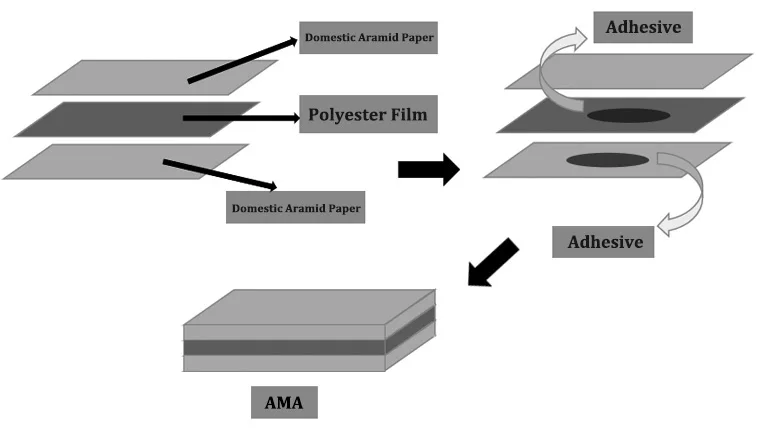

AMA Aramid paper composite insulating materials is a three-layer flexible composite material, produced by using F Class adhesive to adhere the polyester film with Aramid paper on both sides.




Product Features:
AMA Aramid paper composite insulating materials has excellent heat-resistant, electrical, and mechanical properties. It is totally according with the standard of NMN (GB/T5591.3-2008), and it has the very similar property as NMN. It's perfect substitute of NMN.


Product details






Item
Nominal Thickness
Tolerance
Nominal Grammage
PET Film Thickness
Tensile Strength
 Not Bended
BDV Not Bended
Aramid/
Polyester
mm
±%
g/m2
um
M
TD≥
KV≥
N/10
N/10mm
2-1-2
0.13
15
140±16
25
100
80
6
 2-1.5-2
0.15
15
150±18
36
150
90
7
2-2-2
0.17
15
170±20
50
160
90
8
2-3-2
0.19
15
200±24
75
170
105
11
2-4-2
0.22
15
230±27
100
190
120
12
2-5-2
0.24
15
270±32
125
220
150
14
2-7.5-2
0.31
15
360±43
190
270
300
19
2-14-2
0.47
10
590±70
350
400
350
28


Application

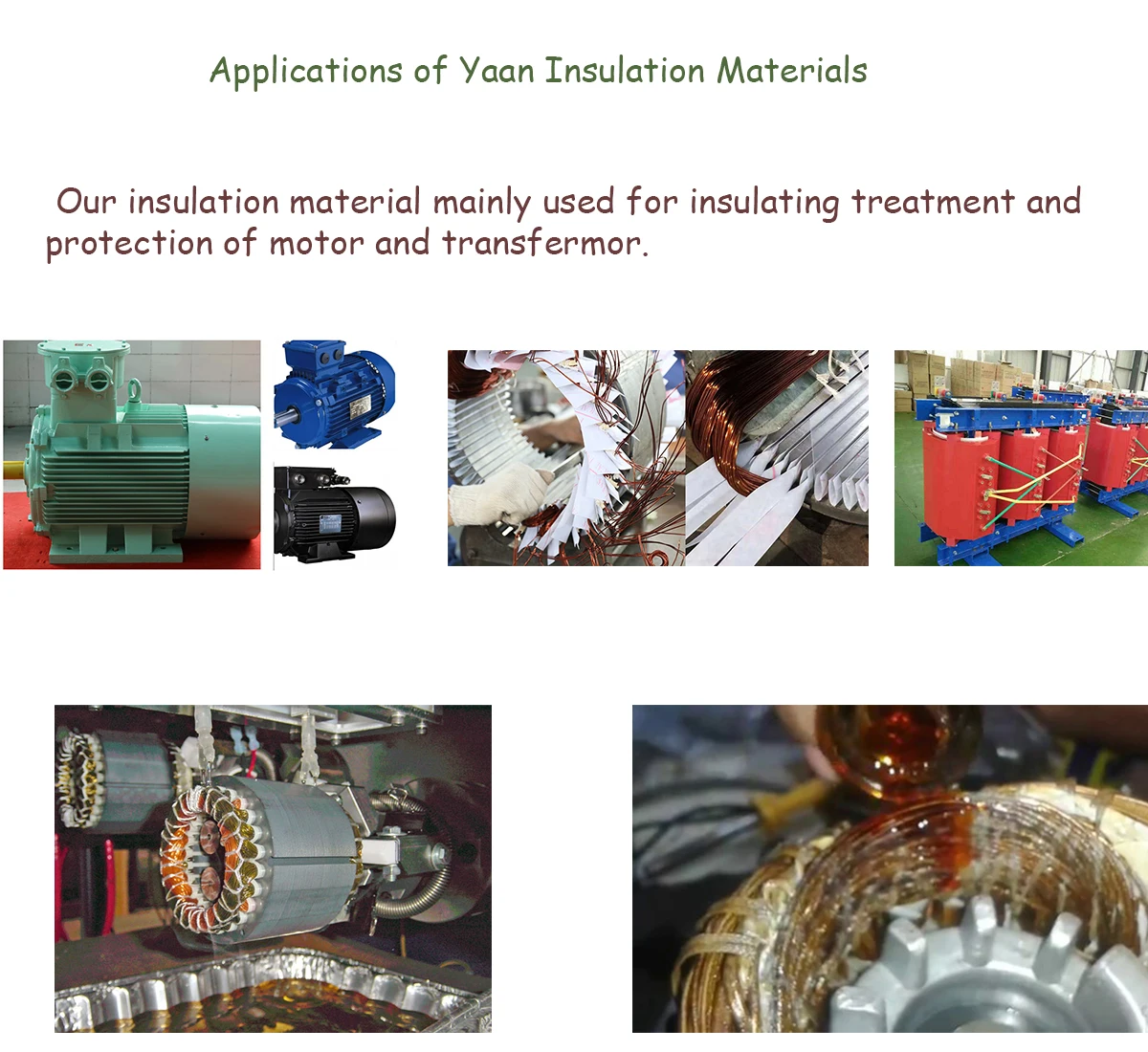

AMA Aramid paper composite insulating materials is suitable for slot-to-slot insulation, phase-to-phase and turn-to-turn insulation of F-class motors, and can be used as interlayer insulation for transformers and other electrical appliance.




Related products


You can CLICK the picture to our website and view all the products



                  FISH PAPER
                        DMD
         DIAMOND DOTTED PAPER


                   MICA SHEET
POLYESTER FILM/POLYIMIDE FILM
2753 SILICONE FIBERGLASS SLEEVE

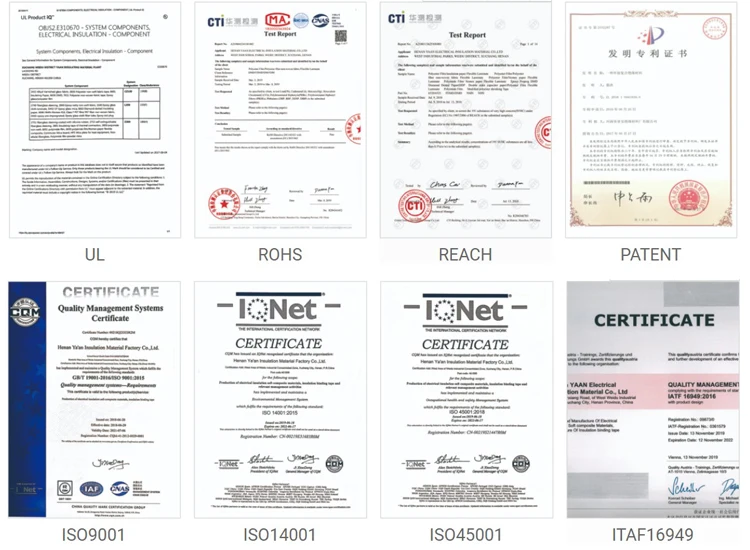

Certification

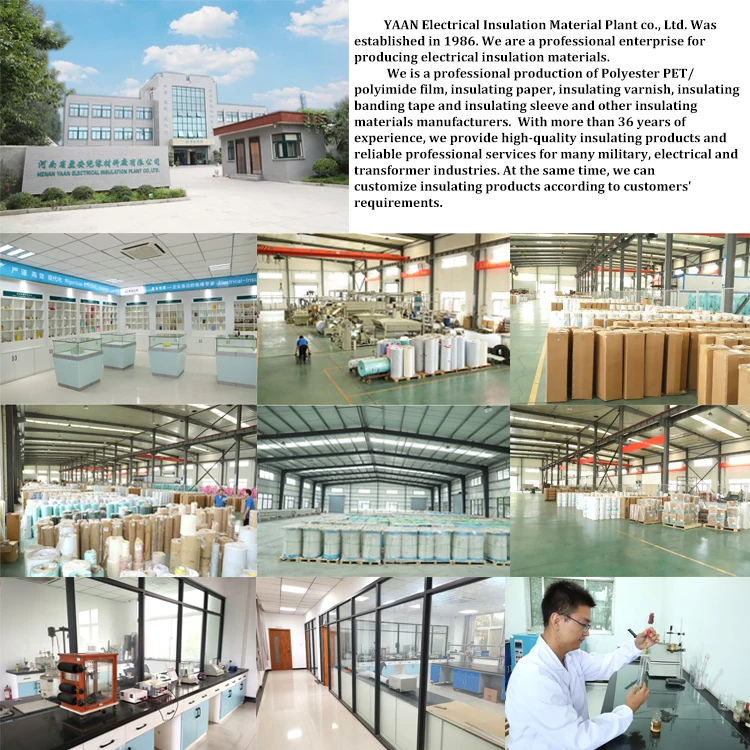

Company Profile




Product Packaging


About Electrical insulation motor winding chinese nomex/mylar/nomex electrical insulation aramid paper nomex ama insulation material,usually we will be packed by three-layer, the first layer is a plastic film, the second layer is a carton plus a packing tape, and the third layer is wrapped with a plastic film. This will prevent the goods from getting wet and rubbed during transportation and ensure that the product arrives at your destination in good condition.

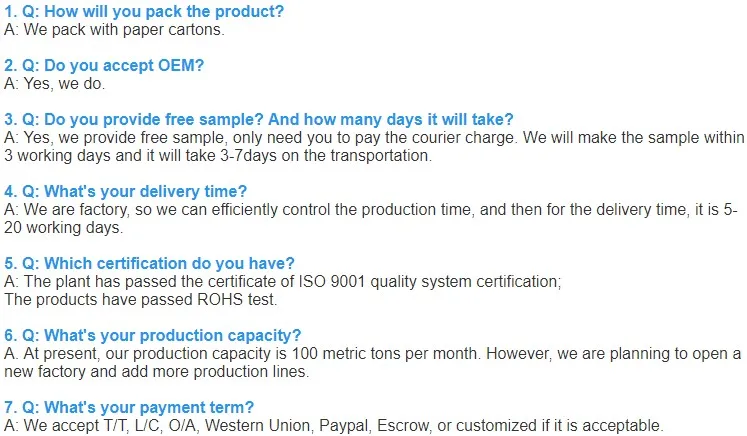

FAQ
