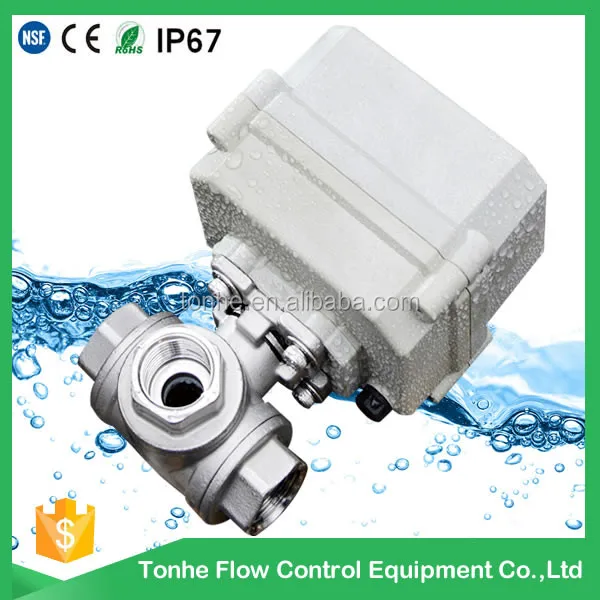

1.0MPa ball valve 1/2' 3 way BSP/NPT Stainless Steel Horizontal Brass High Quality Motorized Ball Valve
- Category: >>>
- Supplier: Taizhou Tonhe Flow Control Co. Ltd.Taizhou Ltd.
Share on (62034242729):
Product Overview
Description
Technical Parameters:
| Product size: | NPT/BSP 1/2'' 3/4'' 1'' (optional) |
| Maximum working pressure: | 1.0MPa |
| Circulation medium: | Fluid,air |
| Rated voltage: | DC12V, DC24V,AC/DC9-24V,AC/DC110-230V(optional) |
| Wiring diagram: | CR201,CR202,CR303,CR401,CR501,CR502,CR703,CR704,CR705,CR706(optional) |
| Static current: | ≤1A |
| Open/close time: | ≤15s |
| Life time: | 70000times (testing pressuire is 0.4MPa,medium is water) |
| Valve body material: | SS304 |
| Actuator material: | PPO |
| Sealing material: | FKM&PTFE |
| Actuator rotation: | 90° |
| Torque force: | 10N.m |
| Cable length: | 0.5m,1.5m(optional) |
| Environment temperature: | -15℃~50℃ |
| Liquid temperature: | 2℃~90℃ |
| Manual override: | No |
| Indicator: | yes |
| Protection | IP67 |
Flow direction:
Features:

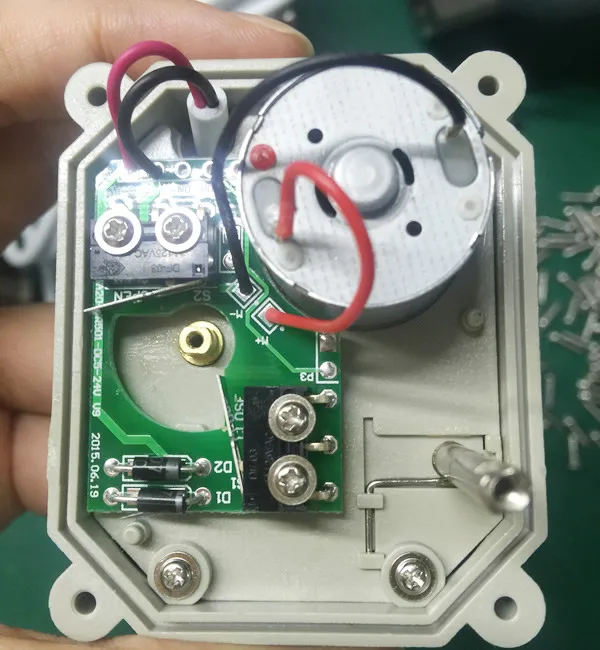

1. Full copper gear design, high-precision and high torque output.
2. Compact design and structure
3. Low operating current. Battery can act as power source.
4. Good sealing performance, IP67 protection class
Packing method:
1pc/inner carton,10inner ctn/ master ctn, 30 inner ctns/master carton (optional)
packing requirements and packing qty negotiable
Inspection:

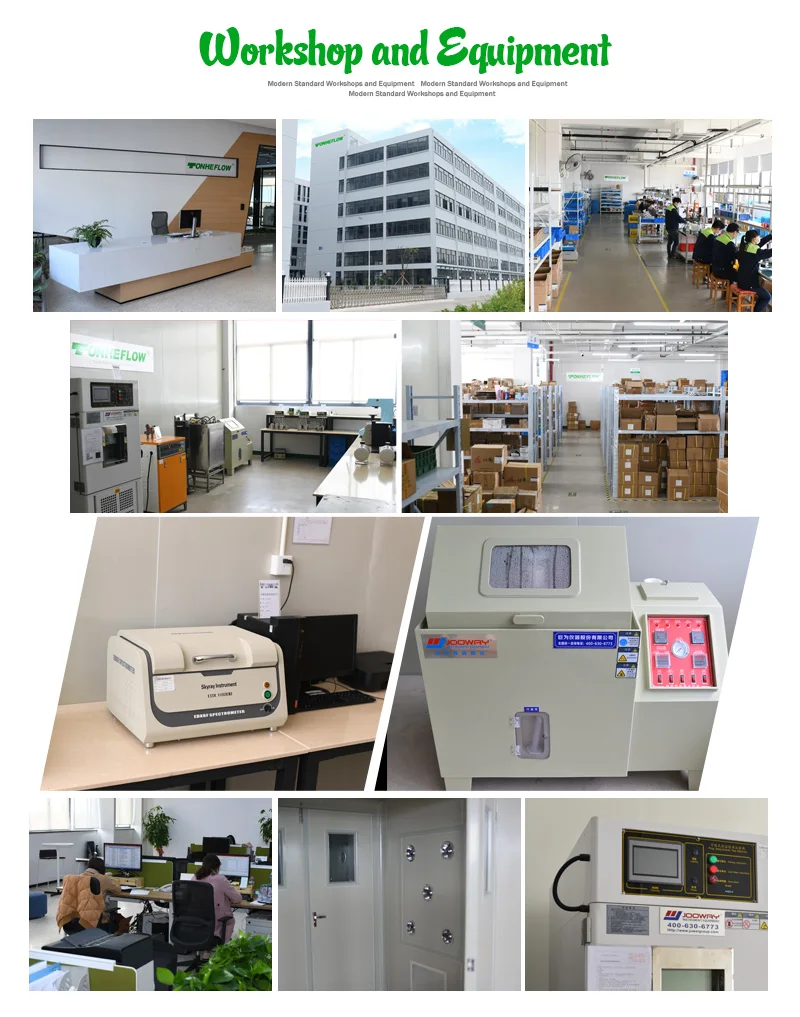

Taizhou Tonhe Flow Control Equipment Co.,Ltd is located in a beutiful city Huangyan,Taizhou,Zhejiang,China, specialized in the development,design,manufacture,sales and technical servise of electric ball valve.Our products are exported to many contries and areas all over the world,mainly in Europe&America,which won customer's trust and praise.
Application range:
1.air pump tank automatic drainage
2.automatic watering
3.water treatment
4.energy saving
5.industrial automation
6.other small equipment
Why us:
1. full stock and deliver with a short time
2.OEM and ODM allowed, logo printing or oppointed design available
3.good quality, competitive price,professional sales team with fast response and reliable service
4.professional production team and inspection team
5.Counting cheapest shipping cost for you and make invoice at once
6.Email tracking No.for better tracing parcels.
Contact way:
Contactt me before ordering~
Sale: Esther
Mob.: +86 18072535389(wechat)
Taizhou Tonhe Flow Control Equipment Co.,Ltd
