200 white corundum stone wet soybean grinding machine/soy milk dregs separating equipment
- Category: >>>
- Supplier: Shanghai Qiangdi Machinery Equipment Co. Ltd.
Share on (62034267085):
Product Overview
Description
Product Description
soybean grinding machine Application
soybean grinding machine Suitable for make soy milk, tofu etc. Application to the unit canteens, restaurants and small food processing plants.
Bean grinding, with thickly flavored bean paste emerging all at once, Okara removal accomplished in a single operation, and flaky Okara discharged at the same time.Applicable to grinding the soaked soy beans, soaked items.
SPECIFICATIONS FOR TGM-200-1 SOYBEAN GRINDING MACHINE | ||||||
Model | TGM-200 | |||||
Voltage | 380V/50HZ,220V/60HZ three phrase is customize | |||||
Power | 5000W | |||||
Beans capacity | 150-175KG/Hr | |||||
grinding stone diameter | 200mm | |||||
weight | 95KGS | |||||

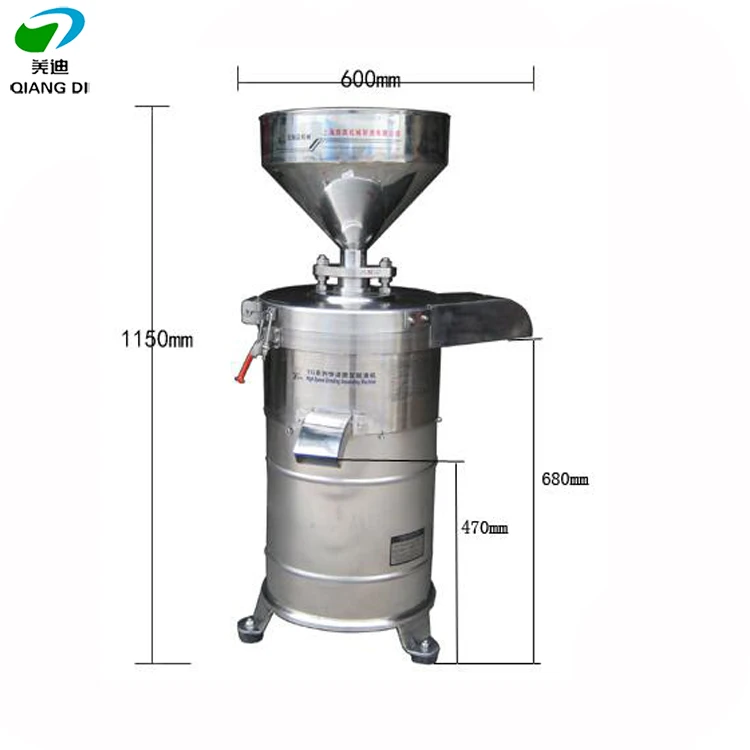

size | 480*600*1150MM | |||||

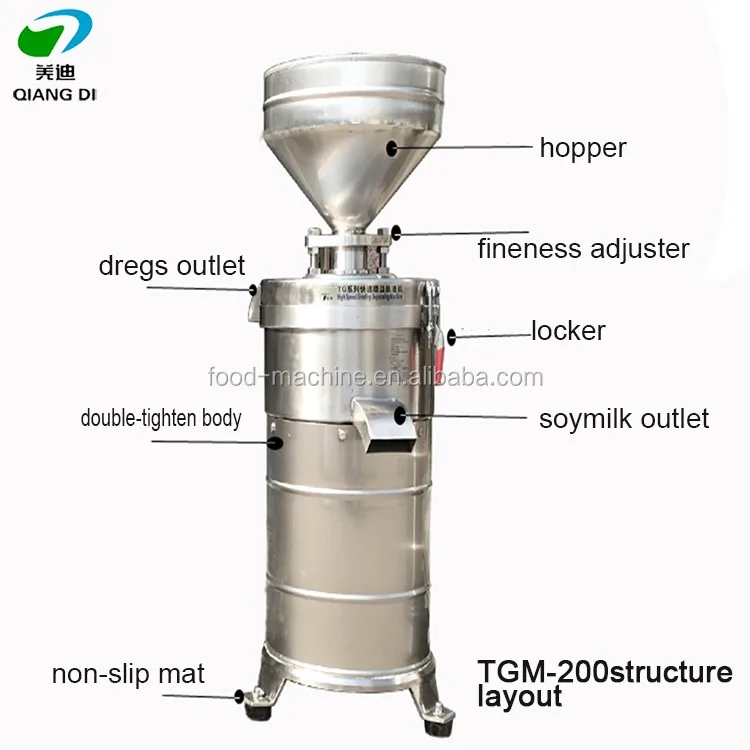

soybean grinding machine Main Features
1, soybean grinding machine have Unique structure of door body and grinding bore and motor special waterproof device, have an effective solution to the problem of leakage of water.
2, Well-designed grinding bore makes the slurry flowing smooth, less product material, easy clean-up.
3, The practical and unique thickness structure which can adjustable, it's easy to adjust, reliable locking.
2, Well-designed grinding bore makes the slurry flowing smooth, less product material, easy clean-up.
3, The practical and unique thickness structure which can adjustable, it's easy to adjust, reliable locking.
4,The edible sand of specially formulated, long life, high yield.
5, soybean grinding machine Clean and sanitary ,all structure made of stainless steel.
5, soybean grinding machine Clean and sanitary ,all structure made of stainless steel.
Test Shows
1, start soybean grinding machine ,check the machine if in right running and adjust the fineness into right location.Then adding water and soaked soya in hopper for start gridning.
2,soya milk outlet will flow out the pure soya milk directly.
3,dregs outlet will spread out the dregs directly. The dregs can mix with suit volume water grinding again,improving the soya milk ratio.
Detailed Images

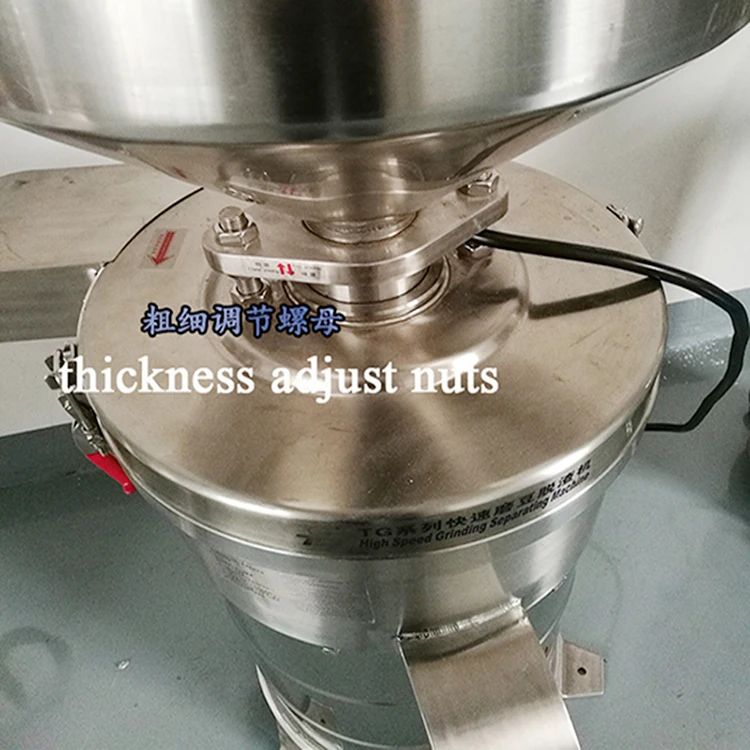

Thickness adjust
Our soy milk grinder fineness adjust design special for nuts adjust structure,full seal to the grinding chamber palte, no damge parts compare to traditional screw adjust device. Fineness Adjust more Accurate.

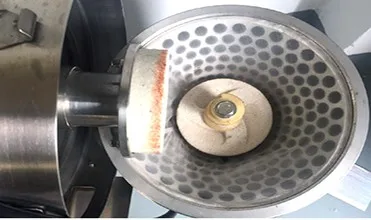

soybean grinding machine Grinding Chamber
Grinding chamber inner material is full stainless steel 304. Other brand grinder all is alloy material,not health and easy got rusting.
And bearing part designed for waterproof. To protect the motor.

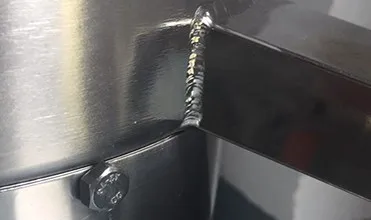

Material and Technology
Our soybean grinding machine welding part is good quality.
Material parts also use stainless steel 304 material.

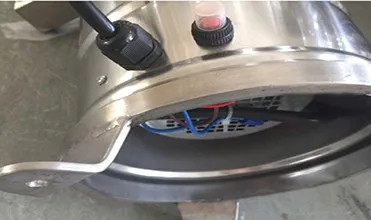

Bottom
soybean grinding machine Bottom cast also use stainless stell material made, wire are connect conform to electric standard.
Machine continous working more than 8 hrs is ok.
Commpany
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the soybean grinding machine, training how to use the machine.
* After use problems can all slove via emails,photos,videos,calls,APP instant talk etc.
Packing & Delivery
Packaging | ||
Size | 520(L) * 520 (W) * 1150 (D)mm | |
Weight | 105KG | |
Packaging Details | First we packed soybean grinding machine with the palstic Stretch film,then we tightened the machine bottom use the screw nuts,in case the shaking to damage the machine when transport. Then we packed all into a suit wooden case. | |
