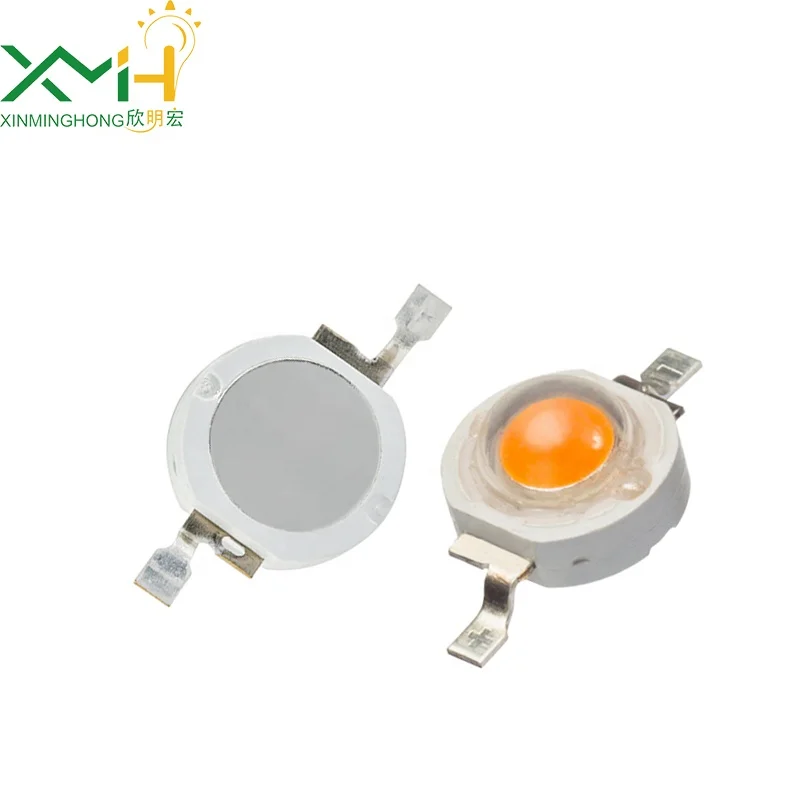

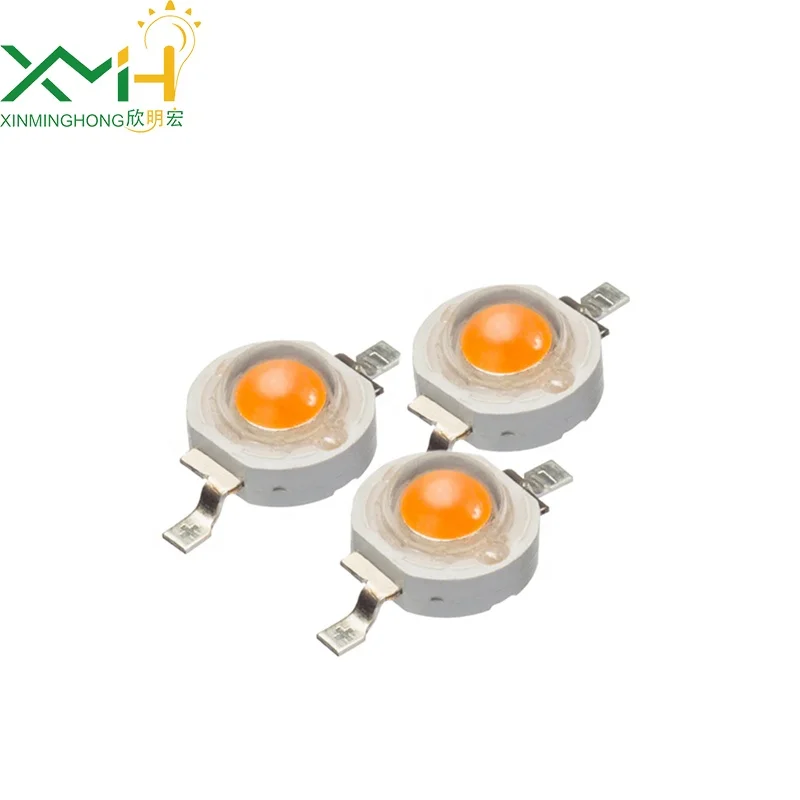

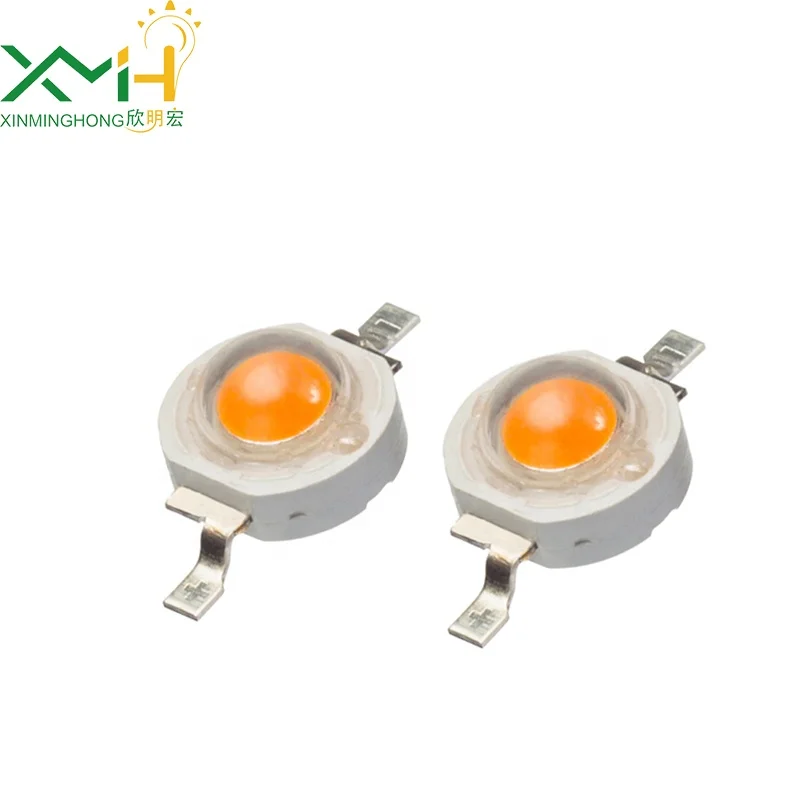

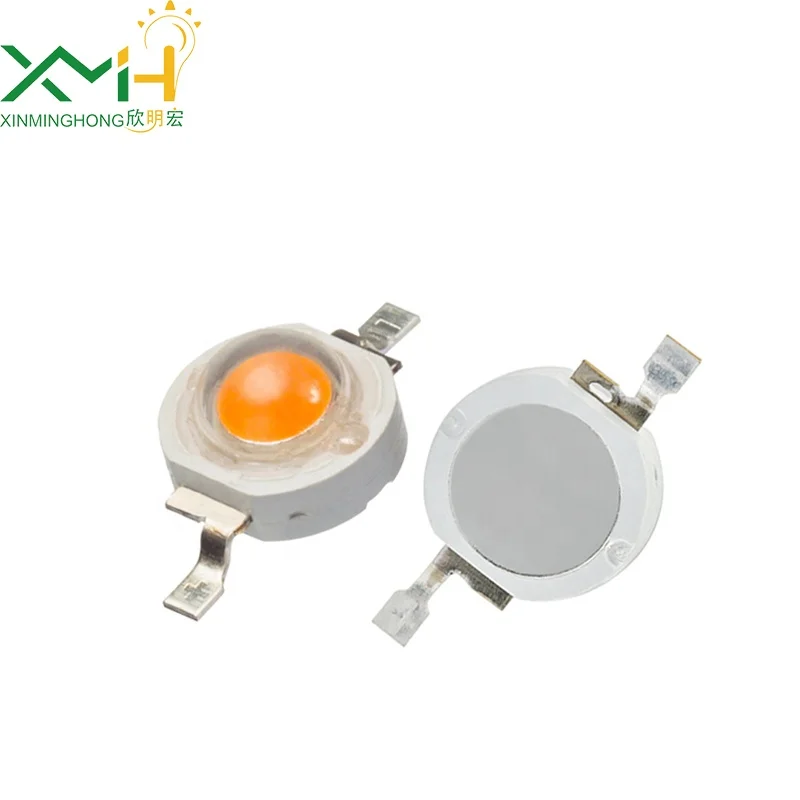

High Power Led Single Color Series Headlight 3v 1 3W Warm White 2800 3200K 100 180LM SMD LED
- Category: >>>
- Supplier: Shenzhen Xinminghong Electronic Co. LimitedShenzhen Limited
Share on (62034336671):
Product Overview
Description
Product Category
Product Description

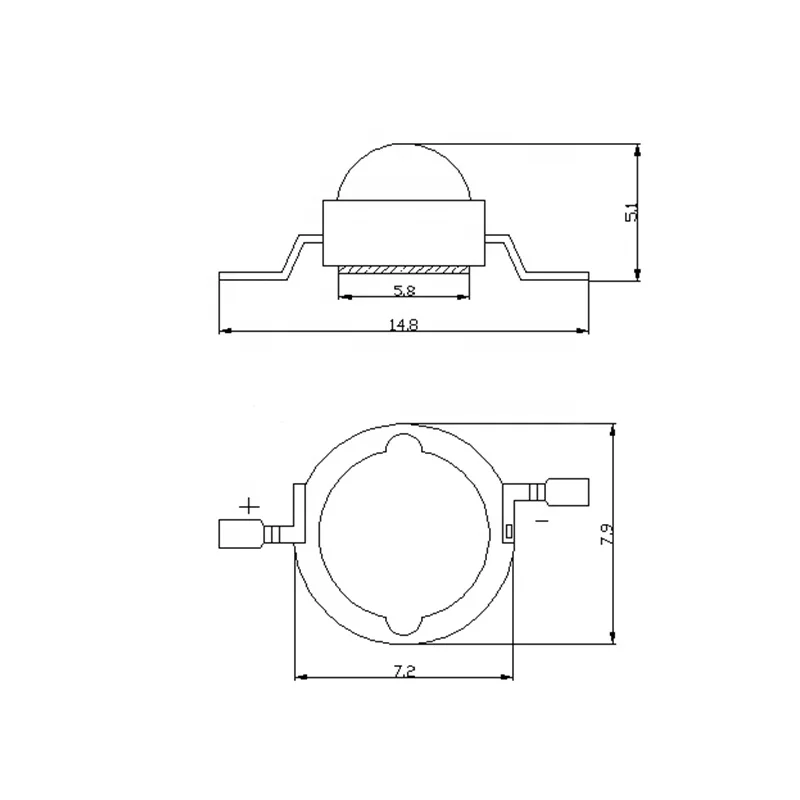

Outline dimension:
Unit:mm tolerance:±0.05mm
Feature:
Avaliable color:red yellow blue green RGB etc.
Low power consumption
Wide view angle
Long lifespan
Package:1000pcs/reel
ROHS Compliant
Application:
Ideal for backlight and indicator
Various colors and lens types available
Absolute Maximum rating:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 350 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 1000 | mW |
| Operationg temperature | Top | -40∼+85 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 700 | mA |
Electrical characteristics:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit | ||
| Min | Typ | Max | ||||
| Dominant wavelength | If=350mA | λd | 2800 | --- | 3200 | k |
| Forward voltage | If=350mA | Vf | 2.8 | --- | 3.4 | v |
| Luminous intensity | If=350mA | Iv | 100 | --- | 180 | lm |
| Viewing angle at 50% lv | If=350mA | 2θ1/2 | 120 | Deg | ||
| Resverse current | Vr=5v | Ir | 10 | mA | ||
Related Products
Certifications
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
