West Tune vacuum ovens are specially designed for degassing or purification of essential oil extracts. Using the technique of cold boiling, the oven works in a delicate ambient temp. heat atmosphere under reduced pressure conditions to expedite solvent degassing while perfectly preserving color, aroma, and overall solute quality. We've applied our extensive vacuum expertise and industry experience to produce a series of ovens designed exactly for your needs: low consumption, high-production, and easy operation.

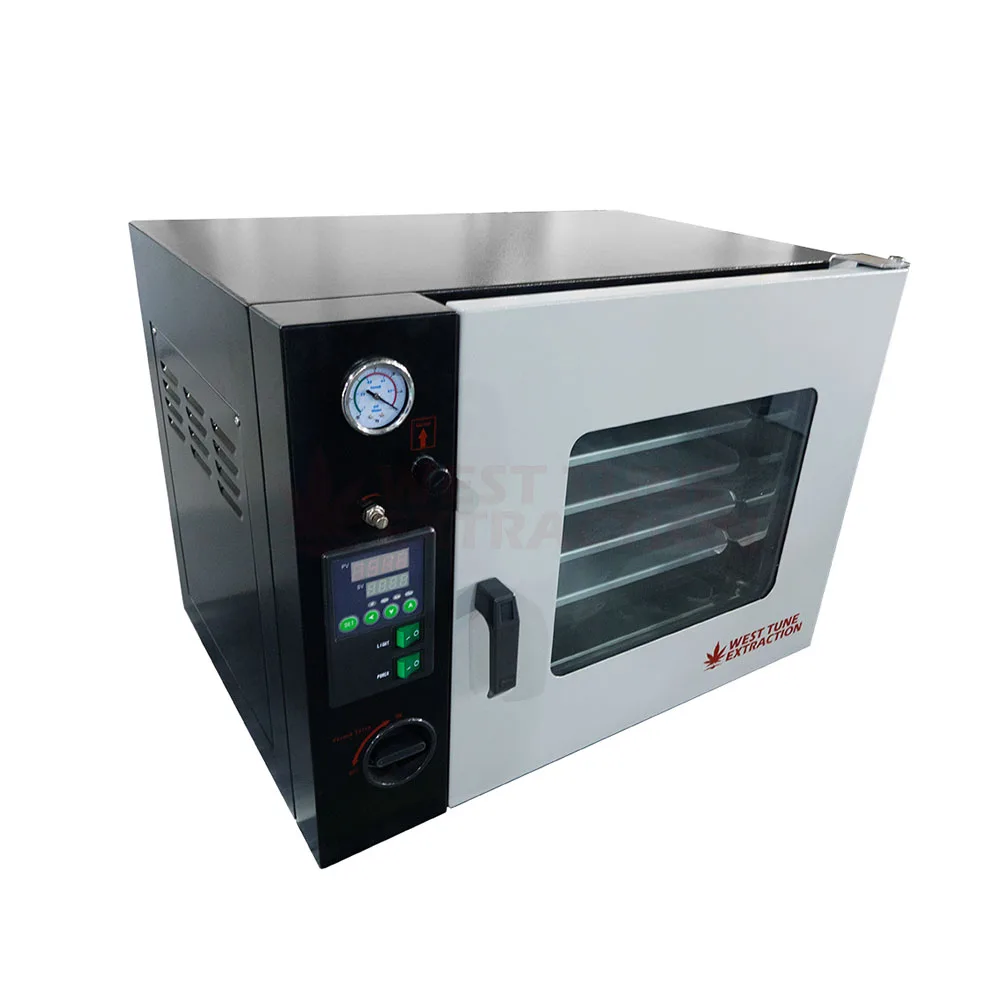

SPECIFICATIONS FOR 1.9CF VACUUM OVEN WITH 5 SHELVES
|
| Voltage | 110V/60Hz NEMA 5-15p cable |
| Power | 600W |
| Heating | 4 sides heating (left, right, top, bottom) |
| | RT+ 20~150 ℉ |
| Temperature Stability | ±1℉ |
| Dispaly type | LED |
| Display Resolution | 0.1℉ |
| Chamber Material | Stainless Steel |
| Chamber Dimensions (LxWxH) | 16.5" x 14.5" x 13.8" |
| Ultimate vacuum level | 0.039 in. Hg |
| Shelf qty | 5 removable aluminum shelves |
| Shelf Dimensions (LxW) | 16.4" x 14.4" |
| Shelf Capacity | 238 inches² |
| Lights | 2 strips of bright LEDs |
| Handle | Shock-resistant ABS plastic with metal parts |
| Dimensions (LxWxH) | 28" x 22" x 21" |
| Weight | 210 lbs |
| Electrical | Fused for protection |
| Over Heating Alarm System | Yes |
| Vacuum Port | KF25 connector |
| Gas Inlet Needle Valve | Metal adjustable valve on the panel
3/8'' connector on the back side of oven |
Main Features
- 4sides heating, distribute the heat uniformly under vacuum
- Temp stability reach to +/- 1 ℉
- Dual layer tempered glass door for clear observation
- High quality temperature PID controller, LED display
- Stainless steel working chamber
- Five removable aluminum shelves
- 110 Volt, 60 Hz, US standard plug
- Has been factory tested under vacuum for more than 24hr(English test report is available)

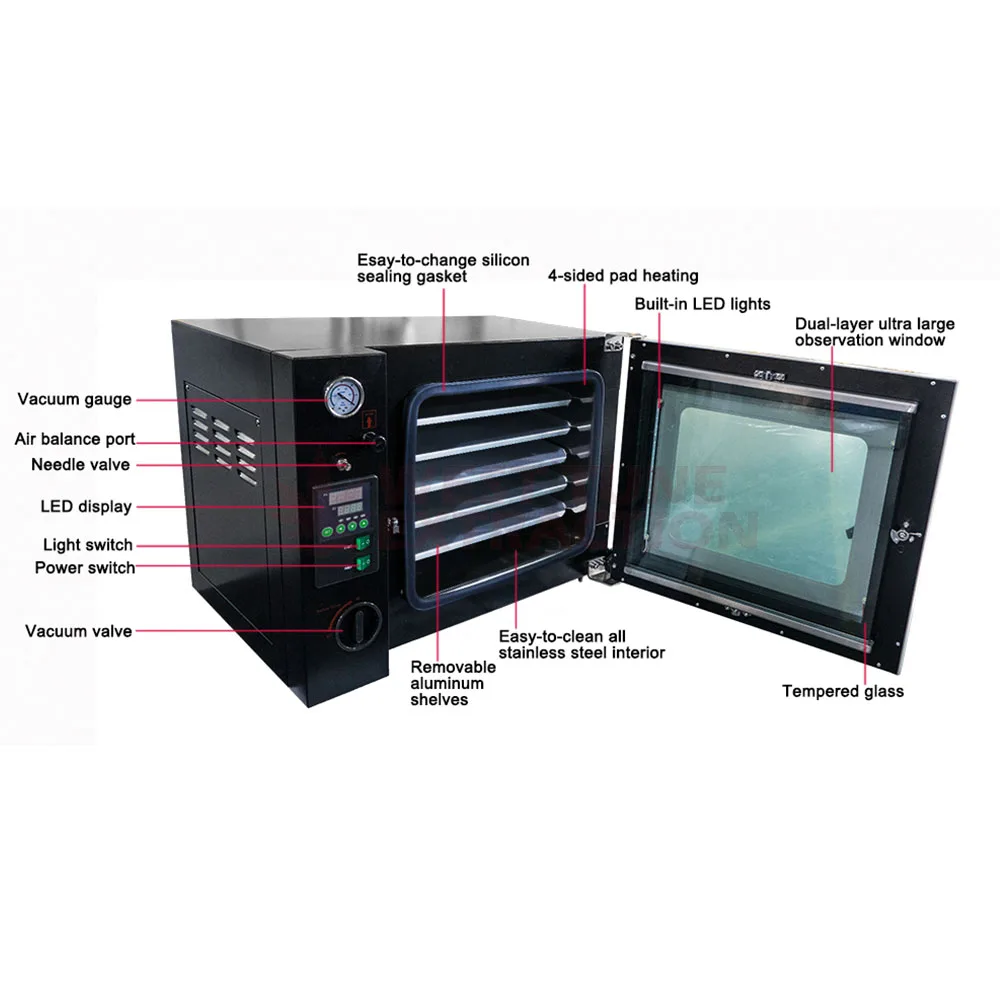

Detailed Images
Machine Parts
Name: Vacuum gauge
Stainless steel dual scale vacuum gauge with easy
Main Features
Name: Control Panel
a. Fine tuning metal knob design provides accurate gas inlet regulation
b. Stainless steel valve with silicone cap, which allows to release vacuum in seconds easily.
Machine Parts
Name: LED Display
P.I.D. controller with classical LED display, 0.1℉ resolution provides accuracy temperature adjustment and control.
Main Features
Name: Chamber
Chamber All stainless steel polished chamber, easy to clean.
Silicon sealing gasket,easy to change.
Main Features
Name: Removable Shelves
Fully removable shelves esay for dealing with the Teflon pappers. Shelves edges are entirely touched with the wall fixtures since heat cannot travel through a vacuum efficiently.
Main Features
Name: Bulit-in LED light
25w bright white LED lights presents fully degassing process perfectly.
