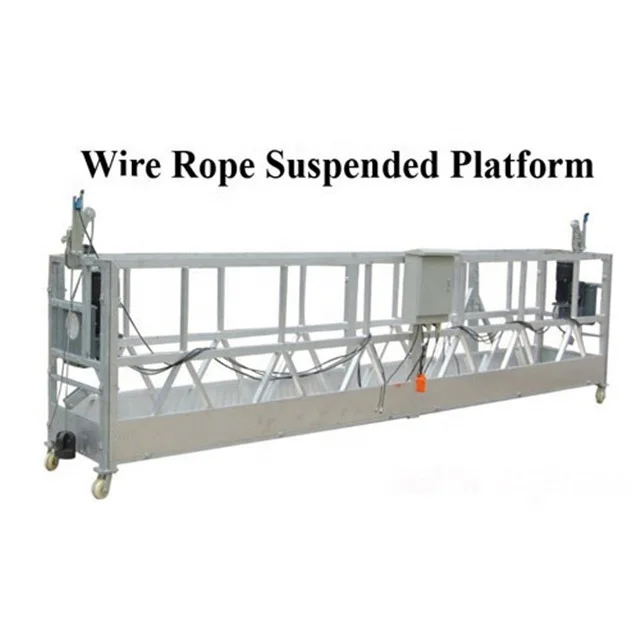

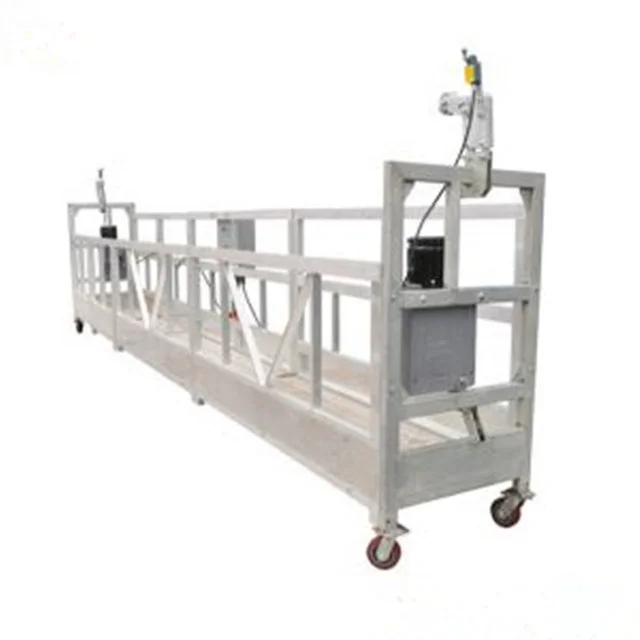

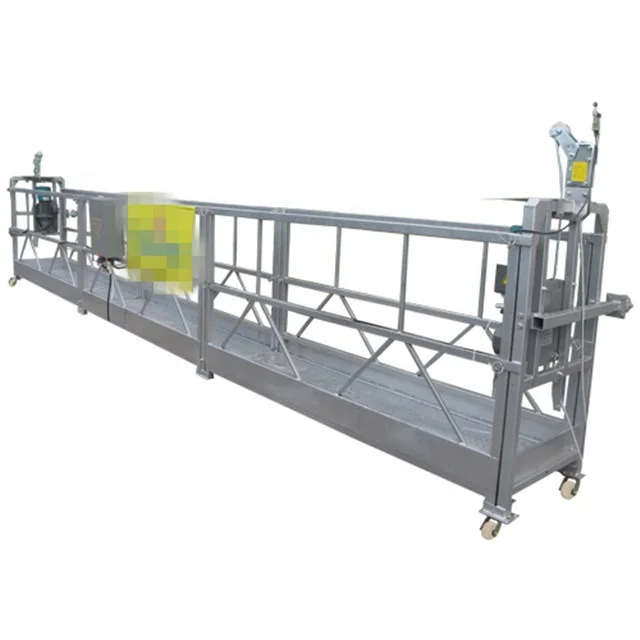

It is widely used in high-rise building construction, glass wall and curtain wall decoration, maintainence, window cleaning, painting, and so on. And it is also widely used in elevator installation, shipyard, big tank, bridge, embankment and chimney.
Model
ZLP150
ZLP300
ZLP500
ZLP630
ZLP800
ZLP1000
Material
Steel/Steel with Dipping Zinc/Aluminum Alloy
Height
100m
Rated load(kg)
150
300
500
630
800
1000
1000
Length of platform(m)
1.5
3
5
6
7.5
7.5
10
Safety lock type
LSG20
LSG20
LSG20
LSG20
LSG20
LSG20
LSG20
Hoist model
LTD6.3
LTD3.0
LTD5.0
LTD6.3
LTD8.0
LTD10.0
LTD10.0
Volume(m³)
1.6
2.3
2.9
3
3.2
3.3
3.5
Weight(kg)
800
1700
1650
1850
2000
2300
2400
20GP container(pcs)
12
10
9
8
8
7
6
Counter weight(kg)
25*16PCS
25*28PCS
25*30PCS
25*36PCS
25*40PCS
25*50PCS
25*60PCS
Diameter of steel rope(mm)
8.3
8.3
8.3
8.3
8.6
8.6/9.2
9.2
Voltage(v)
380
380
380
380
380
380
380

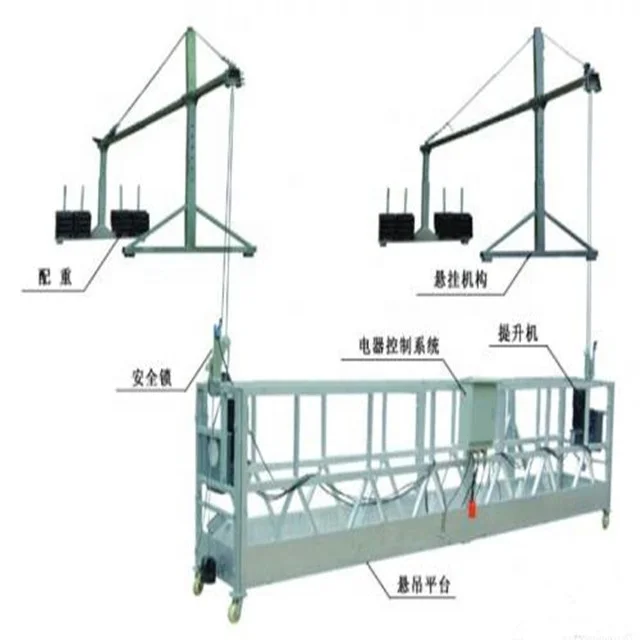

ZLP series high operation suspending part name and size:
Main Products
Main Parts of Suspended Platform:
1.Electric Control Cabine:
Electric Control Cabine
Electric control system consists of many protection devices, eg.auto-limited, electric leakage proof, overheat protection, sudden-stop, over-current protection, it is reliable and very easy to operate.
Electronic Control Cabine
Electronic Control Cabine
Electronic Control Cabine
2.Hoist:
Hoist Model
LTD6.3
LTD8.0 a& S Type
Adjusted Specification
ZLP150, ZLP300, ZLP500, ZLP630
ZLP800
Rated Lifting Load
6.3KN
8KN
Lifting Speed
9-11m/min
8-10m/min
Motor Power
1.5KW
1.8KW-2.2KW
Steel Wire Rope Dia
8.3mm
8.6mm
3.Safety Lock:
Safety Lock Model
LST20/LST30/LSG20
Adjusted Specification
All models
Allowable Compact Force
20KN-30KN
Adjusting Range of Rope Lock Angle
3°~8°
Rope Lock Distance
≤100mm
