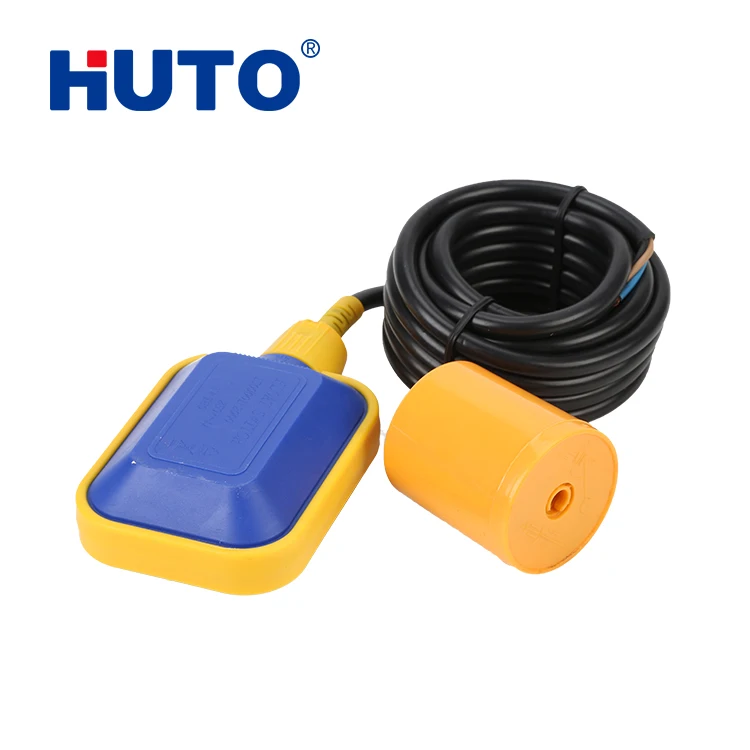

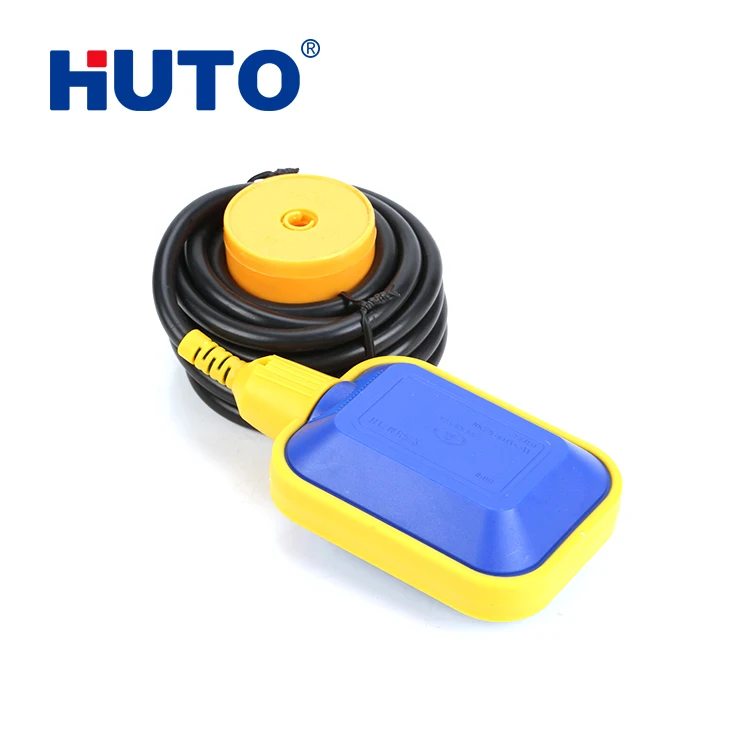

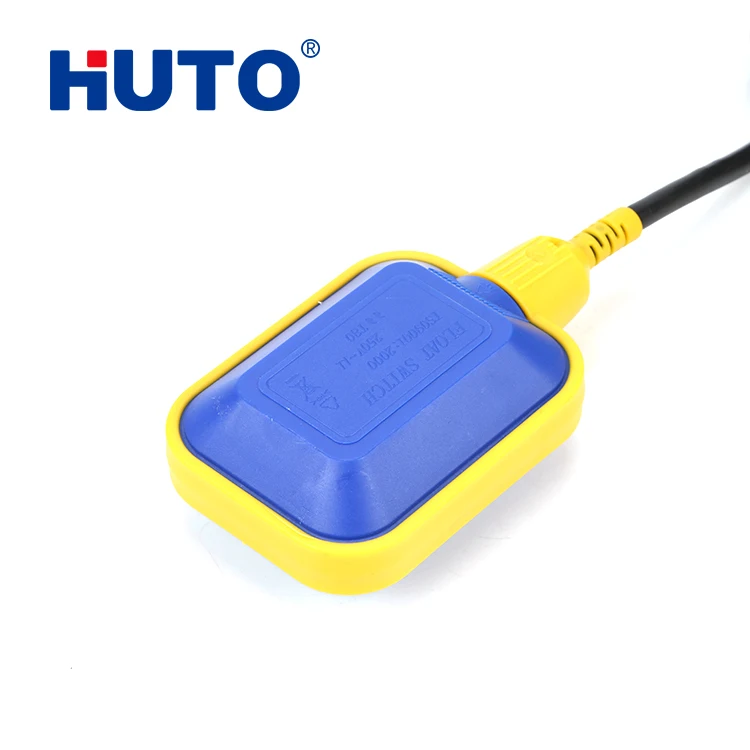

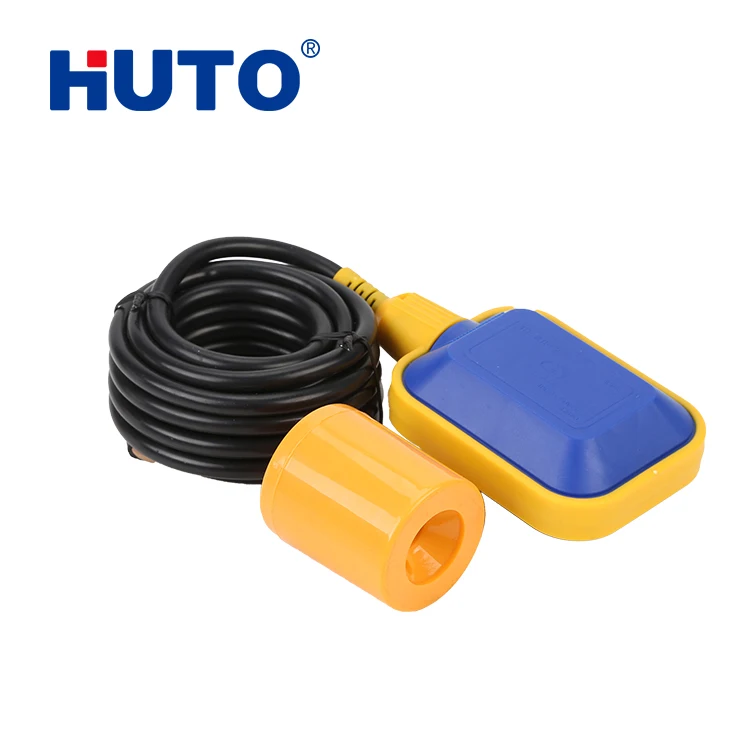

Stainless Steel Miniature 12V Electrical Mechanical Level Measurement Auto Mercury Floating Float Control Water Pump Switch

Product Overview

Description







production name :		float switch
production model :		HT-M15-2
rated voltage:		110VAC & 220V AC
rated current:		25A,16A,10A
temperature:		0℃~60℃
material of cable		pvc or rubber
measure of wire		0.5mm2, 0.75mm2,1.0mm2
shell of body		pp
rank of water pressrue		0.2MP



Production detail:



level regulator is a float switch to control the water pump, valve or alarm.

        Applied to various kinds of liquid (non-corrosive , sewage water, tank, )

Non-toxic polypropylene(PP) float body and pvc or rubber cable, particular design for sealing,

Silver point micro switch. Heavy sinker. max 0.2mp water pressure ,no any leakage.
