1000 Ton Four Column Hydraulic Deep Drawing Press for Metal Sheet Meta Deep Drawing Punching Stamping Machine Size 2000 Kn 22 Kw

Product Overview

Description

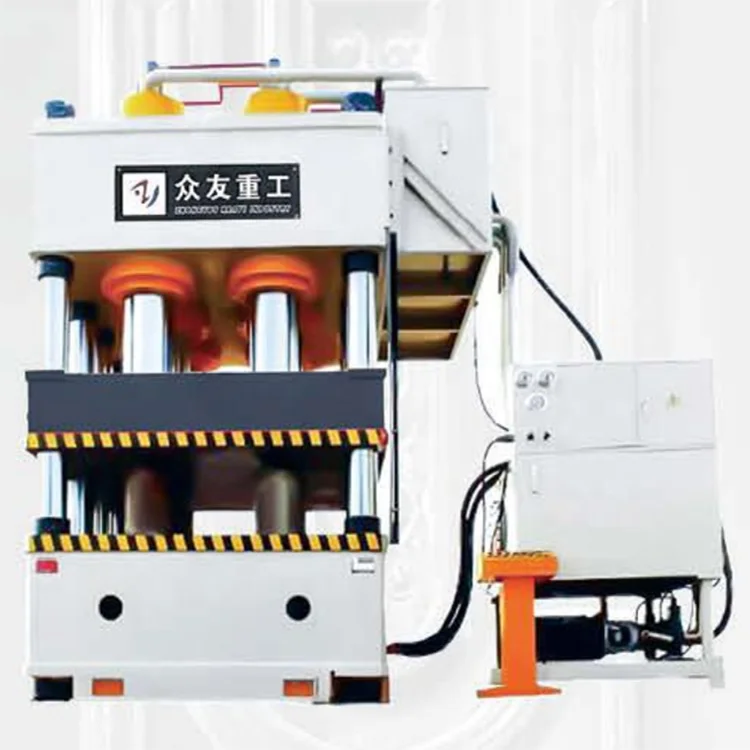

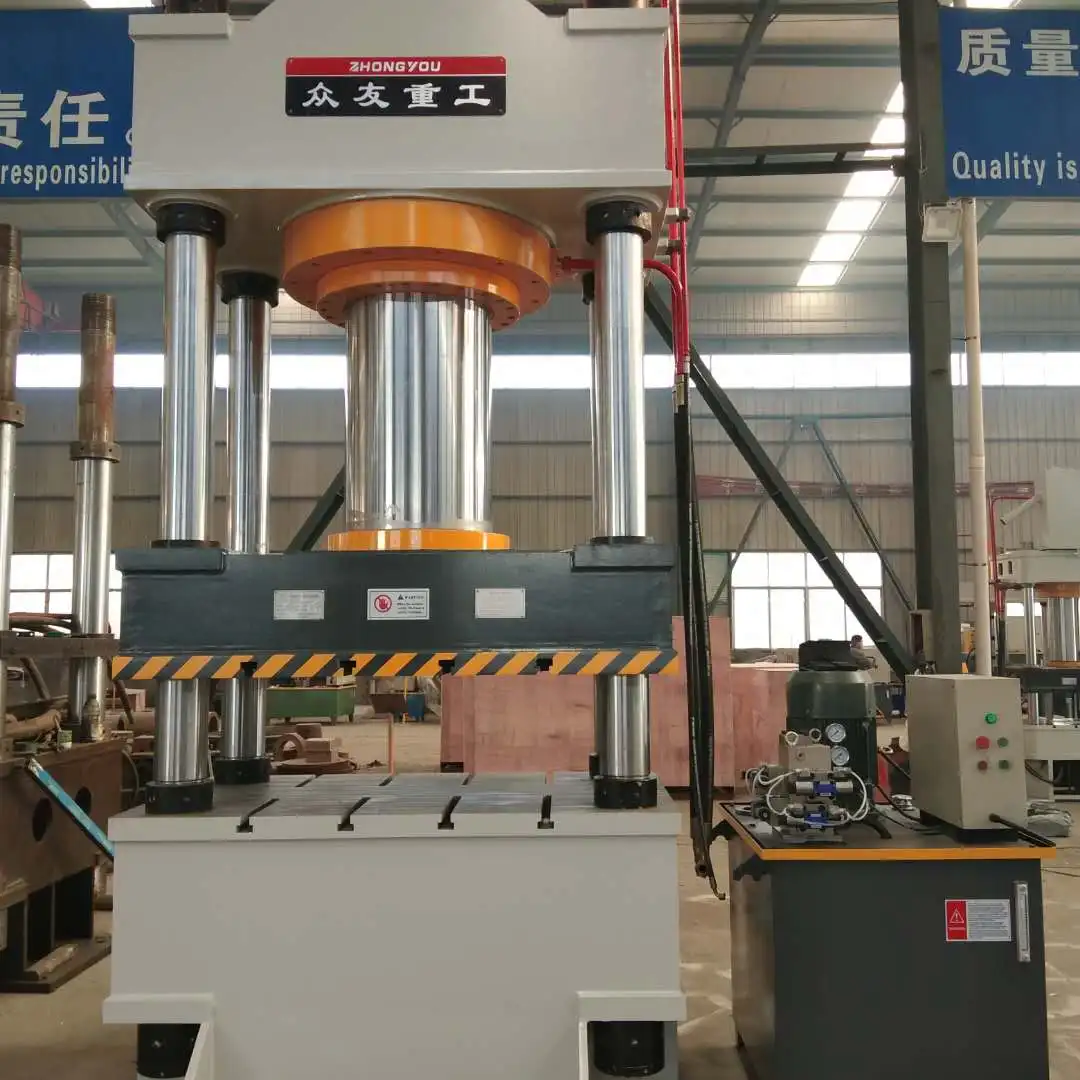

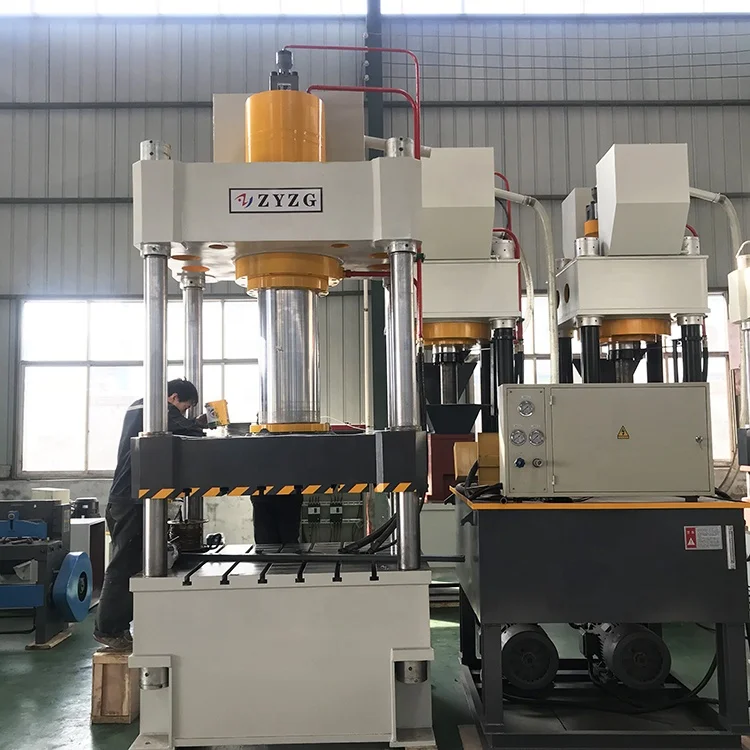

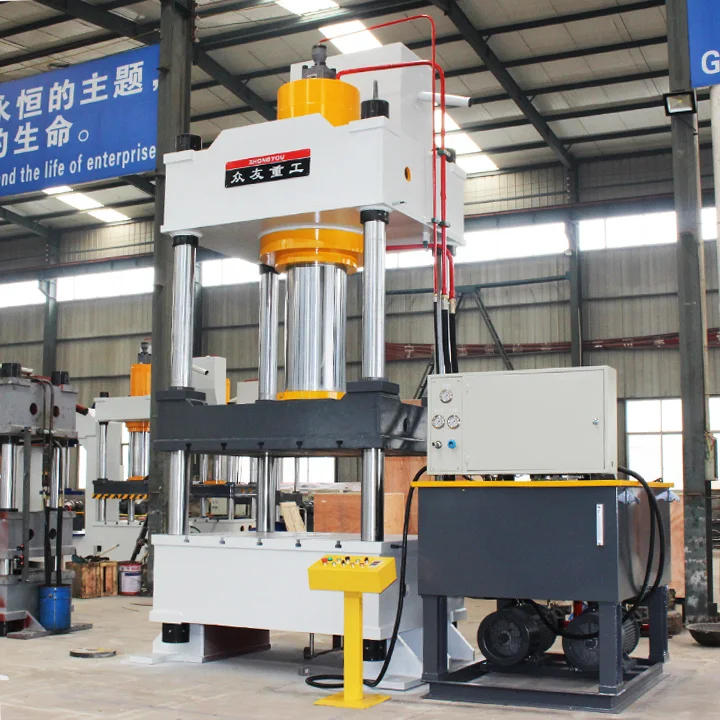

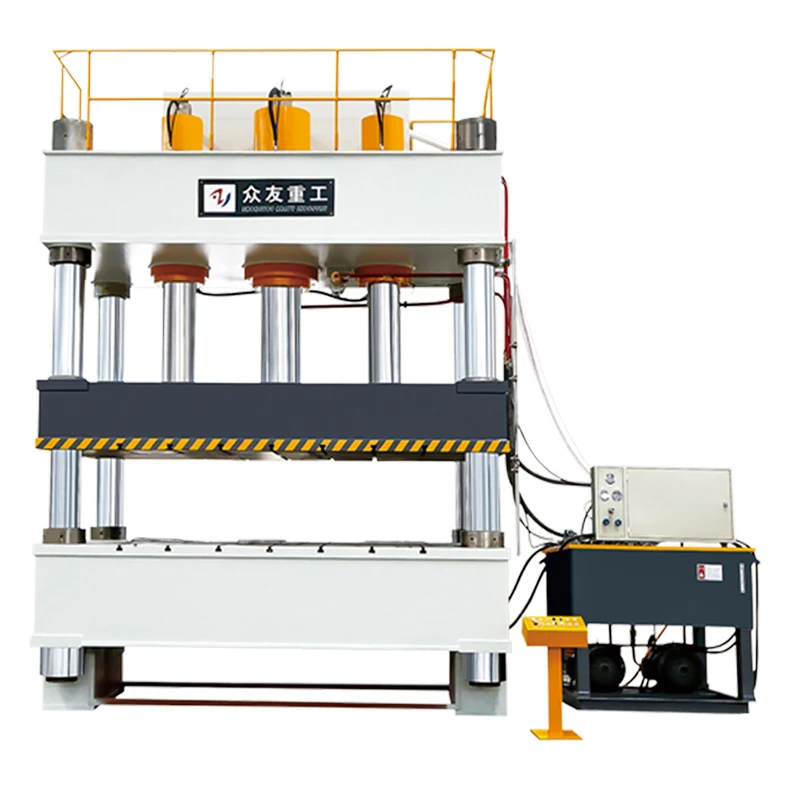

1000 ton four column hydraulic deep drawing press for metal sheet



1000ton four-column hydraulic press machine is a general-purpose hydraulic press, also known as universal hydraulic press. This series of products is mainly suitable for various stamping processes such as stretching, bending, flanging, punching and cold extrusion of metal materials, and is also suitable for calibration. Press-fit, powder products, press-forming of abrasive products, and press forming of plastic products and insulating materials.



Product features

1.The three-beam four-column structure is economical and practical.

2. The hydraulic control adopts an integrated cartridge valve integrated system, which reduces leakage points, ensures reliable operation and long service life.

3. The machine can realize two molding processes of constant pressure and fixed stroke, and has the function of holding pressure delay, and the delay time is adjustable.

4. The working pressure and stroke can be adjusted within the specified range.

5. It adopts button centralized control and has three operation modes: adjustment, manual and semi-automatic



 1000 ton hydraulic press optional accessories

1. Mobile workbench
2. Blanking buffer device;
3 photoelectric protection device;
4. Travel, pressure, speed digital display, numerical control device;
5. Touch industrial display;
6. Hydraulic system heating and cooling device;
7. The feeding device;
8. Slide safety plugs;
9. mold heating and temperature control device;
10. PLC programmable controller.



Product parameters

Specification	Unit	YQ32-630	YQ32-800	YQ32-1000	YQ32-1250	YQ32-1600	YQ32-2000
Nominal force	Kn	6300	8000	10000	12500	16000	20000
Max pressure of hydraulic system	Mpa	25	25	25	25	25	25
Max. Opening height	mm	1500	1800	1600	1600	1800	1800
Slider effective stroke	mm	900	1000	900	900	1000	1000
Working table size	mm	1600*1600	1500*1500	1500*1500	1800*1600	1600*1600	2000*1800
Nominal force of Ejection cylinder	Kn	1000	1000	1000	1000	1600	2000
Ejection stroke	mm	300	350	350	350	350	350
Slider working speed (empty travel)	Mm/s	150	150	160	160	160	200
Slider working speed   (press)	Mm/s	10-22	10-20	10-20	10-20	10-20	10-20
Slider working speed   (Return stroke)	Mm/s	120	120	140	140	140	180

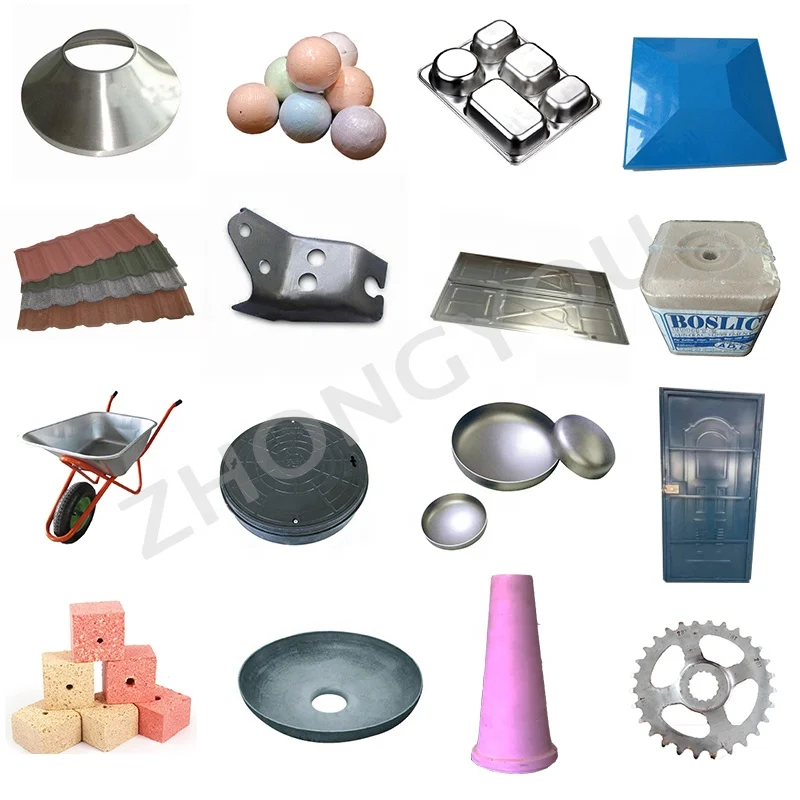

 1. Metal Sheet Deep Drawing

Water tank, wheelbarrow, kitchen sink, stainless steel pot, etc

2. Metal/Carton package Stamping

Metal roof tile,washer etc

3. Sheet metal /Aluminum Embossing

Car body, door skin etc

4. Sheet bending and cutting

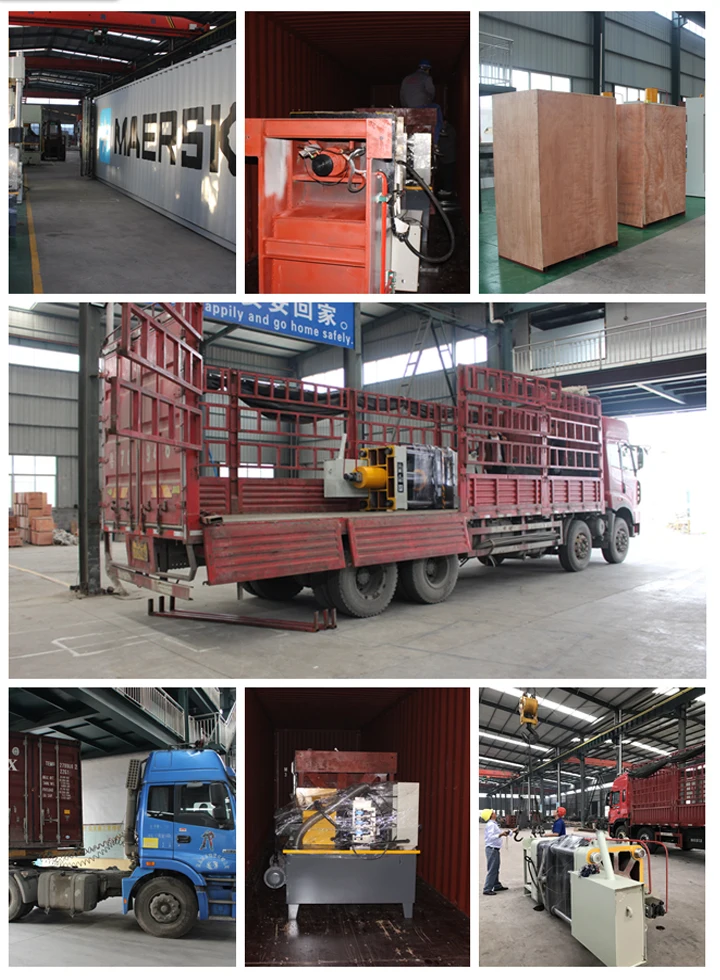

Packaging Details
Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.
Delivery Time for High Speed Four Column Hydraulic Press Machine for Oil Filter:
Shipped in 30 days after payment



Pre-sales Service

1. Inquiry and consulting support
2. Sample testing support
3. Recommend the most suitable machine according to customer's purpose
4. Factory visiting welcomed

After-sales Service
1. Training how to install the machine
2. Training how to use the machine
3. Warranty 1 year
4. Engineers available to service machinery oversea

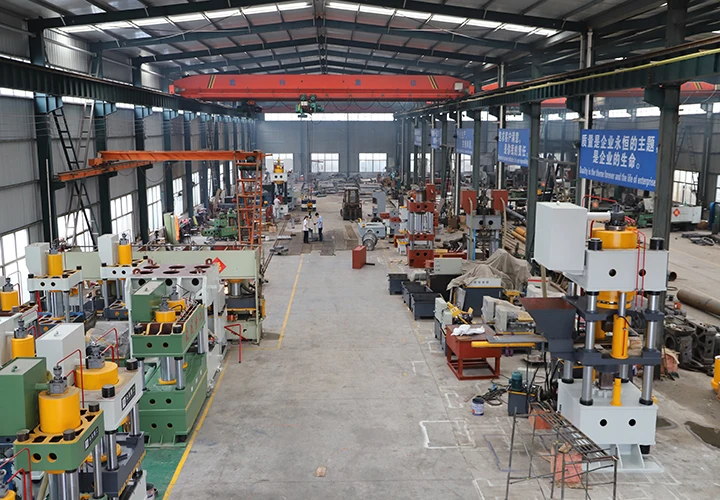

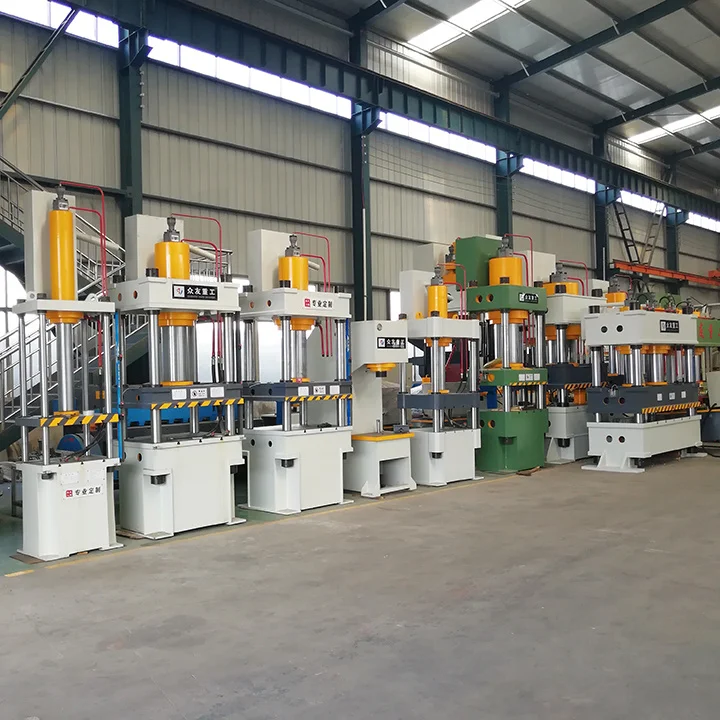

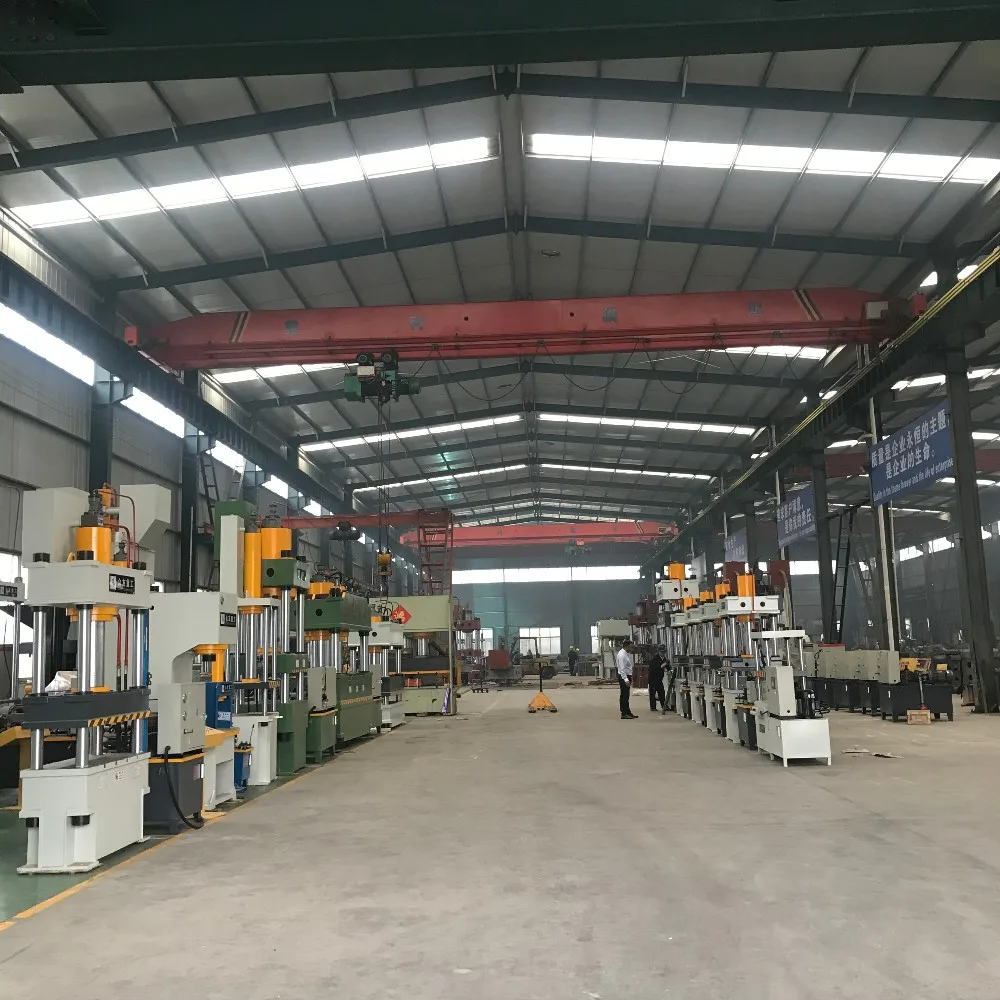

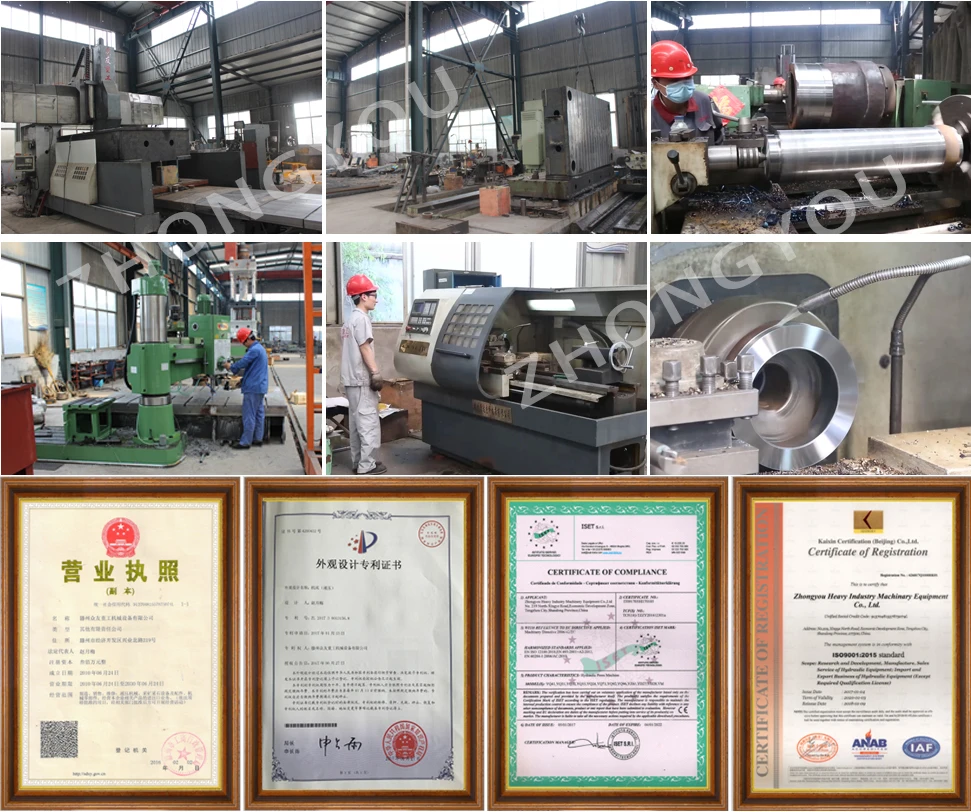

Our company is located in Tengzhou City, Shandong Province, China.A domestic leading hydraulic machine production of the Holy Land.Completely dependent on first-class production process,stand out  from a large number of hydraulic machine manufacturers .Over the years, widely praised by customers at home and abroad.  We have a number of innovative patents,because more than ten years to concentrate on only hydraulic press forklift tire press machine,in the small and medium enterprises has been the leader of the brand.







1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .



2: What's your main products of your company?
A: We specialized in hydraulic press Machine .we mainly  produces various hydraulic presses forging press and auto maintenance equipment  with  advanced technology  and equipment.



3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.



4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.



5: What's the Payment Terms ?

A : T/T ,50% initial payment when order ,50% balance payment before shipment ;Irrevocable LC at sight .
