Mini Steam Engine Powered Electric Generator For Essential Oil Distillation
Product Description
Electric Steam Generator Introduction
For steam distillation or water-steam distillation of essential oil, stable and enough steam is very important for the essential oil quality. Therefore, electric steam generator will be a necessary ancillary equipment for 200-500L essential oil machine.
According to your need and budget, we can customize for you. Our electric steam generator can also be used in food, hotel, sanna room, kitchen,brewhouse, etc.
Feature of Electric Boiler
Equipped with digital temperature controller,which can accurately control the temperature of the steam generator.
Compact structure, easy to install, operate and maintain.
Adopt seamless steel tube material, through X ray test for safety operation.
High efficient: 86% efficient reduce fuel cost.

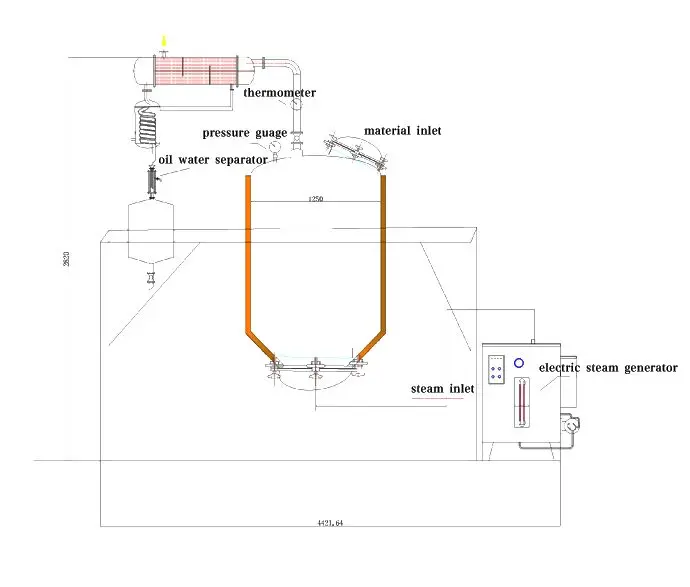

How Does Electric Steam Generator Work With Essential Oil Distiller
Technical Parameter
Parameter of Steam Generator
Model
XZN-ESG12
XZN-ESG24
XZN-ESG36
XZN-ESG48
XZN-ESG60
Power(kw)
12
24
36
48
60
Rated Working Pressure(MPA)
0.7
0.7
0.7
0.7
0.7
Steam Capacity(51kg/h)
16
32
50
65
84
Steam Temperature(℃)
171
171
171
171
171
Voltage(V)
220/380
380
380
380
380
Dimension(mm)
750*480*950
785*660*950
740*570*1440
785*660*950
1000*600*1600
• Area:2m2
• Person:1 person
• Electric Power:12kw
>>The main spare parts for three year,others for 1 year.
>>5% money will be as guarantee fund for quality.Paid once finished all installation and working normally.
>>We could send the spare parts to you by courier.
>>We could make the guiding pictures and videos to you for solution.
>>We could arrange technologists to help on site.
>>We could arrange to visit the most advanced local factory for communication and learning.
>>We could make the design for your warehouse building for free.
>>We will share the advanced production technology for free.
⇒⌈FAQ⌋
♦ What does we need from you to quote a price?
– Raw material.
– Production capacity per batch.
♦ What is the oil yield?
– The oil yield depends on oil content of your material.If the oil content of your material is high,you can get more essential oil.
♦ Can I use the machine to extract several kinds of raw materials?
– Yes,of course.
♦ Can I do extraction test with my own raw material?
– Yes,of course.We can do extraction test and send you videos and test report for your Reference.
♦ What heating way does your machine support?
– Electricity/gas/wood heating.
♦ What is your material of your machine?
– Stainless steel(Standard type is SUS304,it can be customized according to your request).
Related Products
Related Product Of Lemongrass Essential Oil Distillation Plant
Company Information
NONGLE brand,essential oil distillation machine,famous,advanced and with top quality in China.We had specialized in essential oil extracting technology and equipment for more than 20 years,serviced for thousands of customers all over the world.
We are so happy to supply the total solution for your project.
