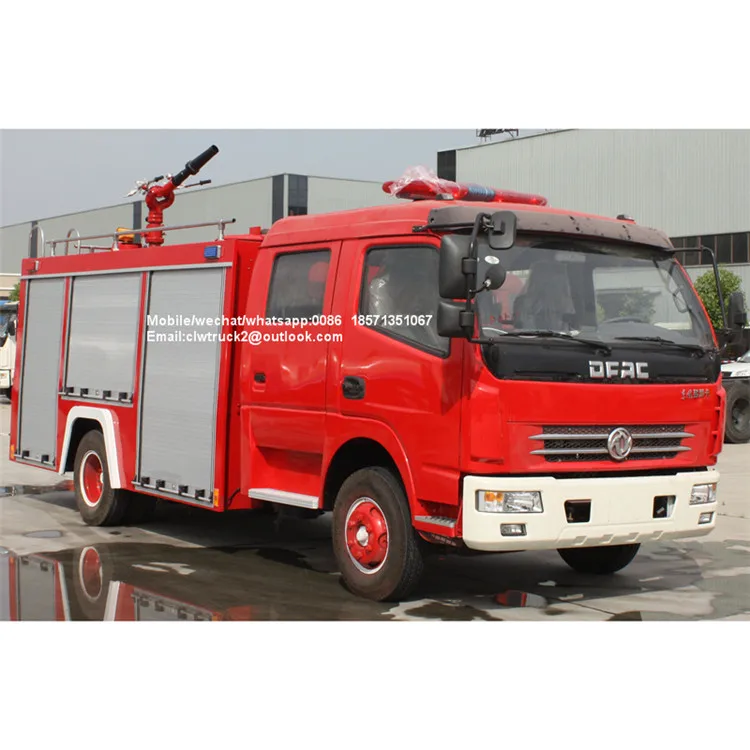

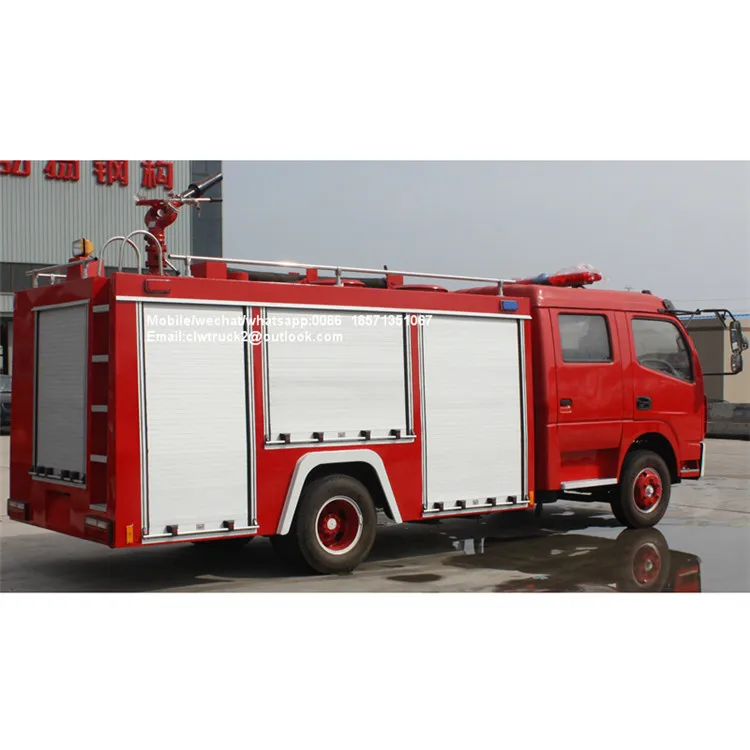

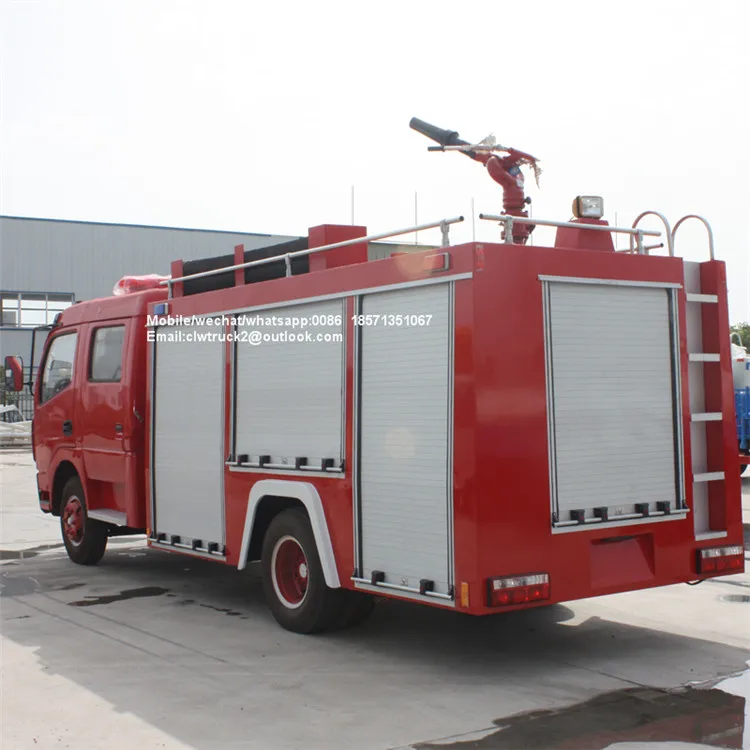

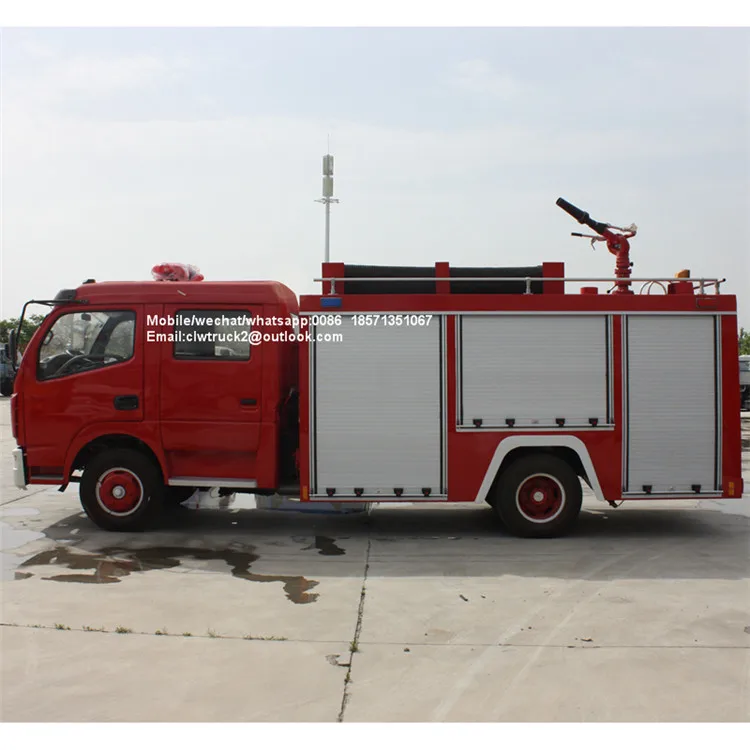

DongFeng 4*2 airport fire truck/standard fire truck dimensions/fire truck specifications
Truck parameters
1.Chassis
| Chassis model | DFA1080DJ35D5 |
| Drive Type | 4x2 |
| Whelbase | 3300mm |
| Top Speed | 95km/h |
| Engine Type | YN33CRD2(diesel)(Euro 4) |
| Power | 75KW |
2.Driving room
| Size(L*w*H) | 7000*2500*3550 |
| Structure | Flat head, four door double row cab |
| Seat set | 3+2(Two people in the front row (including the driver) and three in the back) |
| Equipment | In addition to the original vehicle equipment, it is equipped with 100W alarm, rotary warning light switch, lever control switch and indicator light |
3.Volume of tank
| Volume | water:5000L |
| Material | High quality carbon steel plate |
| Structure | Steel plate welded type, internal anti - swash plate |
| Equipment | 1 population hole, with a quick locking and opening device 1 overflow device 1 level indicator 2 outlet, manual control valve |
| Technical requirements | Comply with the relevant provisions of GA39 |
4.Fire pump
| Model | CB10/20 |
| Flow | 20L/s |
| pressure | 1.0Mpa |
| Water diversion time | ≤20s |
| Type of installation | rear-mounted |
5.fire monitor
| Model | PS20 |
| Flow | 20L/s |
| Range | more than 48m. |
| pressure | 1.0Mpa |
| Turning Angle | The level is greater than 270 degrees, and the pitch is -15 to 45 degrees. |
Brief introduction
Fire truck is also called as the fire fighting truck and fire engine. It is used to fight fire or for other emergency rescuing specially.
For functions, it is divided into several kinds, including Pump truck, Ladder truck, and other trucks with some special equipment.
The fire truck is usually kept in fire bureau, and is driven to the accident location by the fire fighter. Most fire trucks are painted in red, but still some rare places that is painted in yellow. The siren is usually taken as the standard device for the truck.
Optional driven system for sweeping trucks: 4x2, 4x4,6x4, 6x6, LHD or RHD.
We also can design all kinds road fire trucks according to your requirements, pls contact us directly by Mobile/wechat/whatsapp:0086 18571351067
