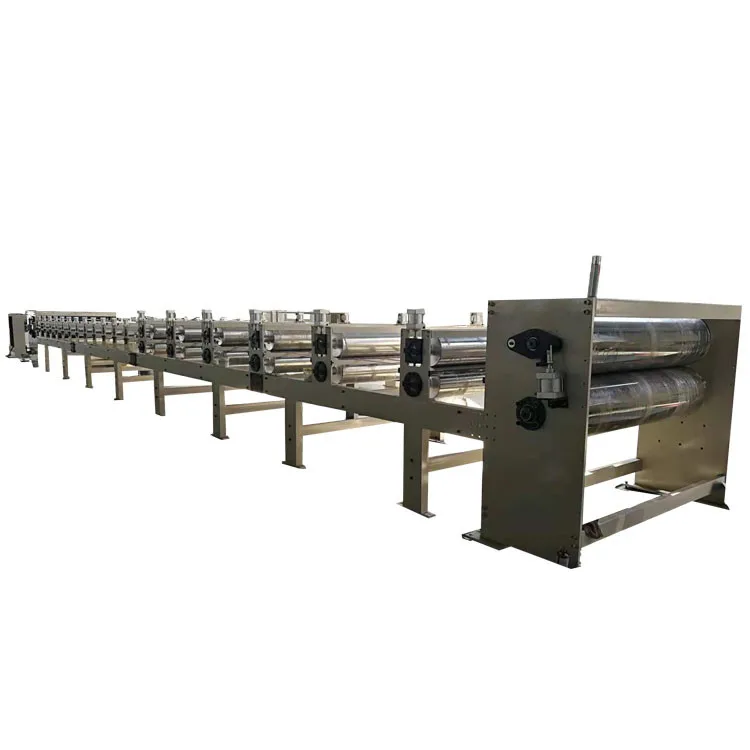

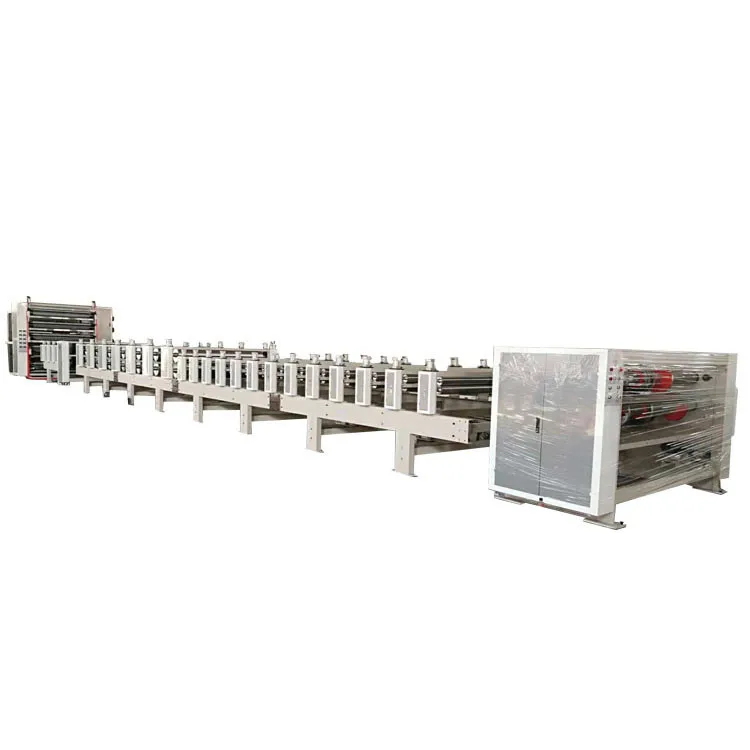

Best discount 3ply automatic corrugated carton box making machine Corrugated cardboard production line
- Category: >>>
- Supplier: Cangzhou Wan Song Roller Co. Ltd.
Share on (62034806440):
Product Overview
Description
Product Description

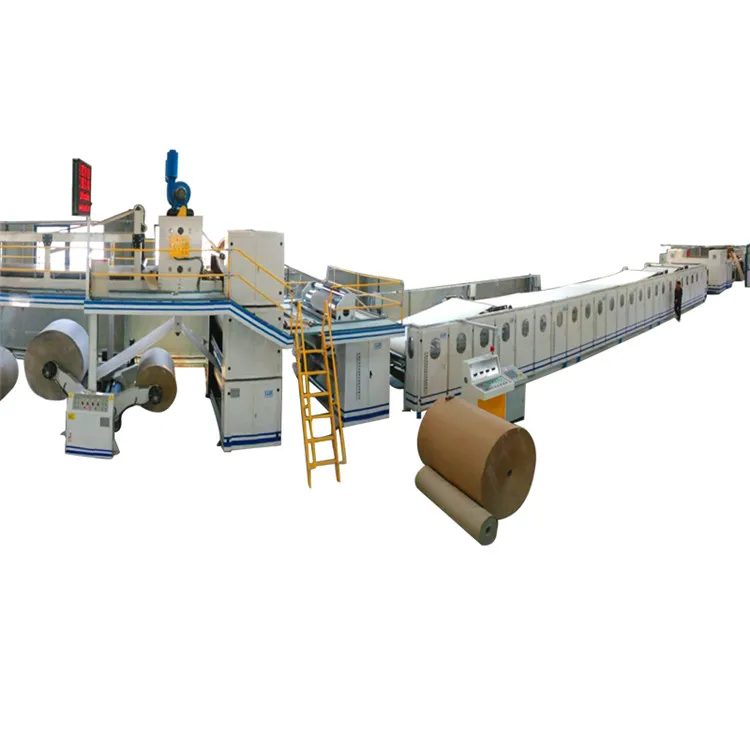

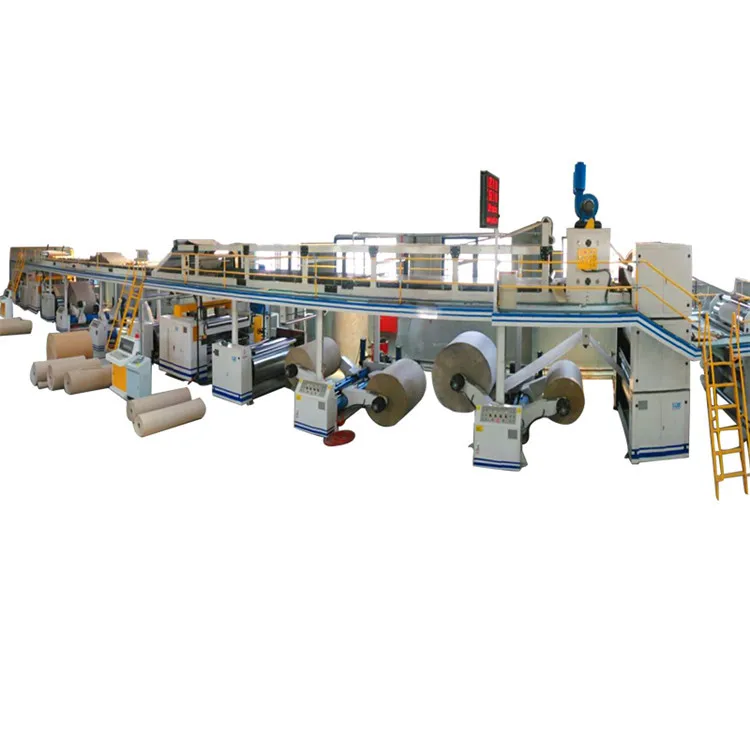

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .The production line consists of the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer machine ,Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System ,Air compression system and Glue Making System and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.
Please contact us for the full version of video.
| No. | Name | Sets | Comment |
| 1 | Mill roll stand | Electric mill roll stand , expansion dop top, pneumatioc brake | |
| 2 | Single facer | vac-sorb,φ320 alloy roller ,cardan drive | |
| 3 | Feeding paper bridge | Electric adjust deviation,adsorb tension | |
| 4 | Second gluing machine | Conversion synchronous control | |
| 5 | Triply pre-heater | φ 800,electric wrap angle (including qualification certificate ) | |
| 6 | pre-heater | φ 800,land type electric wrap angle (including qualification certificate ) | |
| 7 | Dry formed part | 520mm×18 pieces hot plate ,adopt Adopt up and down intensive roller(including qualification certificate ) | |
| 8 |
Heat formed part | Adopt up and down intensive roller ,length 8m | |
| 9 | Feeding paper belt | High quality carton belt , electric promote | |
| 10 | Thin blade slitter scorer machine | 5 blade 8 line , electric Correct error , alloy blade | |
| 11 | Corss cutter | Computer control cutting cardboard length 500-9999mm; cutting cardboard precision ±1mm | |
| 12 | Main drive | Main power 25KW | |
| 13 | Make paste system | Barrel type ,electric stir circulate glue design | |
| 14 | Stand feeding paper car | Include slipping way | |
| 15 | Pump | Electric aeration | |
| 16 | Electric system | One Operate cabinet ,one sinlge facer 1 main drive | |
| 17 | Steam system | Not including heat source and pipe | |
| 18 | Gantry stacker | Belt drive type |

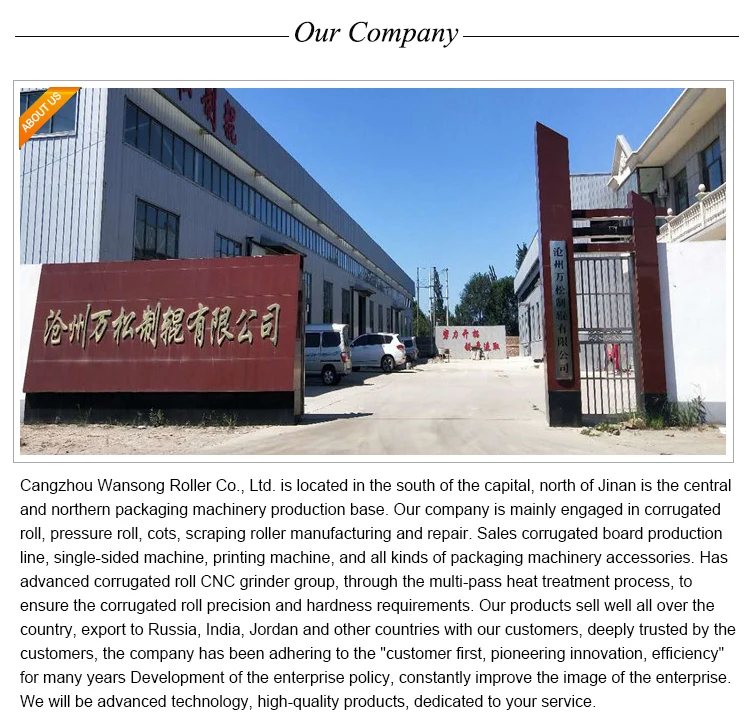

Company Information
Packaging & Shipping
Our Services
FAQ
1. Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, industrial area Dongguang county, Hebei province, China. Warmly welcome to visit our company.
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
2) To solve the problems with videos/pictures.
3) One year warranty for spare parts change.
