Product Overview
Description
Products Description

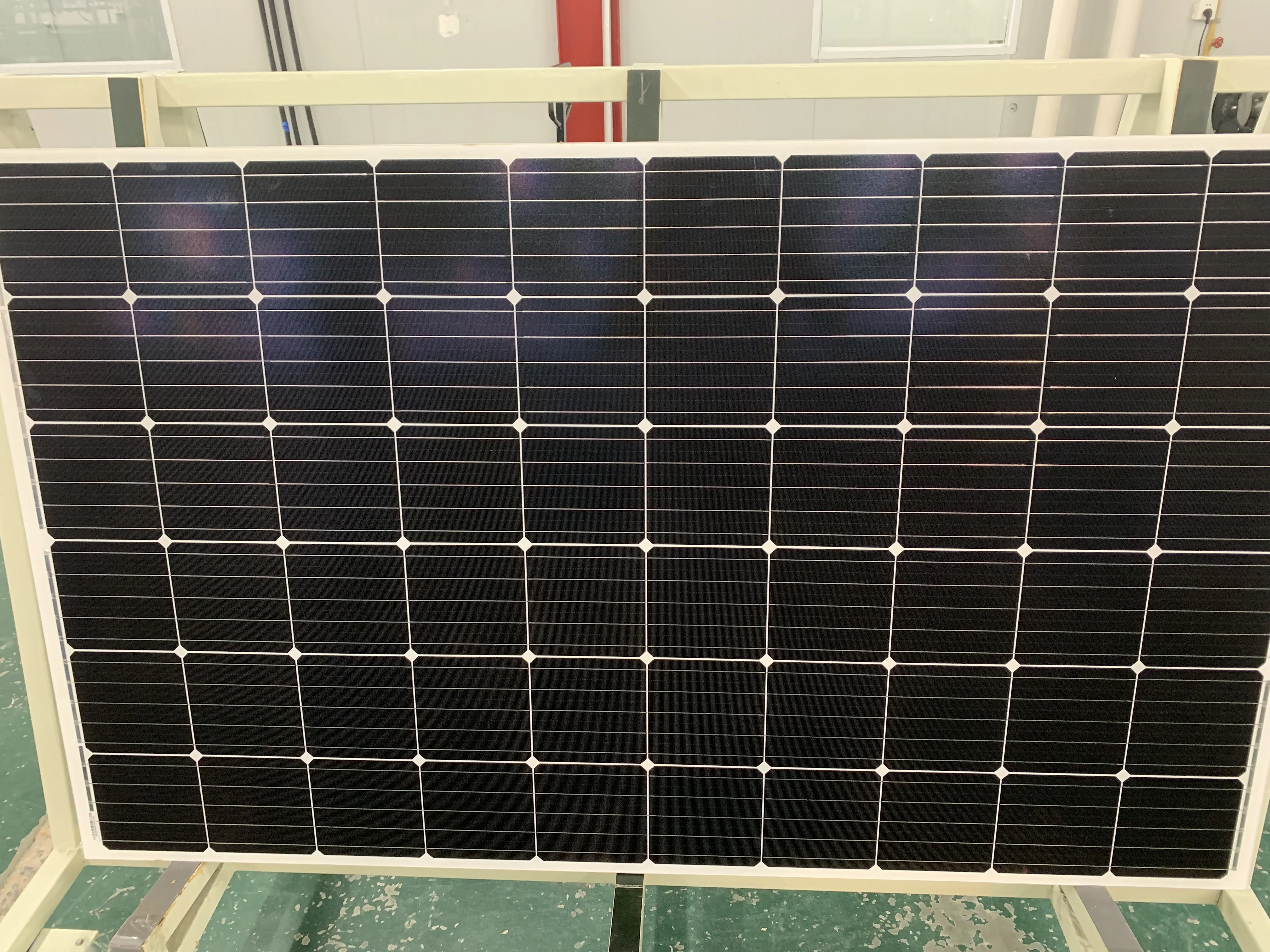

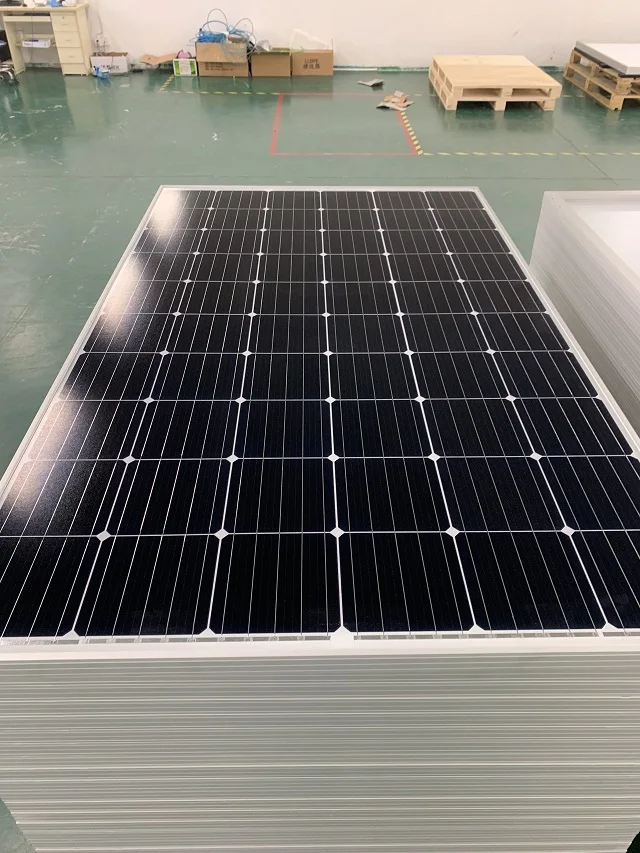

GK60M
MONOCRYSTALLINE MODULE
Passionately
committed to
delivering innovative
energy solution
ADVANCED PERFORMANCE & PROVEN ADVANTAGES
1. High module conversion efficiency up to 19.85% by using Passivated Emmiter Rear
Contact (PERC) technology.
2. Low degradation and excellent performance under high temperature and low light
conditions.
3. Robust aluminum frame ensures the modules to withstand wind loads up to 2400Pa
and snow loads up to 5400Pa.
4. High reliability against extreme environmental conditions (passing salt mist,
ammonia and hail tests).
5. Potential induced degradation (PID) resistance.
6. Positive power tolerance of 0 ~ +3 %.
CERTIFICATIONS
1.IEC61215, IEC61730, IEC62716, IEC61701, CE, CQC, CGC, ETL(USA),
JET(Japan), J-PEC(Japan), Kemco(South Korea), KS(South Korea), MCS(UK),
CEC(Australia), FSEC(FL-USA), CSI Eligible(CA-USA), Israel Electric(Israel),
InMetro(Brazil), TSE(Turkey)
2. ISO9001:2008: Quality management system
3. ISO14001:2004: Environmental management system
4. OHSAS18001:2007: Occupational health and safety management system
SPECIAL WARRANTY
1. 12 years limited product warranty.
2. Limited linear power warranty: 12 years 91.2% of the nominal power output,
30 years 80.6% of the nominal power output.
ECTRICAL ELECTRICAL CHARACTERISTICS CHARACTERISTICS AT STC | ||||||||||||||
Nominal Power (Pmax) | 290W | 295W | 300W | 305W | 310W | 315W | 320W | |||||||
Open Circuit Voltage (VOC) | 39.2V | 39.4V | 39.6V | 39.8V | 40.0V | 40.2V | 40.4V | |||||||
Short Circuit Current (ISC) | 9.54A | 9.62A | 9.70A | 9.79A | 9.88A | 9.97A | 10.1A | |||||||
Voltage at Nominal Power (Vmp) | 32.0V | 32.2V | 32.4V | 32.6V | 32.8V | 33.0V | 33.2V | |||||||
Current at Nominal Power (Imp) | 9.06A | 9.17A | 9.26A | 9.36A | 9.46A | 9.55A | 9.64A | |||||||
Module Efficiency (%) | 17.83 | 18.13 | 18.44 | 18.75 | 19.05 | 19.36 | 19.67 | |||||||
Operating Temperature | -40°C to +85°C | |||||||||||||
Maximum System Voltage | 1000V DC | |||||||||||||
Fire Resistance Rating | Type 1(in accordance with UL1703)/Class C(IEC61730) | |||||||||||||
Maximum Series Fuse Rating | 15A | |||||||||||||
MECHANICAL CHARACTERISTICS | ||||||||
Monocrystalline PERC 156x156mm (6x6inches)Cell type | Monocrystalline PERC 156.75x156.75mm (6x6inches) | |||||||
Number of cells | 60 (6x10) | |||||||
Module dimensions | 1640x992x40mm (64.57x39.06x1.57inches) | |||||||
Weight | 18.5kg (40.8lbs) | |||||||
Front cover | 3.2mm (0.13inches) tempered glass with AR coating | |||||||
Frame | Anodized aluminum alloy | |||||||
Junction box | IP67, 3 diodes | |||||||
Cable | 4mm2(0.006inches2), 900mm (35.43inches) | |||||||
Connector | MC4 or MC4 compatible | |||||||
TEMPERATURE CHARACTERISTICS | ||||||||
Nominal Operating Cell Temperature (NOCT) | 45°C±2°C | |||||||
Temperature Coefficients of Pmax | -0.39%/°C | |||||||
Temperature Coefficients of VOC | -0.29%/°C | |||||||
Temperature Coefficients of ISC | 0.052%/°C | |||||||
ENGINEERING DRAWINGS
IV CURVES
Current-Voltage and Power-Voltage Curves at Different Irradiances
Current-Voltage Curves at Different Temperatures
Conatiner(60 cells) | 20GP | 40GP | 40HQ |
Pcs/Pallet | 30 | 30 | 30 |
Pallets/Container | 14 | 28 | 28 |
Pcs/Container | 400 | 840 | 924 |
Conatiner(72 cells) | 20GP | 40GP | 40HQ |
Pcs/Pallet | 26 | 26 | 26 |
Pallets/Container | 12 | 24 | 24 |
Pcs/Container | 292 | 608 | 658 |
Solar panel

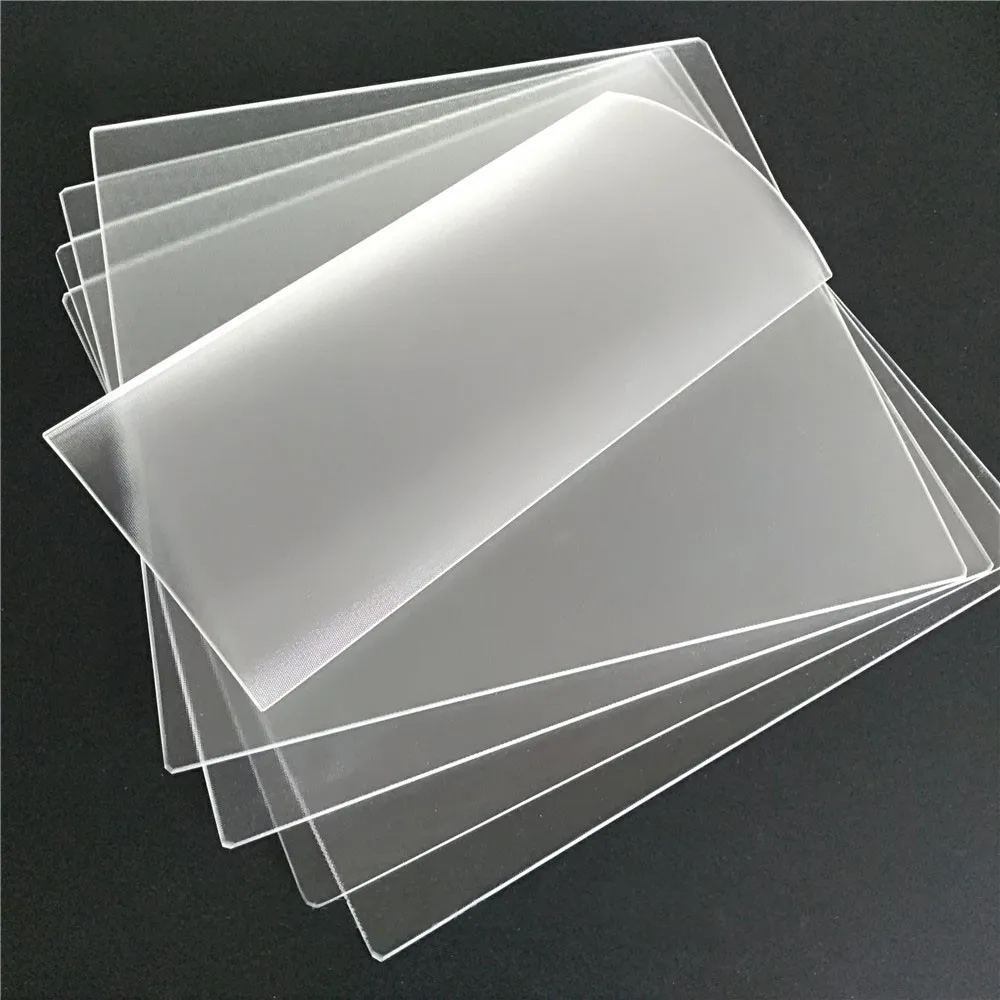

Glass
Low iron high transmittance
Ultra clear textured
Thermal stability
High strength
High flatness
Solar cell
High efficiency 17-19% 5BB solar cells
Bypass diode minimizes the power drop by shade
Strict check of hot-spot , avoiding loss of efficiency and reliability.
Lower LID

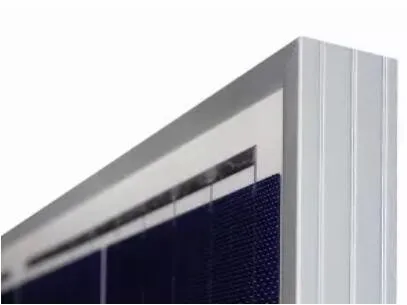

Frame
Aluminum frame
Good machinability
Excellent for welding
Above average corrosion resistance
Resistant to stress cracking and non-magnetic.

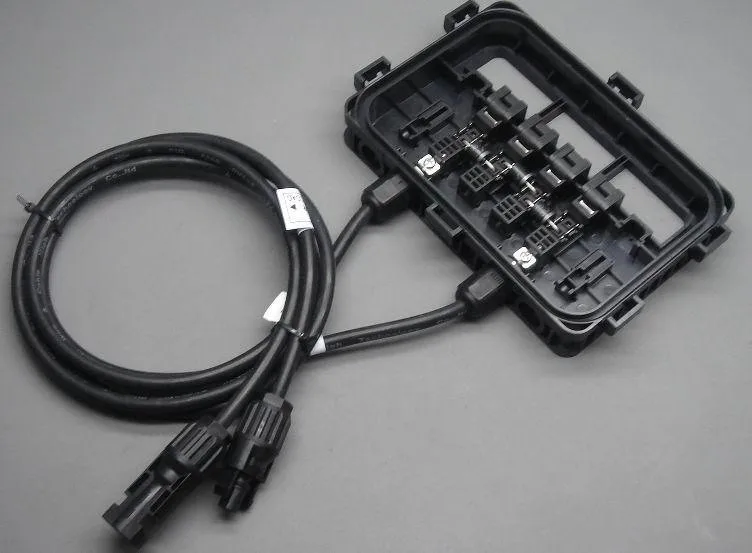

Junction box
IP65 protection level
Alloy shell, high mechanical strength, impact resistance
Shell surface temperature electrostatic spray, anti-static ability, eye-catching color.
Company Profile
Production Process

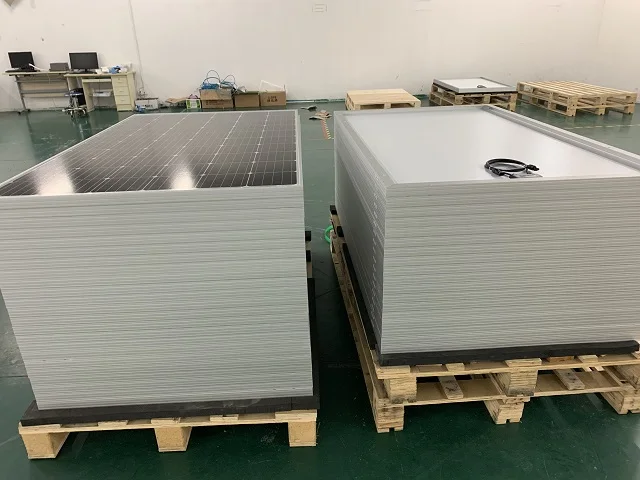

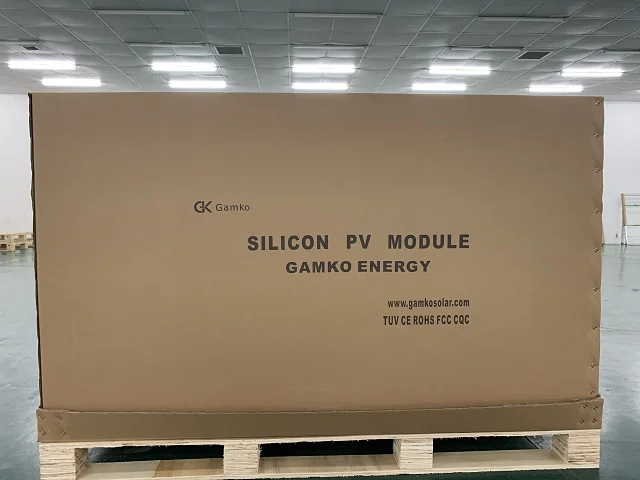

Packing & Delivery

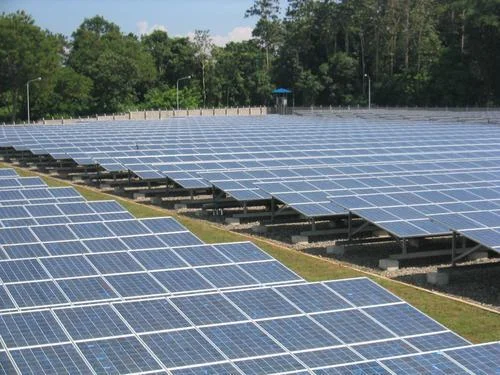

\t\t\t\t\t\t\t\t\tProject case \t\t\t\t\t\t\t
14.5MW in Loc. Incoronata Z.I Asi 71122, Foggia, Italy
500kW ARRIBEÑOS, Buenos Aires, Argentina
Romania 3MWp in June
FAQ
Q:We like to buy your panels, cause the price is good, but the price is not most
important, I don’t like to buy the trash, how do I know your solar panel have a
good quality, everybody say they are A grade panels, how I can trust you?
A:Firstly, we make new panels not stock panel, we will providing the flash test report,Series number, Power rates , voltage, current all mentioned on the flash test report for individual solar panel,
The stock panel have no any database. You don’t know if they are defective or broken panels.
But its not enough.
Please ask Gamko provide the flash test photo and EL photo for each panel.
Q:I am also worry about my payment safe, How can you guarantee me 100%
payment security?
payment security?
A:if you do worry about the payment safety so either I, lets do “Alibaba Trade Assurance
Payment” for both safety
Payment” for both safety
Q:How do you comply with your warranty terms if the solar products broken or
defective?
A:It's a hard question to answer. After all, we are not a big company like Trina or Jinko , so we
buy the quality insurance, After 10th October 2018, you buy the panels from GAMKO, bar code
number from GK20181010 ‐ GK20191010 , if there is any problem, in the case of my company
does not undertake, can take a loss by insurance company, however, we believe our quality, and I
believe if any quality problem, you can get the refund from our company directly.
buy the quality insurance, After 10th October 2018, you buy the panels from GAMKO, bar code
number from GK20181010 ‐ GK20191010 , if there is any problem, in the case of my company
does not undertake, can take a loss by insurance company, however, we believe our quality, and I
believe if any quality problem, you can get the refund from our company directly.
