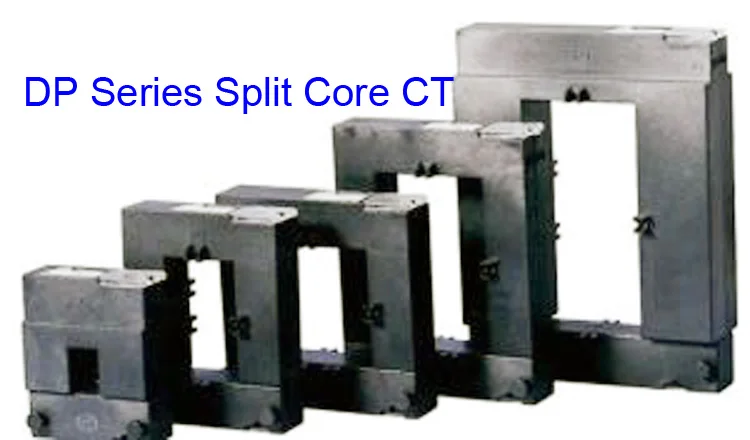

Dp Series Split Core Current Transformers
- Category: >>>
- Supplier: Yueqing Topsun Electronic Technology Co. Ltd.
Share on (62034893194):
Product Overview
Description
Key Specifications/Special Features:
- Has been specially designed to facilitate their installation in new or already existing net works
- May be installed without opening any cable or bus-bar circuit
- Connection of conventional CTs usually requires interruption of primary side circuit to pass cables or bur-bars through transformer core or to connect such cables to the primary terminals
- May be easily opened and they may be installed and connected without any supply interruption
- Thus saving time and the installation costs
- Features:
- Rated primary current: 100 to 5000A AC
- Rated secondary current: 5 or 1A AC
- Rated load: 1, 2.5, 5.0, 10 and 30VA
- Accuracy: 0.5, 1.0 and 3.0 class
- Rated short-time thermal current (Ith): 20In
- Rated dynamic current (Idyn): 2.5Ith
- Highest voltage for equipment (Um): 720V AC RMS
- Rated power-frequency withstand voltage: 3000V AC RMS
- Frequency range: 50/60Hz
- Operating temperature: -15 to 60°C
- Split core design, safer, easy to install and portable
- Accessories: supplied with feet for base mounting if required
- Applications:
- Current, power, energy and monitoring devices
- Relay protection devices
- Power factor correction devices
- Available in 5 standard sizes
- Standard: IEC 60044-1
- RoHS Directive-compliant
| Specification | |||||
| Model | Ratio | Accuracy | Burden | Frequency | |
| DP-816 | 1000A/5 | 0.5 | 10VA | 50/60HZ | |
| DP-816 | 1500A/5 | 0.5 | 15VA | 50/60HZ | |
| DP-816 | 2000A/5 | 0.5 | 15VA | 50/60HZ | |
| DP-816 | 3000A/5 | 0.5 | 15VA | 50/60HZ | |
| DP-816 | 4000A/5 | 0.5 | 15VA | 50/60HZ | |
| DP-816 | 5000A/5 | 0.5 | 15VA | 50/60HZ | |
