Brightsail universal crusher sugar grinder salt grinding machine
- Category: >>>
- Supplier: Brightsail Industries Group Co. Ltd.
Share on (62034948434):
Product Overview
Description

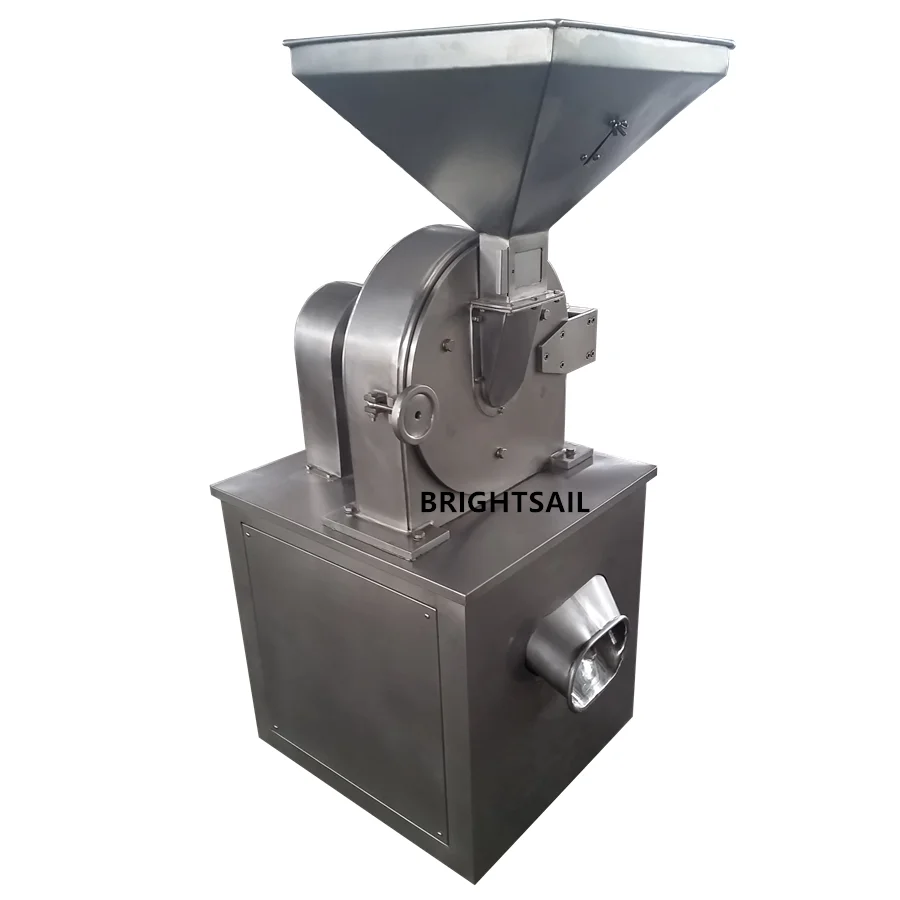

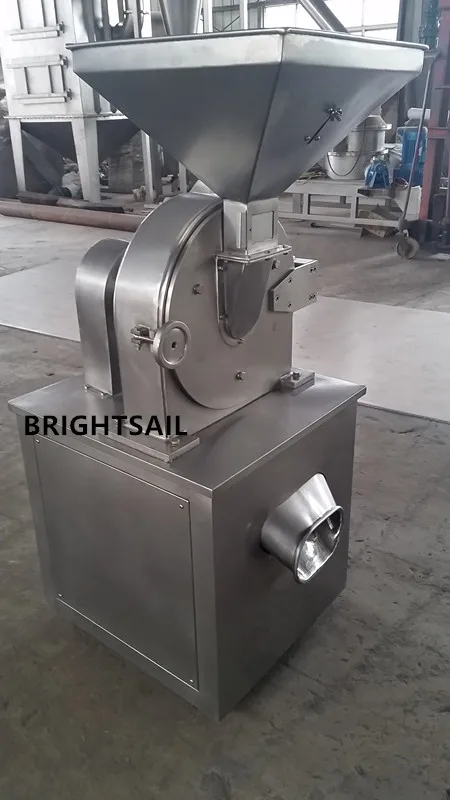

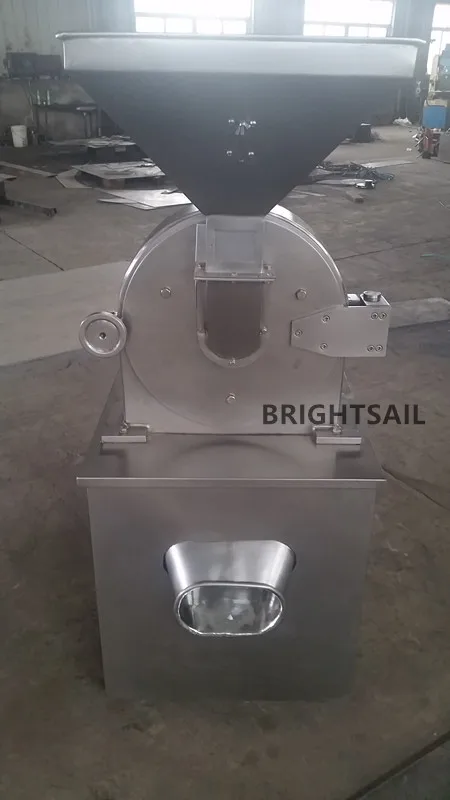

Brightsail universal crusher sugar grinder salt grinding machine
Product Description
BSU MILL makes use of the high speed relative movement of the movable fluted disc and the fixed flued disc to crush the material.
The whole machine is made of staimless steel. The inner surface of the enclosure becomes smooth through processing,thus changing the powder residual phenomenon due to the coarse inner surface of the previous models.
As a result,the production of medicine,food and chemical products can better conform to the state standard and the GMP requirements.
It has good effect for grinding crystal powder .
 |  |
Technical Data
| Model | BSU-20 | BSU-30 | BSU-40 | BSU-60 |
| Capacity(kg/h) | 60-150 | 80-300 | 100-400 | 200-800 |
| Size of input granules(mm) | <6 | <10 | <10 | <10 |
| Size of output granules(mesh) | 20-120 | 20-120 | 20-120 | 20-120 |
| Power(kw) | 4 | 5.5 | 7.5 | 18.5 |
| Power(kw) | 1.1 | 1.1 | 1.1 | 1.1 |
| Speed of principle axis(rpm) | 4500 | 3800 | 2500 | 1600 |
| Overall size(L*W*H)(mm) | 1280*600*1660 | 1280*700*1660 | 1450*700*1800 | 1950*850*2100 |
| Weight(kg) | 300 | 450 | 600 | 900 |
Main Features
1) Simple structure ,easy in installation and maintenance.
2) With water cooling jacket around mill optional.
3) Can grind a lot of materials in lines of food,chemical...etc
Detailed Images
Application:

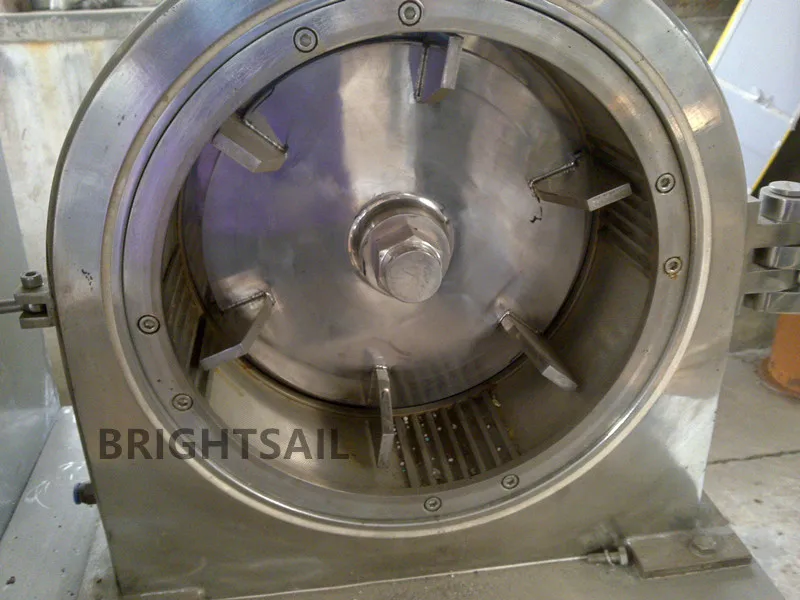

1)Constitution:knife disk,sieve,feeding part,discharge part.
2)Customers can choose the sieve size according to the output fineness of product the need.
Company Information

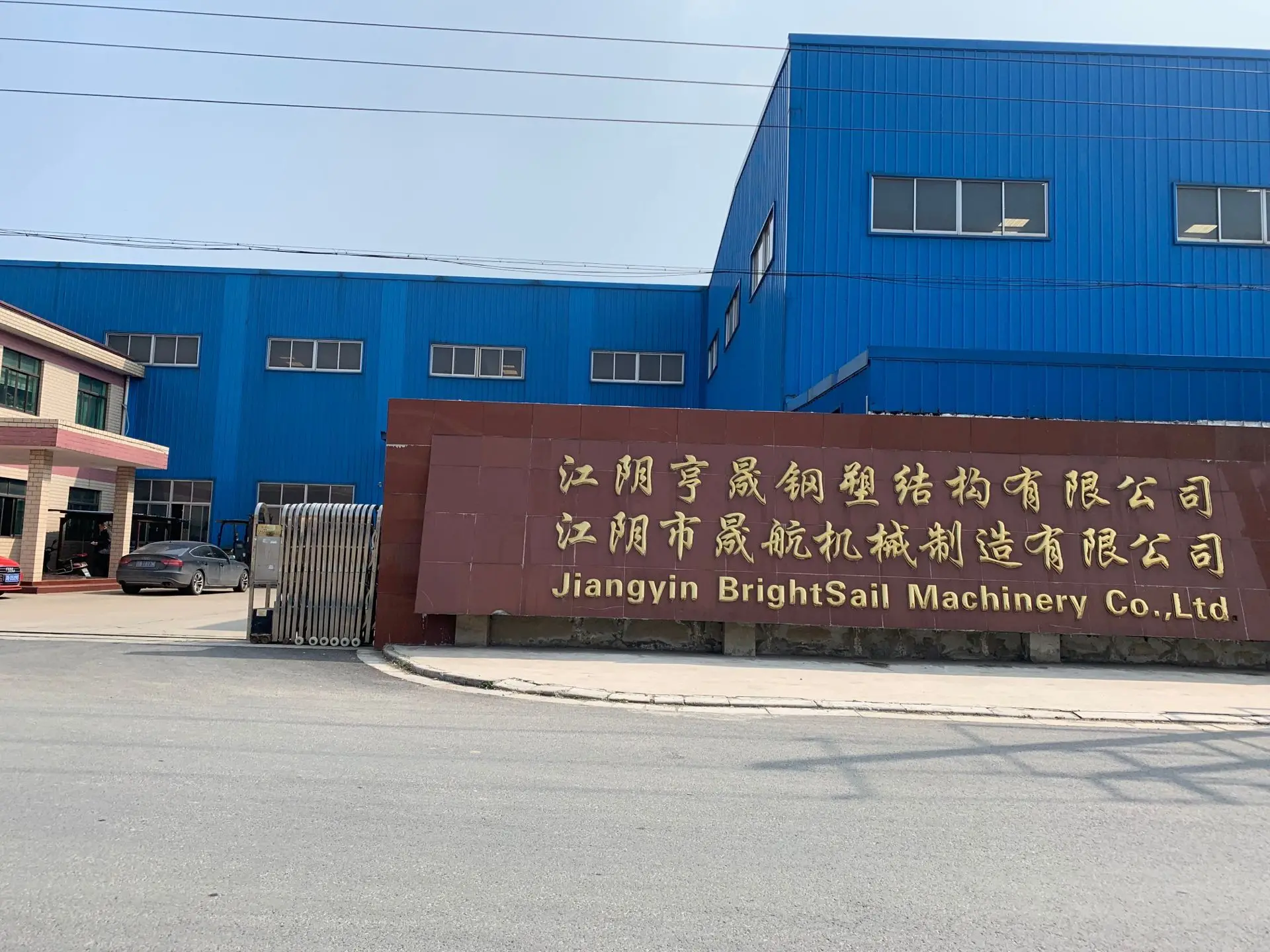

JIANGYIN BRIGHTSAIL MACHINERY CO.,LTD. belongs to Jiangyin Heng Sheng Steel Structure Co.Ltd, which was established in two 2002.
It's professional and engaged in research, development, production,sale and service of grinder machine,mixer,sifting machine,overall powder solution,welding service,welding machine, and metal processing,and chemical powder.
Since its foundation, Brightsail has always adhered with the principle of quality firstly and technology is life. Recently, the two companies own more than 50 employees, about 400m2 of office space, cover about 340m2 of manufacturing space. With customer centric idea as base,it takes evey detail seriouly in the process of production to assure high performance and quality of each part and equipment as well as the stable operation in more than 50 nations around the world.
In addition,we have abtained CE,ISO certificates. In 2018, our company obtained prize from Alibaba group as top-100 seller in east China region. Our products have been exported to such contrires and regions as USA,Canada, Germany, Australia,Europe,Africa,South Asia,middle Asia. We also welome OEM and ODM models. Our company name “Brightsail” is also our hope to all of our customers and parters around the world, we hope will grow together and set a sail to bright.
Certifications
Our grinder machine has been certified by European Conformity and International Organization for Standardization. So about machine quality, you do not have to feel worried.
Our Services
1. Pre-sales service:
Inquiry and consulting support with 24 hours, Machine test service, Factory visit
2. After-sales service:
Instructing how to install and use the machine, One year warranty, video support
Packaging & Shipping
FAQ
Questions you want to know:
About the universal salt crusher,
1.What raw material do you want to grind?
2.What capacity(kg/hr) do you need?
3.What powder particle size do you need?(for example,40 mesh,60 mesh,100 mesh,200 mesh,...etc)
