Product Overview

Description

MSB30SSSFCN PMI Linear Guide Carriage Motion Block













MSB30SSSFCN PMI Linear Guide Carriage Motion Block trains of balls are designed to a contact angle of 45° which enables it to bear an equal load in radial, reversed radial and lateral directions. Therefore, it can be applied in any installation direction. Furthermore, MSB series can achieve a well balanced preload for increasing rigidity in four directions while keeping a low frictional resistance. This is especially suit to high precision and high rigidity required motion.
The patent design of lubrication route makes the lubricant evenly distribute in each circulation loop. Therefore, the optimum lubrication can be achieved in any installation direction, and this promotes the performance in running accuracy, service life, and reliability.





Note: Rail mounting holes for M3 (6x4.5x3.5) and M4 (7.5x5.3x4.5) are available for MSB15 rail. The codes of rail type are MSB15R for M3 mounting holes, and MSB15U for M4 mounting holes.
Note: The basic dynamic load rating C of ball type is based on the 50 km for nomonal life.
The conversion between C for 50 km and C100 for 100 km is C=1.26 x C100.
Note*: Single: Single carriage/ Double: Double carriages closely contacting with each other.

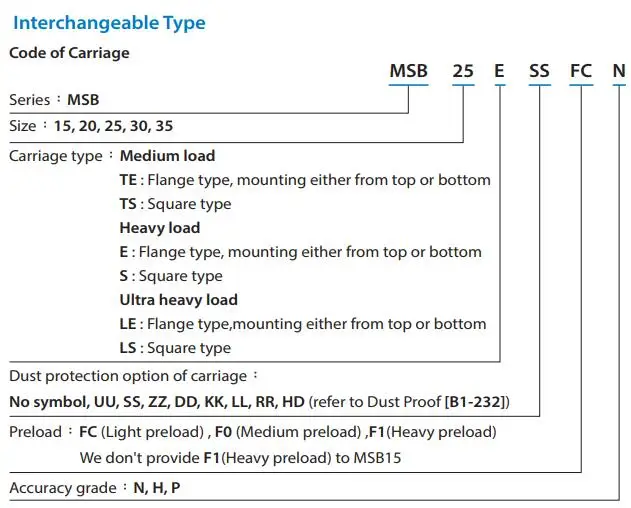

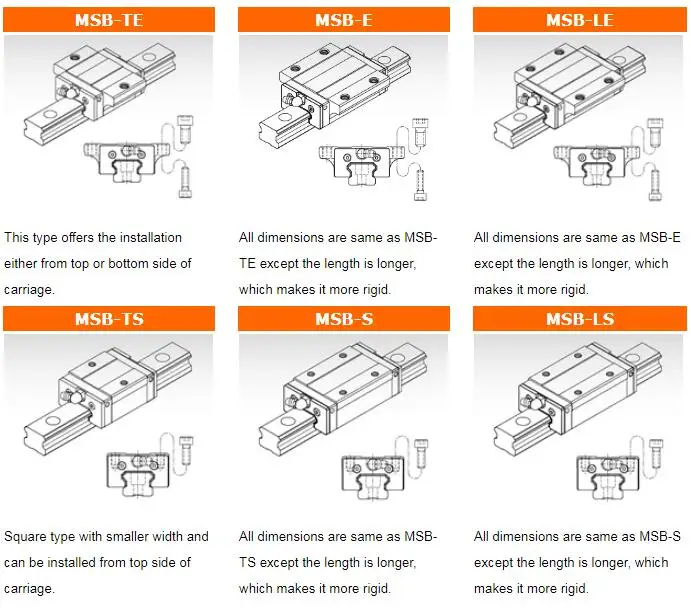

MSB30SSSFCN PMI Linear Guide Carriage Motion Block models series :

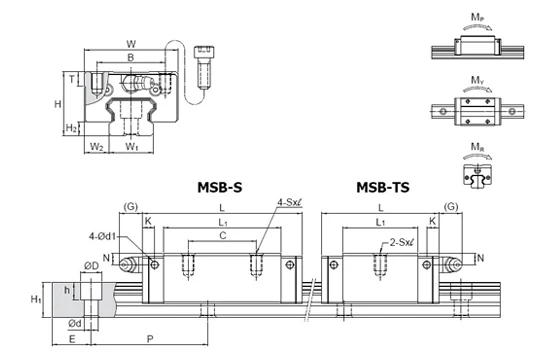

Model No.	External dimension					Carriage dimension
	Height H	Width W	Length L	W2	H2	B	C	S × l	L1	T	N	G	K	d1	Grease Nipple
MSB 15TS MSB 15S	24	34	40.2 57.2	9.5	4.5	26	- 26	M4 x 6	23.5 40.5	6	5.5	5.5	5.1	3.3	G-M4
MSB 20TS MSB 20S	28	42	48 67	11	6	32	- 32	M5 x 7	29 48	6	5.5	12	5.9	3.3	G-M6
MSB 25TS MSB 25S	33	48	60.2 82	12.5	7	35	- 35	M6 x 9	38.7 60.5	8	6	12	6.2	3.3	G-M6
MSB 30TS MSB 30S	42	60	68 96.7	16	9.5	40	- 40	M8 x 12	43.3 72	8	8	12	6.3	3.3	G-M6
MSB 35TS MSB 35S MSB 35LS	48	70	77.4 111.4 136.9	18	9.5	50	- 50 72	M8 x 12	46 80 105.5	12.5	8.5	11.5	9.8	3.3	G-M6



Model No.	Rail dimension					Static moment rating					Weight
	Width W1	Height H1	Pitch P	E std.	D × h × d	Mp kN-m		MY kN-m		MR kN-m	Carriage kg	Rail kg/m
						Single*	Double*	Single*	Double*
MSB 15TS MSB 15S	15	12.5	60	20	6 x 4.5 x 3.5 (7.5 x 5.3 x 4.5)	0.04 0.10	0.26 0.61	0.04 0.10	0.26 0.61	0.07 0.13	0.09 0.16	1.2
MSB 20TS MSB 20S	20	15	60	20	9.5 x 8.5 x 6	0.07 0.18	0.44 0.97	0.07 0.18	0.44 0.97	0.14 0.24	0.16 0.26	2
MSB 25TS MSB 25S	23	18	60	20	11 x 9 x 7	0.13 0.35	0.91 1.87	0.13 0.35	0.91 1.87	0.26 0.43	0.29 0.45	3
MSB 30TS MSB 30S	28	23	80	20	11 x 9 x 7	0.23 0.60	1.39 3.15	0.23 0.60	1.39 3.15	0.45 0.74	0.52 0.86	4.4
MSB 35TS MSB 35S MSB 35LS	34	27.5	80	20	14 x 12 x 9	0.34 0.93 1.60	2.81 5.47 8.67	0.34 0.93 1.60	2.81 5.47 8.67	0.75 1.28 1.67	0.81 1.13 1.49	6.2

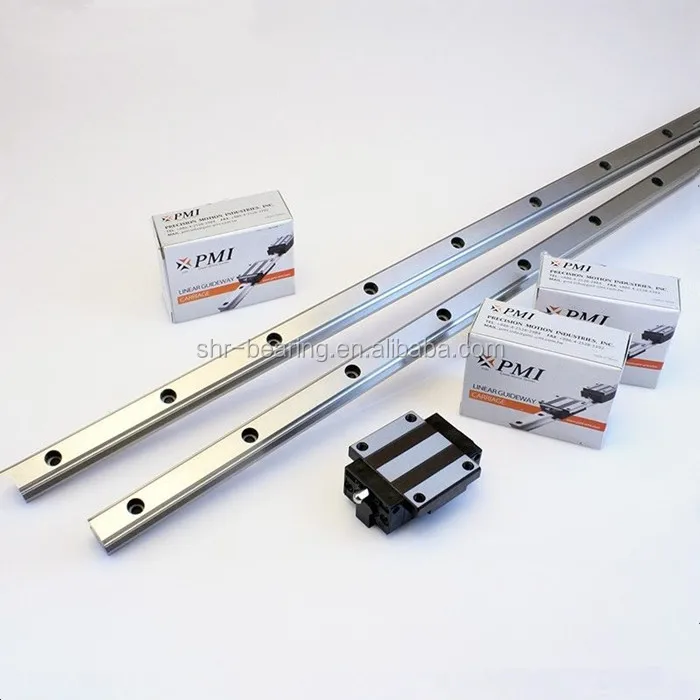

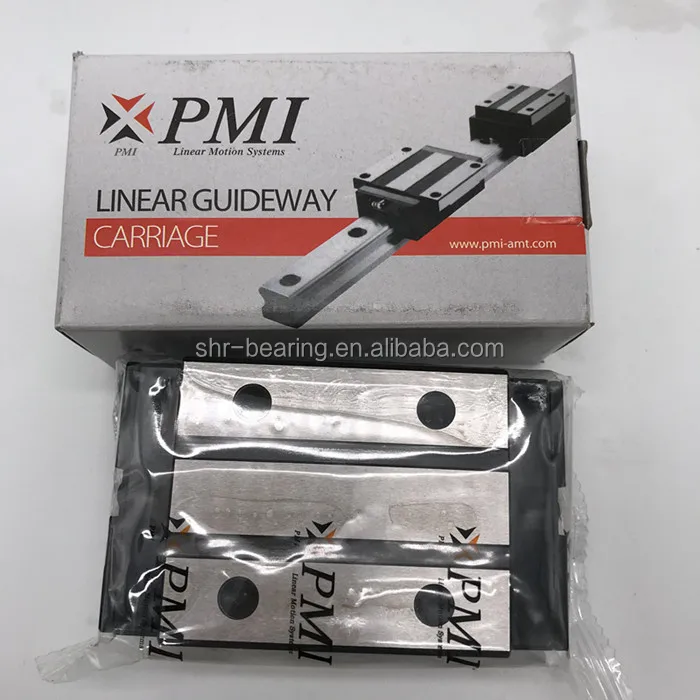

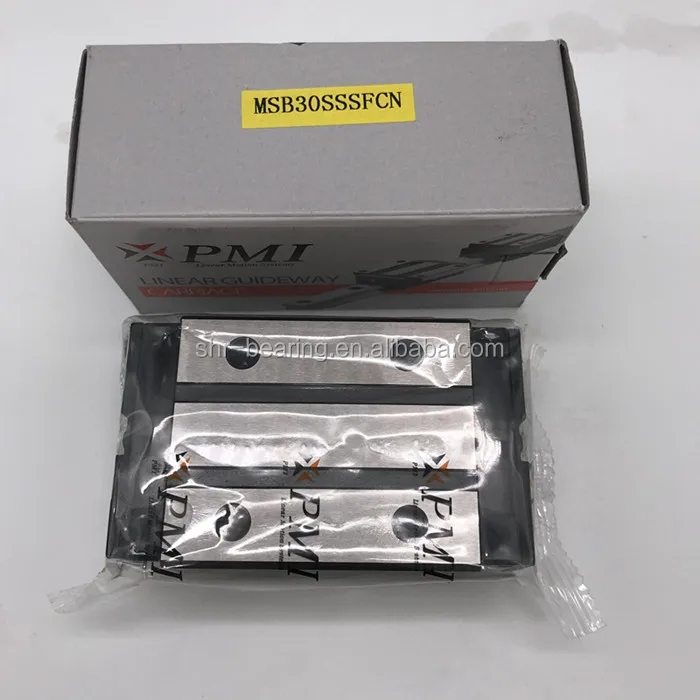

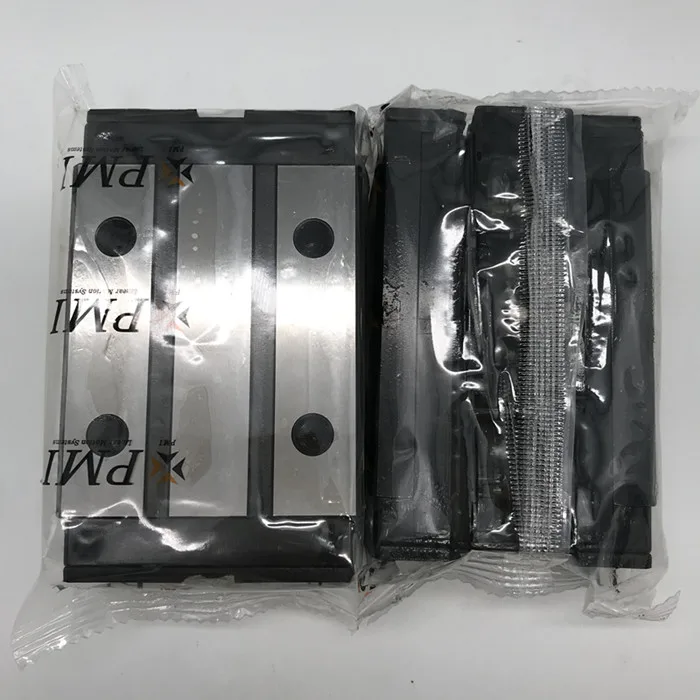

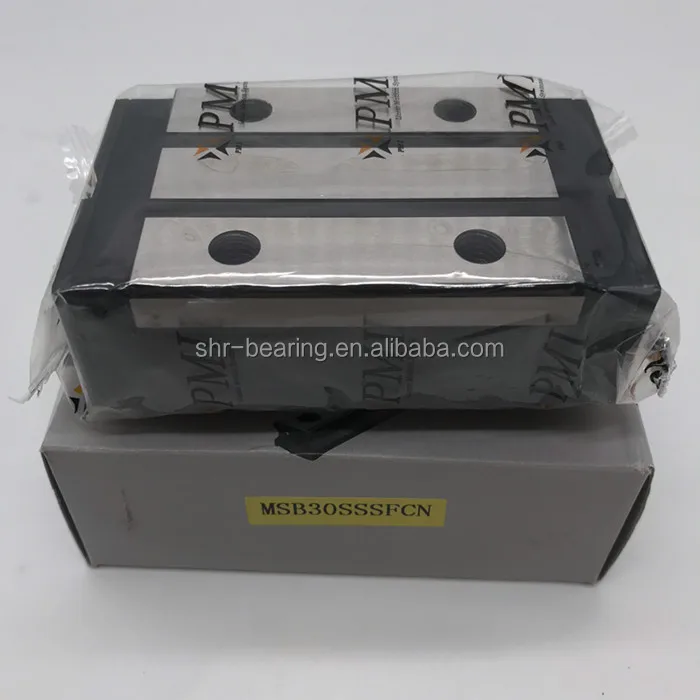

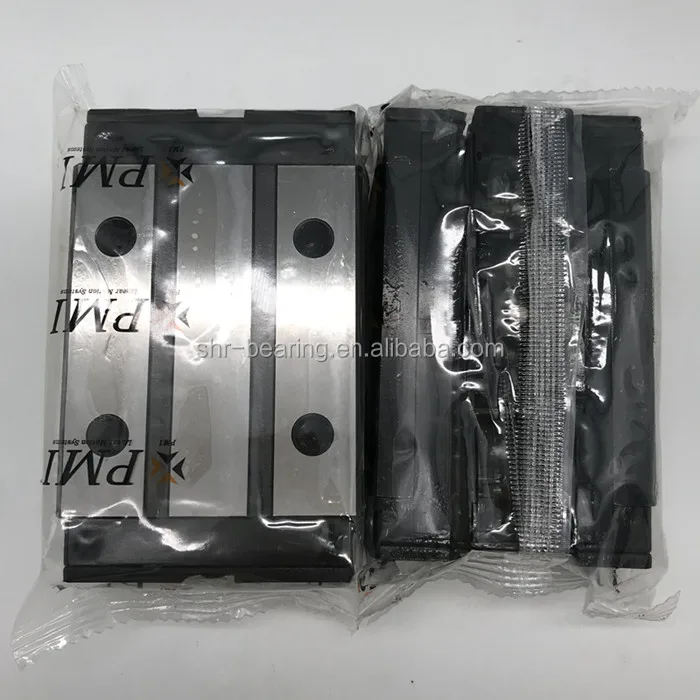

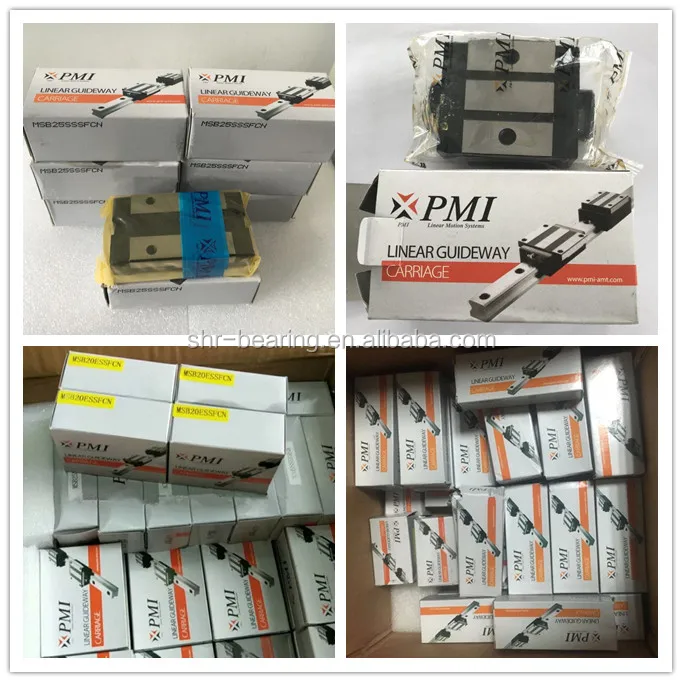

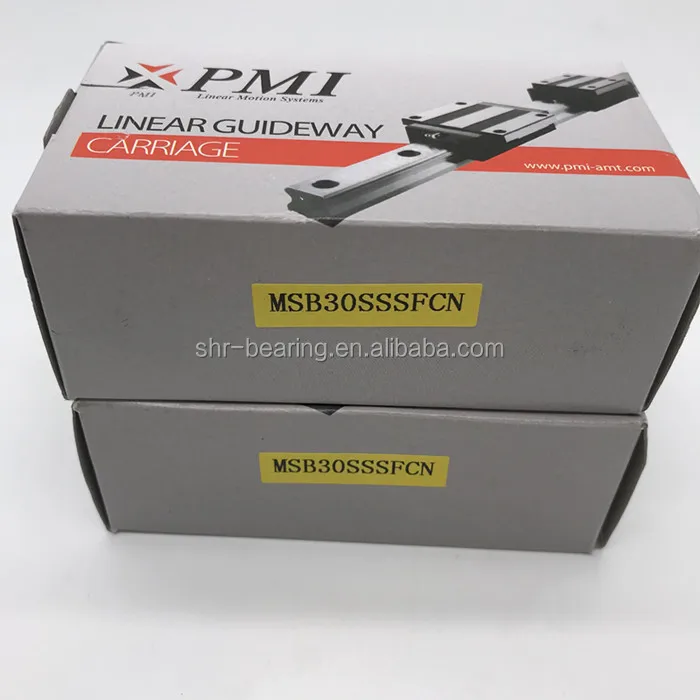

MSB30SSSFCN PMI Linear Guide Carriage Motion Block photos reference :
