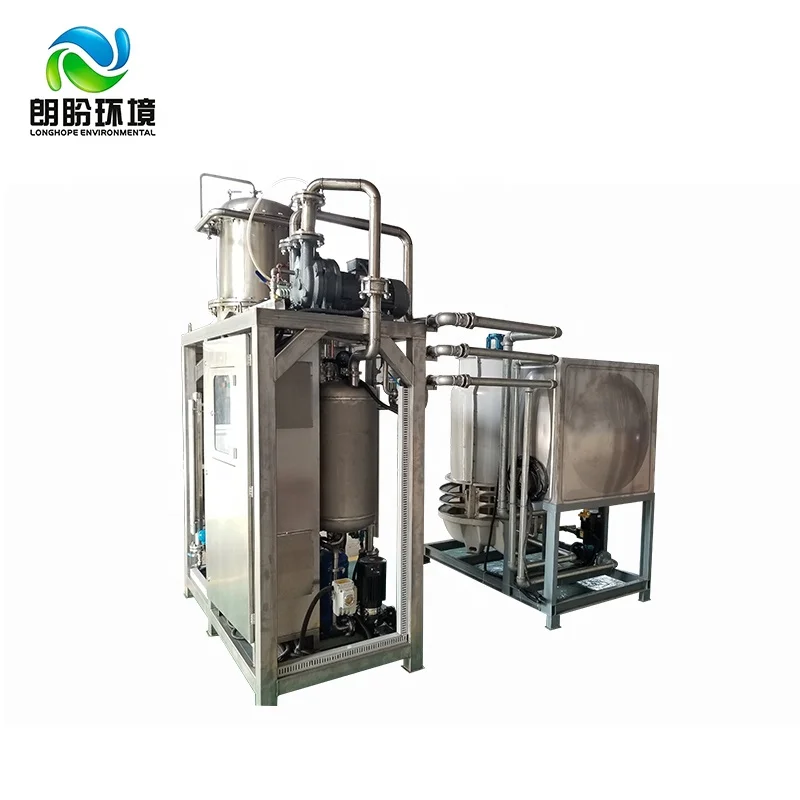

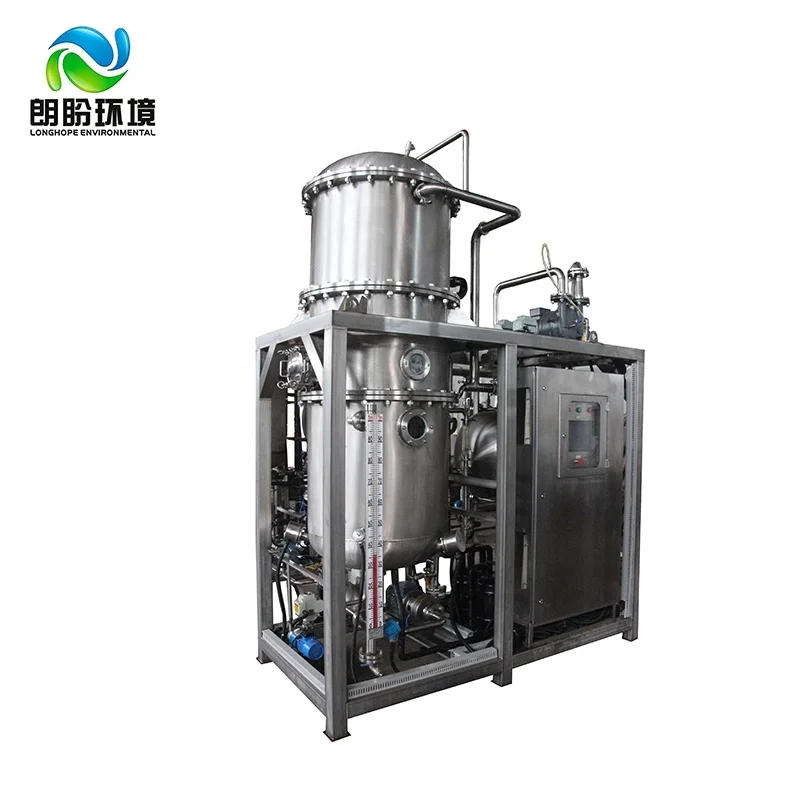

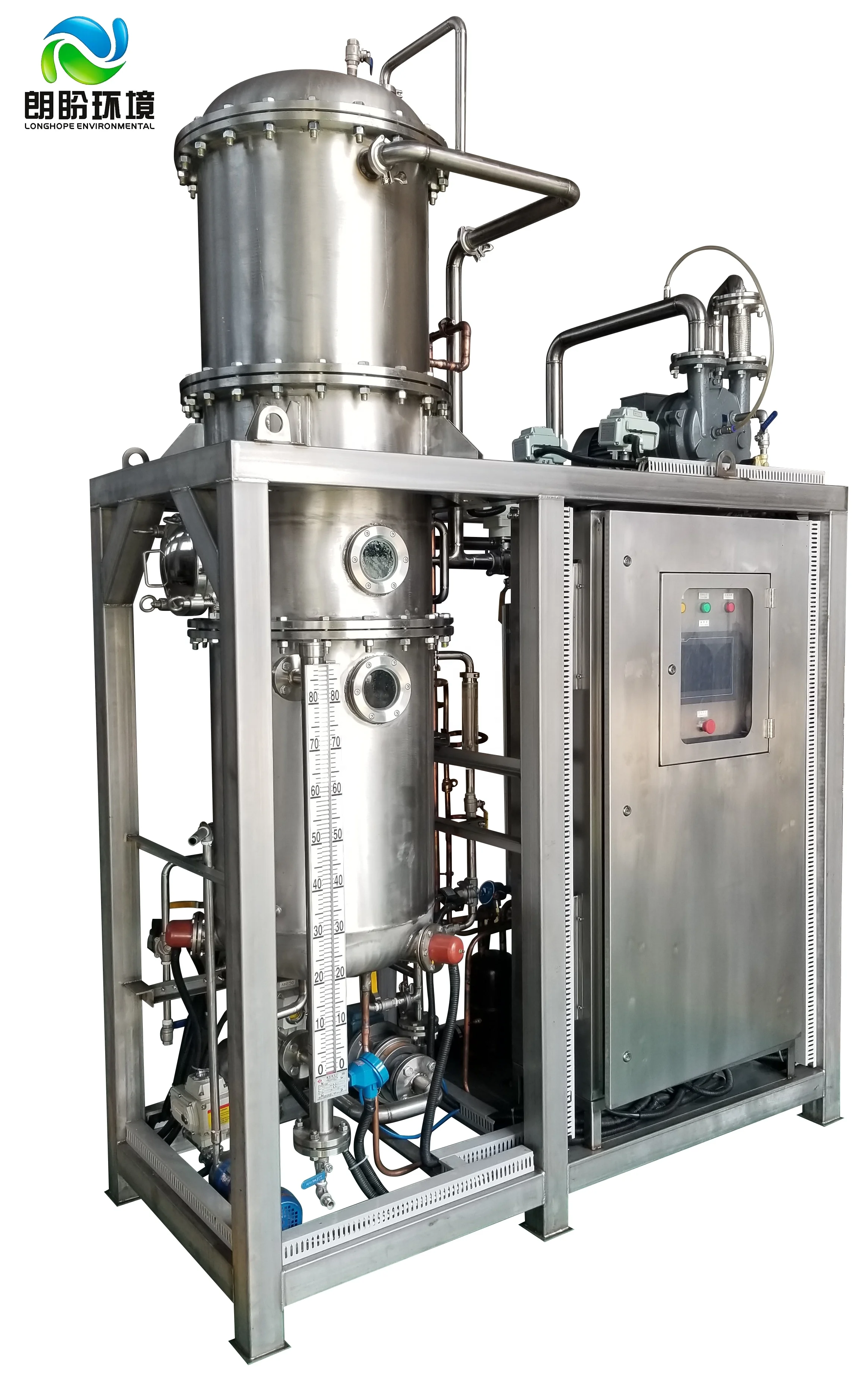

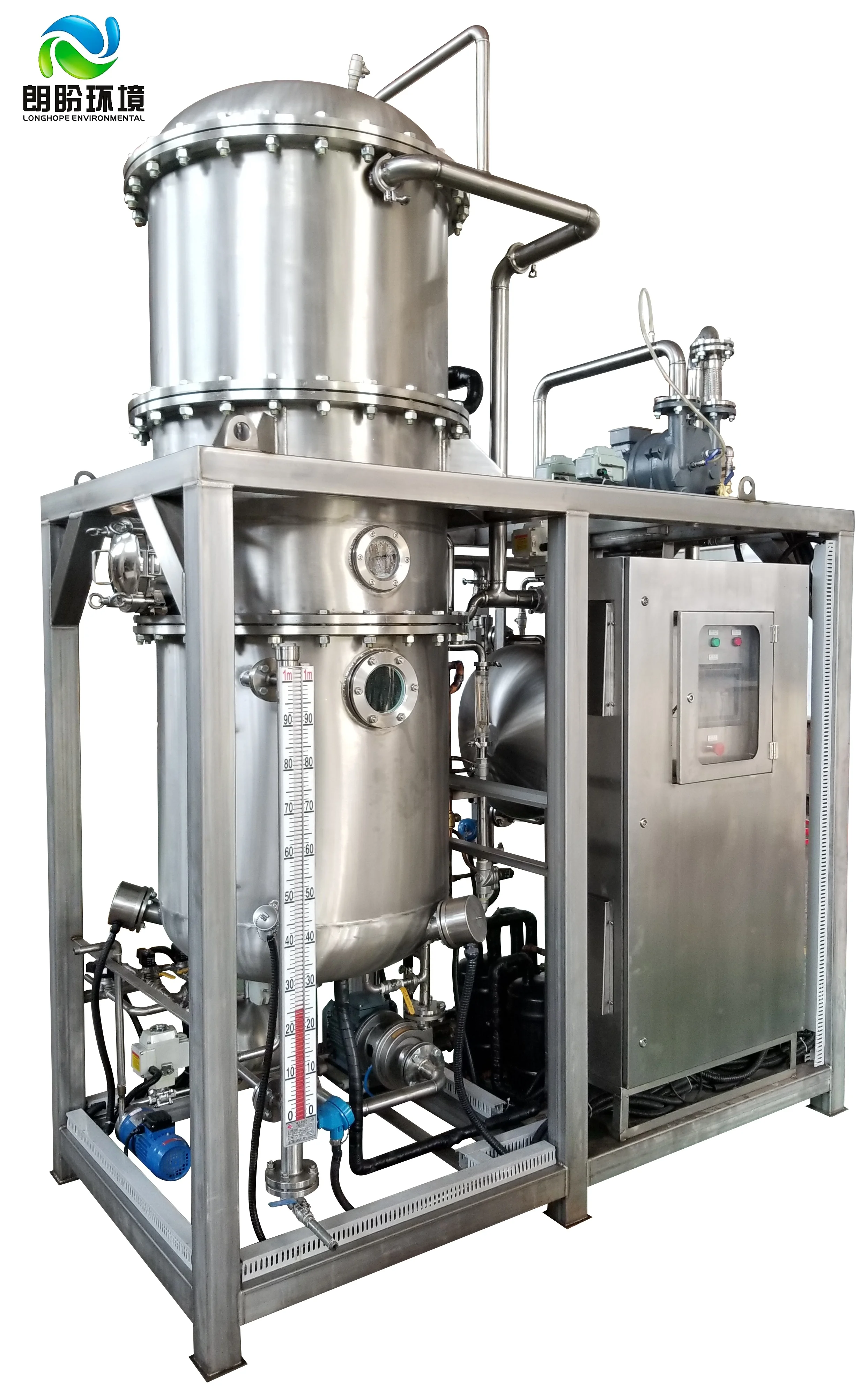

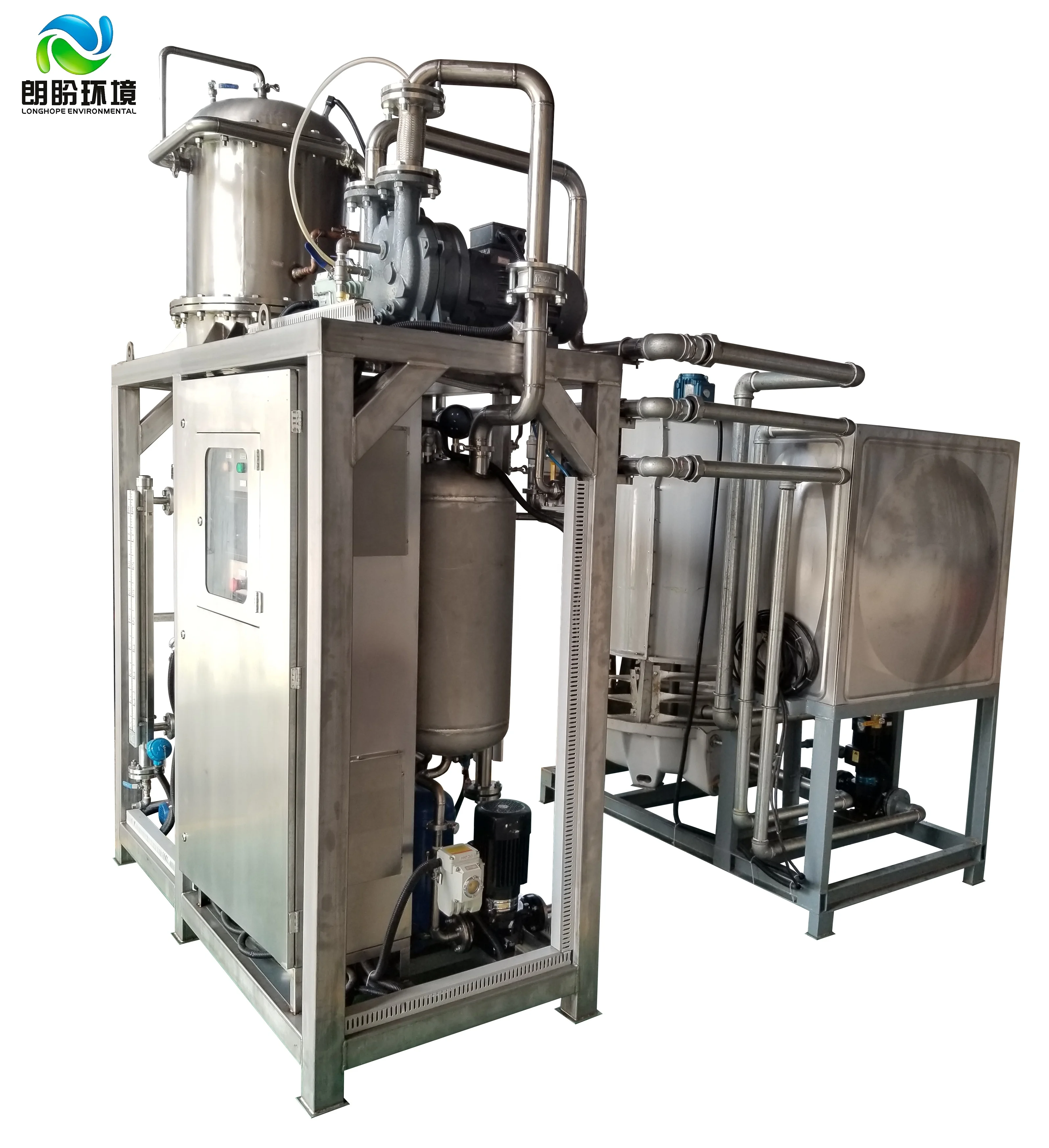

  • China made Low Temperature heat pump Vacuum Evaporator
China made Low Temperature heat pump Vacuum Evaporator
China made Low Temperature heat pump Vacuum Evaporator
China made Low Temperature heat pump Vacuum Evaporator
China made Low Temperature heat pump Vacuum Evaporator
China made Low Temperature heat pump Vacuum Evaporator
China made Low Temperature heat pump Vacuum Evaporator
China made Low Temperature heat pump Vacuum Evaporator

China made Low Temperature heat pump Vacuum Evaporator

Share on (62035044105):


Price:RUB 21,229,040.00

Quantity:


Product Overview

Description

Product Description

Product Application

The vacuum evaporator of low temperature heat pump develops different equipment models according to different customer requirements and different using environments.

V-HP-TF series evaporator uses compressor to act on refrigerant. The refrigerant exchanges heat with the material through the heat exchanger, the system comes with coolant supplied by the cooling tower. The system is suitable for areas with low annual temperature and short summer time. The main feature is that the land occupation is larger than other series products, but the energy consumption is lower, and the structure and control of the equipment are relatively simple.

SPECIFICATIONS FOR V-HP-SF SERIES
Model
Evaporative power(L/h)
Installed power(kW)
Consumption(W/L)
Dimension(L×B×H)
V-HP-SF-1000
45
9.83
100-140
3.0×0.9×2.8
V-HP-SF-2500
110
18.13
85-110
3.8×1.2×3.0
V-HP-SF-5000
216
34.50
85-110
4.0×1.6×3.2
V-HP-SF-8000
336
48.00
85-110
            4.3×1.8×3.4
V-HP-SF-10000
440
64.35
85-110
4.5×2.0×3.6
V-HP-SF-20000
870
125.00
85-110
6.0×3.2x3.8
