CuNi2Be—UNS.C17510 Nickel Beryllium Copper

           Ohmalloy Material Co.,Ltd is the leader in the manufacture of beryllium-copper  alloys. We actively participate in all environmental studies made on all substances used in our products. Our priority is to comply with all legal regulations in force to ensure the continued existence of our products to our clients.

C17510 Details:
C17510 Nickel Beryllium Copper

CuNi2Be—C17510 (CDA 1751) Nickel Beryllium Copper is the mirror image of alloys C17500 in terms of its properties & Characteristics. C17510 is also primarily utilized in the industry applications that require most highly thermal or electrical conductivity, which features a Nickel alloying addition (1.40-2.20%). C17510 also offers good strength and hardness characteristics coupled with conductivity in the range of 45-60 percent of copper with ultimate tensile and hardness properties approaching 140 ksi and RB 100 respectively.

Typical Application for C17510 Nickel Beryllium Copper Alloys:
Electrical Industry: Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors, Instruments Parts
Fasteners: Washers, Fasteners
Industrial: Springs, Thermal Transfer Plates, Welding Equipments, High Flux Electromagnets, Die–Casting Plunger Tips.

Available Sizes:
Custom Diameter & Sizes, Random Mill lengths

Available Products (forms):

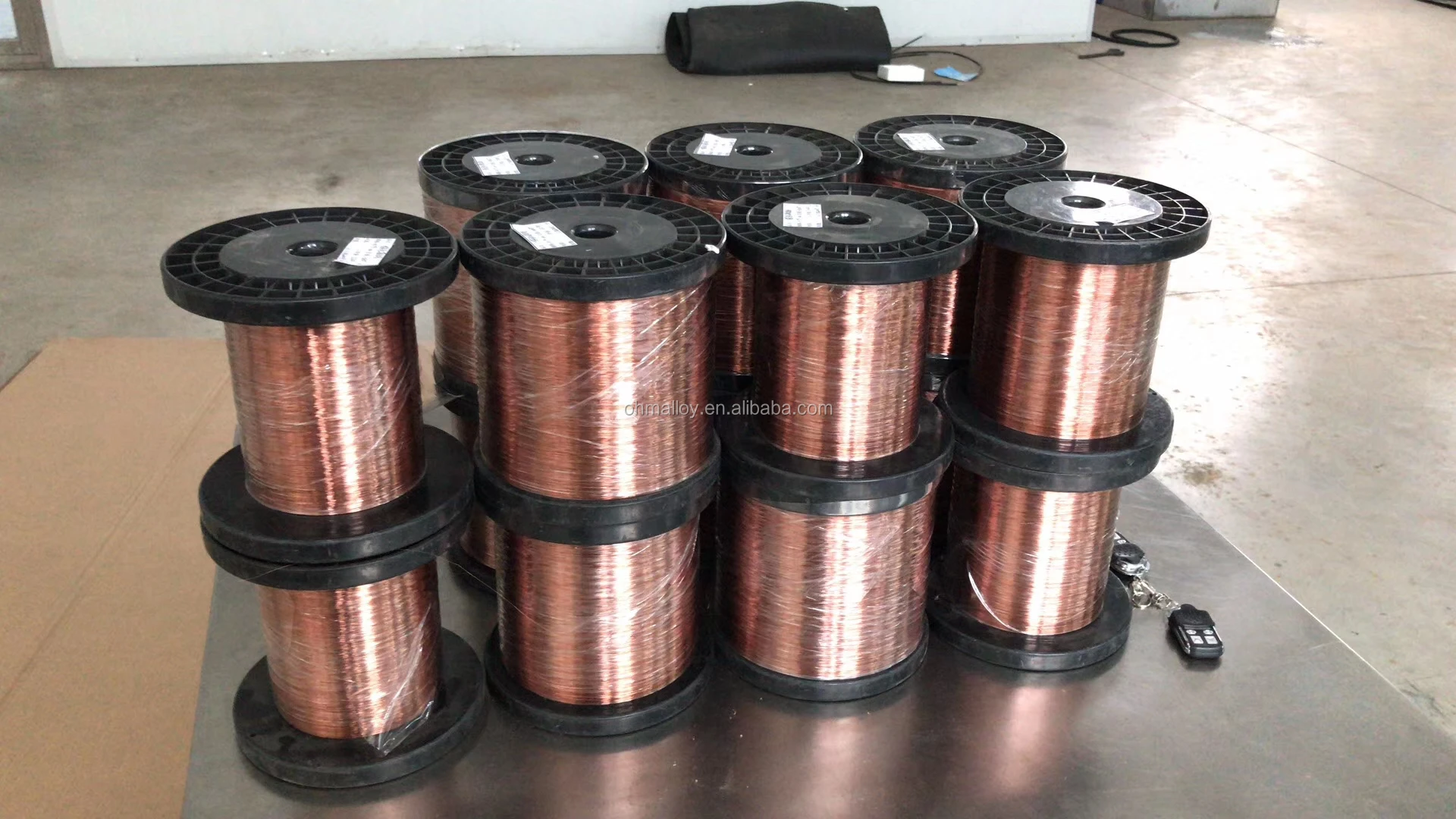

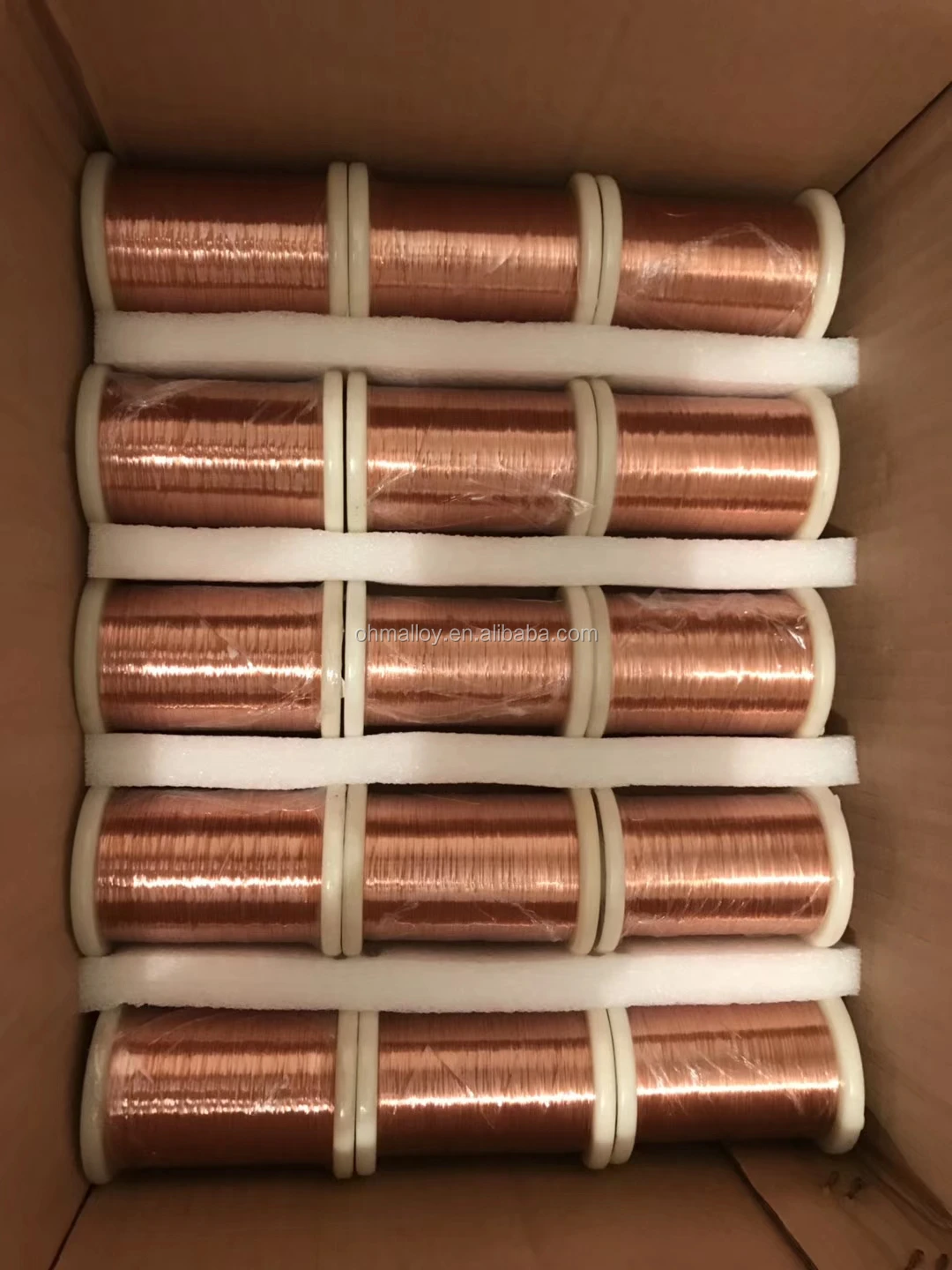

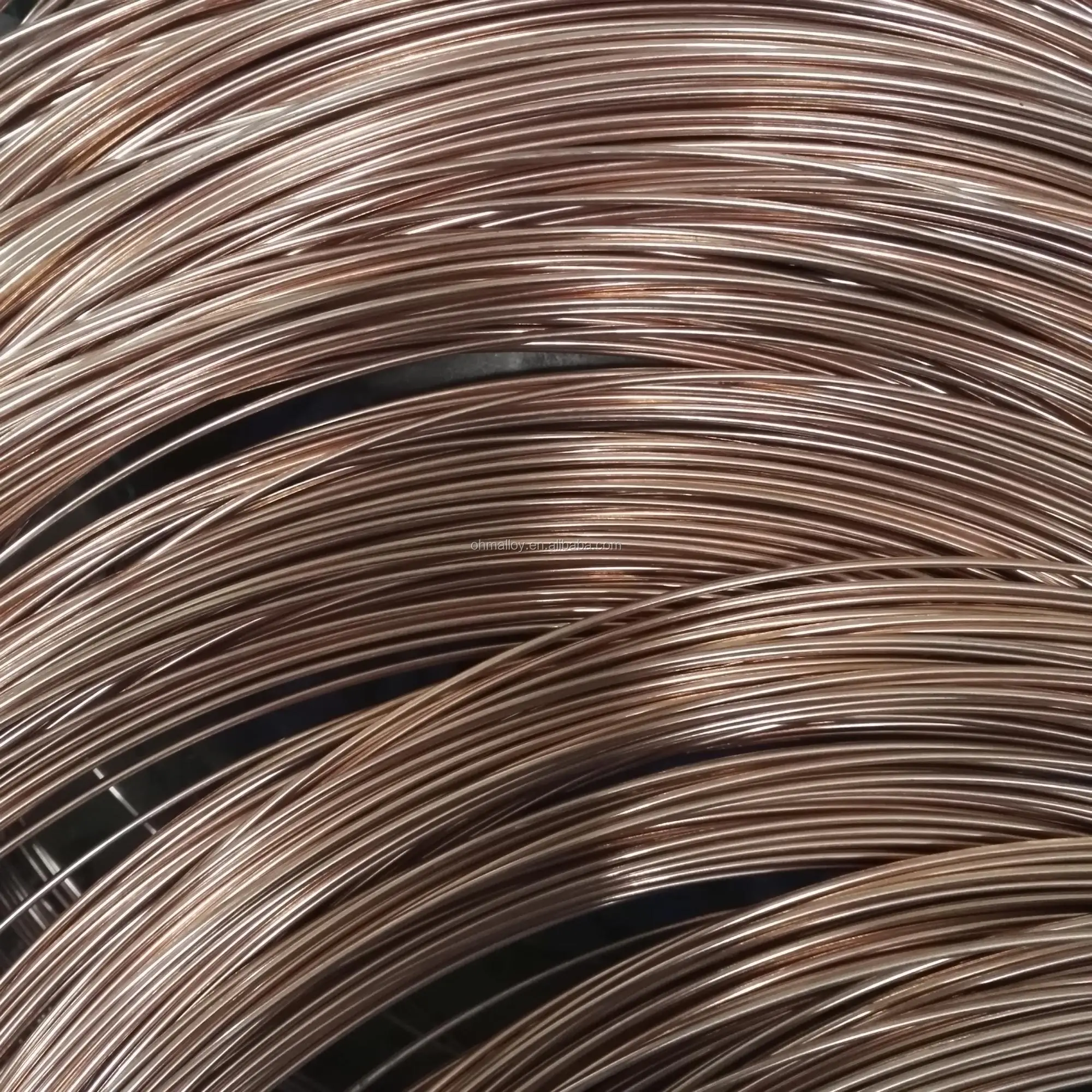

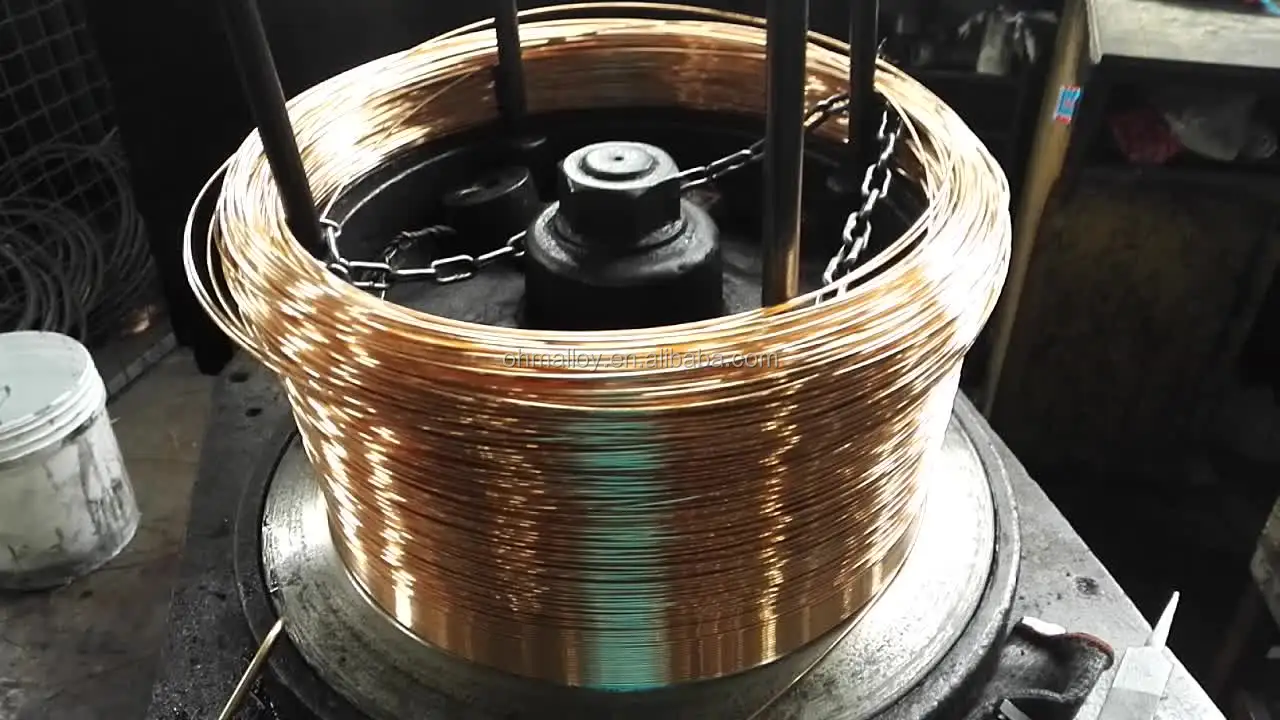

Round bars, Round wires, Round tube,
Flat bars, Square bars, Rectangular bars, Hexagon bars, Plates, Sheets, Coils
Custom shapes are available upon request.

Chemical Composition:

Be: 0.20-0.60%
Ni: 1.40-2.20%
Cu: Balance
Note: Copper plus additions equal 99.5% minimum.

Typical Physical Properties:

Density (g/cm3): 8.83
Density before age hardening (g/cm3): 8.75
Elastic Modulus (kg/mm2 (103)): 14.10
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 18 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.57
Melting Range (°C): 1000-1070

Note:
1). the units are based upon Metric.
2). the typical physical properties apply to age hardened products.

International Specification:

Rods/Bars/Tubes: ASTM B441, SAE J461,463; RWMA Class 3
Strips: ASTM B534, RWMA Class 3
Sheets: ASTM B534, RWMA Class 3
Wires: ASTM B441
Plates: ASTM B534, SAE J461,463; RWMA Class 3

European Standards: CuNi2Be, DIN.2.0850, CW110C to EN

Note:
ASTM: American Society for Testing and Materials
SAE: Society of Automotive Engineers
AMS: Aerospace Materials Specification (Published by SAE)
RWMA: Resistance Welder Manufacturers' Association
Note: Unless otherwise specified, material will be produced to ASTM.

Mechanical Properties:

The Mechanical Properties will be available on request from customers.

Most Commonly Temper Used:

Rods/Bars/Tubes: A(TB00),H(TD04),AT(TF00),HT(TH04)
Strips: A(TB00),1/4 H(TD01),1/2 H(TD02),H(TD04)
Sheets: A(TB00),1/4 H(TD01),1/2 H(TD02),H(TD04),AT(TF00)
Wires: A(TB00),1/4 H(TD01),1/2 H(TD02),3/4H(TD03),H(TD04)
Plates: AT(TF00),HT(TH04)

It is the best high-elastic material in copper alloy. It has high strength, elasticity, hardness, fatigue strength, low elastic hysteresis, corrosion resistance, wear resistance, cold resistance, high conductivity, no magnetism, no impact, no sparks, etc. A range of excellent physical, chemical and mechanical properties.

Application

     Our alloys combine a range of properties particularly suited to meet the exacting requirements of many applications in the automotive, electronic, aeronautical, Oil&Gas, watch, electro-chemical industries, etc. Beryllium Copper is widely used in those fields as contact springs in various applications like connectors, switches, relays, etc
