SY201 D16REH Gooxi Dual Controller Server Barebone
- Category: >>>
- Supplier: Shanghai Harmuber Technology Development Co. Ltd.
Share on (62035101678):
Product Overview
Description
SY201-D16REH
Product Description
Introduce
Dual CPUs Controller Module
The Gooxi Dual-Controller Server barebone integrates the mainboard and PCIe add-on cards in one controller module. It forms an easy-swappable structure with the backplane through high-speed signal connectors, which benefits the users from administration and maintenance perspective.
Features
High Performance
One dual processor node is deployed in a standard 4U form factor space, supporting two Intel® Xeon® E5-2600 v3/v4 series processors in spread-core layout, and a built-in high-speed M.2 PCIe SSD. The overall performance is several times higher than most of traditional 4U rack servers. It is suitable for large-scale network application environments with high space and performance requirements, such as virtual desktops, large-scale graphics rendering, and cloud platforms.
Flexible Network and Storage Expansion
Two type of controllers fulfills different rear drives density,PCIE slot expansions and power supplies. The system maixmun support 4x full height PCIE slot with GPU cards with 2x internal 2.5" system drives integrated,or up to 16x 3.5" HDDS for highest storage density with two full height PCIE slots. Each controller type can support up to 4x GbE ports or 2x 10GbE ports as options.
Massive Memory
The mainboard supports up to 16 DDR4 memory DIMMs.
And the RDIMM maximum capacity supports 1TB.
Cable-less Optimization
The entire system realizes a cable-less design in mechanism. Replace the cables by high-speed PCBs, which greatly improves the system's reliability and heat dissipation performance. At the same time, it avoids the aging and loosening connection caused by cables.
Fully Modular Design
The controller, power supply, and hard disk are fully modularized. Once any part of the controller fails, just easily to pull out the controller for maintenance.
BBU for Data Protection
In an accident of power down, the system will automatically enable the built-in backup battery to save the running data. It can prevents data loss and file system destruction, and the sustainable system operation exceeds 10 minutes.
Specifications
Spec
| System | |
| Model | SY201-D16REH |
| Storage Drives | Support 16x 3.5” SAS3.0/SATA3.0 and hot-swap HDDs |
| System Weight | Net Weight: 19.4 kgs Gross Weight: 25.6 kgs |
| Memory | Up to 1TB DDR4 1866/2133/2400 ECC RDIMM and LRDIMM via 16x DIMMs |
| CPU | 2x CPUs |
| GPU | N/A |
| Power Supply | 1+1 770W CRPS, optional BBU module |
| SystemDimension | 26.57” *17.63” *3.52” (D*W*H) |
| System Mainboard | |
| MB Model | G1DCW |
| CPU Type | Intel® Xeon® E5-2600 v3/v4 series processor (Max TDP 145W) |
| Chipset | Intel® Wellsburg C612 PCH |
| DIMM Quantity | 16x 288pin DDR4 DIMM slots |
| DIMM Type | Type: Up to 1TB DDR4 1866/2133/2400 ECC RDIMM and LRDIMM Capacity : 8GB, 16GB, 32GB or 64GB |
| Build-in RAID | Intel® RSTe Support software RAID 0, 1,5 & 10 |
| BMC | Aspeed AST2400 |
| IPMI | Support Intelligent Platform Management Interface (IPMI 2.0) Remote Management
|
| PCI-e | Support 2x PCIe 3.0 slot (1x full height, 1x half height) |
| Network | Up to 4x GbE and 2x 10GbE SFP+ |
| USB | Internal 1x USB3.0, 2x USB2.0 at Front, and 2x USB3.0 at Rear I/O |
| M.2 | Support M.2 PCIe Gen3 X4 |
| Power Supply and PDB | |
| Power Module | 1+1 redundant PSU and optional BBU |
| Power Efficiency | CRPS 550W/770W module 80+Platinum |
| Power Input / Output | AC Input:100-240V 47Hz~63Hz; DC Output:+12V,+5V_SB |
| System Cooling | |
| FAN Quantity | Up to 4x 8038 (dual rotor), support PWM smart fan control |
| FAN Speed | Maximum 6800RPM |
| Operation System Compatibiliy | |
Operating System Support | Microsoft Windows Server 2008 R2(x64) |
Virtualization System | Vmware ESXi 5.1 U2 P05(except Fultondale),ESXi 5.5 |
| Operating Environment | |
| Temperature | OP:10℃ ~ 35℃; NON-OP:-40℃ ~ 70℃ |
| Humidity | OP:35%~80% ; NON-OP:20% ~ 90% |
| Certification | |
| Certifications | CE ,FCC,ROHS |

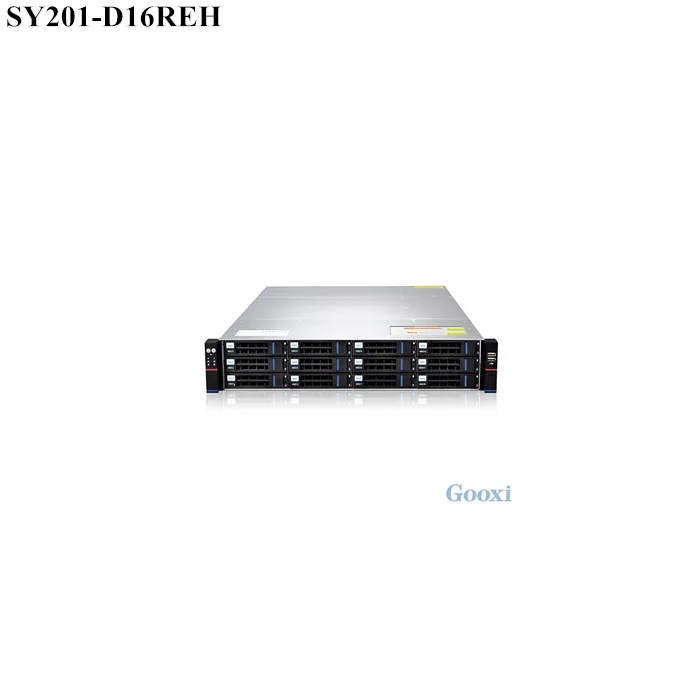

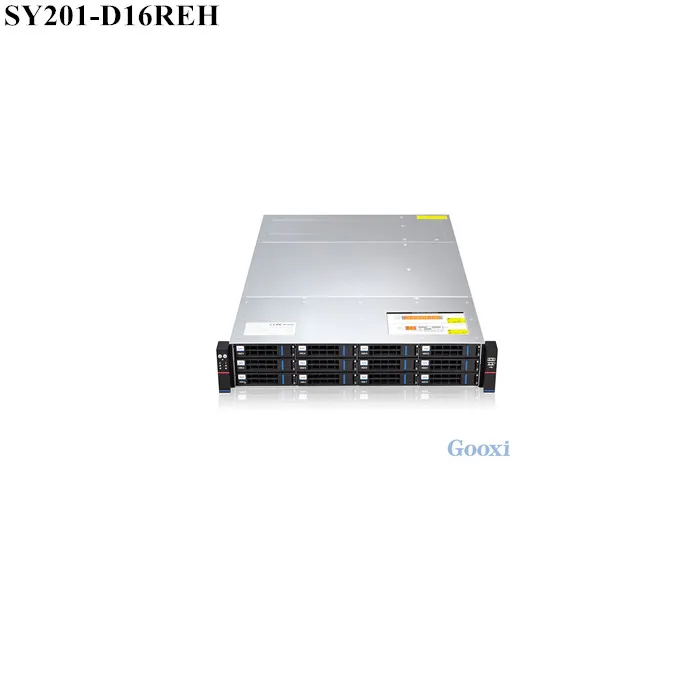

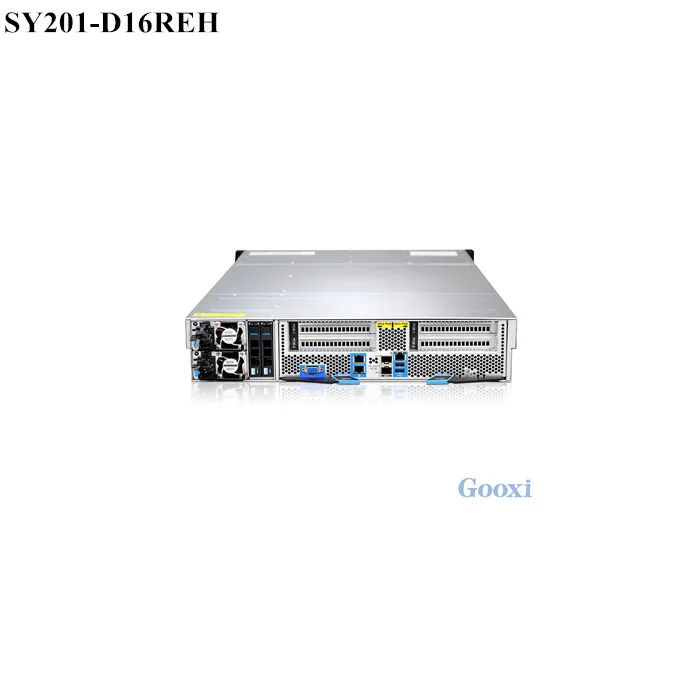

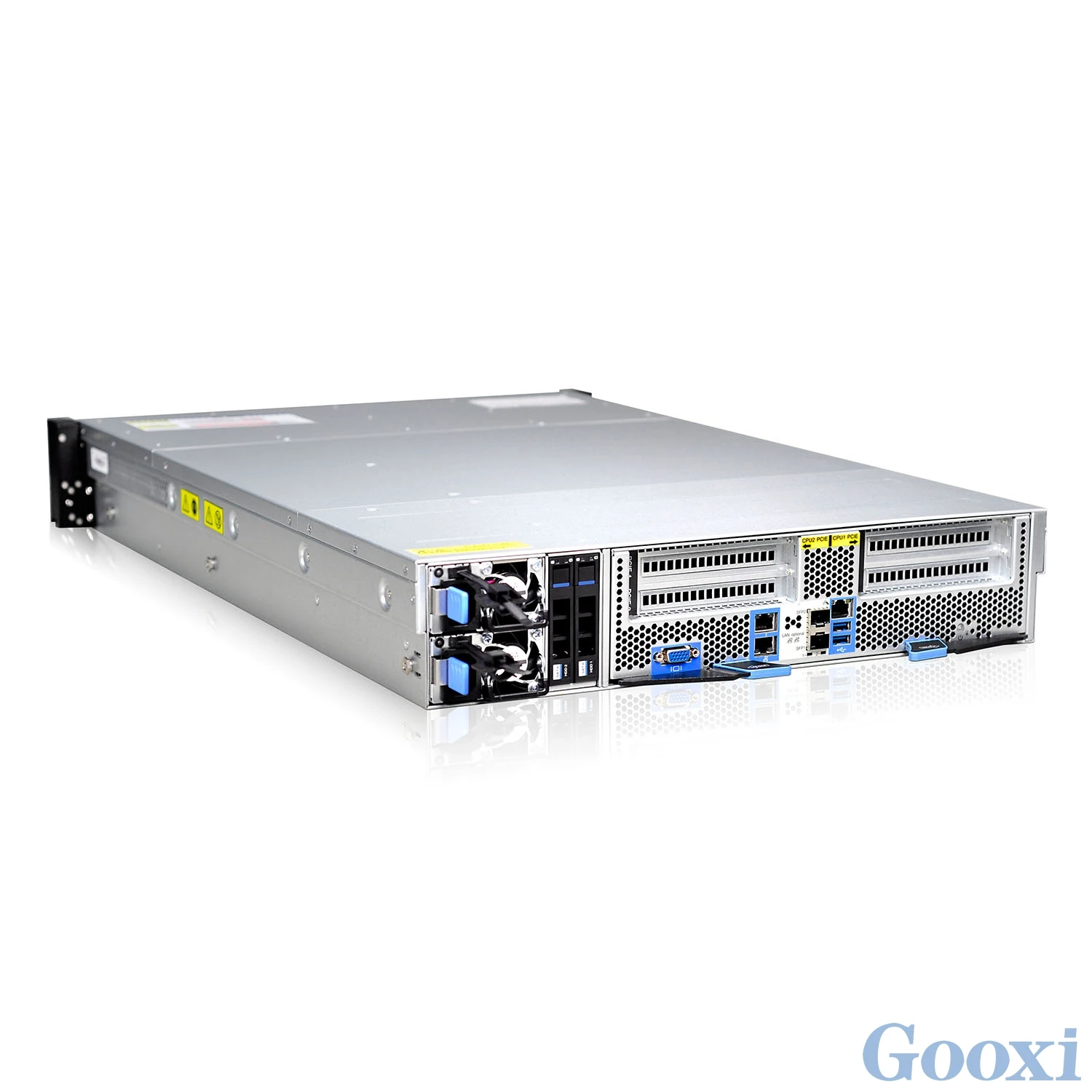

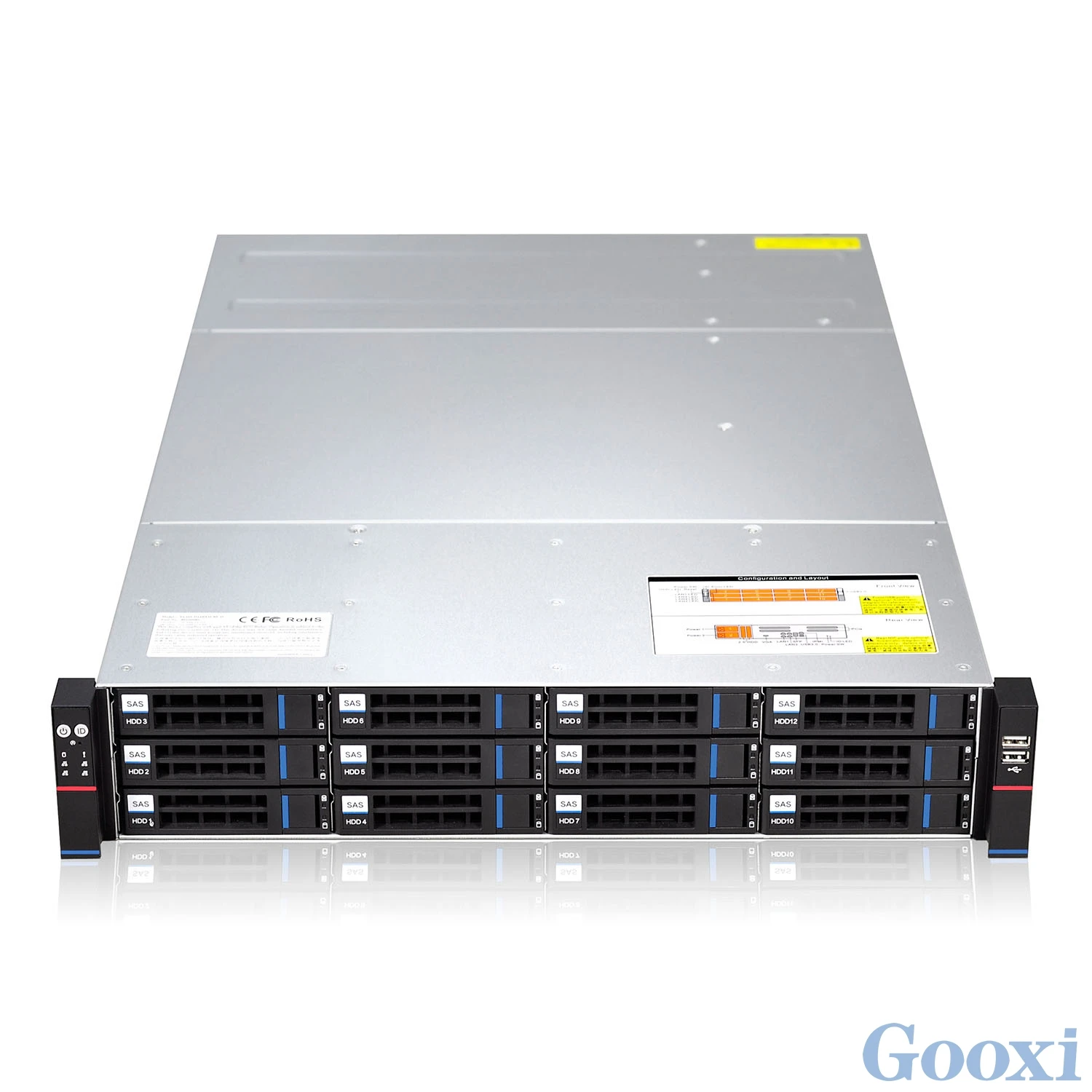

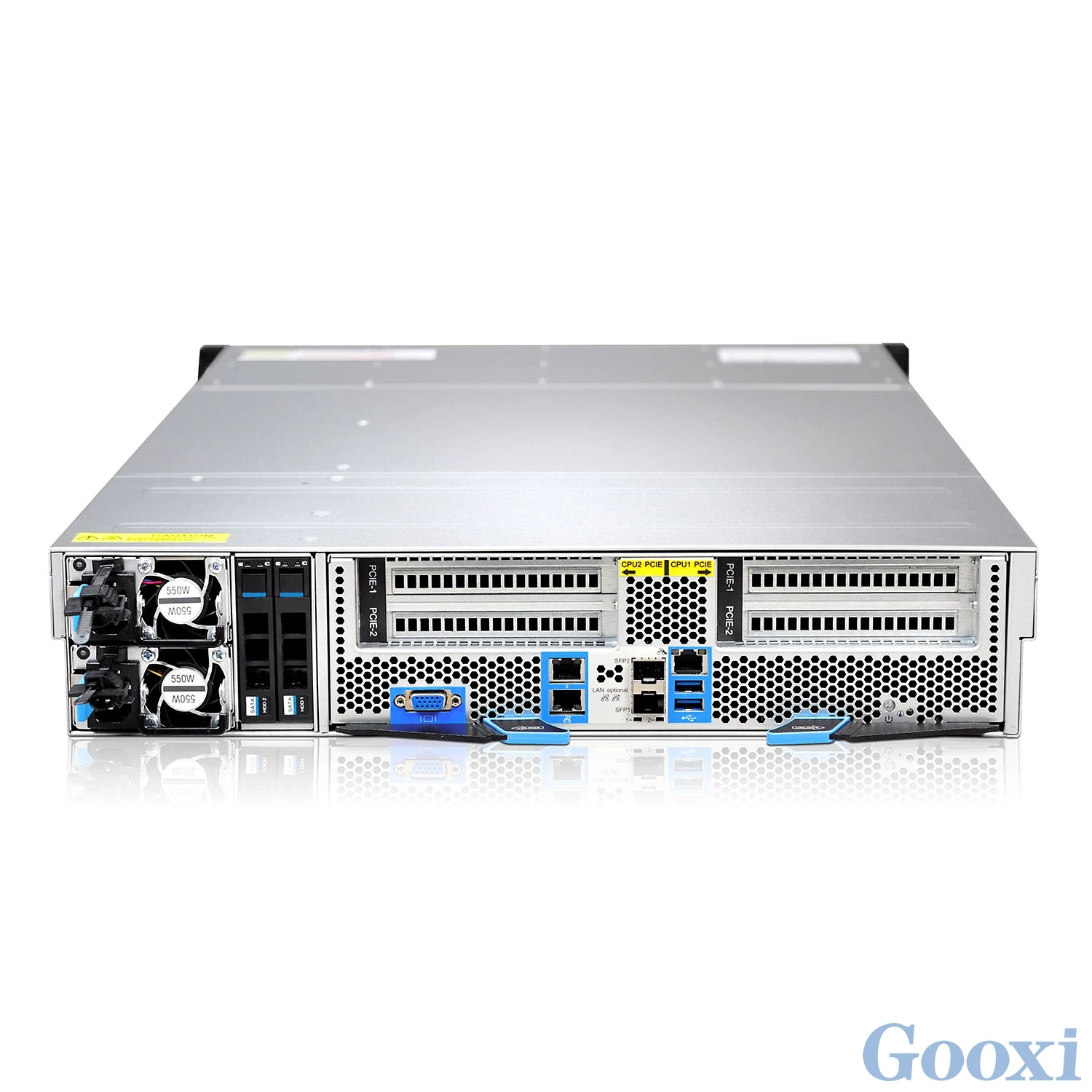

Product Picture
