Wholesale factory direct 12V 24Ah deep cycle lithium ion battery
Product Description
Item
Specification
Name
12V 24Ah li-ion battery pack
Nominal voltage
12.8V/14.4V
Nominal capacity
24Ah
Cell type
IFR26650E3000/INR18650E3000
Configuration
4S8P
Chemistry
Lithium iron phosphate/lithium NMC
Working current
6A - 0.2C
Maximum continuous discharge current
30A - 1C
Pulse discharge current (less than 1 second)
60A - 2C
Discharge end-off voltage
8V/10V
Charging end-off voltage
14.6V/16.8V
Standard charging current
6A - 0.2C
Maximum charging current
10A
Iner resistence
<70mΩ
Operating temperature
Charge: 0 to 45 °C Discharge:-20 to 60°C
Dimension
Can be customized
Weight
3.5KG
Storage temperature range
Less than 1 year:-20~25°C
Less than 3 months:-20~40°C
less than 7 days: -20~60°C

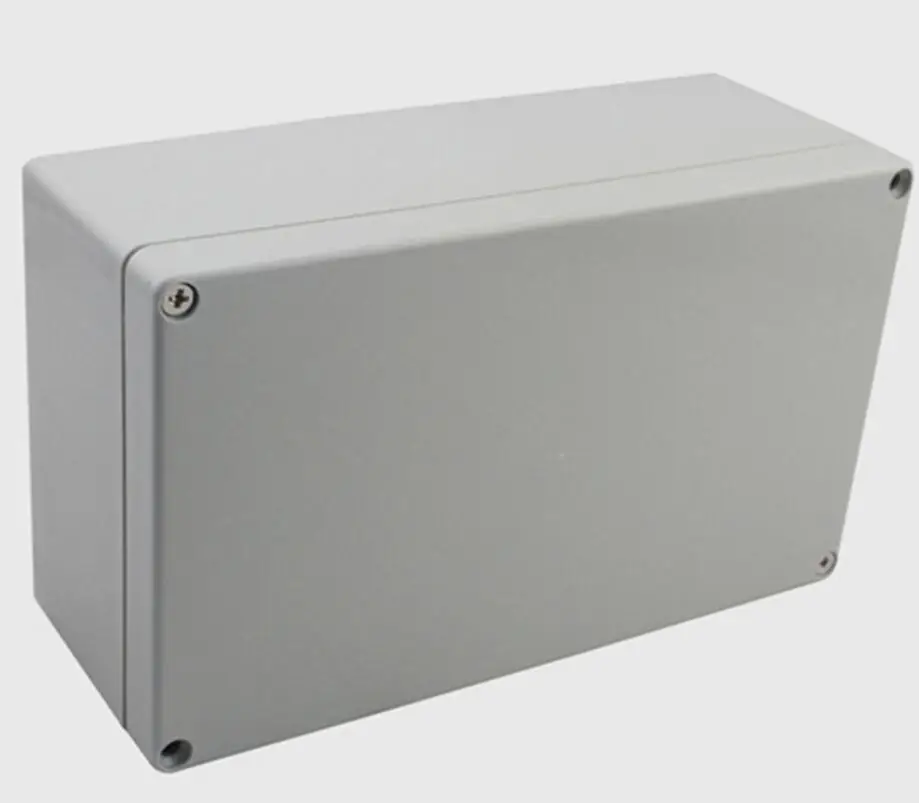

1, This kind of product is used in Bluetooth Speaker, Portable Source,Armarium,Power Tool,Electronic etc 2, Lithium batter(18650 26650 Cell) ,Most reliable battery 3, The battery pack is wrapped by thin black PVC shrink tube or ABS housing 4, Rechargeable up to 2000 times 5, Service&Quality: Our manufactory has a long-term cooperation with the military, adopting real capacity battery with 12 months' warranty.
Product Feature/Advantage
1. Safety: 12v 24ah deep cycle li-ion battery , CE ROHS UN38.3 approved, built-in BMS, none fire, none explosive 2. Clean and Green energy, no toxic material contained 3. Powerful: By China 5C rate cell 4. Long life cycle: after 2000 cycles, there is 85% remaining capacity 5. No memory effect,highly efficient charge anytime, no reduction of capacity 6. Operation temperature: -20~60°C 7. Easy replacement for lead acid battery 8. Good performance at high temperature and high temperature resistance 9. Low self-discharge rate: < 3% monthly
10, High energy density cells with good performance.

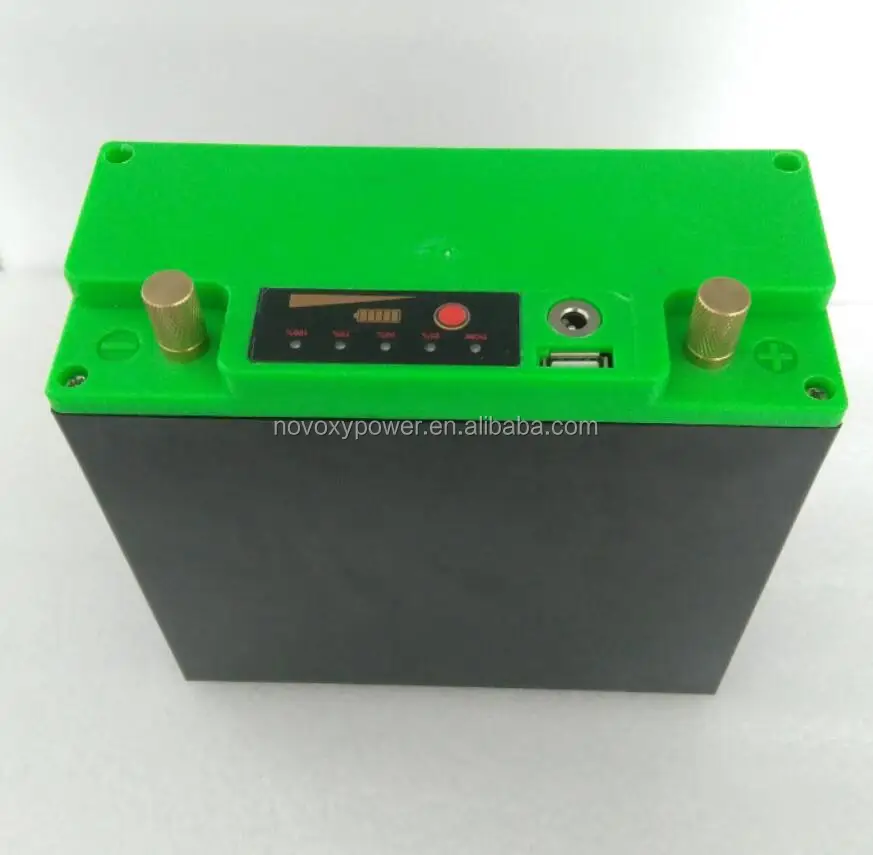

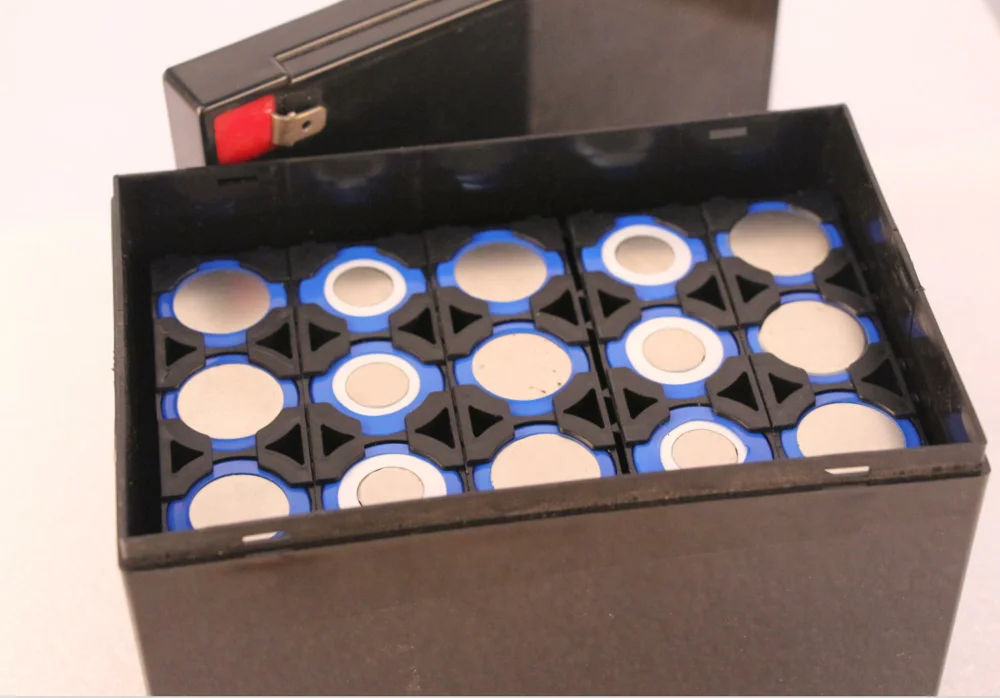

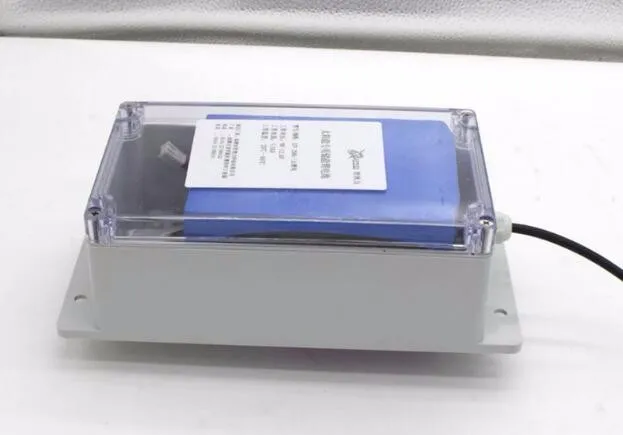

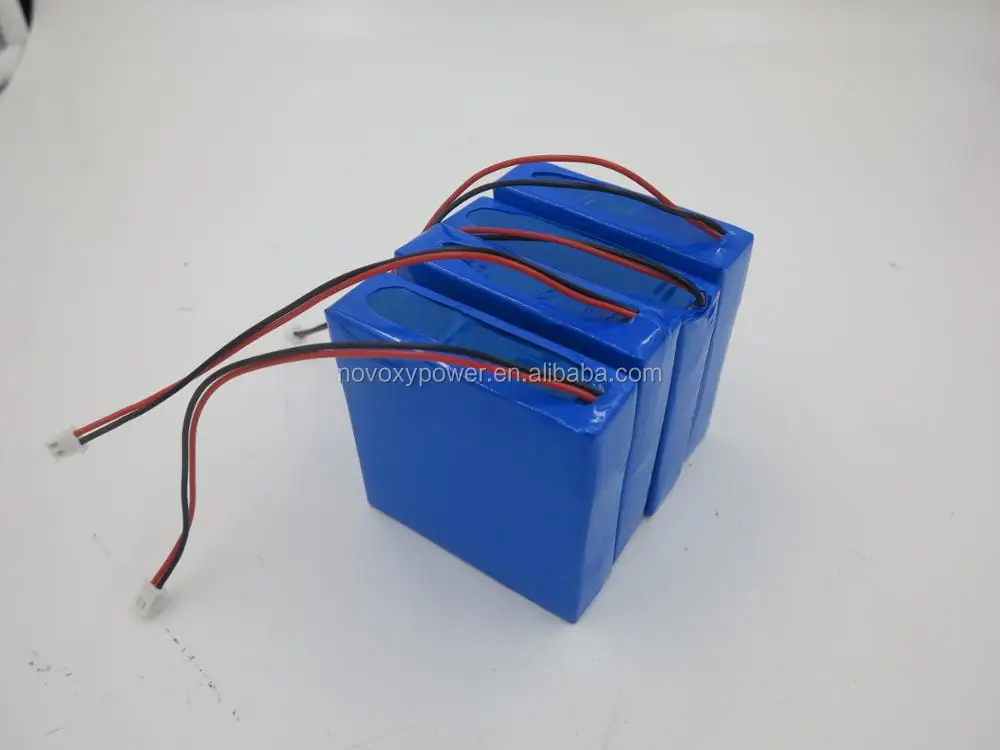

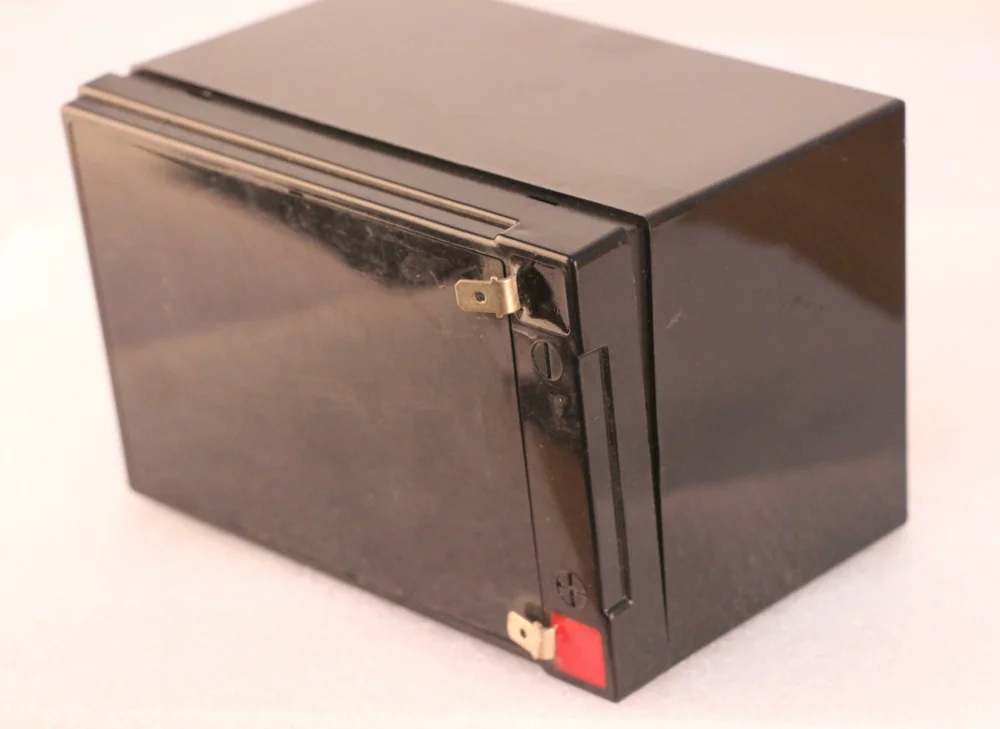

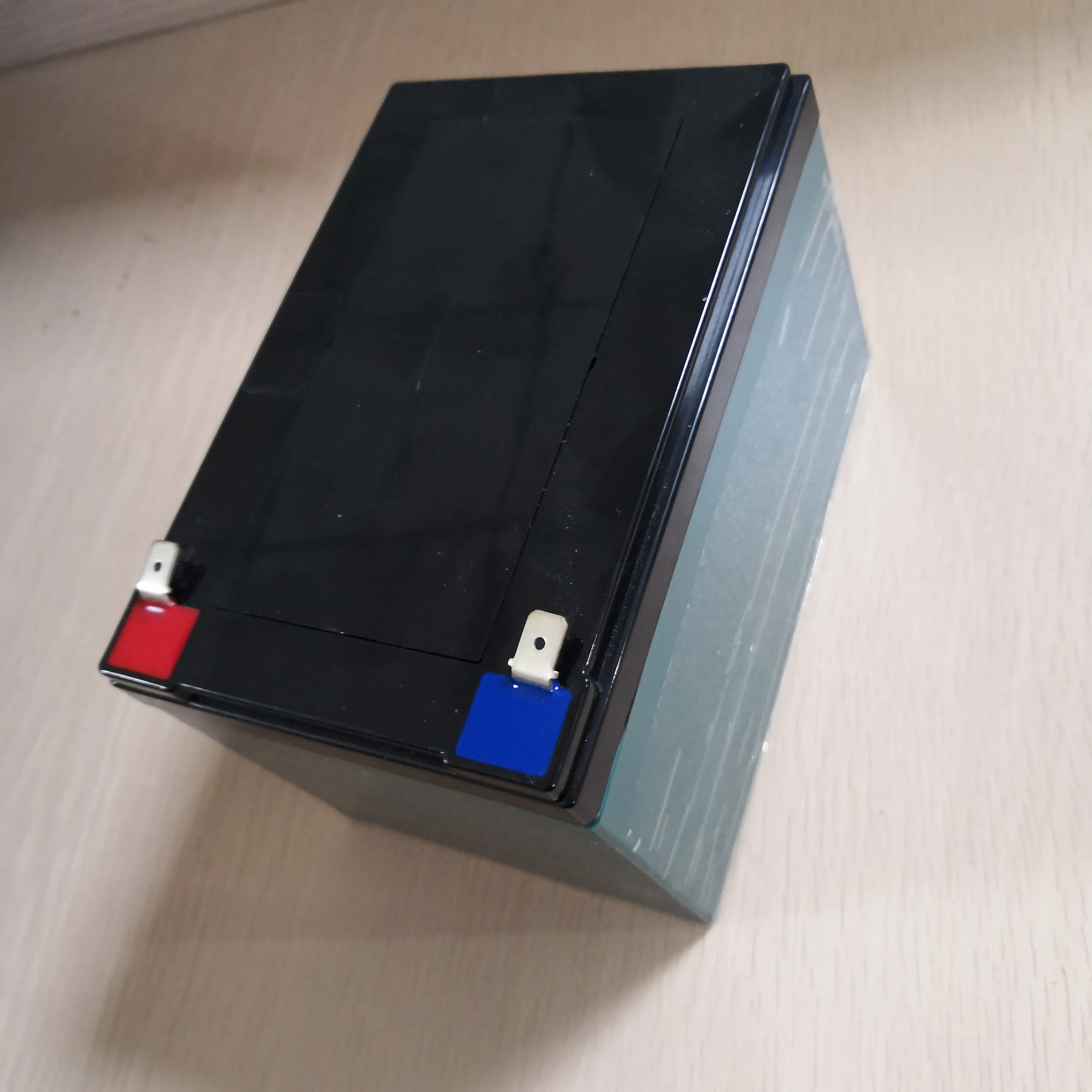

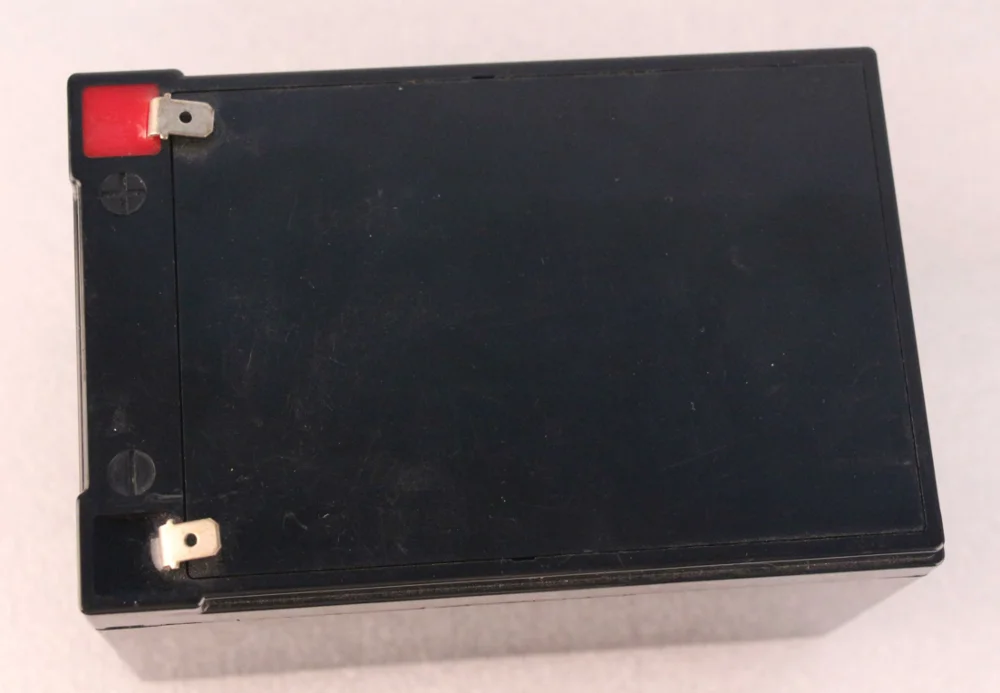

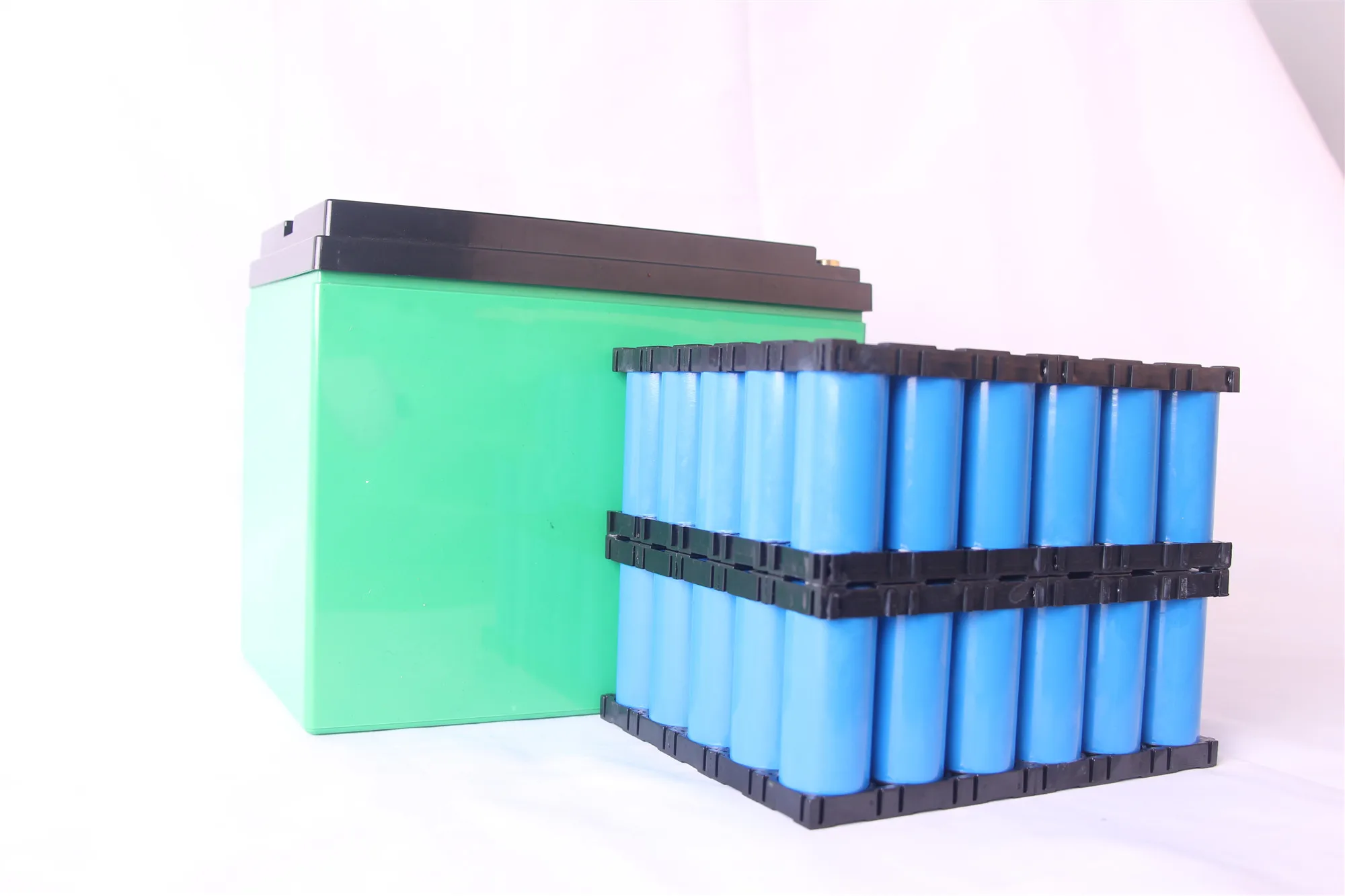

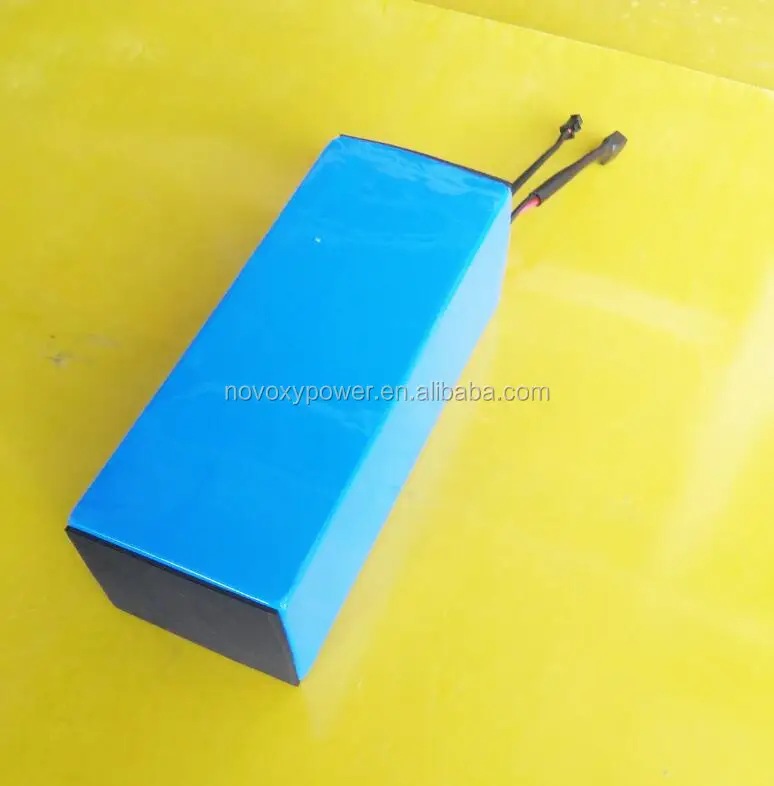

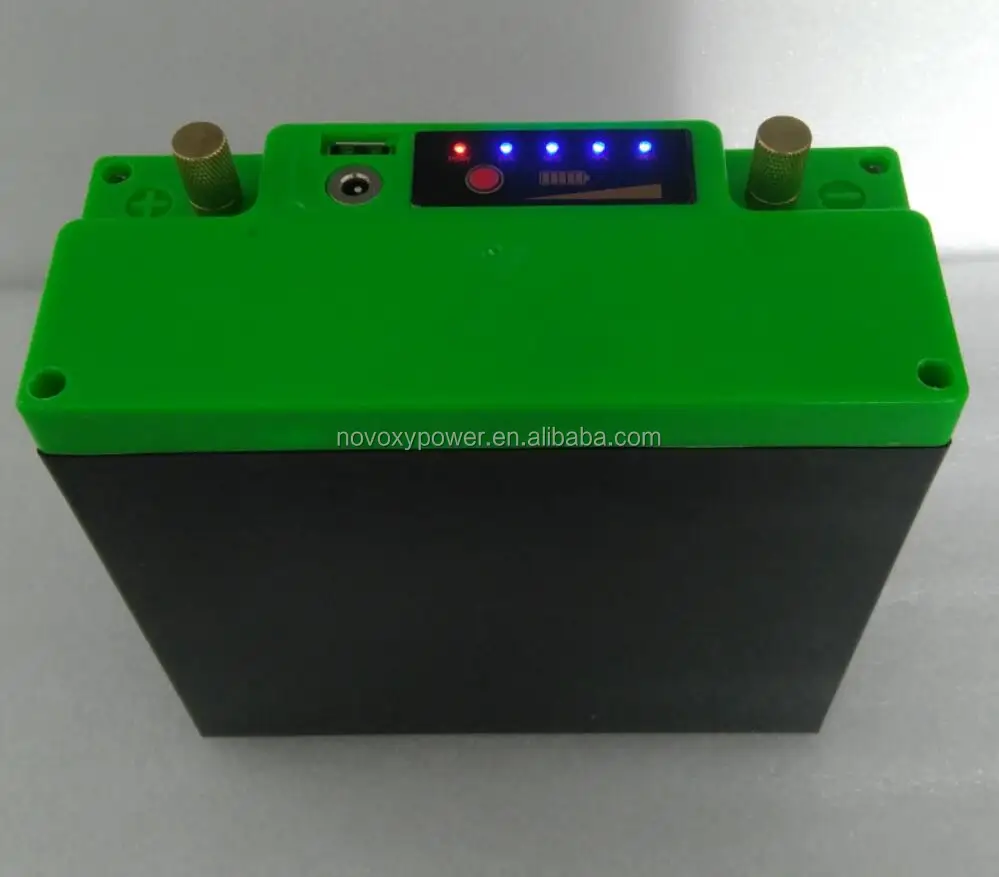

Product Photo
Application
1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
3. E-tool: electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices, Telecom base Station
6. Small medical equipment and portable equipment.
Certification
Delivery and Payment
Packaging & Shipping
Company Information
Novoxy Power Technology Limited was established in 2010,located in Shenzhen,China. We gain high reputation in the rechargeable battery field due toquick development in recent years. Novoxy Power specializes in producing customized lithium battery pack,can provide design service, we are carrying out the supreme principle and taking technical support as the basis.
Our quality is stable and credible, with high capacity, long cycle life, low internal resistance, no pollution, no memory, high current discharge and overnight charger characters. Our lithium batteries are widely used for LED lighting, UPS, LEV, energy storage system, household appliances, medical devices, power tools and other lead-acid replacement areas. All the products pass IEC, CE, UL,UN38.3,MSDS etc certifications.
We are dedicated to providing competitive price and good quality to our customers.Helping customer to find suitable products at competitive price is our spirit.
Novoxy Power has advanced manufacturing operating system with strong supply chain. We have about 80 R&D staff, and most are senior engineers with more than five years experiences in the lithium industry, that guarantee us to supply most competitive cells, battery pack and BMS solutions. Novoxy Power based on application of advanced lithium technology.
FAQ
Q1: How is your battery quality? Re: Our factory has been providing domestic military regions and various police units with batteries and equipments for a long time. Therefore, our battery has quality guarantee.
Q2: What's the warranty of your battery? Re: We provide one year warranty for all the products except for artificial damage or soaking.
Q3:Is this product safe? A: All the battery packs are built with BMS with function of over-charge, over-discharge, over-load and short-circuit protection.
Q4: What's the lead time? A: 1. Sample orders: 7 working days. 2. Bulk orders: 15-20 working days according to different quantities. 3. OEM: 25 working days on receipt of sample confirmation.
Q5: Can you send a sample for us to develop? A: Yes, we can. Sample can be sent out once you ask for it, but we will ask a sample fee. Sample fee will be returned back in future order.
Q6: Is it the capacity of your battery real? Re: All of our batteries are real full capacity with top quantity, competitive price& long lifecycle.
