factory price dc servo motor encoder 24V 400W Brushless dc motor with brake and right angle planetary gearbox for AGV vehicle

Product Overview

Description

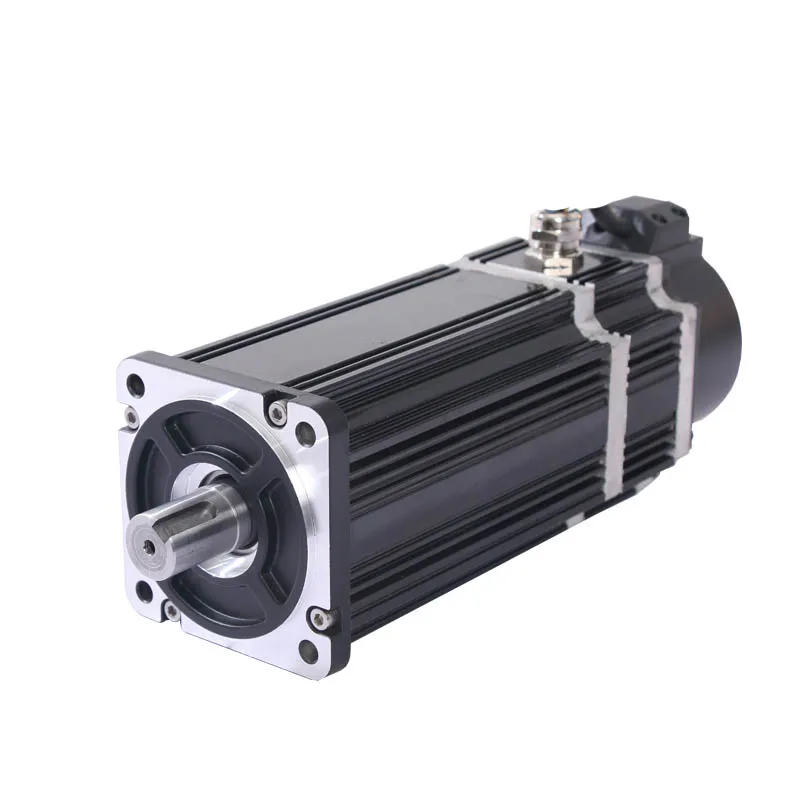

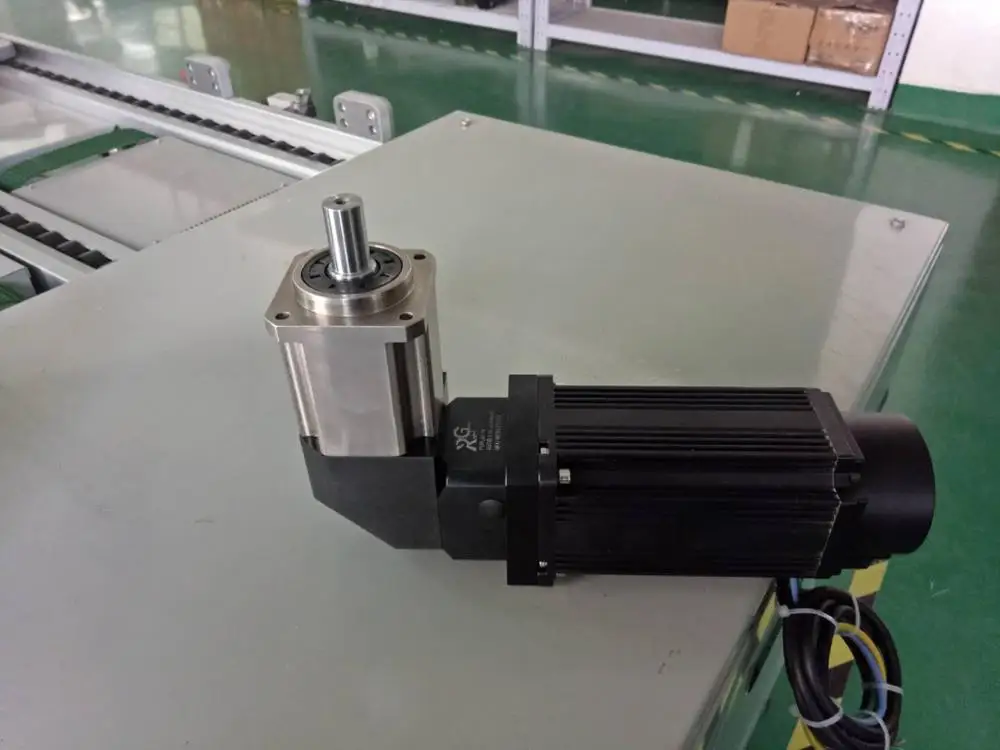

factory price dc servo motor encoder 24V 400W Brushless dc motor with brake and right angle planetary gearbox for AGV vehicle

KY80AS0204-15B PGRL60-7

Protection grade:IP65, insulation grade:F
Winding overhang structure optimization, to minimize the copper loss and iron loss minimization, small volume, light weight, low temperature rise, high efficiency
Super high coercivity, the maximum magnetic energy product NdFe35 permanent magnetic materials, strong resistance to demagnetization, motor performance is stable.
Low noise, low vibration, low moment of inertia.
High torque, fast dynamic response, wide speed range, strong overload capacity (four times)
Features:
*High Torque to inertia ratio&up to 15000Nm/kgm²
*Fast dynamic response *time constant <20ms
*Wide speed adjusting&feedback up to 1000:1
*Steady speed precision up to 0.5%
*High overload,2Mn/30s,3.5N.m/10s
*Small volume and light
*Silent,the lowest noise is only 45dB(A)
*Protected with IP65,Class F insulation
Industry class
1.The altitude should be over 1000 meters above sea level
2.Environment temperature:+5℃~+40℃
3.The month average tallest relative humidity is 90%,at the same the month average lowest temperature is less than 25

KY80AS0204-15B PGRL60-7
Rated voltage	DC24V
Rated power	400w
Rated speed	1500rpm
Rated current	21.3A
Rated touque	2.55N.m
Peak Torque	7.65N.m
Line Resistance	0.025Ω (20℃)
Rotor Inductance	0.066mH
Torque Constant	0.119N.m/A
Back EMF Constant	10.9V/Kr/min
Rotor Inertia	281kg.m2*106
Mechanical Time Constant	0.6ms
Electrical Time Constant	0.5ms
Encoder	2500ppr Incremental photoelectric
Brake	24vdc electromagnetic braking

Gear Ratio

1:7

Output speed

214r/min

Output rated torque

16.9n.m

gearbox efficiency

95%

Weight

7kg

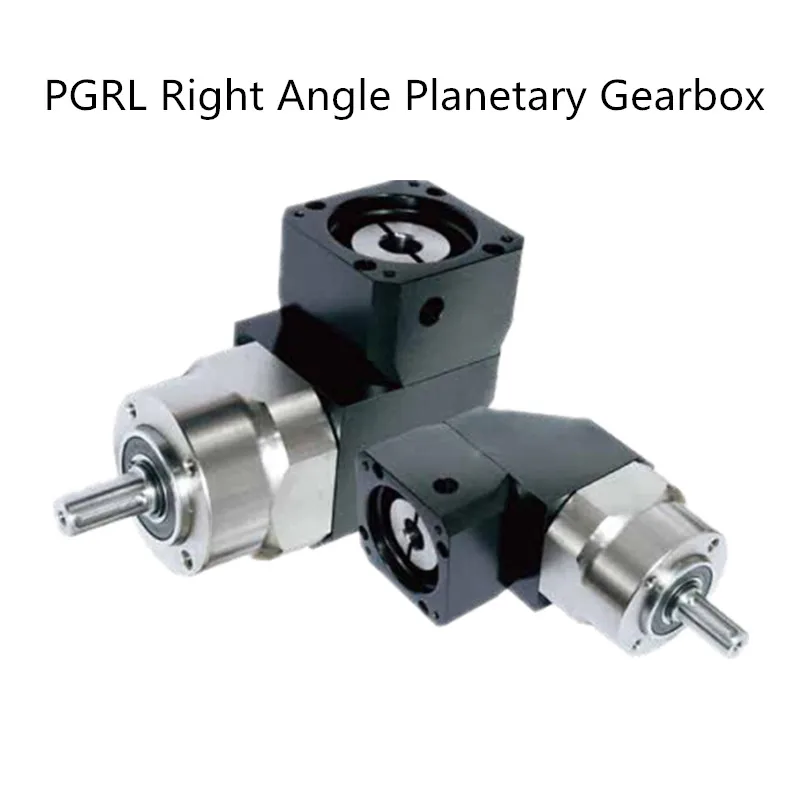

Right angle planetary reducer PGRL60-7

Speed-torque Curves



Our trading team is with rich experience. So we can assure your money and business safe.

we keep 24 hours online and offline service.Welcome your inquiry at any time.

We enjoy a good reputation among our customers, welcome your inquiry and visit.

Our company’s philosophy:Customer first, Lead the market, Team work, Achieve win

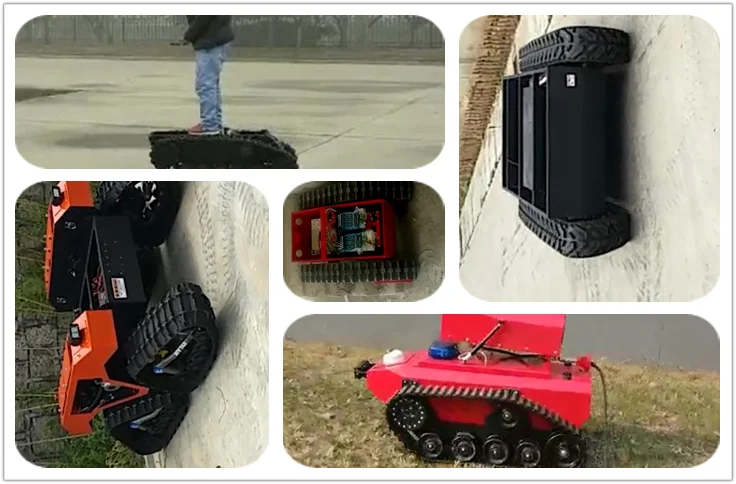

Tracked car,Logistics shuttle,AGV,intellgent robot,Fire fighting Robot Etc.

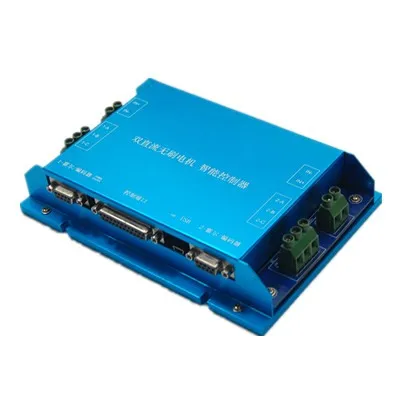

Signal Channek bldc controller KYDBL4850-1E               Dual channel brushless dc controllerKYDBL4850-2E



1.Many kinds of motor with different powers to meet difference requirements.

2. Many designs and Matched controller for your choice.

3. Samples will be offered to attest to the quality and our services.

4. No design limited. you design it by yourself.

5.The fastest feedback!

6. The fastest delivery time.



dc servo motor encoder 24V 400W Brushless dc motor with brake and right angle planetary gearbox
