Newly Developed 3.3V Customized HTN LCD 7 segment Display With White/Green Backlight For Hybrid Inverter/KWH/Electricity meter

Product Overview

Description

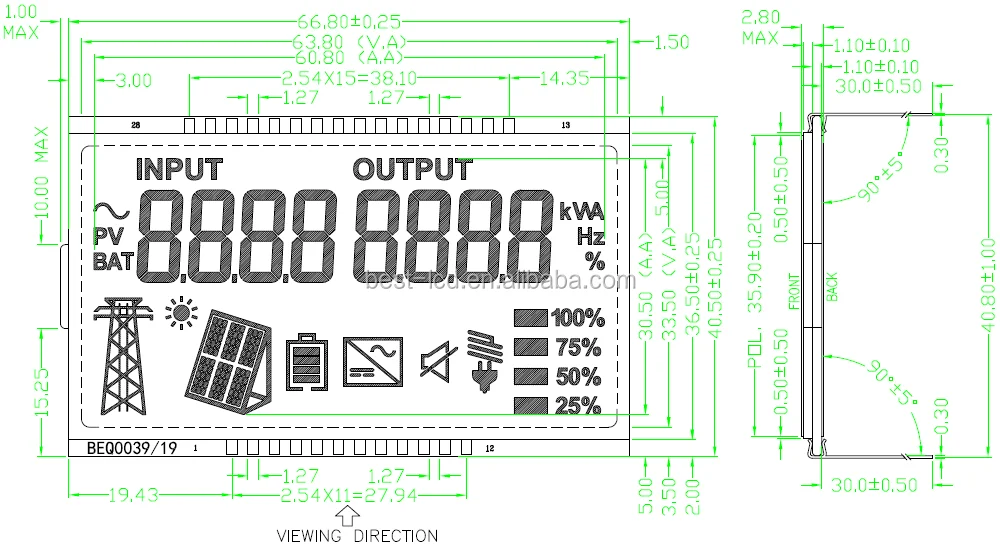

1. Professional Mechanical Drawing:











2. Precisely Technical&Mechanical Parameters FYI:



Application	Hybrid Inverter / Electricity Meter / Energy Meter / KWH Meter etc...
Display Type	HTN / Positive
Polarizer Type	Transmissive
Outline Dimension	66.80*36.50/40.50*1.10mm
Viewing Angle	6 O'clock
Connector Type	Metal Pin
Driver Method	1/4Duty, 1/3Bias
Pitch	1.27mm
Operate Temp.	-20~85degree
Storage Temp.	-20~85degree
Operative Vol.	3.3V

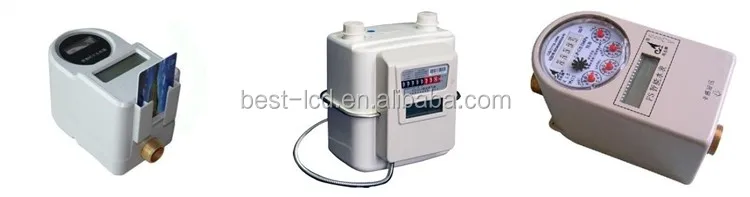

3. Appropriate Application: Newly Developed 3.3V 6 O'clock Customized Segment HTN LCD 7 segment Display With White/Green Backlight For Hybrid Inverter/KWH/Electricity Meter etc.













4. Qualified Packaging:













5. Trusted Shipping:











6. Outstanding Capabilities&Services:

Customizing & designing segment, character, graphic LCD Display and LCD Module(Including LED Backlight, IC) with different sizes, shapes, display icons for clients.



Product Type:

1. LCD Type:  TN, HTN, STN, FSTN, VA, COB, COG etc.....

2.  Any digitals, Icons, graphic can be customized and designed according to customers' requirements.

3. Polarizer type: Transmissive, Transflective, Reflective

4. Connector Type: Metal Pins, Zebra, Heat-seal, FPC...

5. ITO Glass thickness: 1.1mm, 0.7mm, 0.55mm

6. The range of operating Temperature: -40~90°C





Our products are widely and well accepted in North America such as USA,Canada; European countries such as UK, Germany, France, Netherlands, Greece, Russia, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain, etc. ; Asia countries such India, Singapore, Malaysia etc..









7. Contact us:

If it arouses your interests or if you want to learn more details and get the latest updates, pls add my trademanager/Skype or send inquiry to me, I'll be glad to answer!
