Economical and practical 38*38cm fabric sportswear t shirt heat press machine for clothing
- Category: >>>
- Supplier: Dongguan Shangcheng Technology Co. Ltd.
Share on (62035186148):
Product Overview
Description
Our Factory:
1.)Dong guan Shangcheng Technology Co., Ltd is a professional producer factory for all kinds of heat press machine, heat transfer machine, sublimation heat transfer press machines. etc. it also is one of the biggest factory of heat press machine in CHINA.
2) We in this area more than 10 years, very professional and experienced.
3) Located in Chang'an town,dongguan city, we possess CE &SGS certificate.
FAQ:
1.Why we have to buy products from you?
We are one of the largest and best manufacture of heat press machines in China,we have many year's experience in producing heat press equipments,the quality and prices of our machines/materials are superior to others.And we have specialized marketing group and technical team,we could provide the best service,advice,help to you.
2.How can I receive your goods?
If you order little quantities(below 100KG)you could use DHL,TNT,UPS or other air express company to delivery your goods,delivery time usually 3-4working days,they will send the products you order to your address.If you order large quantities,you could use sea delivery,and you need to go to your nearest seaport to take your goods,delivery time usually 30-40days.For more details,please contact with us.
3.How become your sole agent?
When you reach our request quantities,you could become our sole agent in your country.For more details,please contact with us.
4.Do you offer Drop-Ship offered.
Some customers want us to send the items to their customers directly This is called a drop-ship, we can offer this service, when we do this service we don't container any of our details .Or send the items according to the customers required.
Economical and practical 38*38cm fabric sportswear t shirt heat press machine for clothing
SPECIFICATION:
Item No.: STC-SD09
Voltage :110V/220V
Temperature range : 0-399°C
Time range :0-999 Sec
Working size:38*38CM
Power :2200W
Weight :25KG
Packing size :74*48*44CM
The parameters of other working size as follows:
Flat Heat Press Machine | |||
Item No. | STC-SD09 | Voltage | 110V/220V |
Temperature range | 0-399 °C | Time range | 0-999Sec |
Power | 2200w | 2800w | 3500w |
Weight | 25kg | 30kg | 36kg |
Packing size | 74*48*44cm | 83*61*44cm | 81*71*45cm |
Working size | 38*38cm | 40*50cm |
40*60cm |
OPERATION VIDIO LINK:
//v.youku.com/v_show/id_XNDQxODMxODMy.html
//v.youku.com/v_show/id_XNDQxODMxODMy.html
APPLICATION:
This heat press machine is widely applied in heat transfer printing industry. It can printing any photo and design pictures onto the materials such as T-shirts, jackets, mouse pads and more fabrics .It's the best choice for personalized pyrograph of retail shops and factory mass-production, in a word ,it is economical and practical.
This heat press machine is widely applied in heat transfer printing industry. It can printing any photo and design pictures onto the materials such as T-shirts, jackets, mouse pads and more fabrics .It's the best choice for personalized pyrograph of retail shops and factory mass-production, in a word ,it is economical and practical.

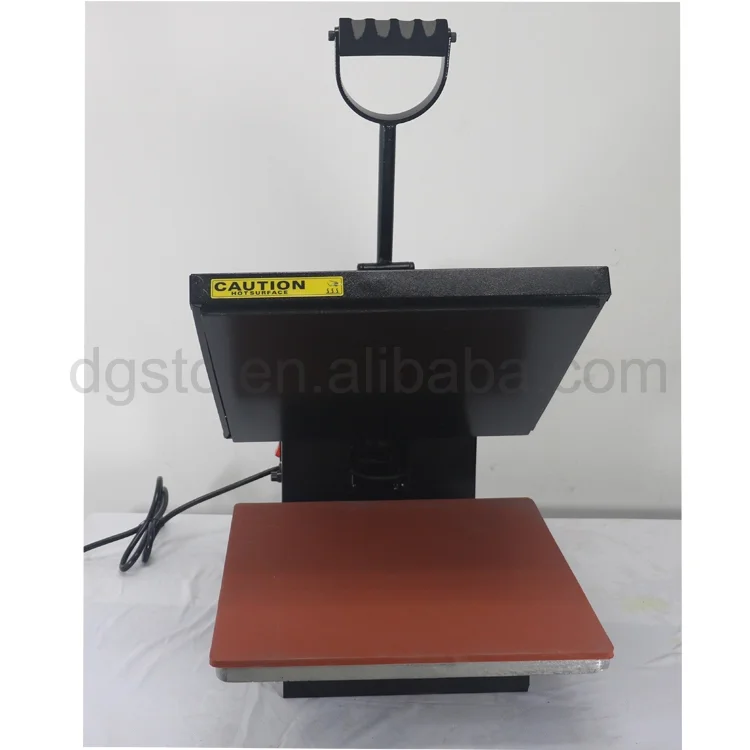

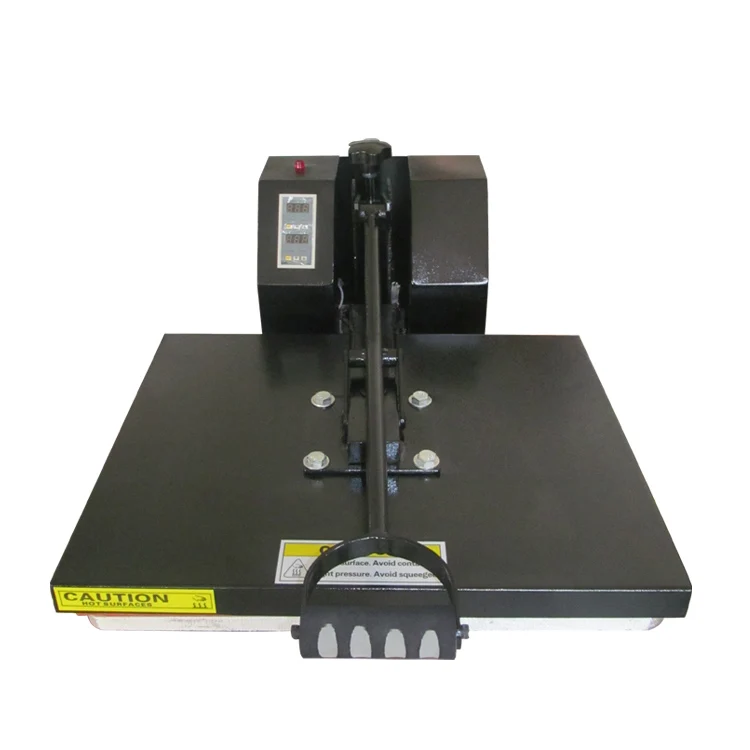

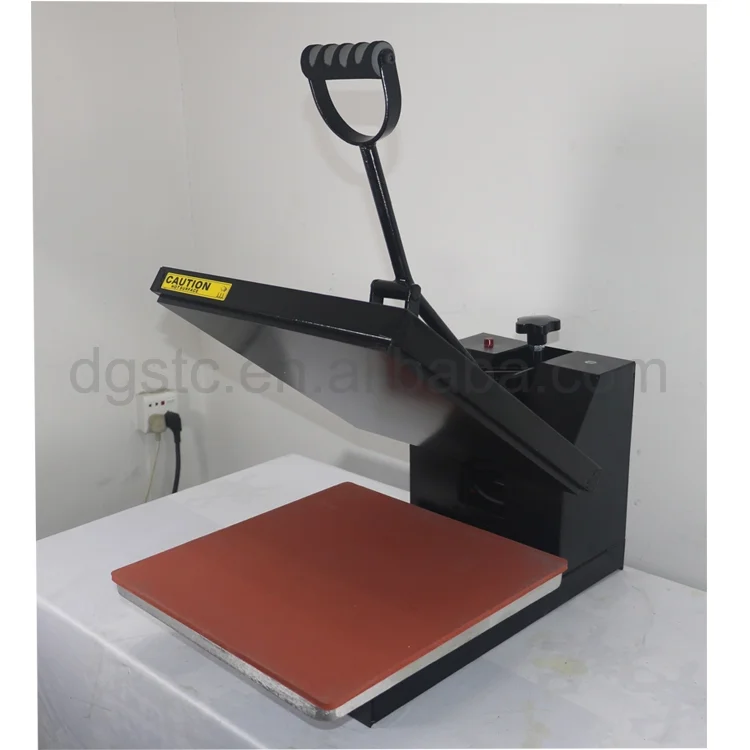

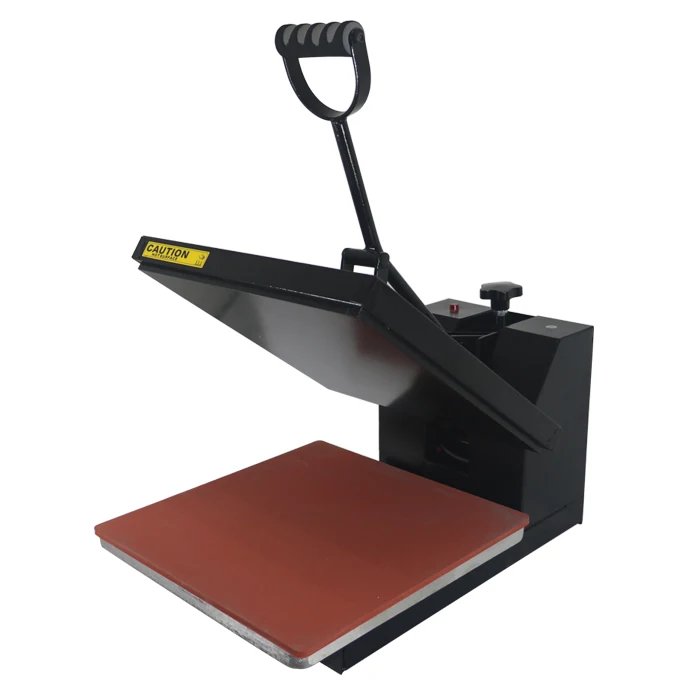

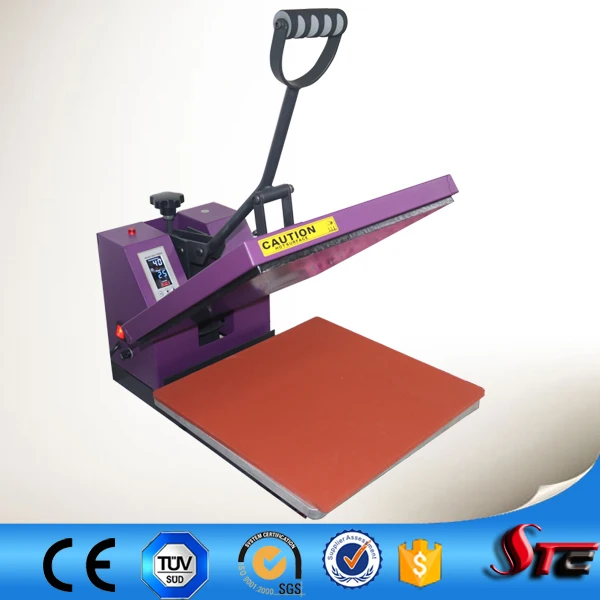

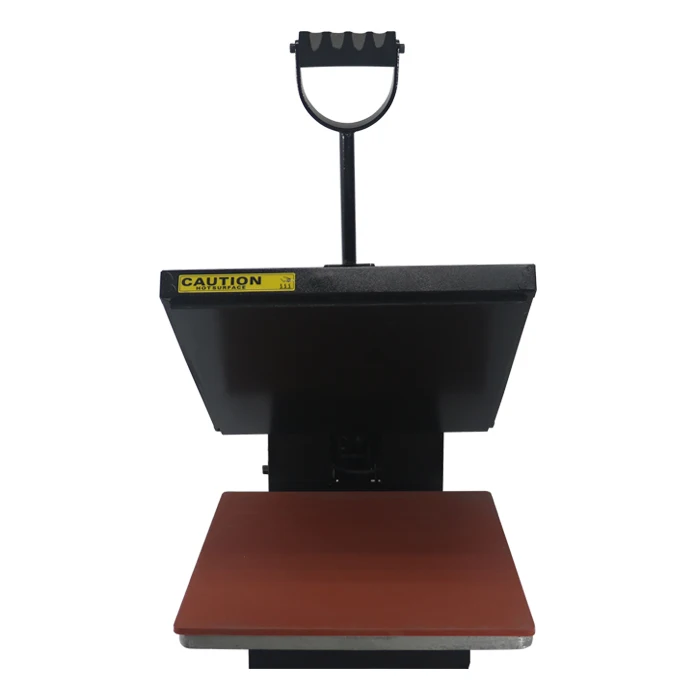

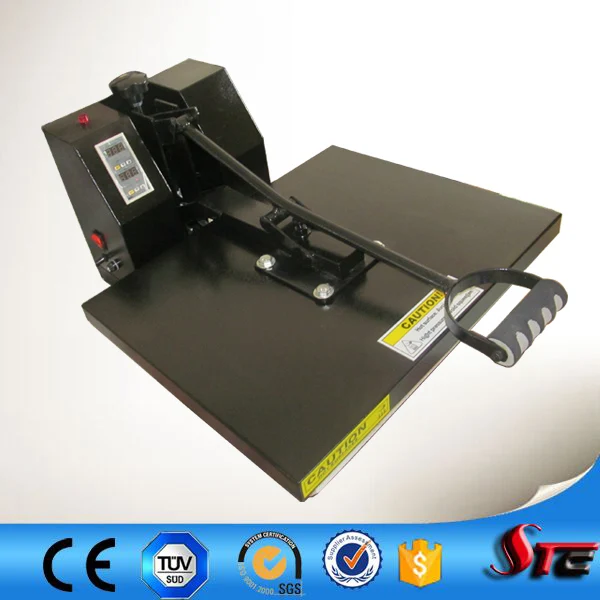

PRODUCT DISPLAY:
FEATURES:

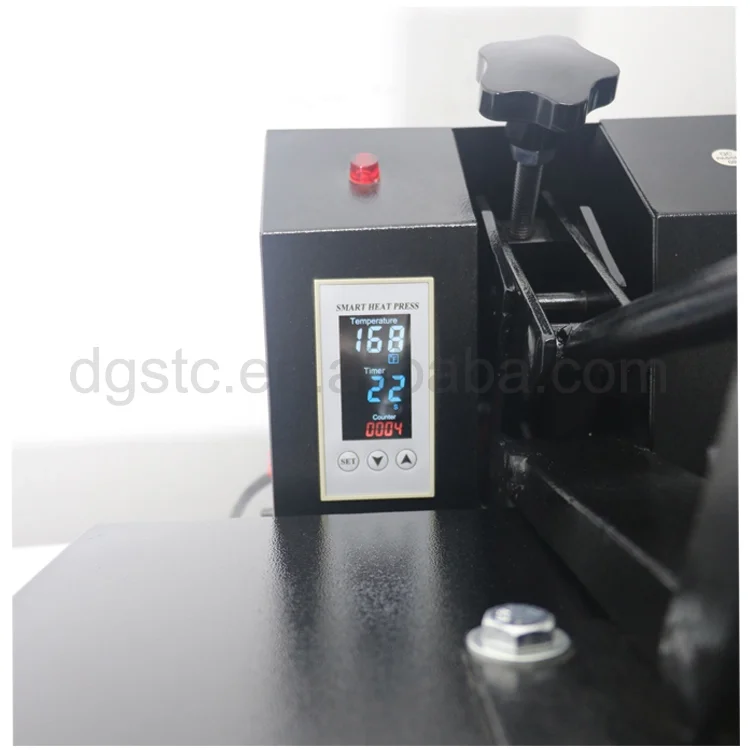

1. Digital time and temperature control,and signal indicator after process complete.simply operation.
2.The heated thread and heated board in whole, safe, durable ,thermostat distribute uniformity;
3. Based on kinesiology design, equality pressure,The pressure can be adjusted freely according to you need.very convenient.
4.Adopt teflon coating & high temperature fabric as anti-adhesive clad layer for heating plate,prevent the clothes burned yellow, easy to clean,can be replaced,without loss can work permanently.
5.Fix high temperature resistant froth silica pad on the work table ,it can bear maximum 350ºC without any distortion,more smooth,good heat transfer effect.
6. Energy saving machine, It is economical and practical.
READ BEFORE OPERATING:
1.Be sure to operate with safe ground wire!!!
2.Check the voltage before using it.Then turn on the machine and turn on the power supply!
3.When you use it,avoid heating the machine without operating it for long time.You should switch off the power supply when you don't use it.don't heating nothing.
4.Avoid touch the heat press plate when you operating in case be injured.
5.When you press the handle,if you feel the pressure is too much and it is hard to press it, or the pressure is not enough and it is too easy press it,please adjust the pressure adjusting knob,decrease / increase the shrink of the spring . the intensity of the machine will be injured if the pressure is too much.
6.Keep children away from the machine even when the machine is left unused!!!
Operation procedures
please note:Users should operate the machine with ground wire connected for safety!
1.Check the voltage before using it.Then turn on the power supply!
2.Plug in,turn on the power switch of machine,the power indicator lightened.
3.Set the thermostat to the temperature needed (Normally 120-200ºC),set the timer to the needed.(Normally 5~20Second).
4.Place the clothes to the main plate,cover the printing paper(please note the right surface of the paper).Press the handle down until reach terminal.
5.When the time come down to over,the buzzer alarms,pull the handle back.
6.If it is cold-ripping of the transfer paper,please use blackboard wiper to rub against the whole transfer paper,wait for 5-10 seconds,then rip off the transfer paper.If it is the hot-ripping of the transfer paper,you can rip off immediately after printing.
| Temperature & Time | |||||
| Materials | Temperature | Time | |||
| Sublimation heat press printing | 200-220°C | 25s | |||
| Plastic sheet heat press printing | 160-180°C | 8-10s | |||
| Foaming material heat press printing | 140-160°C | 5-8s | |||
| rhinestone heat press printing | 180°C | 10-12s | |||
Please note : successful print requires right time ,temperature and pressure ,the thickness of the clothes material ,even the type of printing paper ,all will affect the performance of printing .Any kind of sublimation paper need test before mass production.
WARRANTY:
You can rest assured ,we offer good after-sale service: The machine enjoy one year warranty,life-long maintenance service and Life-long on-line technical support , and provide free parts when problems occur within one year not including shipping cost.we also offer good quality: All the machine of our factory have been approved by CE.
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal.
30%deposit,70% the balance will be paid before shipping.
Delivery Detail:
7 days after you confirming order.
PACKAGING:
The packing will be made according to your requirements. Here we have 2 usual kinds of safe packing method as below:
1.This Heat press machine will have foam inside,hard carton outside.
2.This Heat press machine will have PVC bag and foam inside, wooden case outside. These two methods above are very safe shipping packing methods.
2.This Heat press machine will have PVC bag and foam inside, wooden case outside. These two methods above are very safe shipping packing methods.
Please refer this heat press machine's CBM as below:
Packing size: 74*48*44cm CBM 0.18 ,CBM 20'Container 163PCS 40'Container 326PCS , Weight 33kg/pcs.
SHIPPING:
If you order little quantities(below 100KG),you could use DHL,TNT,UPS or other air express company to delivery your goods, delivery time usually 3-4working days, they will send the products your ordered to your address.
If you order large quantities, you'd better choose sea delivery.
1,If you have your own shipping agent, then we will contact with them and make sure the shipping details for you .
2, In case of you don't have your own shipping agent, don't worry, we will ask our shipping agent to do all the things for you.
3, After we ship the machine, we will give you the documents right now.
4. you need to go to your nearest seaport to take your goods, delivery time usually 30-40days. For more details, please contact with us.
MAINTENANCE:
1.Pressure:If the pressure is not enough or too large,please adjustable pressure nut,(+)direction of increasing pressure;(-)direction of a reduction of stress.
2.Time:When the time is over,the buzzer does not work or out of order,check the contact of the sensitive switch at the tail of the machine.If it is not proper,adjust it to proper position.
3.Temperature:If the machine has been started for several minutes,there is no heating from heating plate,check the circuit.
4.The machine adopt eccentric bearing,the pressure is not allowed to be adjusted too large,in case cause damage to bearing.
5.If any quality problem please contact our company.
