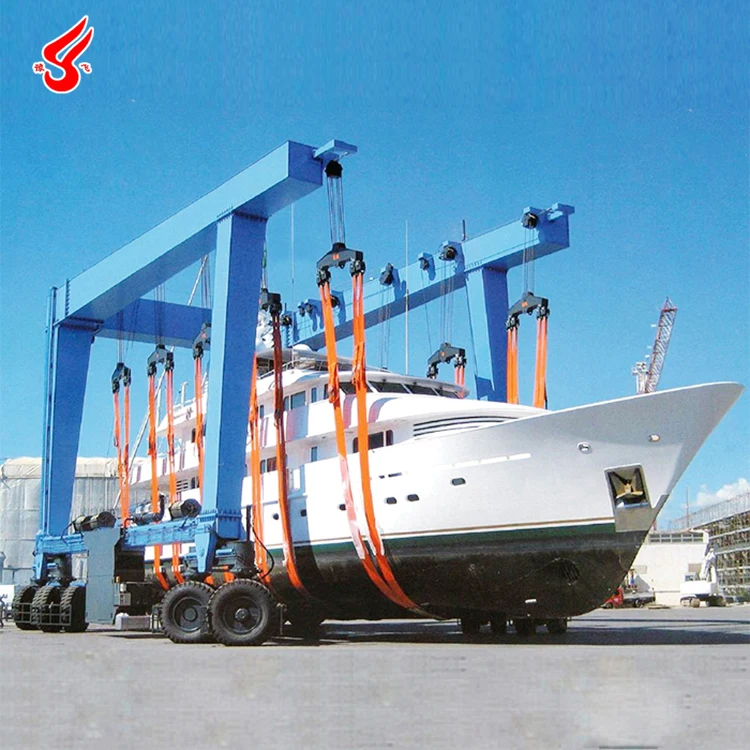

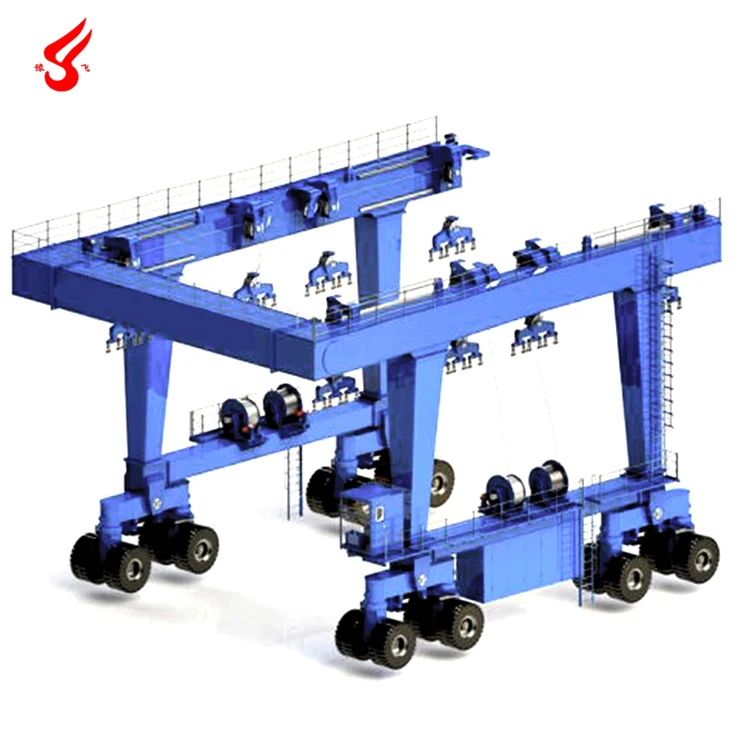

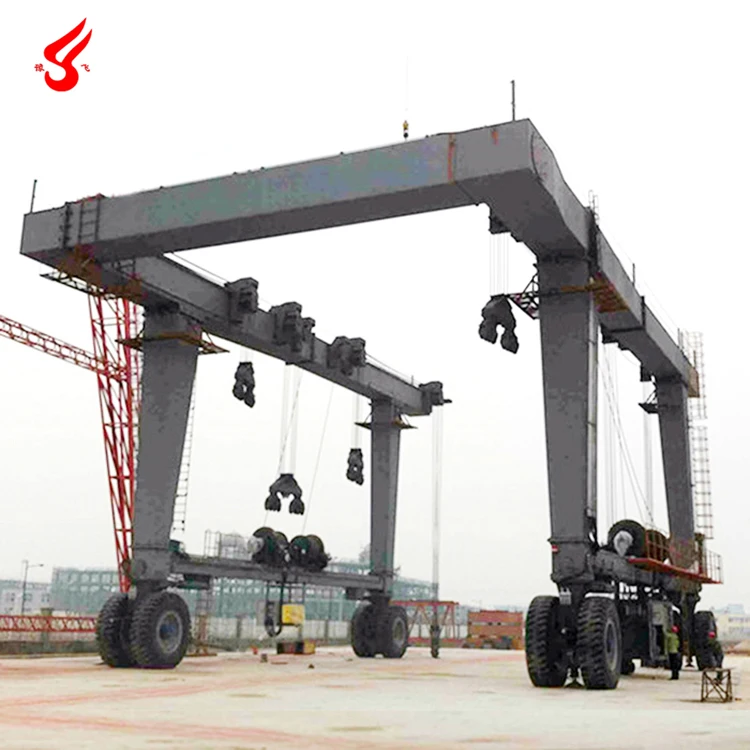

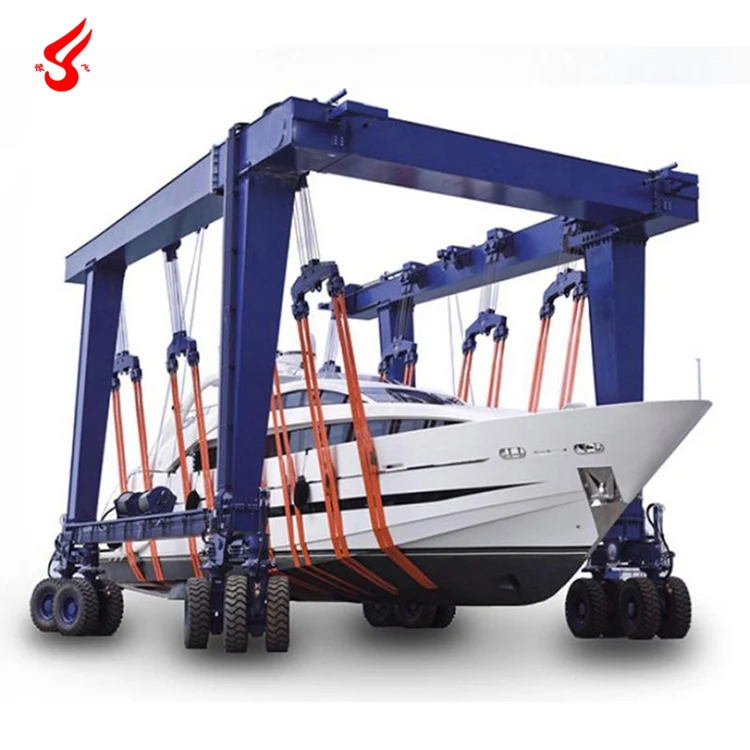

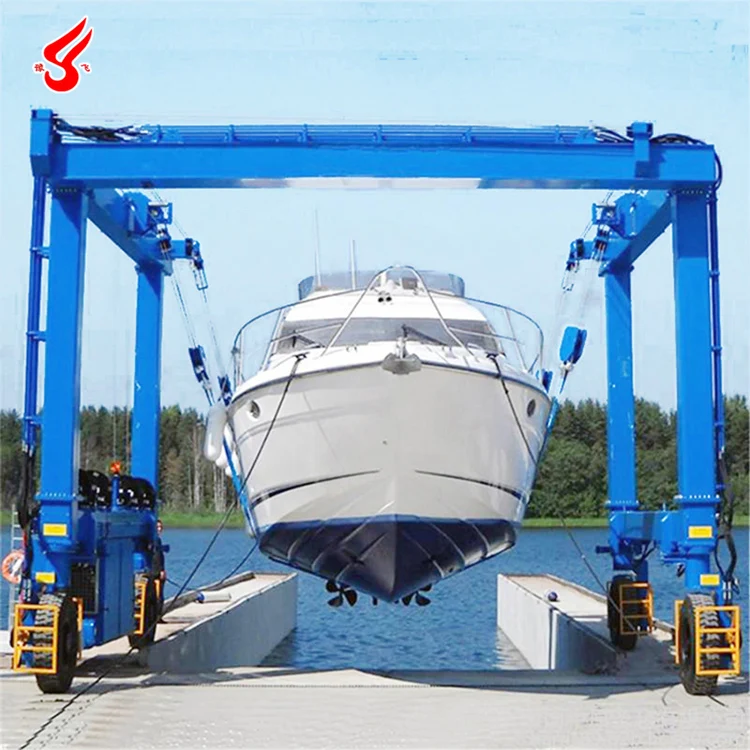

Boat Hoist Marine Travel Lift 10 Ton Gantry Crane
- Category: Gantry Cranes >>>
- Supplier: Henan Crane Co. Ltd.
Share on (62035284631):
Product Overview
Description
Boat Hoist Marine Travel Lift 10 Ton Gantry Crane
Product Introduction
The Boat Hoist Crane includes the following items: main structure, traveling wheel block, hoisting mechanism, steering mechanism, hydraulic transmission system, electric control system, the main structure for the type , it can transfer the boat which the height surpass its height.
According to different requirements of our customers, the Boat Hoist Crane can handling different tons boat or yacht (10T-800T) from the shore side, it can be used for the maintenance on the shore side or can put the new boat inside the water. It adopts the soft and firm belt to lift the boat, yacht; it will never hurt the surface. It also can put the boat in sequence quickly with small gap between each two boat.
Want to know more, contact me!
Product features of mobile boat hoist crane:
1.For the crane traveling, it can move in diagonal direction, it also can steering in 90 degree, it also can put the boat in any designated position according to requirements.
2.It can adjust the width of the main girder according to the boat in case to handling different side boat.
3.This hoist own the performance of low expense, high performance, easy to operate and maintenance and so on,.
4.Low cost on the daily operation, it adopts the soft and firm belt to ensure there is no harm to the boat when hoisting.
5.It can make the boat in order quickly, it also can adjust the gap between each boat according to different condition.
Specifications
1. Capacity: 100~900t
2. Groundspecific pressure: 6.5~11.5kg/cm2
3. Grading ability: 2%~4%
4. Lifting speed: Full load: 0~2m/min; Non-load: 0~5m/min
5. Running speed: Full load: 0~20m/min; Non-load: 0~35m/min
6.Working ambient temperature: -20 ℃~+50 ℃
Main Feature:
SWL(Kg) | Span (m) | Lifting Height (m) |
Crab Travel(m/min)
| Lifting Speed (m/min) | Steering mode | Steering angle |
5000+5000 | 12 | 6/9 | 10.15,20m/min
| 8, 8/0.8 Standard Speed | Hydraulic-2 Hydraulic-4 | 0-20° 0-30° 0-90° |
16 | ||||||
20 | ||||||
10000+10000 | 12 | 6/9 | 7, 7/0.7 Standard Speed | |||
16 | ||||||
20 | ||||||
20000+20000 | 12 | 6/9 | 3.5, 3.5/0.35 Standard Speed | |||
16 | ||||||
20 | ||||||
32000+32000 | 12 | 6/9 | 3.5, 3.5/0.35 Standard Speed | |||
16 | ||||||
20 | ||||||
50000+50000 | 12 | 6/9 | 4 Standard Speed | |||
16 | ||||||
20 |
Just send your inquiry in the textbox below!
Main Products
YUFEI cranes have been used for wide range fields, such as Industry of machinery, metallurgy, electric power, chemical, military, railroad, water conservancy, shipbuilding, port and large scale storehouse, and so on. The crane series includes Gantry crane, overhead/bridge crane, shipbuilding crane, container crane, port crane, electric single beam crane,electric double beam crane & electric hoist, etc.
