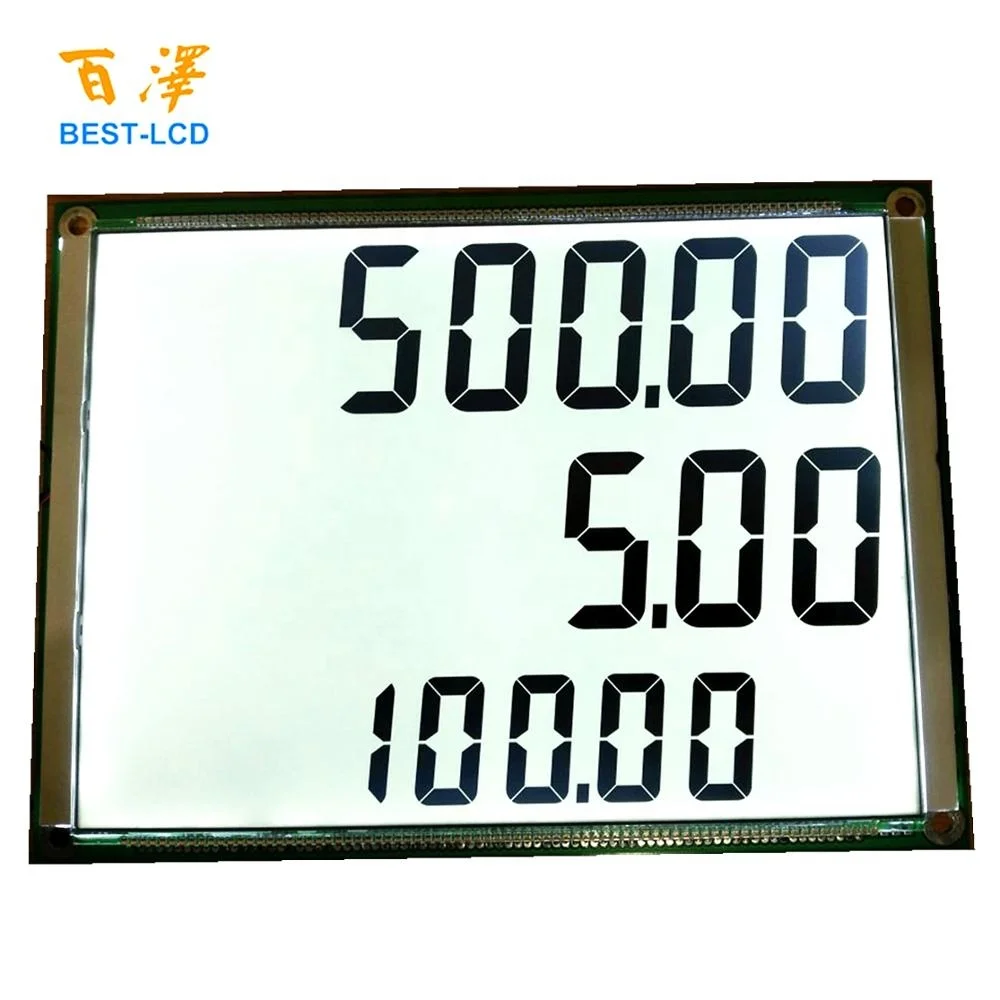

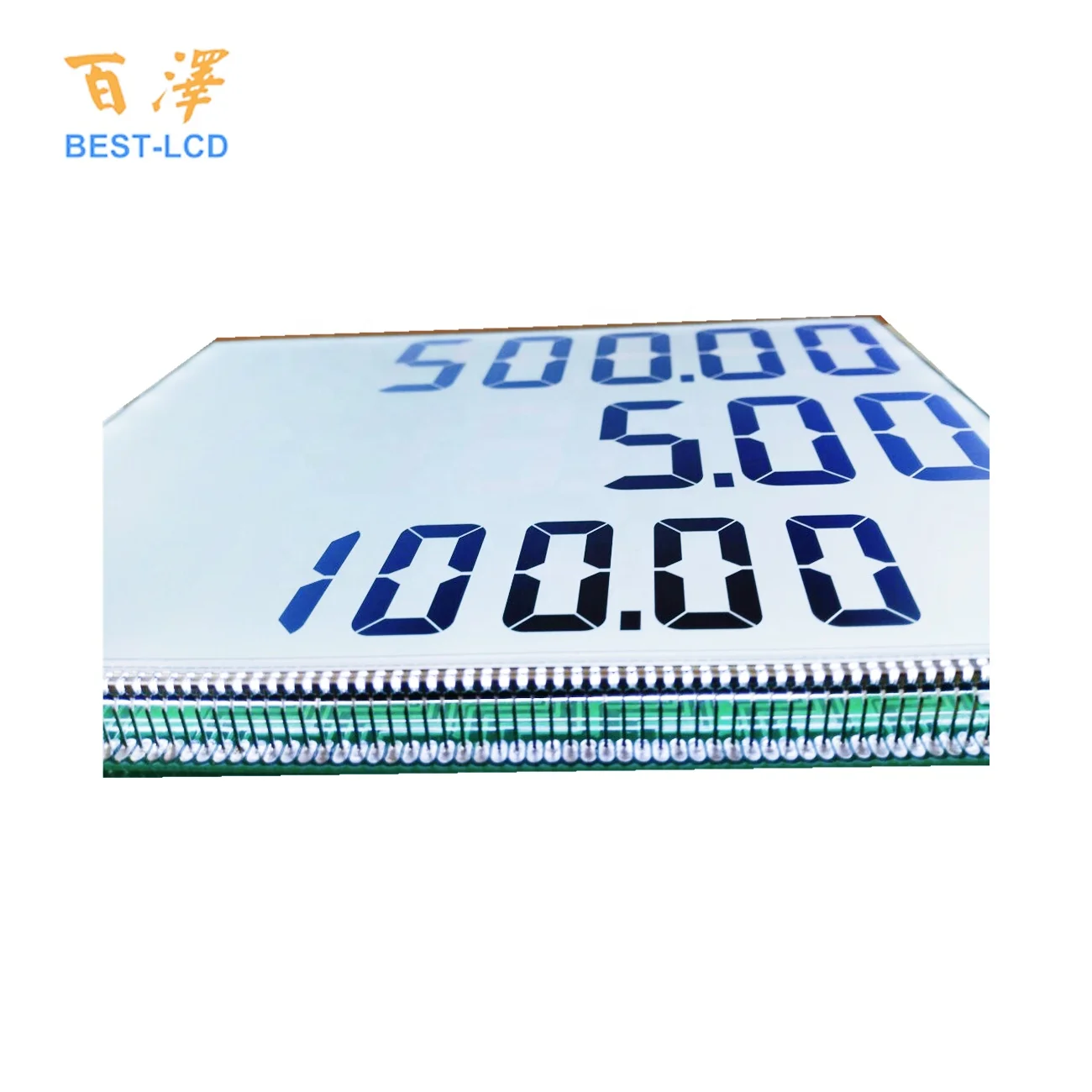

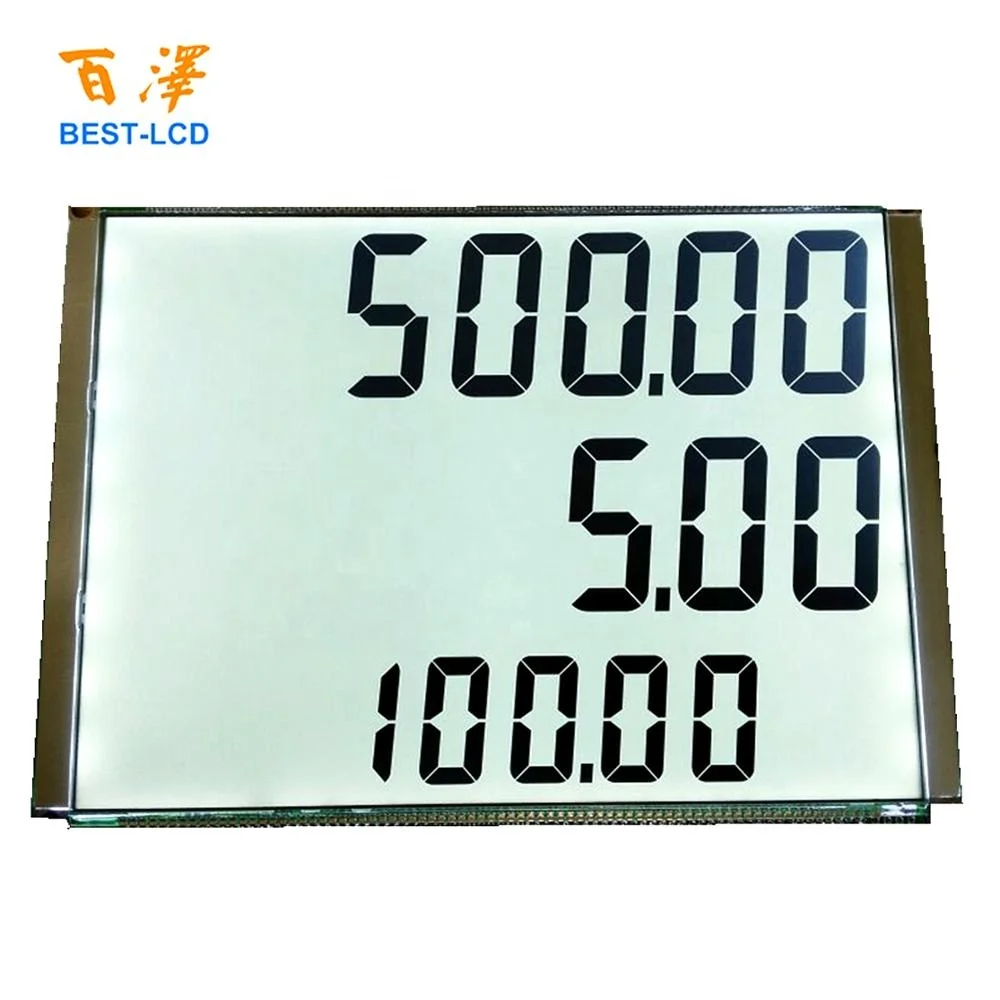

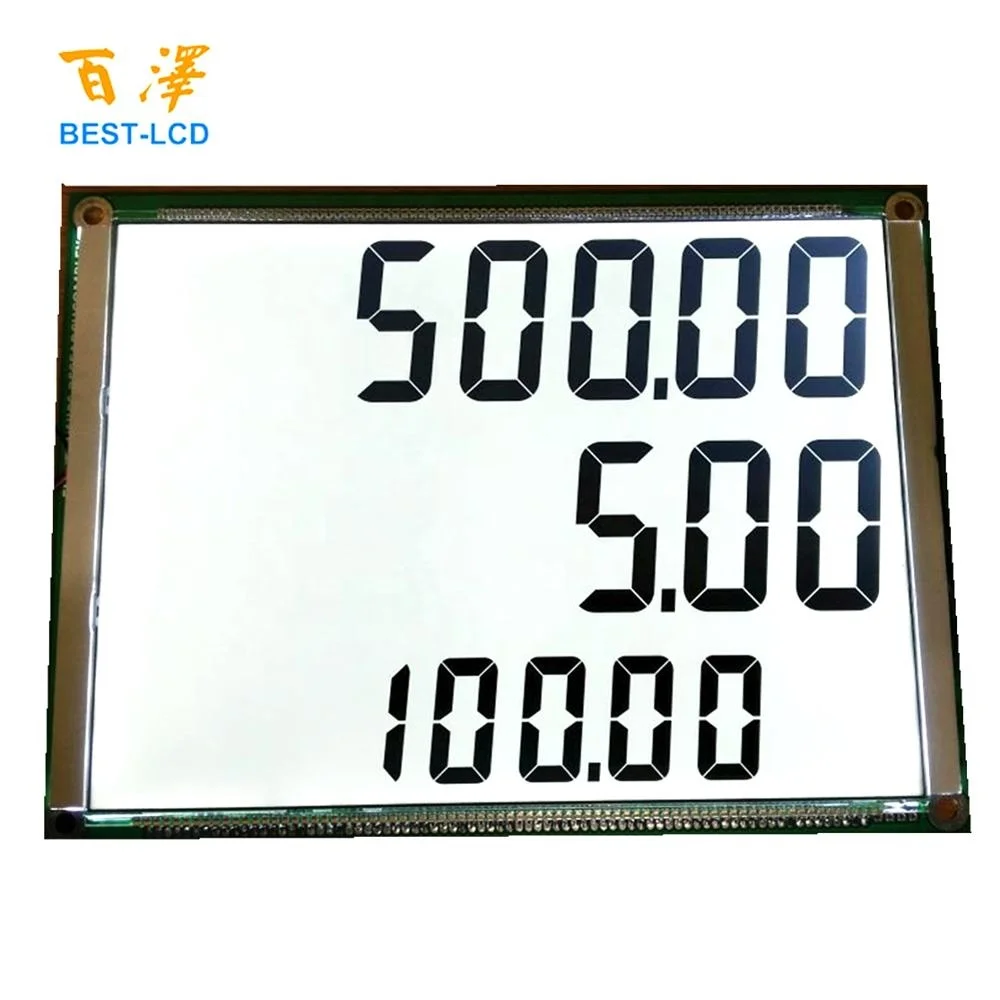

776 LCD Customized Size Monochrome 3 rows of 7 Segments 6 digits LCD Panel Display for Fuel dispenser/ Petrol Pump/Oil machine

Product Overview

Description

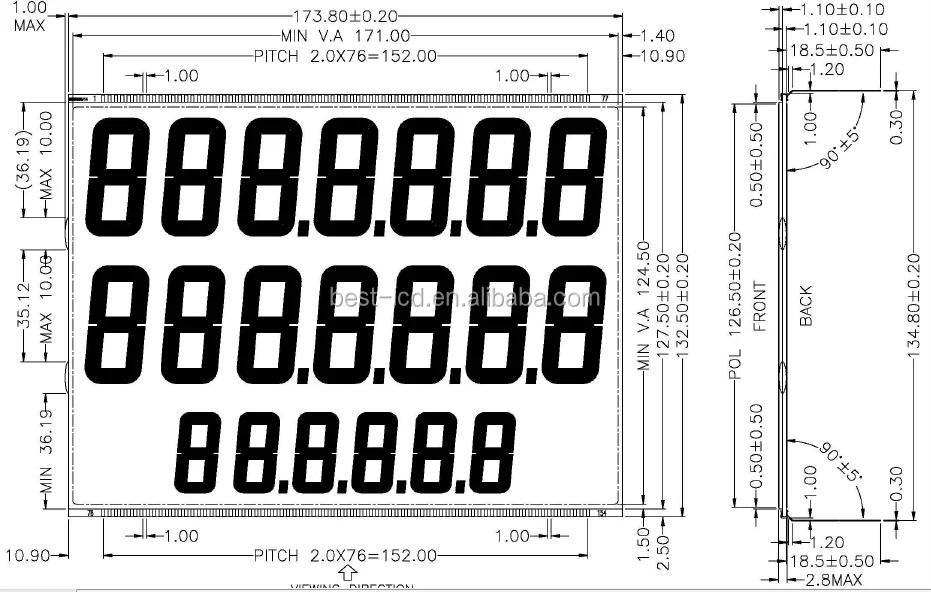

1. Professional Mechanical Drawings:













2. Precisely Technical&Mechanical Parameters FYI:



Application	For Fuel dispenser/Gas Machine/Petrol Pump/Oil Machine etc.
Display Mode	TN/Positive/Transflective
LCD Size	173.80*127.50/132.50*1.1mm
Viewing Size	171.0x124.50mm
Viewing Direction	6  O’ clock
Driving Method	1/1Duty 1/1Bias
Pitch	2.54mm
Connector Type	Pin (154pcs)
Operate Temp	-30~80degree
Storage Temp	-40~90degree
Operative Voltage	5.0V
Anti-UV, RoHS & REACH compliant product!









5. Trusted Shipping:









6. Outstanding Capabilities&Services:

Customizing & designing segment, character, graphic LCD Display and LCD Module(Including LED Backlight, IC) with different sizes, shapes, display icons for clients.



Product Type:

1. LCD Type:  TN, HTN, STN, FSTN, VA, COB, COG etc.....

2.  Any digitals, Icons, graphic can be customized and designed according to customers' requirements.

3. Polarizer type: Transmissive, Transflective, Reflective

4. Connector Type: Metal Pins, Zebra, Heat-seal, FPC...

5. ITO Glass thickness: 1.1mm, 0.7mm, 0.55mm

6. The range of operating Temperature: -40~90°C





Our products are widely and well accepted in North America such as USA,Canada; European countries such as UK, Germany, France, Netherlands, Greece, Russia, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain, etc. ; Asia countries such India, Singapore, Malaysia etc..







7. Contact us:

If it arouses your interests or if you want to learn more details and get the latest updates, pls add my trademanager/Skype or send inquiry to me, I'll be glad to answer!



Trademanager: cnbestlcd

Skype: helenwang7708

QQ: 627807171







776 LCD Custom Size Monochrome 7 Segments 6 digits 154pins LCD Panel Display for Fuel dispenser, Petrol Gas Pump
