Product Overview
Description
ST301-D16REH
Product Description
Introduce

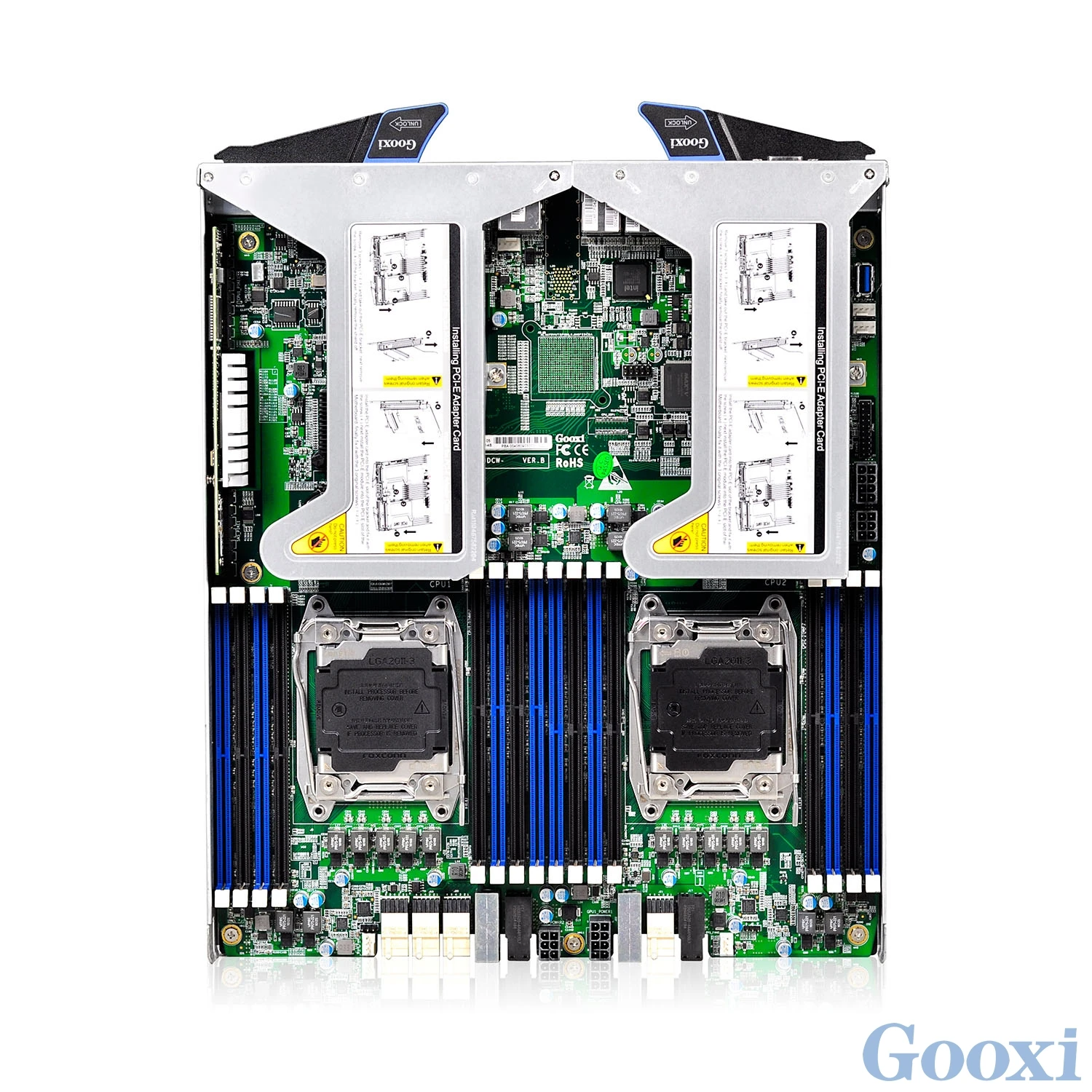

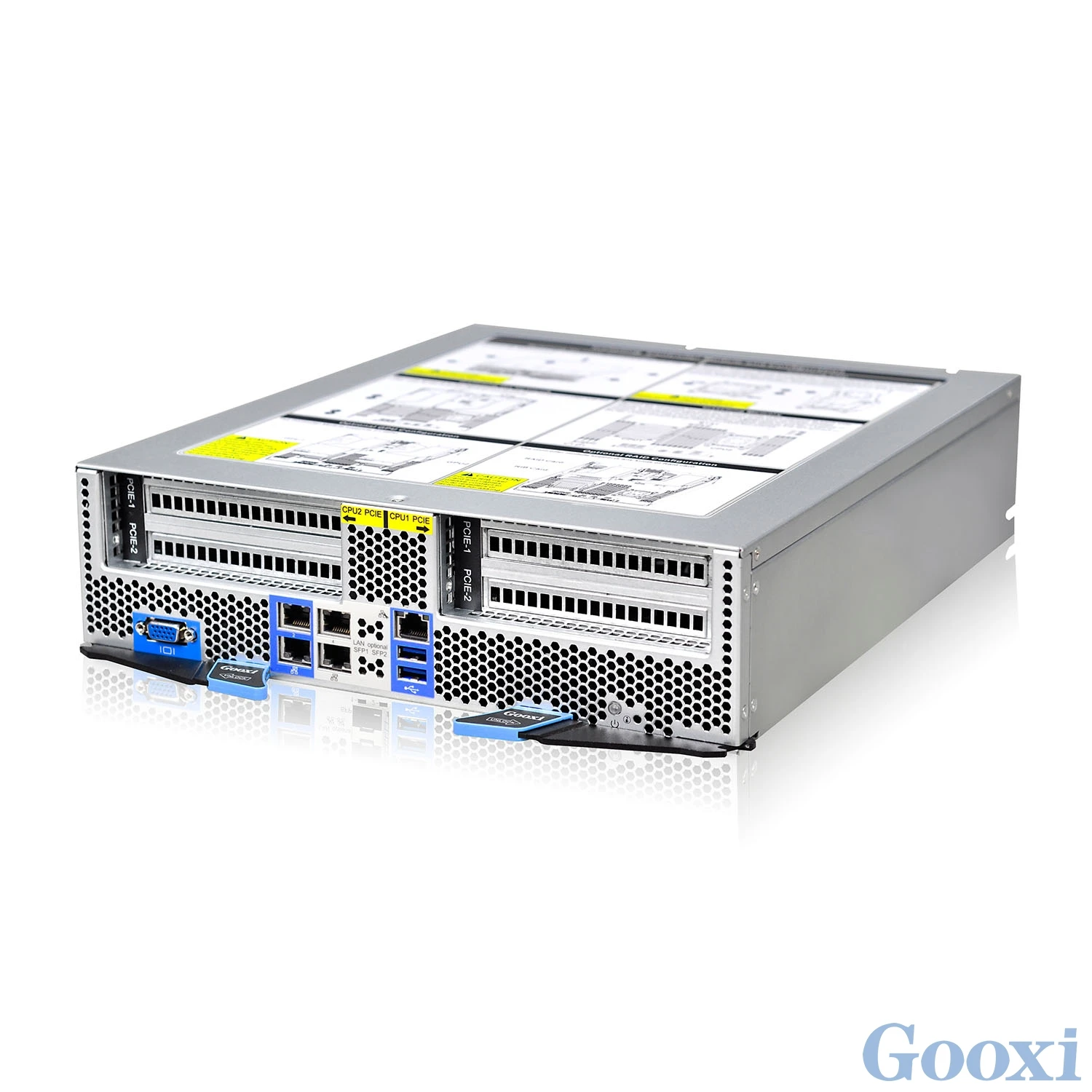

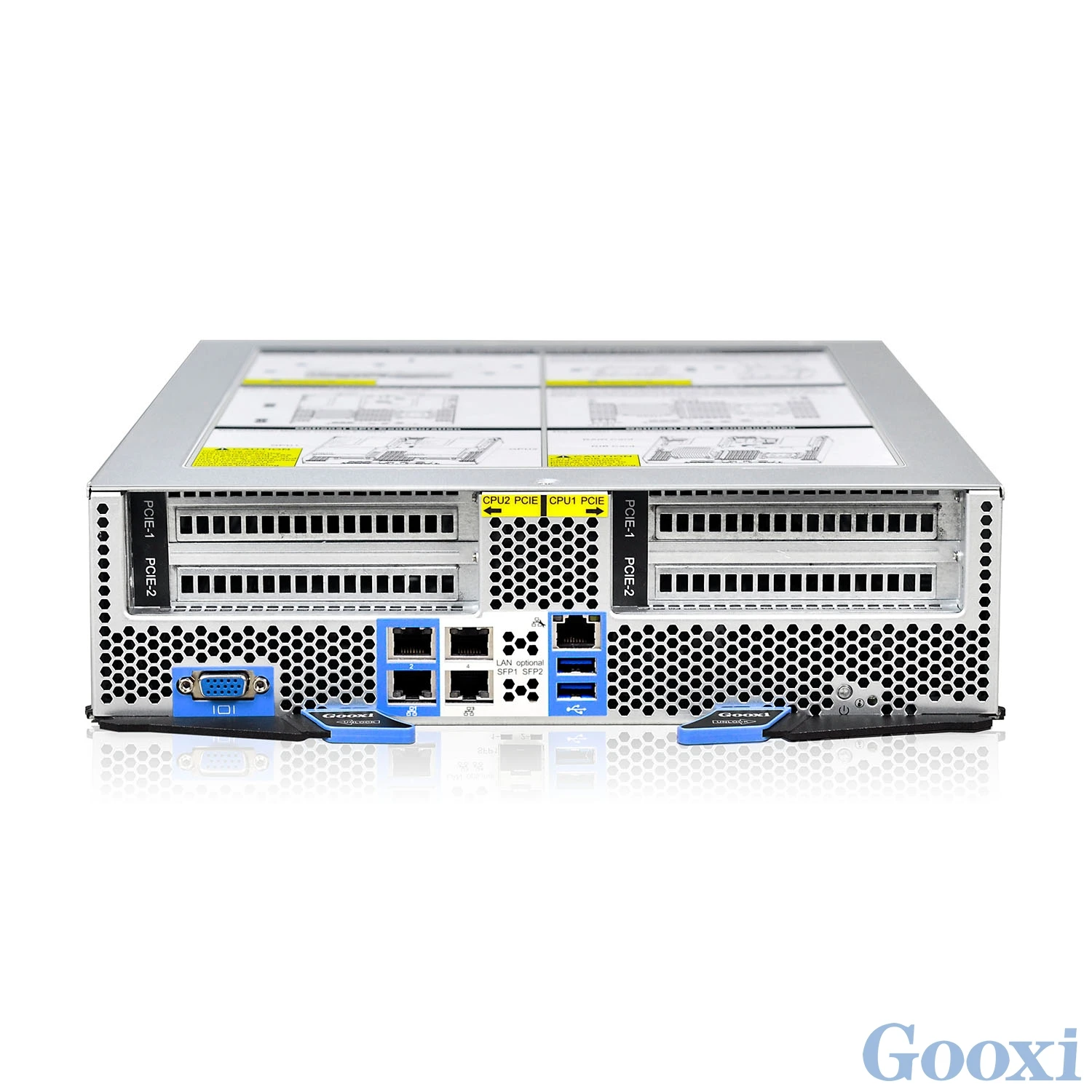

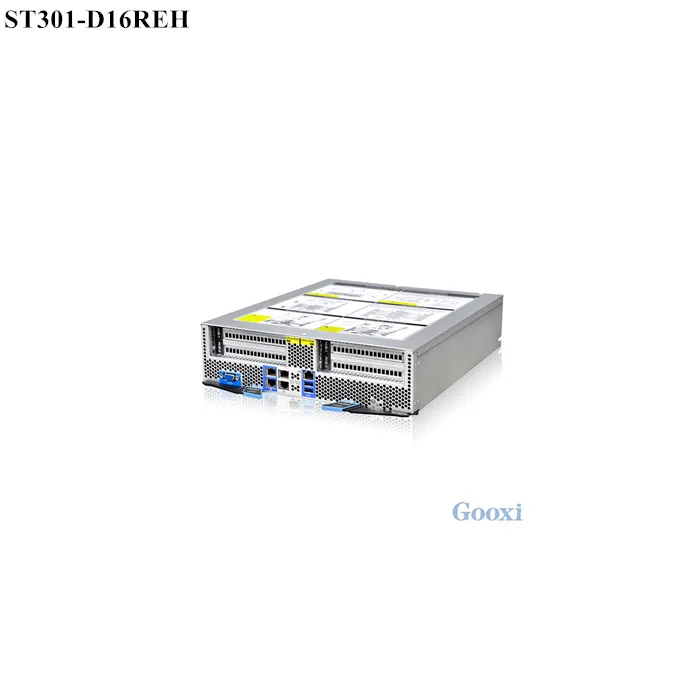

Dual CPUs Controller Module
The Gooxi Dual-Controller Server barebone integrates the mainboard and PCIe add-on cards in one controller module. It forms an easy-swappable structure with the backplane through high-speed signal connectors, which benefits the users from administration and maintenance perspective.
Features
High Performance
One dual processor node is deployed in a standard 3U form factor space, supporting two Intel® Xeon® E5-2600 v3/v4 series processors in spread-core layout, and a built-in high-speed M.2 PCIe SSD. The overall performance is several times higher than most of traditional 4U rack servers. It is suitable for large-scale network application environments with high space and performance requirements, such as virtual desktops, large-scale graphics rendering, and cloud platforms.
Flexible Network and Storage Expansion
The system maximum supports 4x full height PCIe slot with GPU cards with 2x internal 2.5” system drives integrated. Each controller type can support up to 4x GbE ports or 2x 10GbE ports as options.
Massive Memory
The mainboard supports up to 16 DDR4 memory DIMMs.
And the RDIMM maximum capacity supports 1TB.
Cable-less Optimization
The entire system realizes a cable-less design in mechanism. Replace the cables by high-speed PCBs, which greatly improves the system's reliability and heat dissipation performance. At the same time, it avoids the aging and loosening connection caused by cables.
Fully Modular Design
The controller, power supply, and hard disk are fully modularized. Once any part of the controller fails, just easily to pull out the controller for maintenance.
BBU for Data Protection
In an accident of power down, the system will automatically enable the built-in backup battery to save the running data. It can prevents data loss and file system destruction, and the sustainable system operation.
Specifications
Spec
| System | |
| Model | ST301-D16REH |
| Storage Drives | Support 16x 3.5”/2.5" SAS3.0/SATA3.0 and optional 2x 2.5”SATA3.0 hot-swap HDDs at rear |
| Network | 2x Intel® i350-BT2 1GbE LAN 2x Intel 82599 10GbE SFP+ LAN |
| System Weight | Net Weight: 22.1 kgs Gross Weight: 28.8 kgs |
| Memory | Up to 1TB DDR4 1866/2133/2400 RDIMM and LRDIMM via 16x DIMMs |
| CPU | 2x CPUs |
| GPU | Support |
| Power Supply | 1+1 800W CRPS, optional BBU module |
| SystemDimension | 26.57” *17.63” *5.2” (D*W*H) |
| System Mainboard | |
| MB Model | G1DCW |
| CPU Type | Intel® Xeon® E5-2600 v3/v4 series processor (Max TDP 145W) |
| Chipset | Intel® Wellsburg C612 PCH |
| DIMM Quantity | 16x 288pin DDR4 DIMM slots |
| DIMM Type | Type: Up to 1TB DDR4 1866/2133/2400 RDIMM and LRDIMM Capacity : 8GB, 16GB, 32GB or 64GB |
| Build-in RAID | Intel® RSTe Support software RAID 0, 1,5 & 10 |
| BMC | Aspeed AST2400 |
| IPMI | Support Intelligent Platform Management Interface (IPMI 2.0) Remote Management
|
| PCI-e | Support 4x PCIe 3.0 slot full height |
| Network | Up to 4x GbE and 2x 10GbE SFP+ |
| USB | Internal 1x USB3.0, 2x USB2.0 at Front, and 2x USB3.0 at Rear I/O |
| M.2 | Support M.2 PCIe Gen3 X4 |
| Power Supply and PDB | |
| Power Module | Two 1+1 CRPS 800W/770W 80+Platinum Redundant PSU Modules |
| Power Efficiency | Redundant BBUs, Sustain data over 10 minutes under power loss accident |
| Power Input / Output | AC Input:100-245V 47Hz~63Hz; DC Output:+12V,+5V_SB |
| System Cooling | |
| FAN Quantity | Up to 3x 12038 with PWM smart fan control |
| FAN Speed | Maximum 7700RPM |
| Operation System Compatibiliy | |
Operating System Support | Windows Server 2008 R2(64bit) |
Virtualization System | VMWare ESXi (Target) |
| Operating Environment | |
| Temperature | OP:10℃ ~ 35℃; NON-OP:-40℃ ~ 70℃ |
| Humidity | OP:35%~80% ; NON-OP:20% ~ 90% |
| Certification | |
| Certifications | CE ,FCC,ROHS |

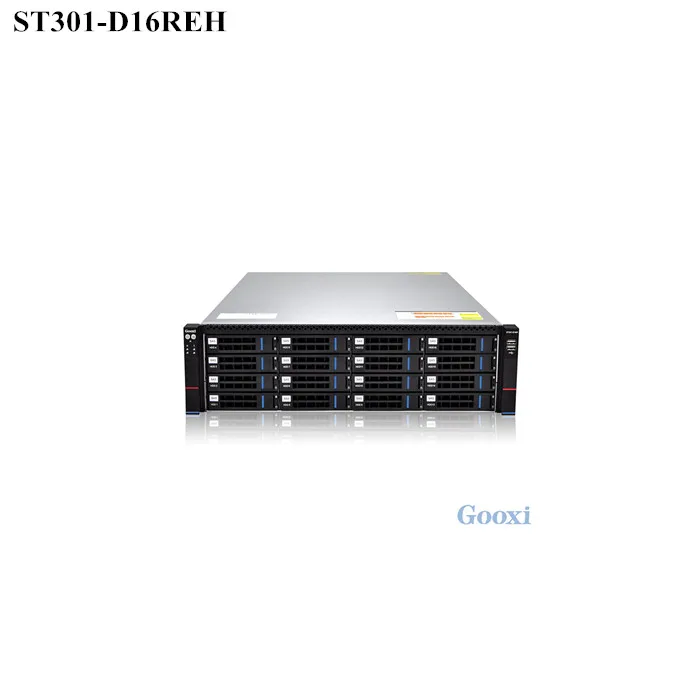

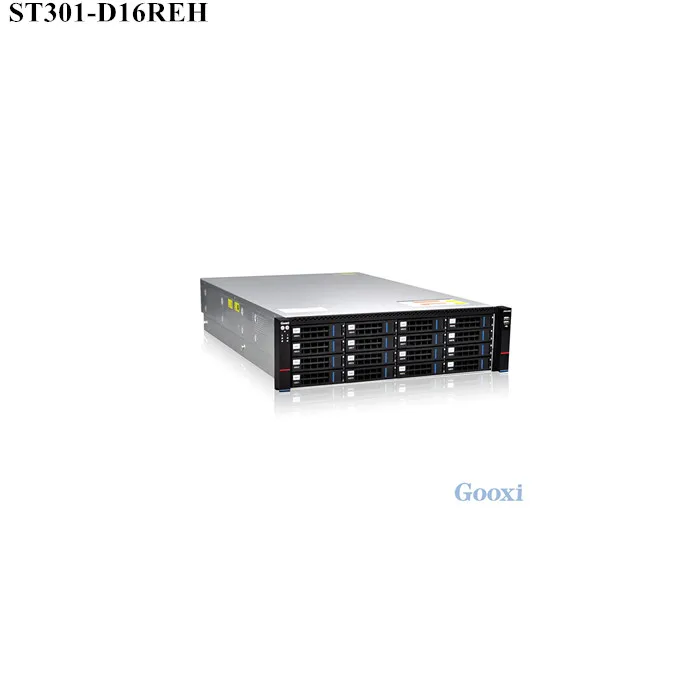

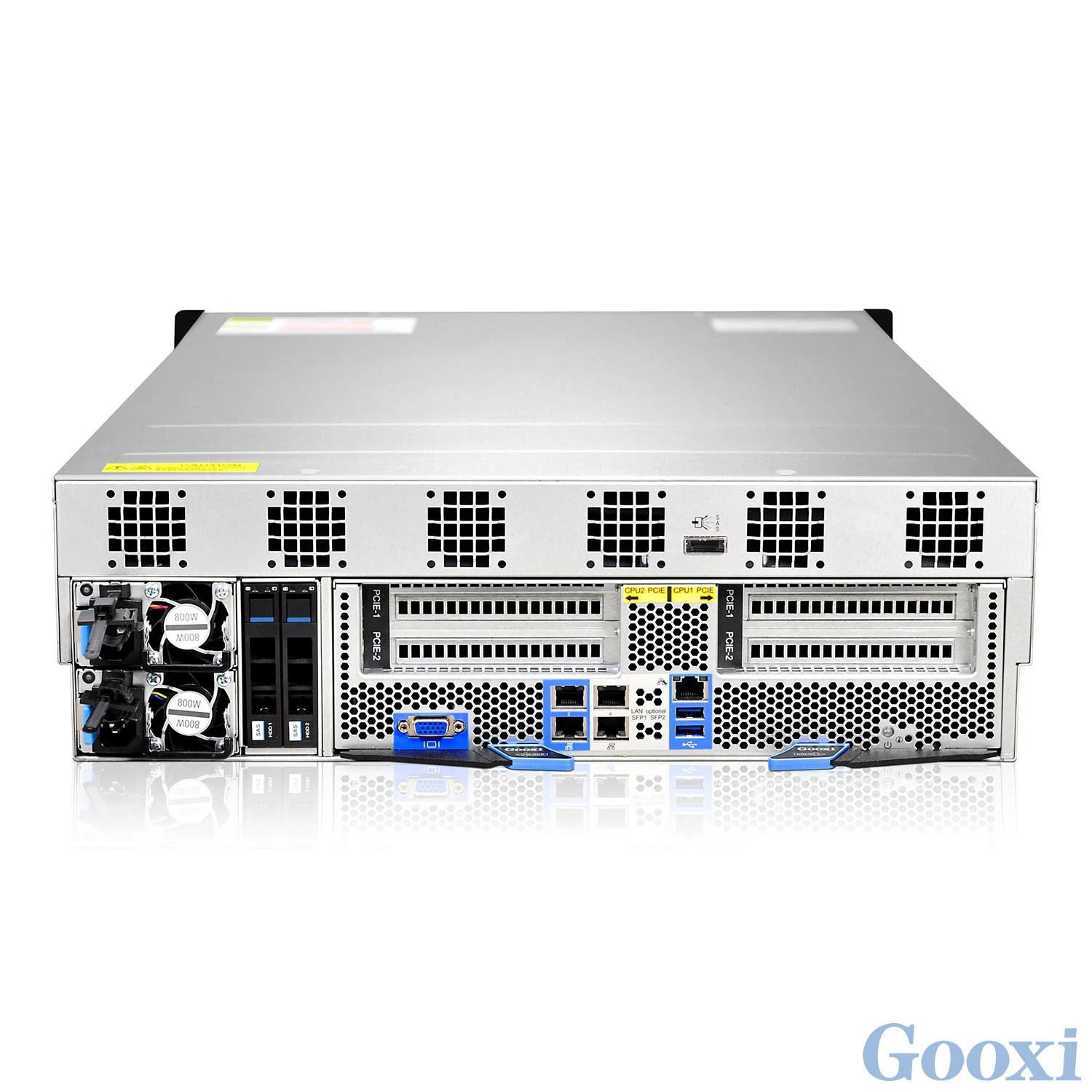

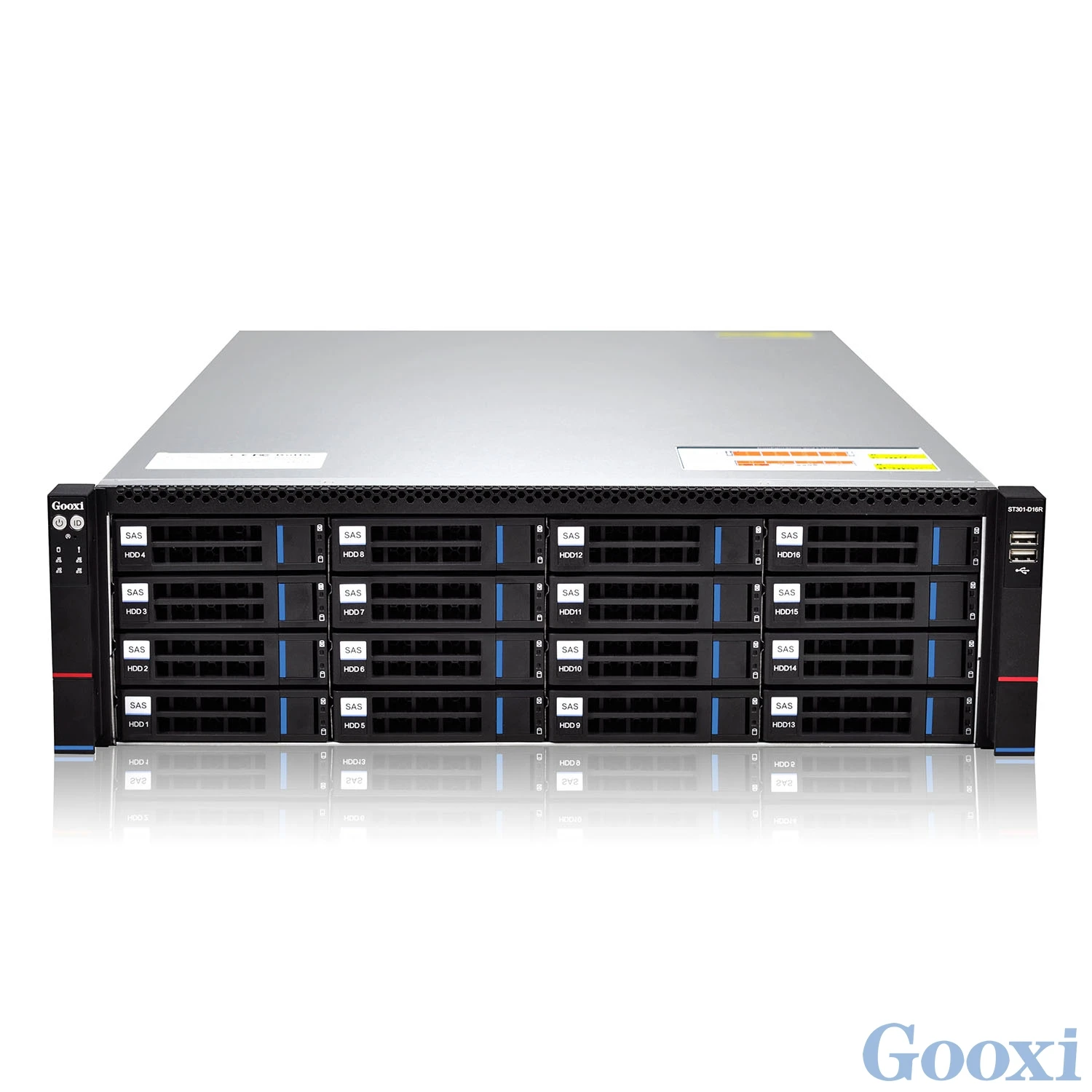

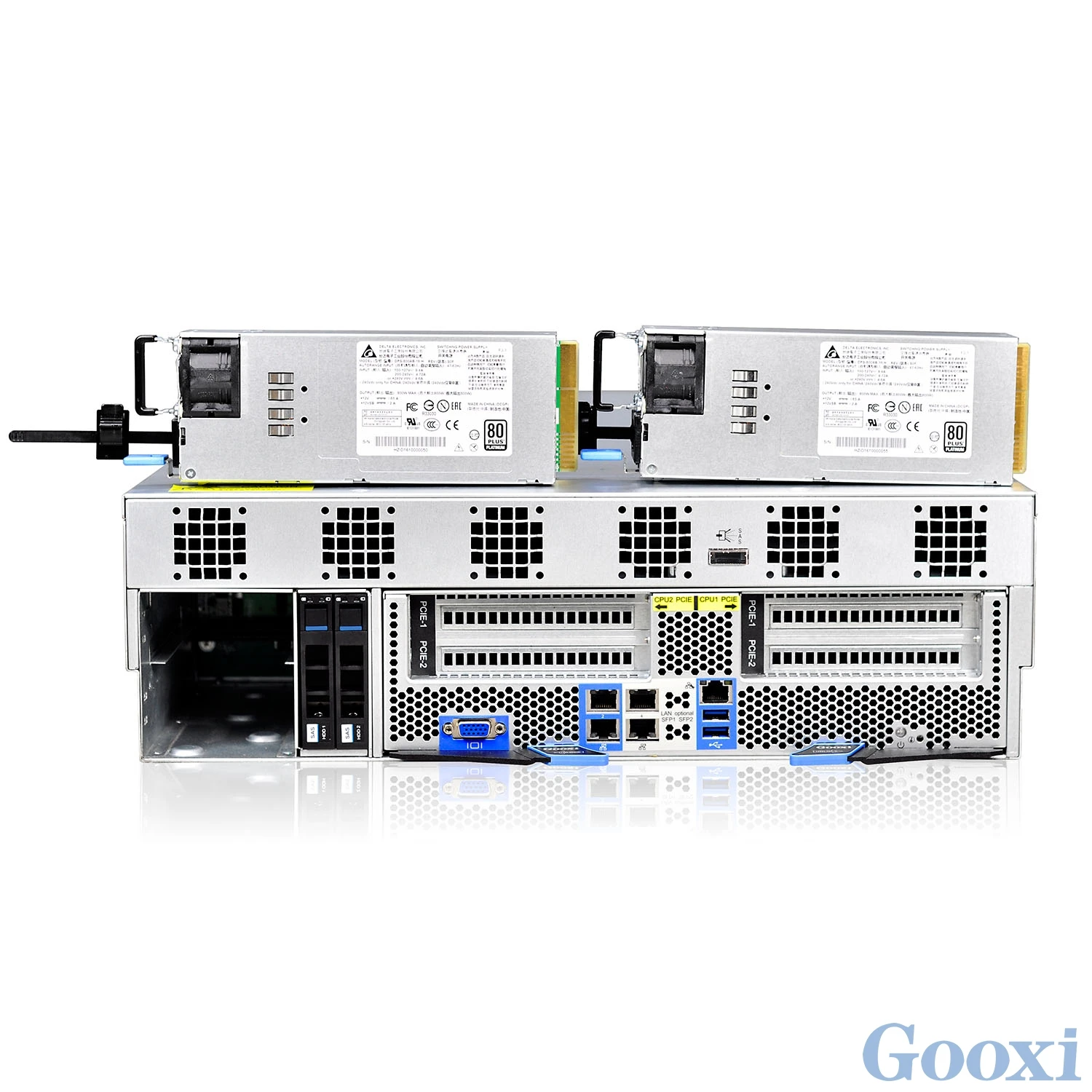

Product Picture
