is researched and developed according to the market requirements for tunnel support and mine requirement, and specially designed for processing steel pipe hole punching, it is operated by PLC control system and hydraulic pressure principle. The tube can be punched as per the drawing requirements, the tube type include round pipe, square pipe, angle steel and so on .

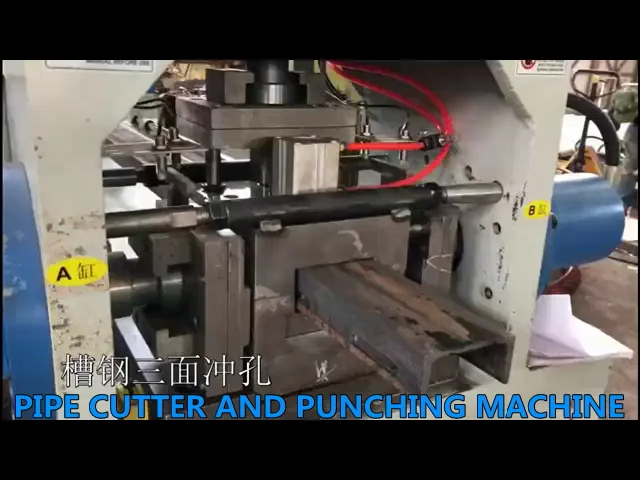

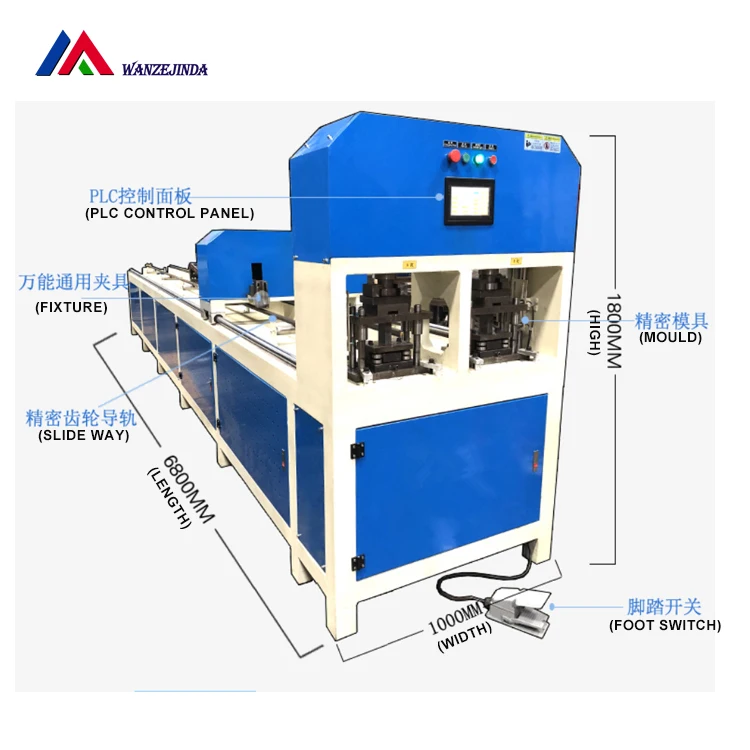

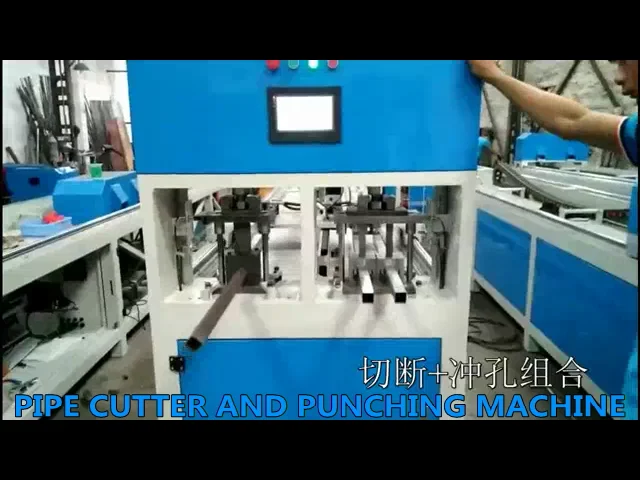

Detailed Images
Product Parameters
1
Model
WZJD-3500P
2
Aperture and thickness
Φ50×τ3~Φ16×τ11mm
3
Aperture
round pipe
Φ16~Φ120 mm
Square tube
20×20~150×150 mm
rectangle pipe
15×30~60×150 mm
Angle iron
30×30~75×75mm
channel iron
25×50~60×120mm
4
Hole distance
0.1mm~3500mm
5
Punching speed
0.8-1.5sec/hole , 150mm Stroke
6
Max.distance between holes
3400mm
7
Standard length
3500mm(can be Lengthened)
8
Max feeding speed of servo
3500mm/min
9
Servo Motor Power
5.5kw/11kw, 380v 50Hz, 3 phase, Pure copper wire
10
Engineering Motion Classification
1.Single puncturing operation
2.Irregular interval puncturing
3.Regular interval puncturing
4.360°rotating puncturing
11
TFT human machine interface
Human machine interface
12
control system
7 inch touch display, YONGHONG PLC ,Equipped with high-speed rotating cooling system
13
Memory Function
can be stored and memorized processing mode
14
Ram pressure
10T-60T
15
Punching hole method
Oil pressure
16
The cylinder diameter
100/125/140/160mm
17
Overall Dimension
6800×1000×1800mm
18
Weight
1600Kg
Advantages
1. Change mold easily, We can customize it as per request.
2. The hole shape can be customized as per the request.
3. Hydrau-cylinder control ,more stable
4. Punching holes are smooth and no burrs and no deformation.
5. Half Hole or Completely hole are available
