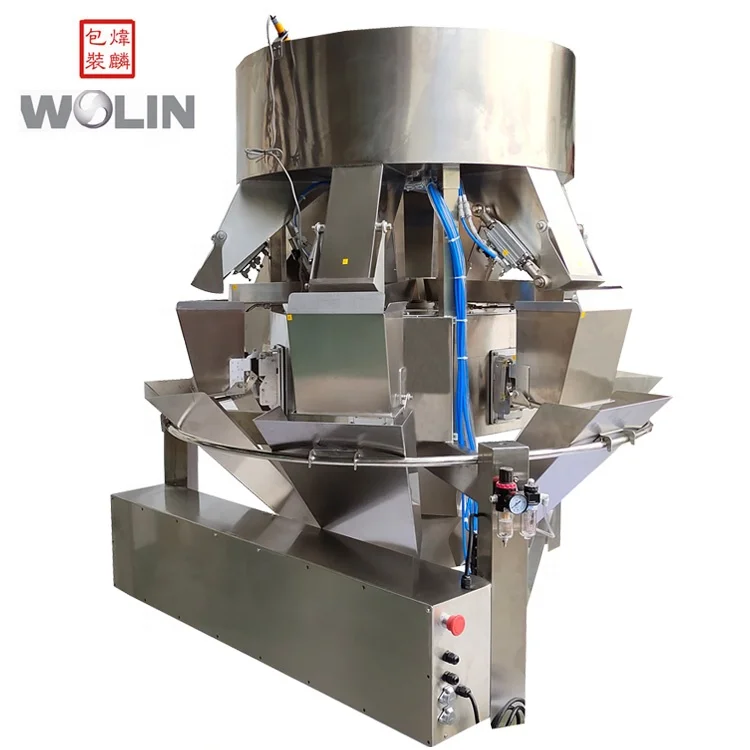

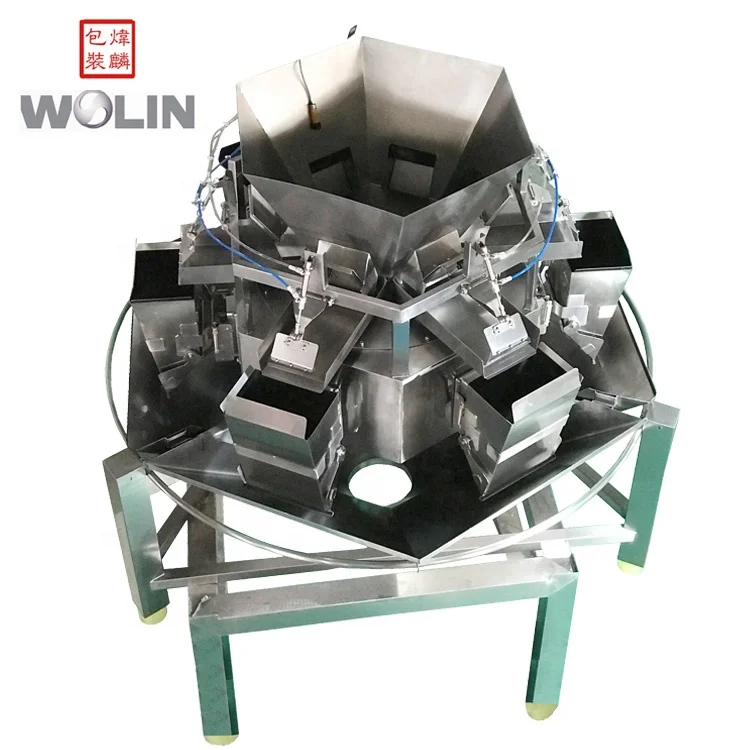

High performance multihead 6head 8L linear weighing scale packaging machine for salt sugar rice seeds cereals
- Category: >>>
- Supplier: Zhongshan Weighlin Packaging Machinery Co. Ltd.
Share on (62035519883):
Product Overview
Description
Product Description
What is Linear Weigher?
The Linear Weigher feactures high speed, high accuracy and high productivity. Offered in 1, 2, 3 and 4 head configuration, also offered in single vibrated feeder pan and duplex vibrated feeder pan. And each head includes a dedicated load cell which ensures a high precision. It's also a reliable approach to weighing a huge range of products, one of the most cost effective methods for weighing bulk materials to relieve labour intensity and improve working efficiency. Typically weighing and packing Fresh Vegetable, Salad, Hardwares, Confectionery, Frozen Foods, Snack Foods, Nuts and Pulses, Tea and Coffee, Dried Foods, Pet Foods, Dry Bady Foods, Seeds, Grain, Rice, Sesame, Melon Seeds, Food Additives, Sugar, Chicken Essence, Muesli, Fertilizer, Feed etc.
APPLICATION
Typically weighing and packing small Granules, Rice, Sugar, Salt, Cereals, Oat Flakes, Nuts and Pulses, Tea and Coffee, Pet Foods, Seeds, Grain, Sesame, Melon Seeds, Fertilizer, Feed, Chocolate Nuts, Fodder, Tablet, Pepper etc.

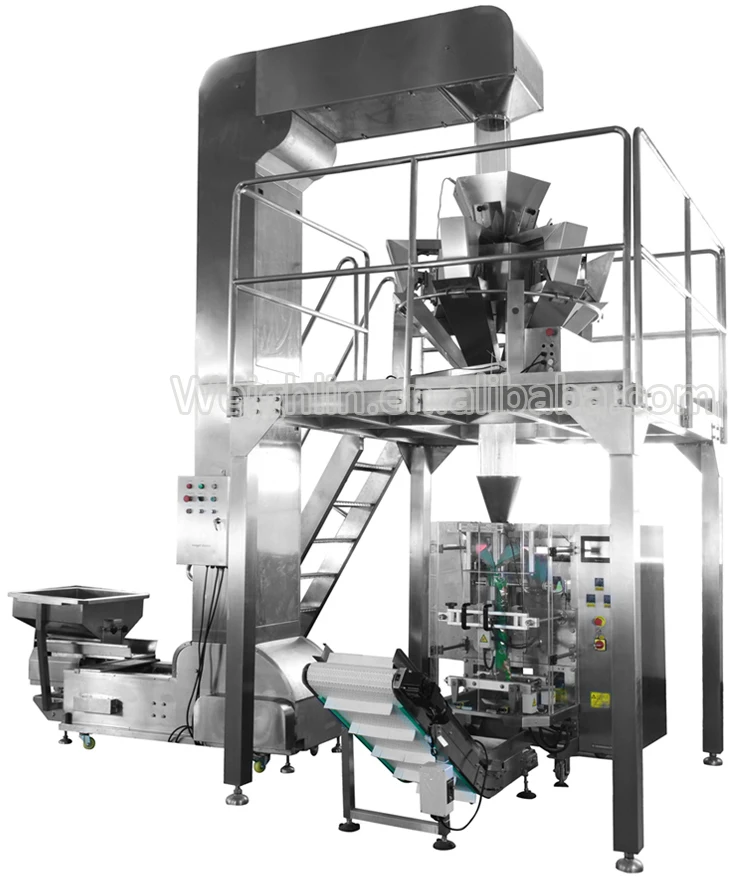

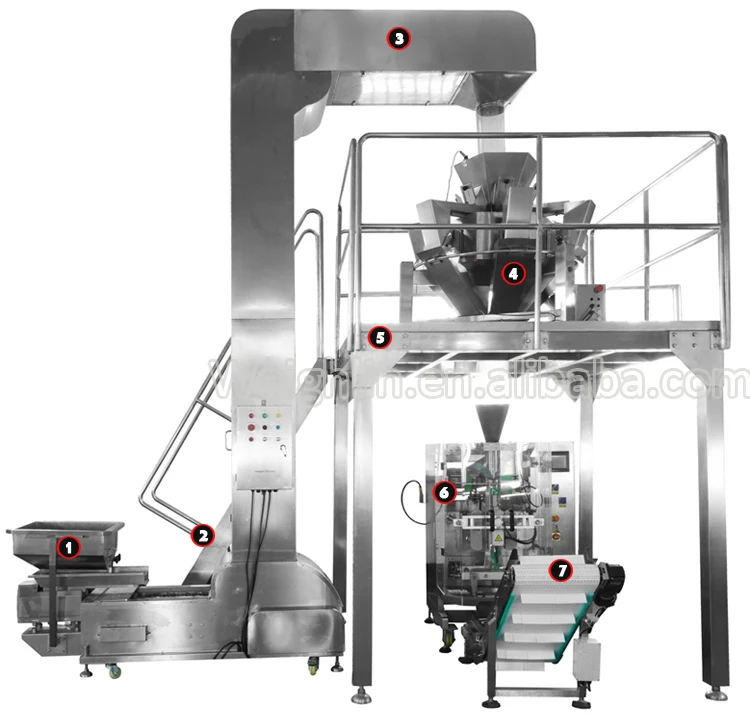

INTEGRATION : Modular design Z shape elevator / Six-head linear weigher / Working platform / Vertical Form Fill Seal packing machine / Mini output conveyor
1. Vibratory Feeder ———— Feed the bulk material evenly to the downstream units
2. Stainless Steel Ladder ———— For operator climbing on the working platform
3. Z Elevator ———— Vertically lift the bulk material to the scale feed hopper by motor driving
4. Filling Machine ———— 6heads filler auto weighing / filling materials
5. Compact Platform ———— Used to support filling machine
6. Mini VFFS Machine ———— Auto finish plastic film pull-form-fill-seal-date printing-output
7. Output Coveyor ———— Inclined output the finished products t downstream units

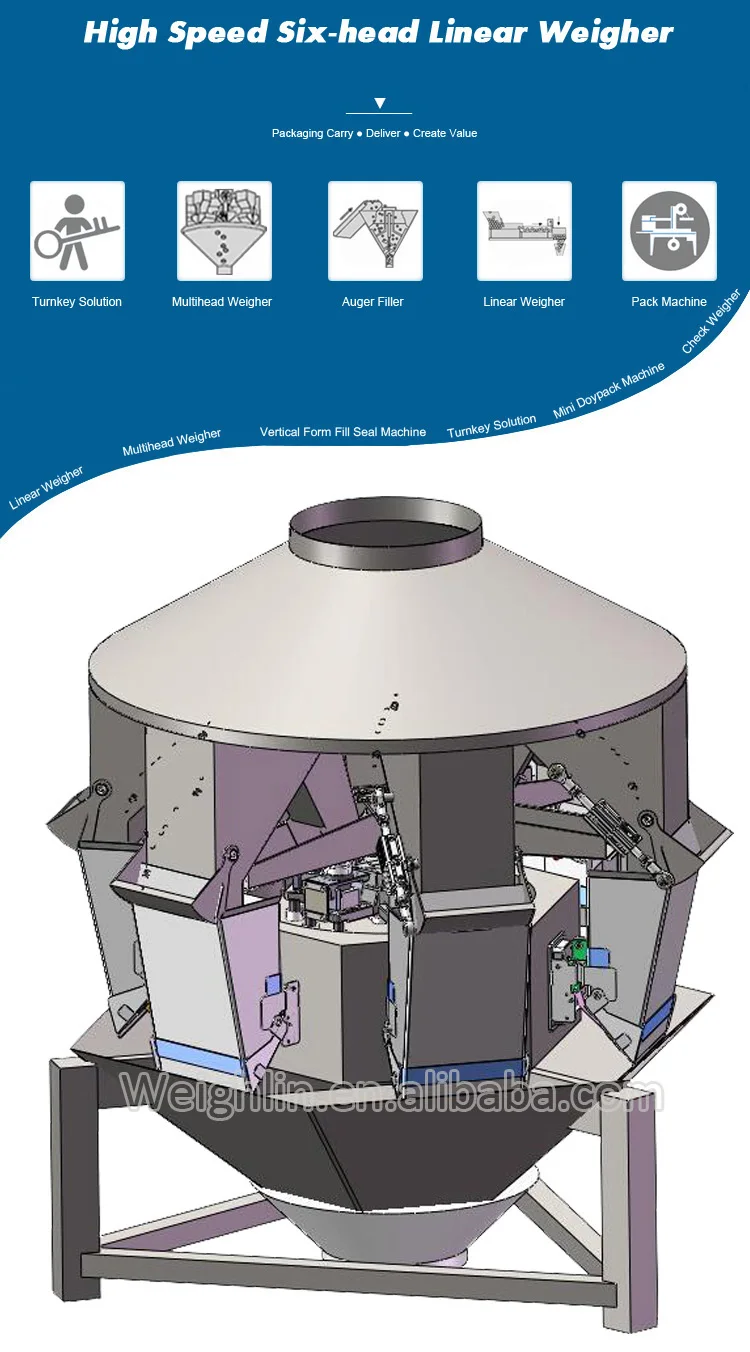

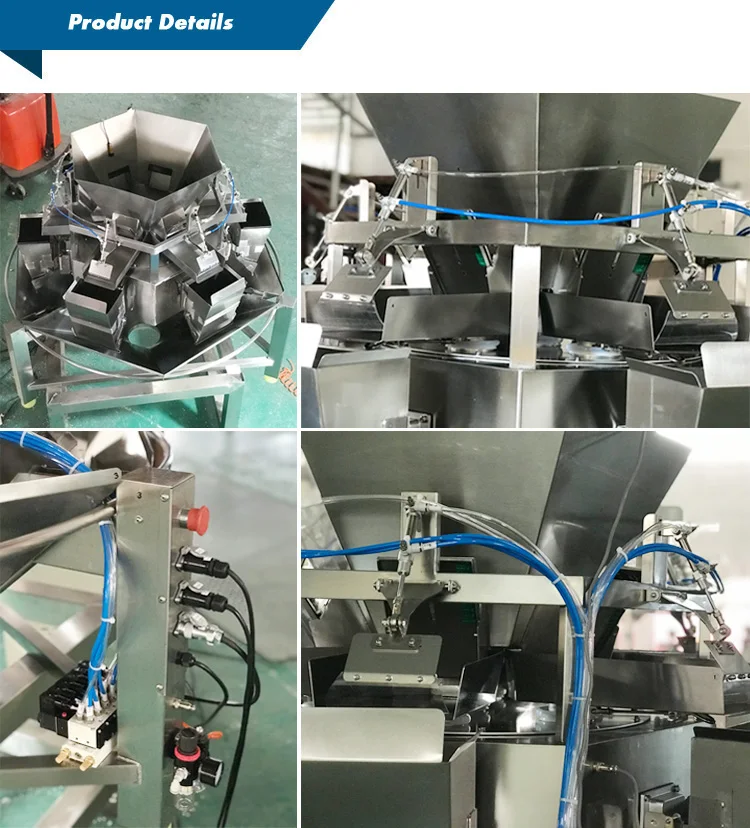

- Multihead Linear Weigher
- Six-head with 8000ml Hopper
- Food-grade SUS304 Contact Parts
- Program Memory up to 10 sets
- Self-learning software, no boring seting

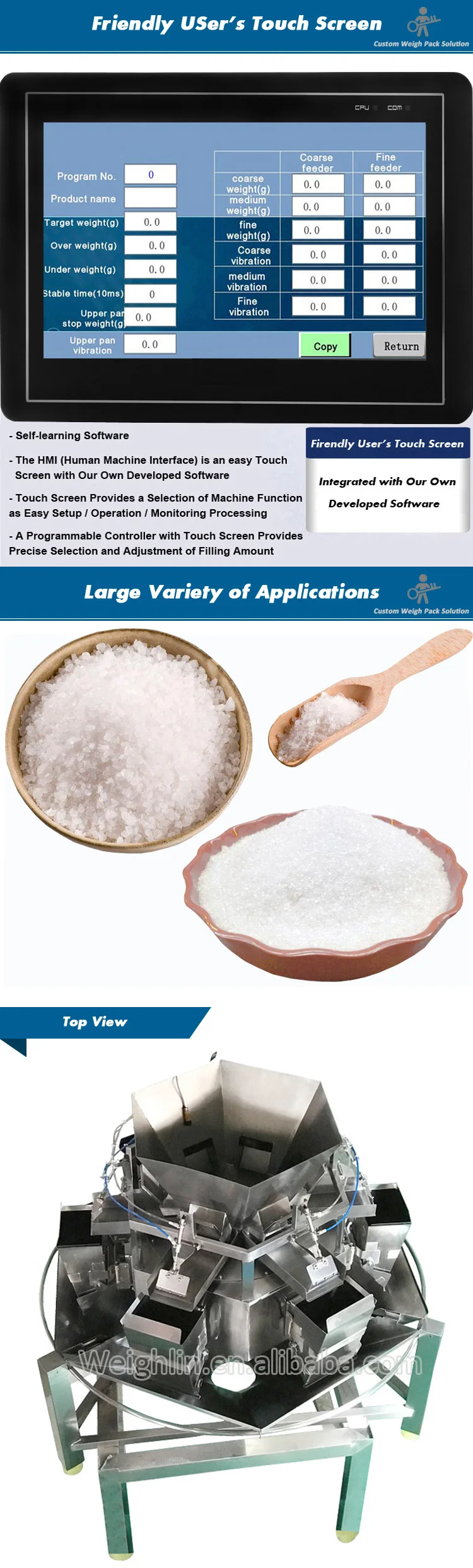

- Control System MCU auto-learning run mode + 7" User's Touch Screen
- Tool-free and Quick to Remove for cleaning, Less components, lower mainteance
- Weighing Hopper Running Stand-alone Power System, totally independent of each other

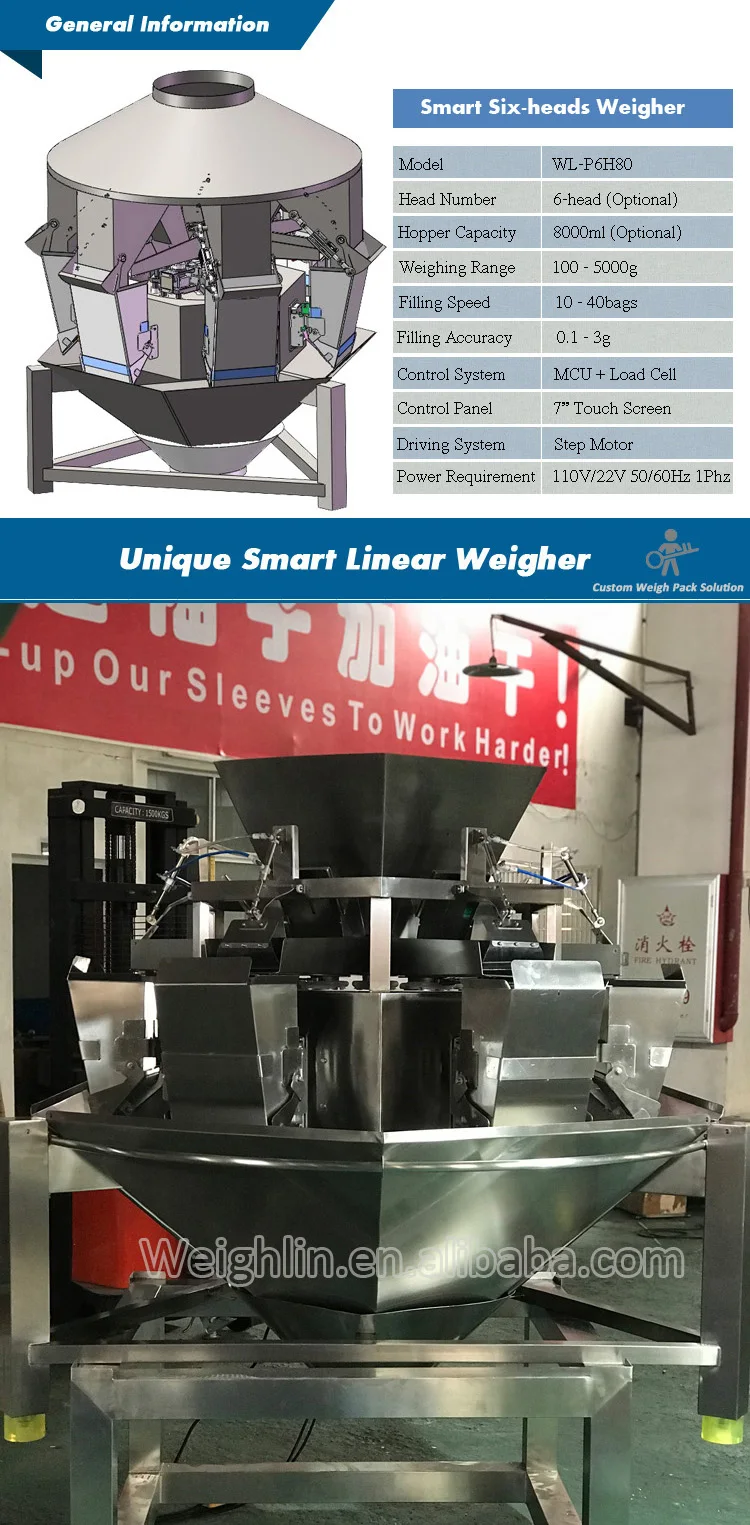

SPECIFICATIONS:
| Model | WL-P6H80 |
| Heads Number | 6 heads (Optional) |
| Hopper Capacity | 8000ml |
| Filling Range | 100 ~ 5000g |
| Filling Speed | 10 ~ 40bags/min |
| Filling Accuracy | 0.1 ~ 3g |
| Driving System | Step Motor |
| Material Feeding | By manual or conveyor |
| Control System | MCU + Modular PCB board |
| Building Materials | SUS304 stainless steel |
| Options | Front Plastic Enclosures / Foot Actuation Switch / Dimple Plated Surface / Larger Capacity Hopper / Pneumatic Air Cylinder Fine Flap etc |
Related Products
Packaging & Shipping
- Fumigation Certificated of Wood Packaging for Oversea Shipment
- Inner Plastic Film Wrapping Protect the Goods from Salting, Wind or Damage
- Shipping terms: EXWORK, FOB, C&F, CIF terms by Sea-shipment or Air-Shipment
Company Information
Located in Zhongshan, service for global! Found in 2011, through years' efforts and development, Welin have owned more modern working facility and obtained know-how and experience for various automatic packaging machinery R&D and full turnkey feeding weighing packaging and inspecting line. We're becoming a high-tech enterpreture integrated with R&D, manufacturing, marketing and service backup, main products are included auto weight filler, VFFS, mini doypack machine, weight checking sorting and inspecting, etc and whole turnkey solution, which is widely used in snack food, puffy food, fresh frozen food, agriculture, medical, chemical and hardware, etc field.
Established in 2011, WEIGHLIN dedicated in food weighing packaging machines, included high speed high precision multihead weighers, economical practical linear weighers, dynamic weight checking and grading, performed pouches packing machine, high quality accessories such as platform and conveyors, also full feeding weighing packaging inspecting line, etc and other related customized packaging machines. Quality packaging solution is from Weighlin years of focus and understanding of the packaging industry. WEIGHLIN strives for perfection in the pursuit of quality, while taking into account easy to operate, easy to disassemble, easy to clean, small investment, stable performance, so that the packaging carry, deliver and create value.
