16mm Pet Plastic Expandable Braided Wire Harness Protection Sleeve
- Category: >>>
- Supplier: Xiamen Mj Industrial Tech Co. Ltd.
Share on (62035620260):
Product Overview
Description
MJ-PEBS016 16mm Pet Plastic Expandable Braided Wire Harness Protection Sleeve
What is the Special of our Wire Harness Protection Sleeve?
1.Economical & Easy To Install
2.Resists Gasoline, chemicals & Cleaning Solvents
3.Expands Up to 150% of Initial Diameter
4.Cut & Abrasion Resistant
5.Continuous use temperature of -70°C to 125°C (-103°F to 257°F)
6.Melt temperature of 260°C (500°F)
7.Halogen Free, ROHS,REACH,CSA approval.
What is the Details of our Braided Wire Sleeve?
Application Fields | Electronics, automotive, marine and industrial wire harnessing application |
Sleeve Material | 0.25mm PET monofilament |
Working Temperature | -70°C to 125°C (-103°F to 257°F) |
Melt Point | 260°C (500°F) |
Flame Retardant | Yes |
Flammability Class | VW-1 |
Size | 16mm |
Available Size | 3mm~100mm |
Standard Color | Black,White,Grey |
Available Color | 64 colors available, accorcing to our color guide |
Packaging | 250m/Roll,4 rolls/ctn |
| Carton size: | 52*52*18cm or customized |
| Container: | 2000 rolls or 500 cartons for one 20' container |
| Full Size Sample Lead time: | As usual 3-7 working days |
| Production Lead time: | 7~10 days |

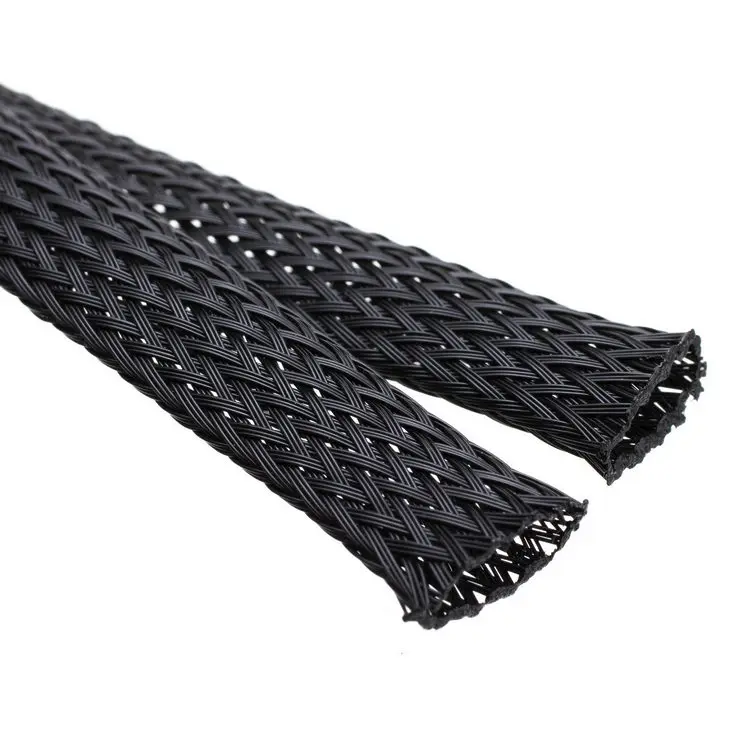

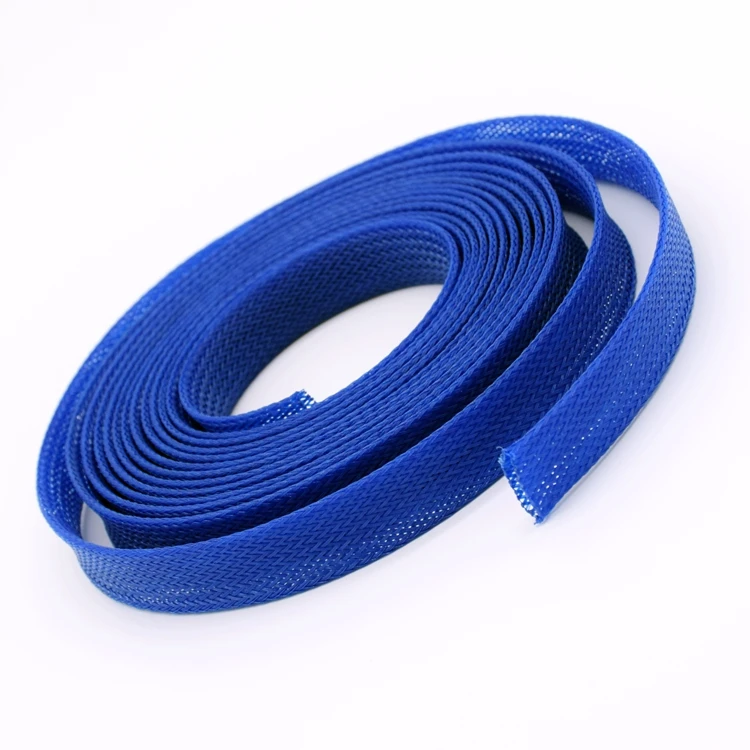

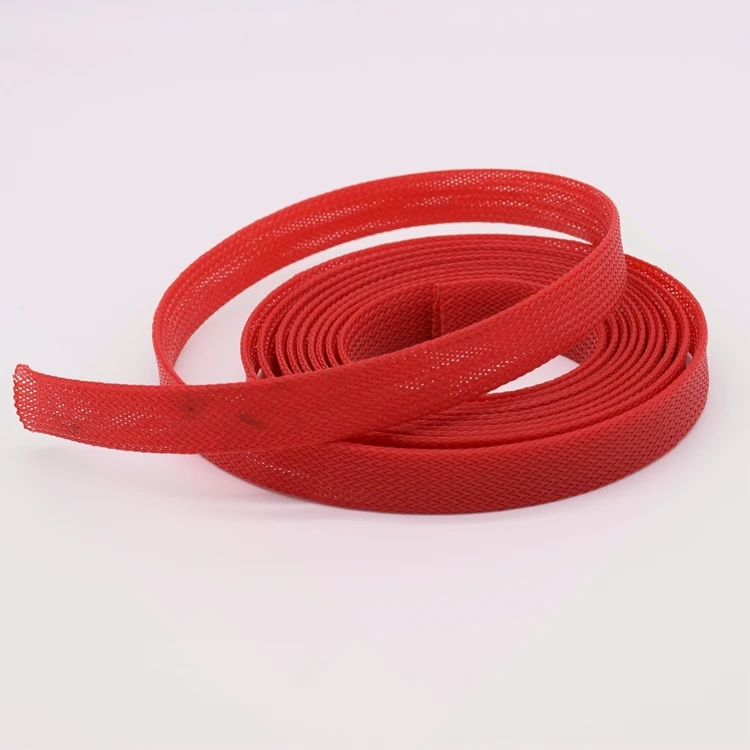

Product Picture
Product Pictures
Product Features

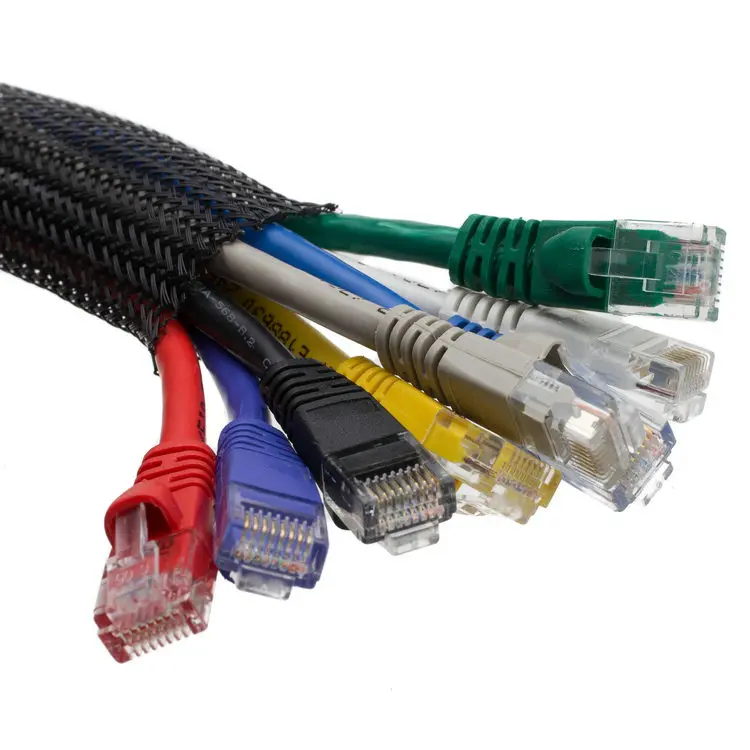

Application
PET braided wire harness protection sleeve is used in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.
The unique braided construction and wide expandability allows quick and easy installation over large connectors and long runs.
Polyester cable sleeve can be found in applications ranging from small office/home office to high tech wire and cable harnesses.
Specification
| Part No | Size | Thickness | Expanded Range(mm) | Packing | ||
| Inch | mm | Min(I) | Max(O) | (m/spool) | ||
| MJ-PEBS003 | 1/8" | 3 | 0.01"/0.25mm | 1 | 6 | 1000 |
| MJ-PEBS006 | 1/4" | 6 | 3 | 9 | 500 | |
| MJ-PEBS008 | 6/15" | 8 | 5 | 16 | 350 | |
| MJ-PEBS010 | 3/8" | 10 | 7 | 19 | 350 | |
| MJ-PEBS012 | 1/2" | 12 | 8 | 24 | 300 | |
| MJ-PEBS015 | 5/8" | 15 | 10 | 27 | 250 | |
| MJ-PEBS020 | 3/4" | 20 | 14 | 30 | 200 | |
| MJ-PEBS025 | 1" | 25 | 18 | 35 | 200 | |
| MJ-PEBS032 | 1-1/4" | 32 | 20 | 50 | 150 | |
| MJ-PEBS038 | 1-1/2" | 38 | 30 | 60 | 100 | |
| MJ-PEBS045 | 1-3/4" | 45 | 35 | 75 | 100 | |
| MJ-PEBS050 | 2" | 50 | 40 | 80 | 100 | |
| MJ-PEBS064 | 2-1/2" | 64 | 45 | 105 | 100 | |
| MJ-PEBS076 | 3" | 76 | 64 | 120 | 100 | |
PACKING AND SHIPPING
| Packaging | 250m/Roll,Packing by paper Reel |
| Carton Size | 52cm*52cm*18cm or customized,4 rolls/ carton |
| Gross weight | 14.0 KGS |
| Container | 2000 rolls or 500cartons for one 20' container |
| MOQ | 1 rolls/design for stocked size |
Factory Show
Factory Show(Click below photo to see more)
Product Certification
FAQ
Cooperation Partner
FAQ
- QWhat is the MOQ ?
- A1 rolls for our own available designs
- QCan I mix different designs?
- ASure!
- QCan I get a lower price if I order large quantities?
- AYes, cheaper prices with more bigger size orders.
- QCan I add or delete items from my order if I change my mind ?
- AYes, but you need to tell us asap. If your order has been done in our production line, we cannot change it. It is about 2 days after confirming the order.
- QCan I get the pre-production sample ?
- AYes, we will send you pp sample, after you confirm, then we will start production.
- QWhen you ship my order?
- ANormaly 7-10 days receiving your payment, but it can be negotiated based on order qty and production schedule.
- QHow about the quality guarantee period?
- AOne year!
- QHow can you guarantee the production quality ?
- AOur production quality follows ROHS,Reach,Halogen Free,CSA standards,We have 15years experience of QC team. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
