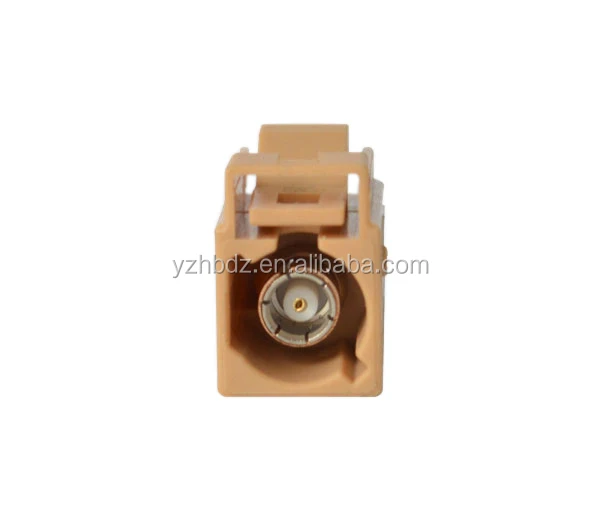

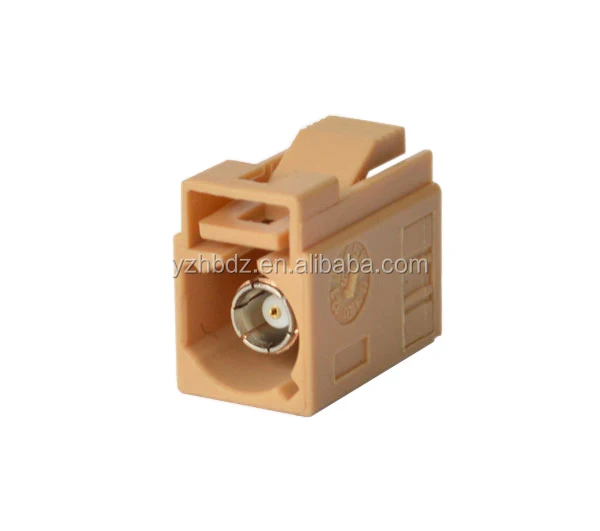

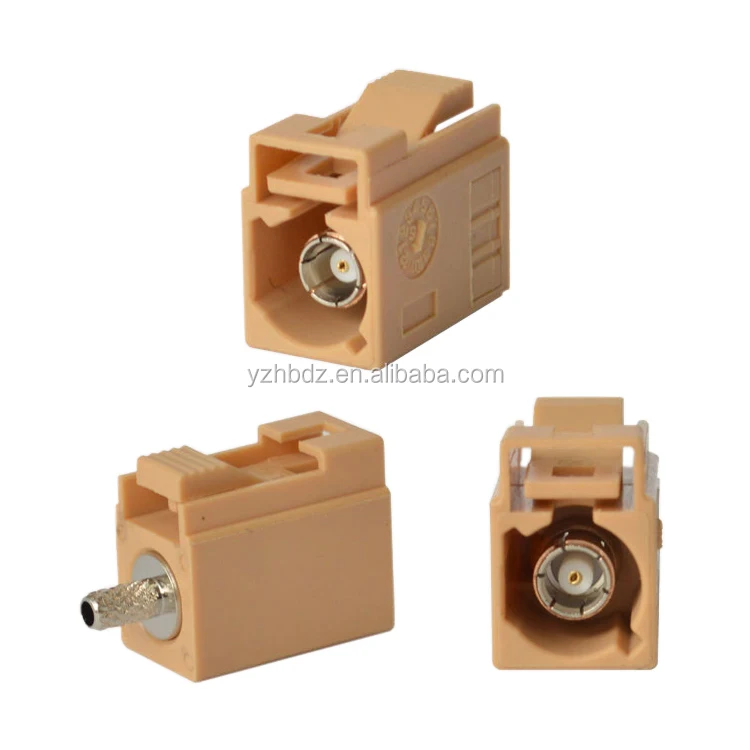

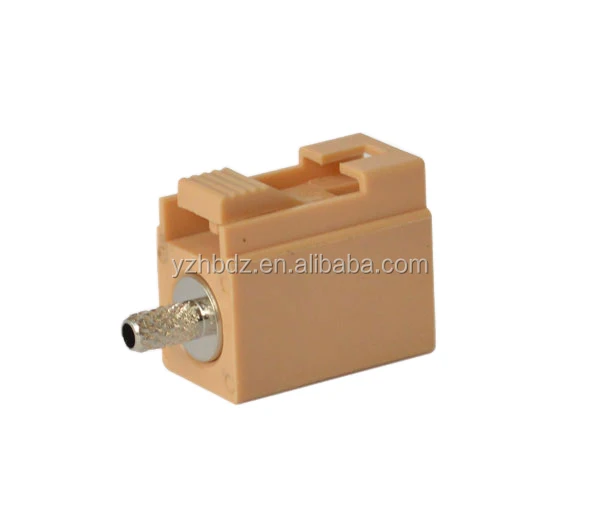

Fakra I Type connector Female Adapter GPS Antenna For FAKRA Cable

Product design level: universal connector (level 2)

1.1 Impedance:

50Ω

1.2 Frequency range:

DC-2.5GHZ

1.3 Working voltage:

335V RMS,50Hz, at sea level

1.4 Dielectric Withstanding Voltage

1000V RMS,50Hz, at sea level

1.5 VSWR:

<1.3 @DC-2.5GHz

1.6 Contact resistance:

inner conductor ≤6MΩ

outer conductor ≤1MΩ

1.7 Insulation resistance:

1000MΩ

2.1 Durability:

≥500

2.2 Engagement force:

≤25N

2.3 Tight lock force

≥100N

3.1 Temperature Range:

-40 ° C ~ 105 ° C

3.2 Salt spray resistance:

>48H

3.3 Operating humidity:

10% ~ 95%RH

Parts name

Material

Plating

Body

Brass

Nickle

Insulator

PTFE

--

Center contact

Bronze

Nickle

Ferrule

Annealed Copper

Nickle

Plastic housings

PA

--

A(Black), B(White), C(Blue), D(Bordeaux), E(Green), F(Brown), G(Grey), H(Violet), I(Beige), K(Curry), L(Carmine red), M(Pastel
orange), N(Pastel green), Z(Water blue)
