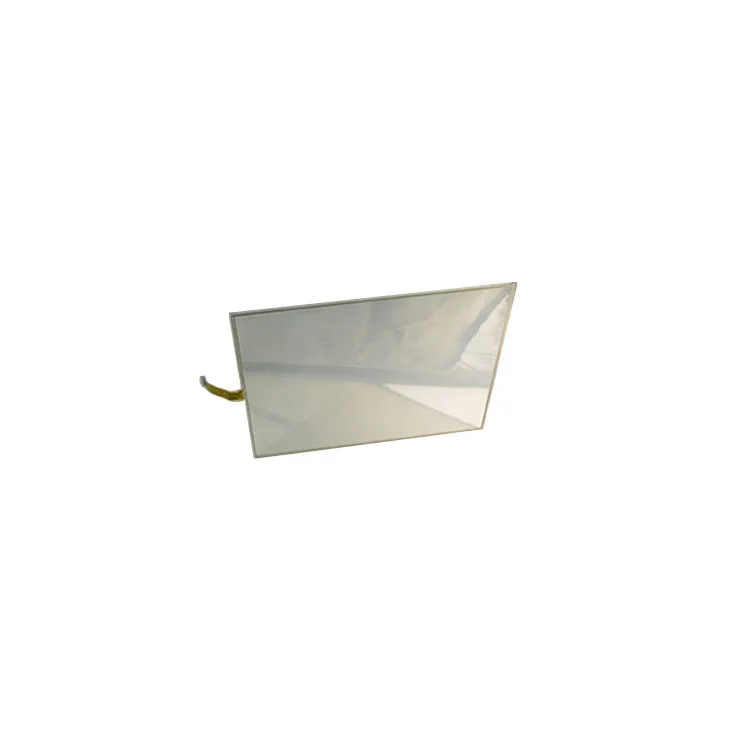

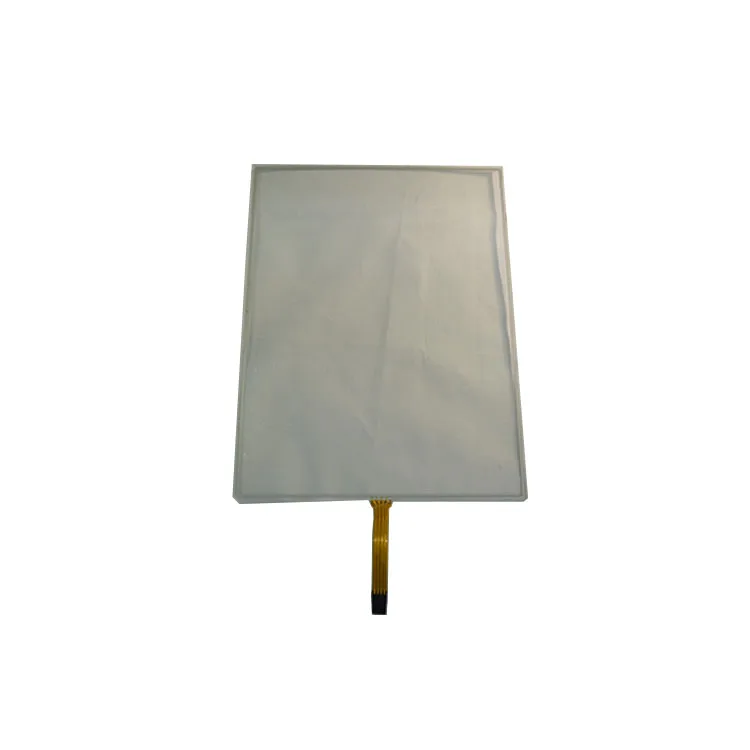

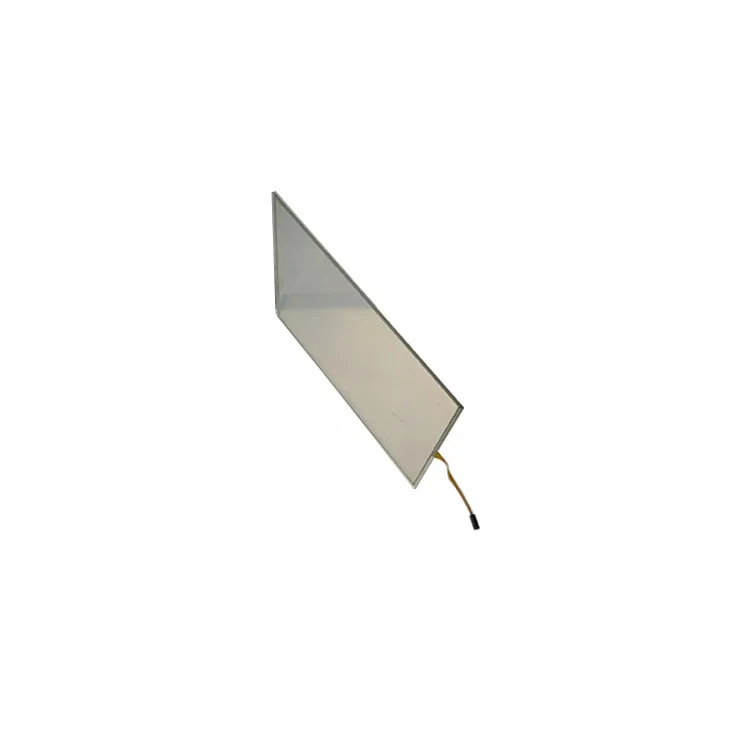

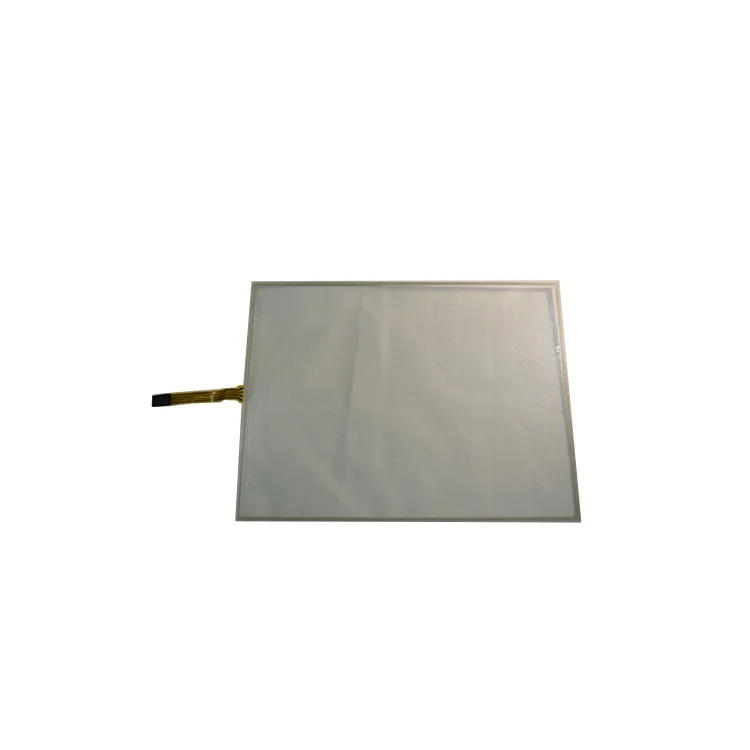

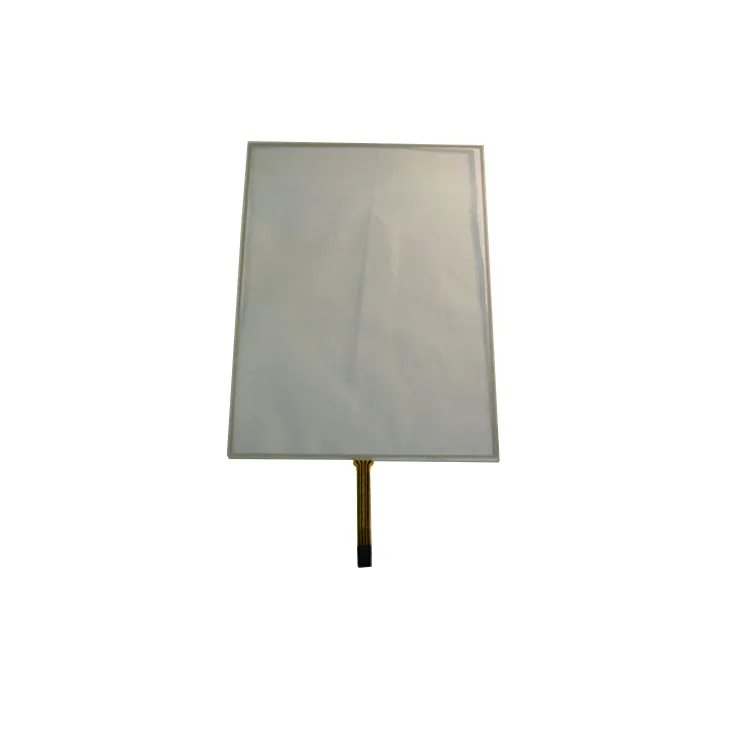

Customized External View Active Area Dimension Multi point finger pen 4 wire e ink transparent resistive touch screen

Share on (62035870099):


Price:

Quantity:


Product Overview

Description


4 wire resistive touchscreen infrared monitor programmable touch screen

Product Description

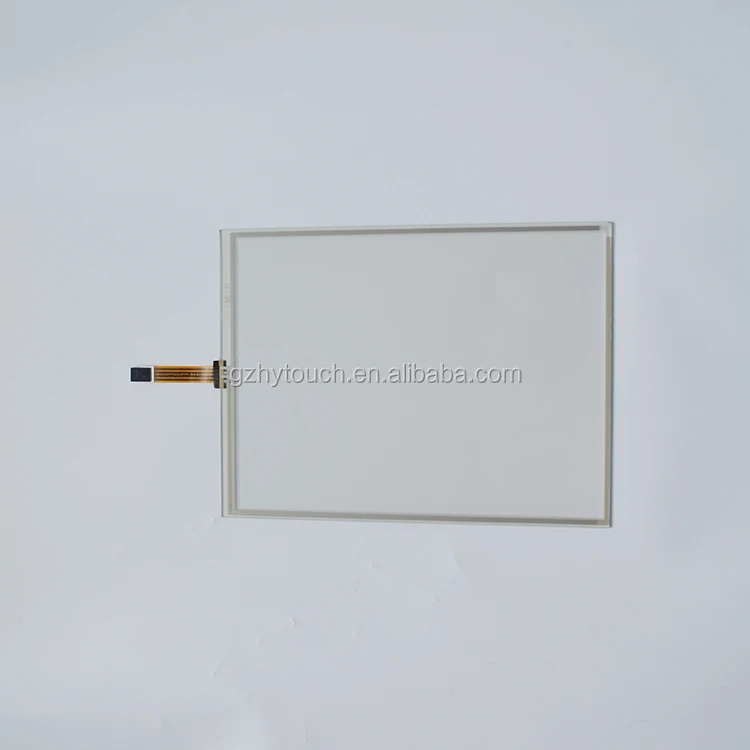

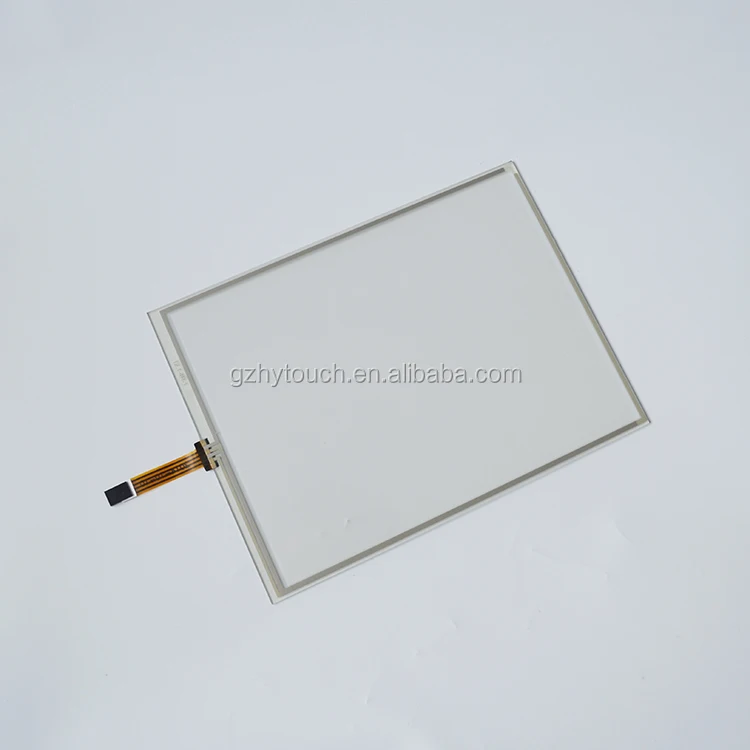

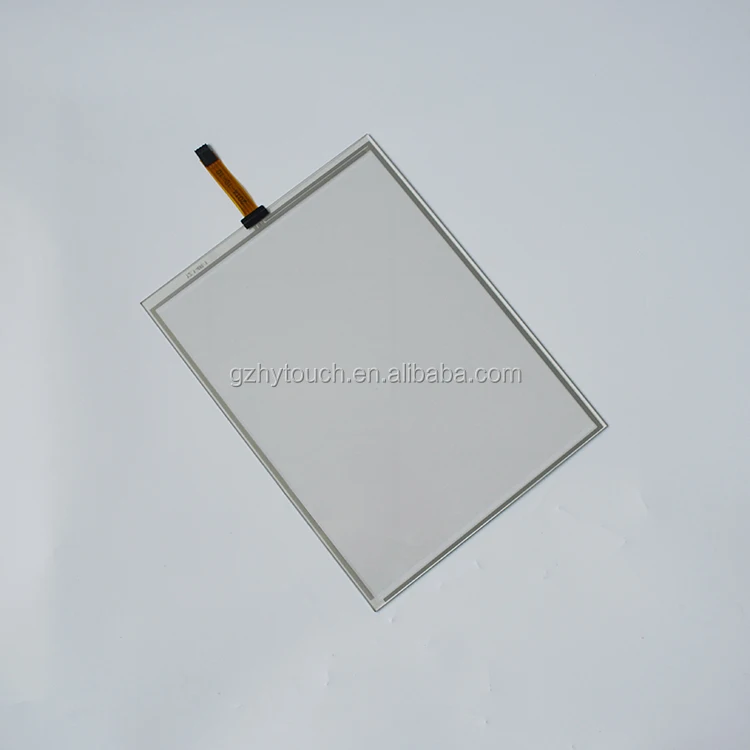

product show.jpg



Specification:
ItemResistive Touch Screen
DimensionsFrom 3.2'' to 24''
Thickness1.8mm or customize
Conductive Glass ThicknessITO 0.7mm, 1.1mm or 1.8mm
Conductive Film188 μm
StructureConductive film, ITO film
Insulation Distance3 * 3mm
ConnectorFPC, flexible printed circuit
Electrical Performance
Loop Resistance50~300Ω
Linearity≤1.5%
Insulation Resistance≥10MΩ, @25V (DC)
Maximum Operation Voltage5V (DC), 1mA
Chattering Time≤15ms
Response Time≤20ms (from the touch moment to response)
Mechanical Behavior
Input MethodPen or Finger
Operation ForceOD 2mm pen within 60g~150g pressure
Surface Hardness3H
Transparency83 ± 3% @550nm wave length
Environmental
Operation Temp-10~60°C
Storage Temp-20~70°C
Resistive Lifetime for Single Point> 1,000,000 times




 more product.jpg



about us


packing


FAQ



1. How is the price?
We are a factory in Guangzhou, China. All the products have factory price, the more your quantity,

the lower the price will be.



2. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.



3. Have you ever exported to foreign countries?
We have exported to North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe, South Asia, ect.



4. Could we place an order as OEM to produce under our own brand?

Yes, our company accepts OEM and ODM ONLY for the following types:

Resistive Touch Panel (2 inch to 24 inches)

Capacitive Touch Panel ( 2 inch to 65 inches)

The sizes of the Touch Panel can be adjusted according to the customers' requirements
