1. Copper anode making process description

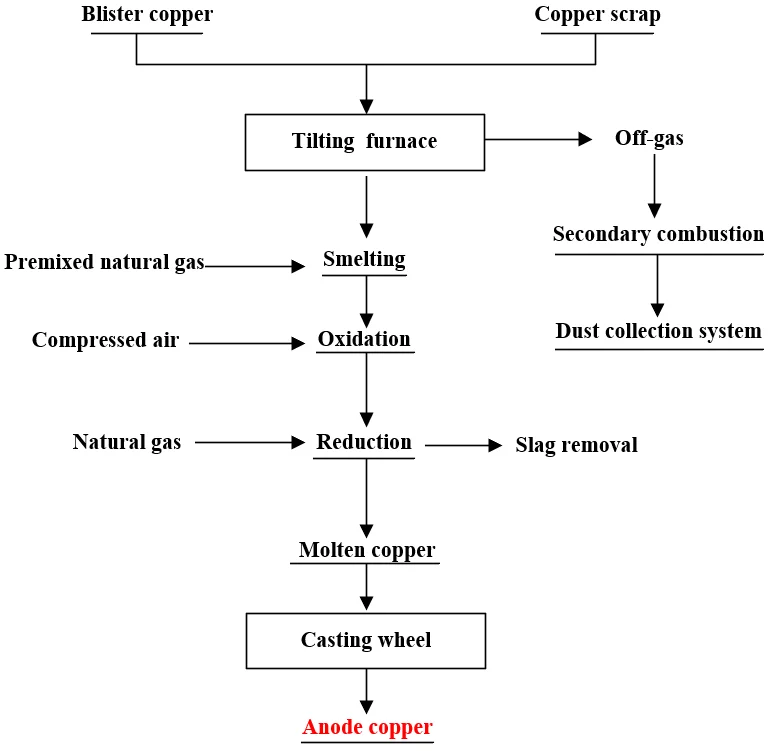

Figure 1 Process of copper anode making
Figure 2 Equipment connection diagram
2. Equipment description
The whole furnace is fixed on the roller support frame and is driven by a hydraulic system, there are two eccentric support wings installed on the cylindrical furnace body, the copper outlet is special designed at the center of the support wing and will not oscillate during the rotation of furnace, so that the molten copper will flow out smoothly and steadily. The charging door on the furnace body is also used for slag removing. The brief drawing of the furnace is shown as figure 3.

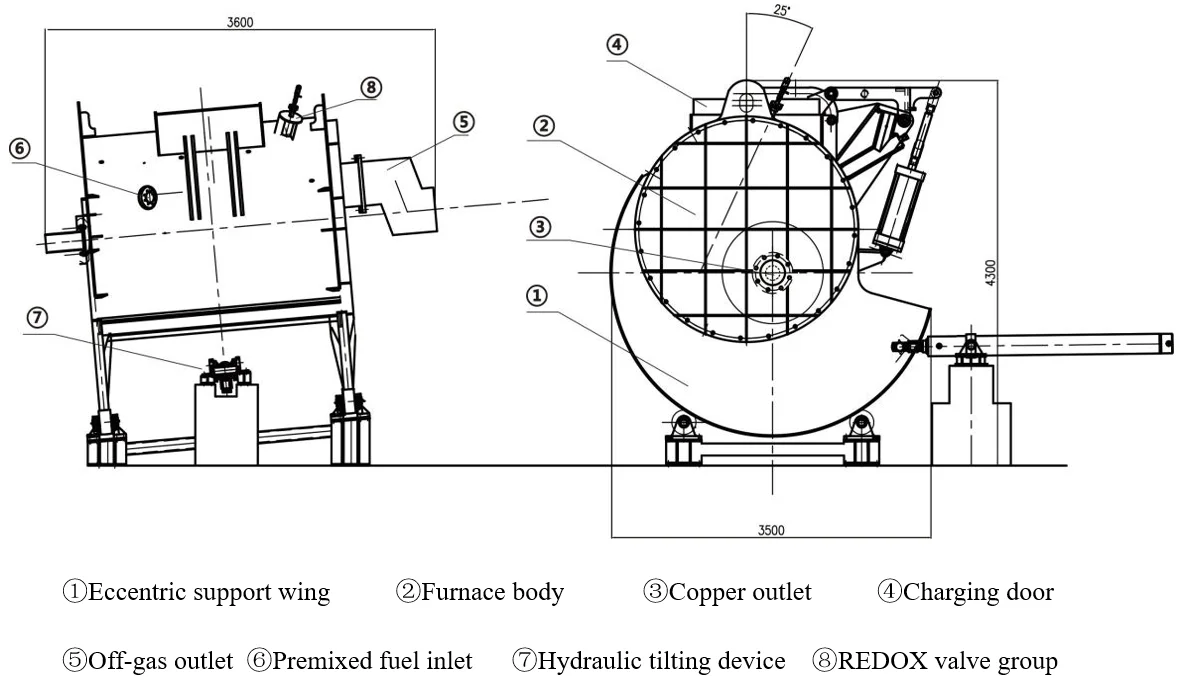

Figure 3 Brief drawing of 3t tilting furnace
The casting wheel mainly composed of rotating system with pulley, main beam and strut beam, moulds, spraying system, hydraulic ejection system, electronic weighing and casting ladle and lifting out device.
5. Main technical and economic indexes
Table 5.1 Technical and economic indexes of copper anode making
No. | Item | 3-5t | 60t | Remark |
1 | Furnace capacity | ≥3t | ≥60t |
|
2 | Mould quantity of casting wheel | 6pcs | 20pcs |
|
3 | Cu content of copper scrap | >92% | >92% |
|
4 | Cu content of copper anode | 96%~99.5% | 99.4%~99.5% |
|
5 | Weight of copper anode | 174kg | 270KG-280KG |
|
6 | Output per batch | 3t-5t | ≈60t | Depend on the charging material |
7 | Cycle of per batch | Around 8 hours | ≈18hrs | Including anode casting |
8 | Working time | 300 days | 300 days |
|
9 | Installed power capacity | 40KW | 150KW | Natural gas as fuel |
10 | Water consumption |
|
|
|
11 | Power consumption | 20kw/t | 20kw/t |
|
12 | Natural gas consumption | 110m3/t | 110m3/t |
|
3. Typical case photos of copper anode making

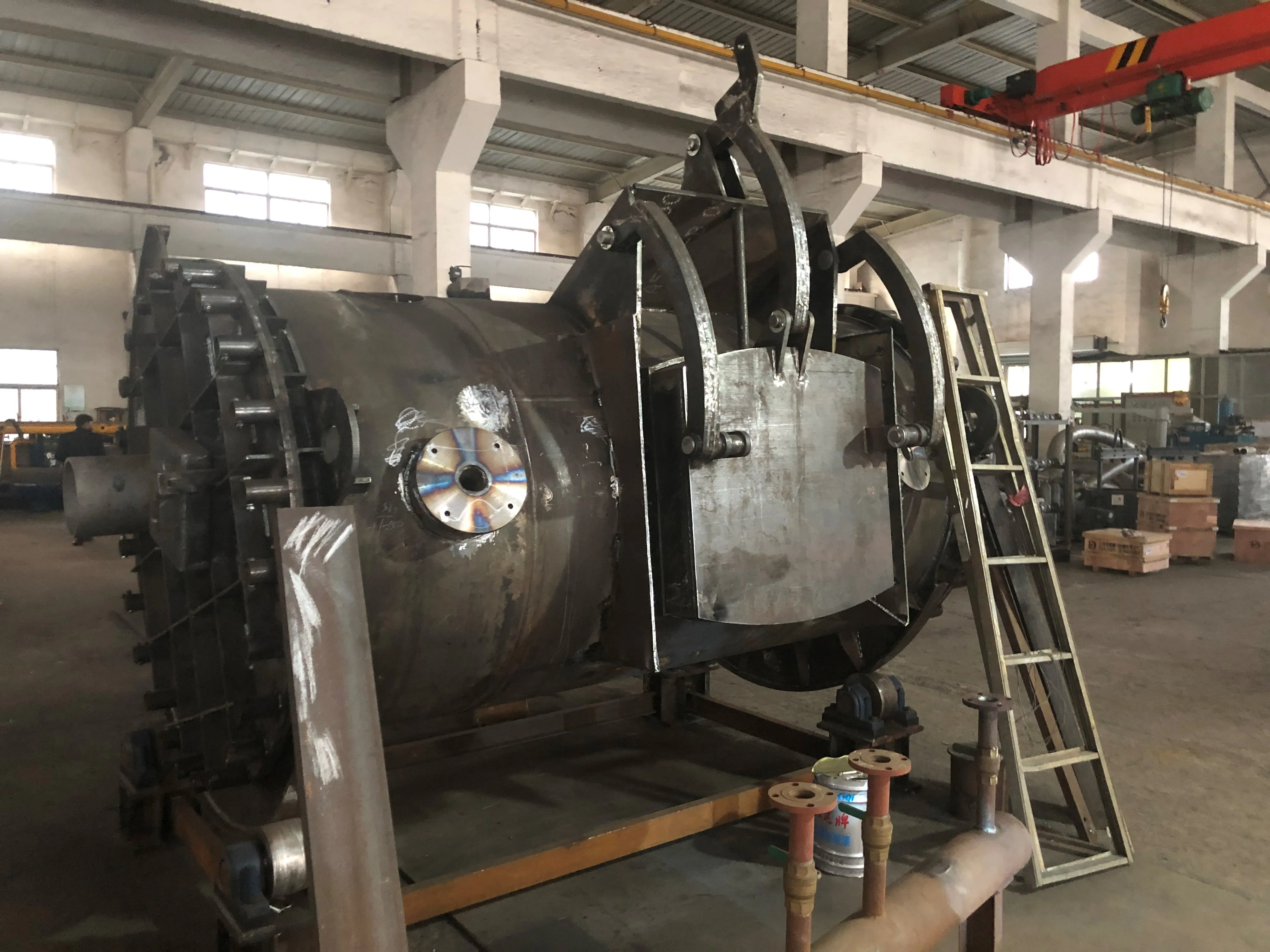

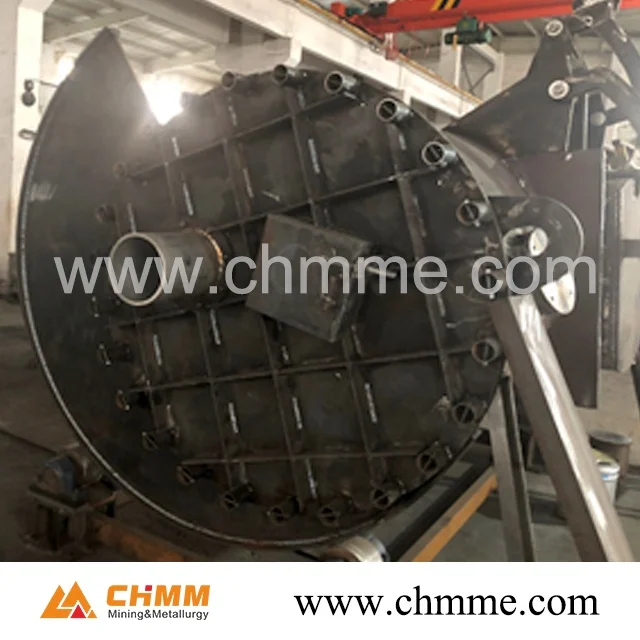

3.1 Tilting furnace

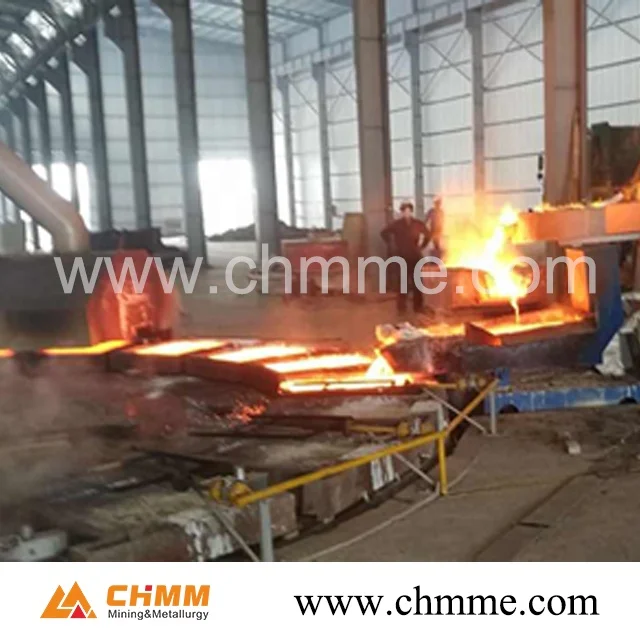

3.2 Copper anode casting

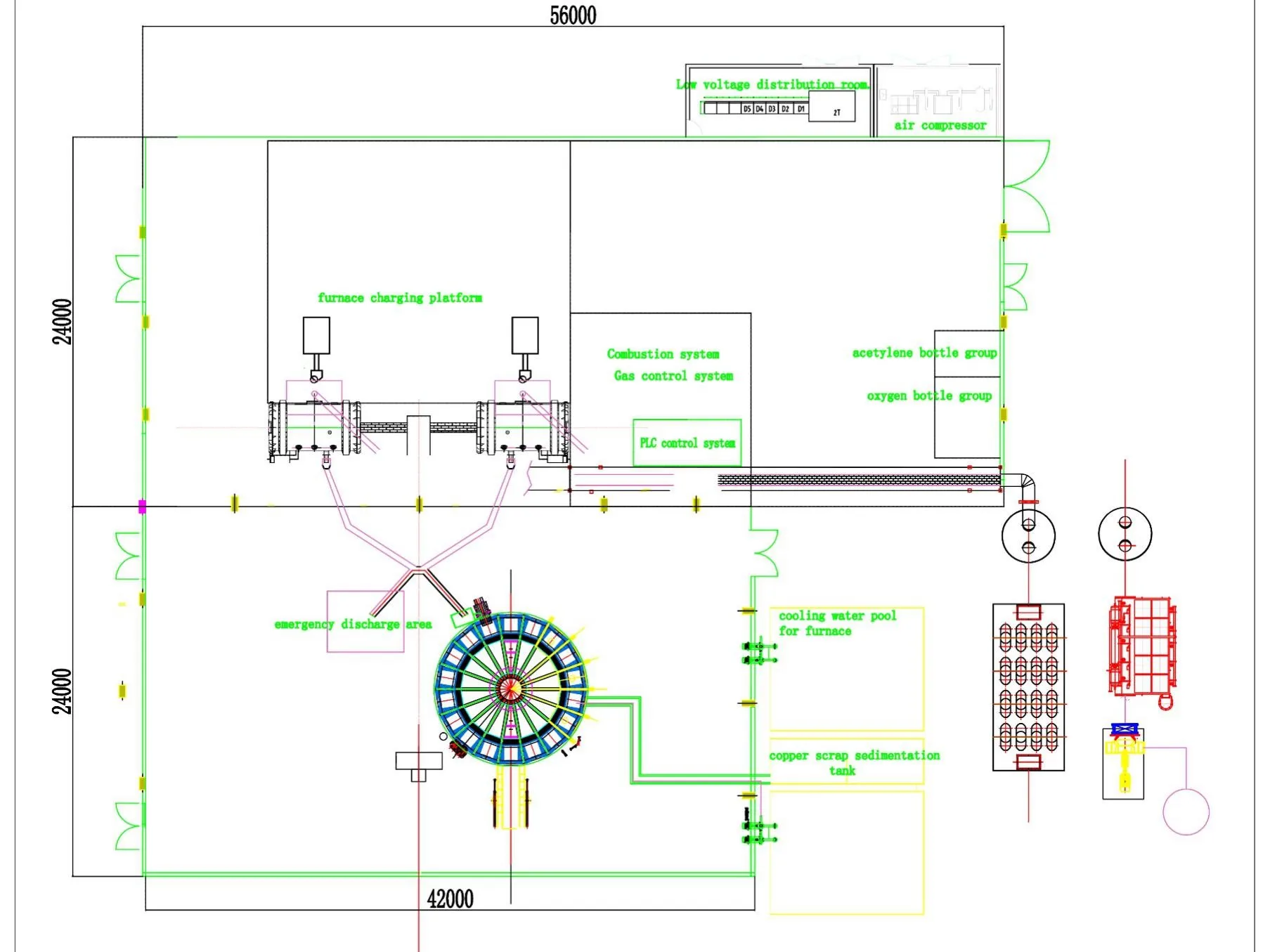

3.3 Layout of workshop
