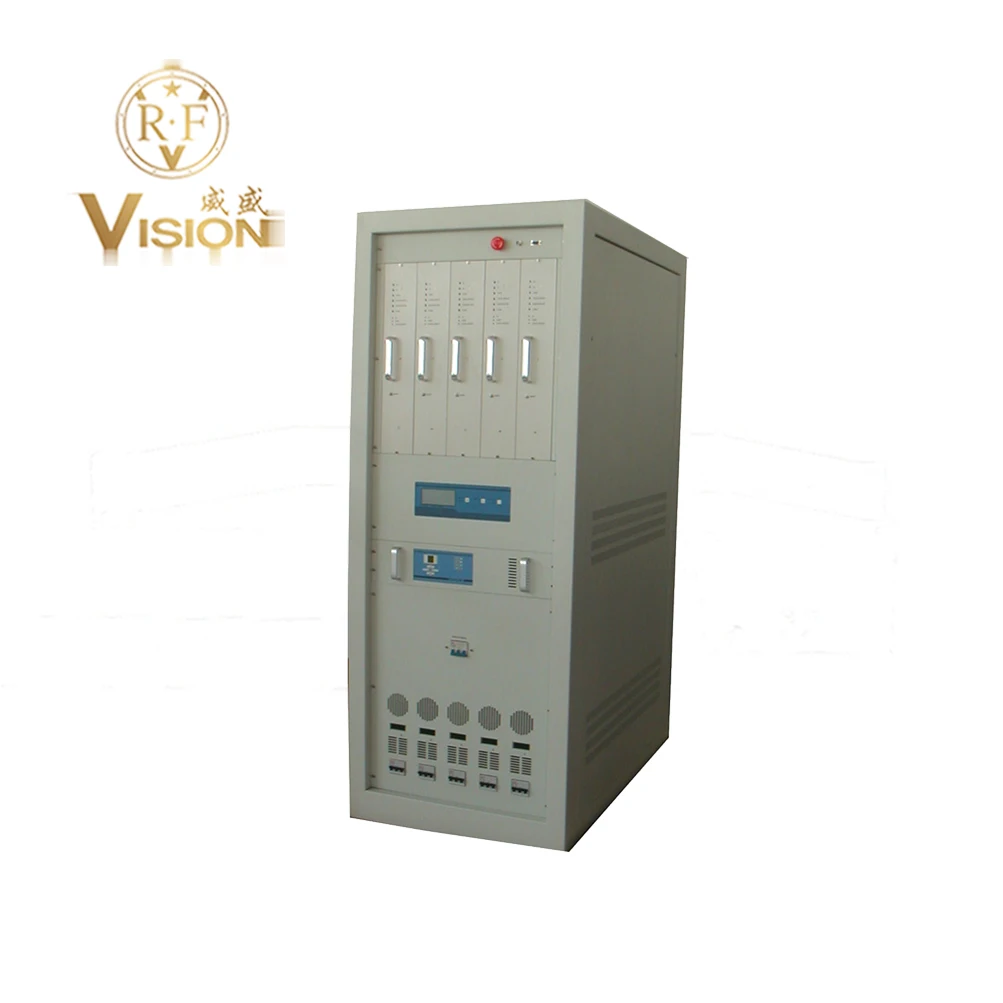

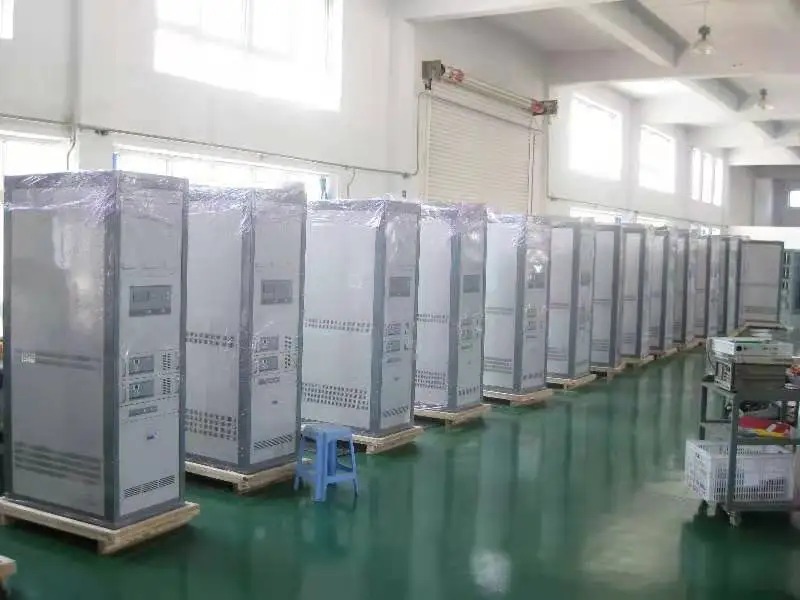

6KW analog encrypted wireless TV signal broadcast transmitter kit digital rf terrestrial usb uhf tv transmitter and antenna

6KW analog encrypted wireless TV signal broadcast transmitter kit digital rf terrestrial usb uhf tv transmitter and antenna

Features:

General:

- single-channel, image with audio together

- high-performance single/dual exciter configuration, switching automatically.

- redundant configuration design reduces inactive rate to zero.

  · exciter redundancy design

  · power amplifier redundancy design

  · power supply redundancy design

- linear and non-linear pre-correction function, carrier frequency offset, and precision bias (with external precision reference source) function.

- refabricate and control the half-power output, remote control telemetry interface.

High Quality Units

- LDMOS FET power amplifier, analog & digital compatibility and high-quality switch parallel power.

- hot-plug devices

- one-time synthesis power combiner, small power loss and small standing wave.

- real-time display for working parameters of power amplifier module

- Aluminium alloy folding radiator controlling temperature difference below 15℃.

- linear and non-linear pre-correction function, carrier frequency offset, and precision bias (with external precision reference source) function.

Easy for Monitoring

- intelligent networked management & monitoring design with external PC interface.

- technical data detection, monitoring systems and full-featured computer control software with auto-diagnostic function. All technical parameters can be read through the LCD display panel.

Protections

- protection of over-current, over temperature, over power and over standing wave

- All switching power supplier: high efficiency, excellent regulator range, strong adaptable from the change of the external voltage.

- modular design concept.

- hot-pluggable design: power amplifier and switching power all hot-plug, easy to debug and maintenance improve the reliability.

Quality Guaranteed

- China State Radio Regulatory Commission & China SARFT certified

- ISO9001 1SO14001 certified

Machine Performance

1.We will provide the User Manual in English or operating videos for free.

2. We provide you with 24-hour technical support by mail or online.

3.Warranty: 1 year , more than 1 year, cost maintenance

4. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.

Package & Shipping

By Express                                        By Air                                                By sea

Door to Door                                      Air Port to Air Port                            Sea Por to Sea Port

≤ 50kg                                                 ≥50kg                                                 ≥500kg

2~7 days                                             2~7 days                                             7~45 days

About Us

In 1985, Vision established as the previous name of Xi'an Lantian Radio & Television Equipment Co.,Ltd.

By now, we have more than 30 years’ experience in Radio&TV Equipment field.

In 2016, we started to open overseas market so

We are located in Xi’an City, Shaanxi Province, China. One of the ancient capitals in World.

What We Make?

TV transmitters, radio frequency communication equipment, remote control software of radio and television equipment, embedded program development, RF mechanical antenna, Medical high frequency power supply equipment, power divider, coaxial switch, false load, Filter demodulator and multiplexer antenna.

Moreover, we can provide technical consultant, maintenance, technical development, maintenance insurance and other services concerning all the above.

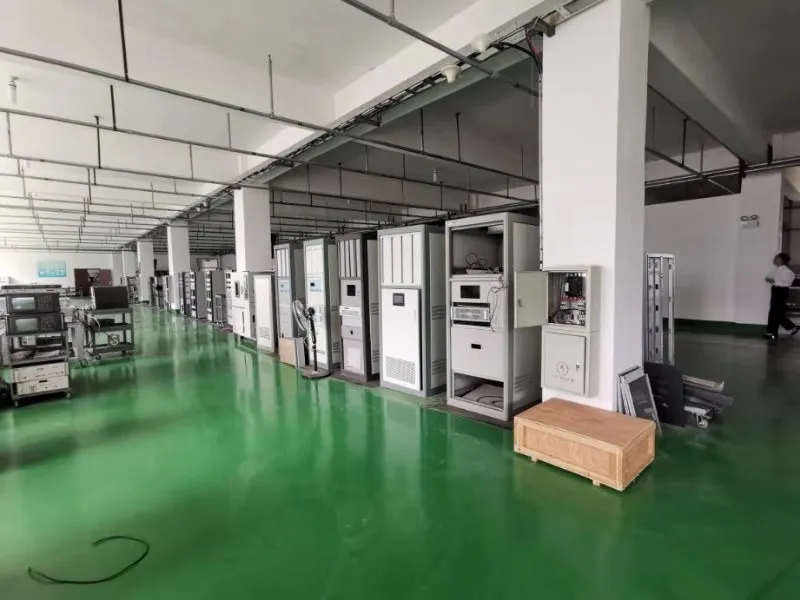

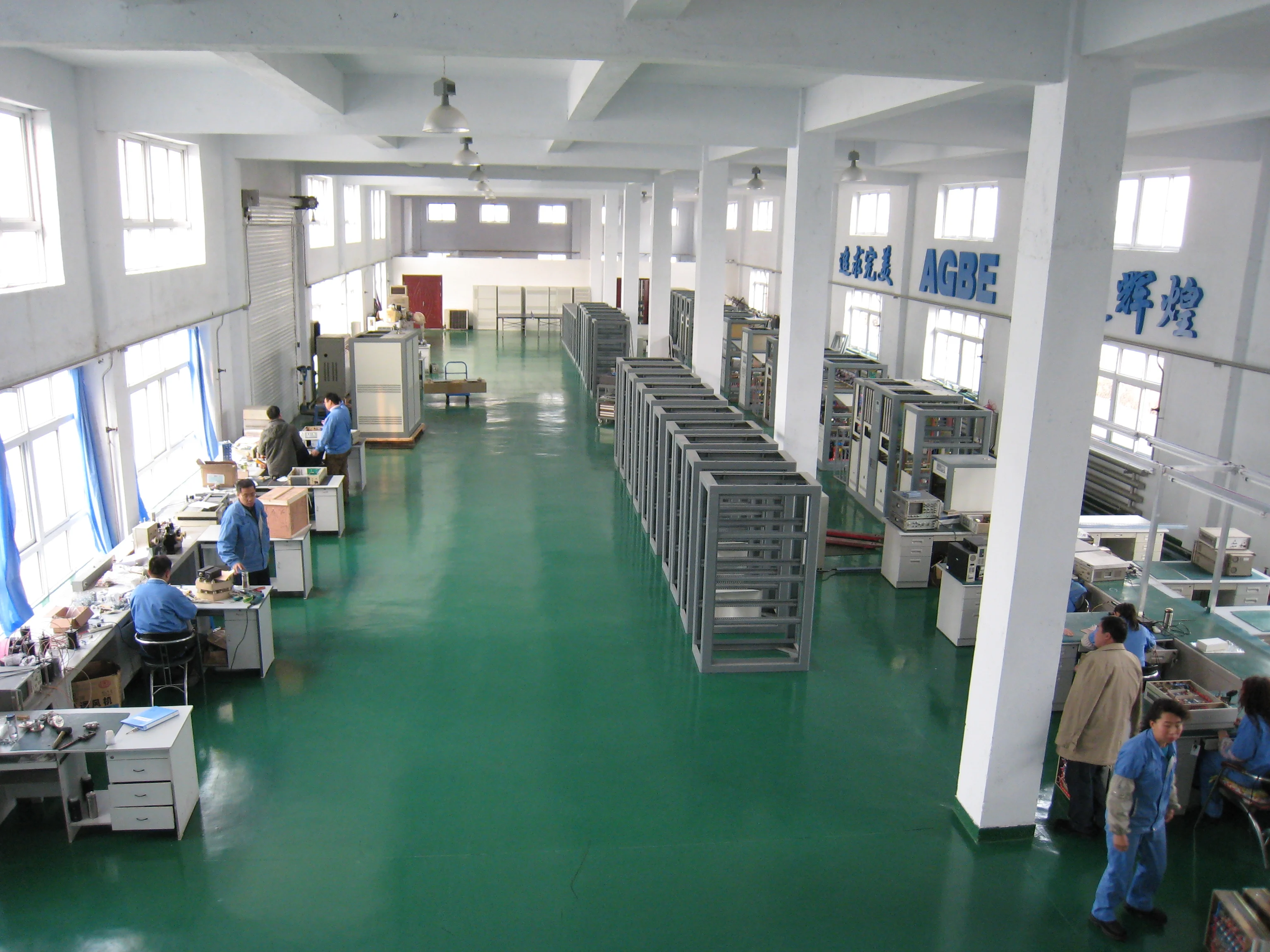

Our Factory

We Attend BIRTV Exhibition

Certified Supply According to ISO:9001 & ISO14001

For better understand of our products,we collect all possible  problems for every order,hope it will help you.

Q1. Are you the manufacturer or trading company?

A1. We are manufacturer of Radio & TV Broadcasting equipments.

Q2.What these equipments used for?

A2. They are professional used for FM Radio & TV Broadcasting Station (Transmitting equipment.)

Q3. What equipment & solution your company can provide?

A3. We can do complete solution for FM Radio &tv station system, including the fm/tv transmitter, antennas and the feeder cables.

 Q4. How do I choose suitable equipments for my station?

A4. The most import factors are Power and Frequency.We need to know the Power and Frequency you need exactly.How long the distances do you want to cover in Radius?How height your Antenna can be installed?

Q5. How to calculate Broadcasting equipment Cover Range?

A5. The Cover Range depends on 4 factors:1. Power of Transmitter 2. Height of Antenna 3. Gain of Antenna 4. Around Environment.Then we can know the cover range of your station.

Q6. Is the Frequency Adjustable?

A6. FM Frequency is 88~108MHz, TV Band Frequency includes UHF/VHF band.

Q7. How to do installation of these equipments?

A7. If need,we can send our engineer to your country to do the installation, but you should pay the cost.We also can provide the technical support or do training for your engineer here in our company.

Q8. How to operate these broadcasting equipments?

A8. We provide All-English user manual, we also can provide the technical support by wechat /whatsapp etc.
