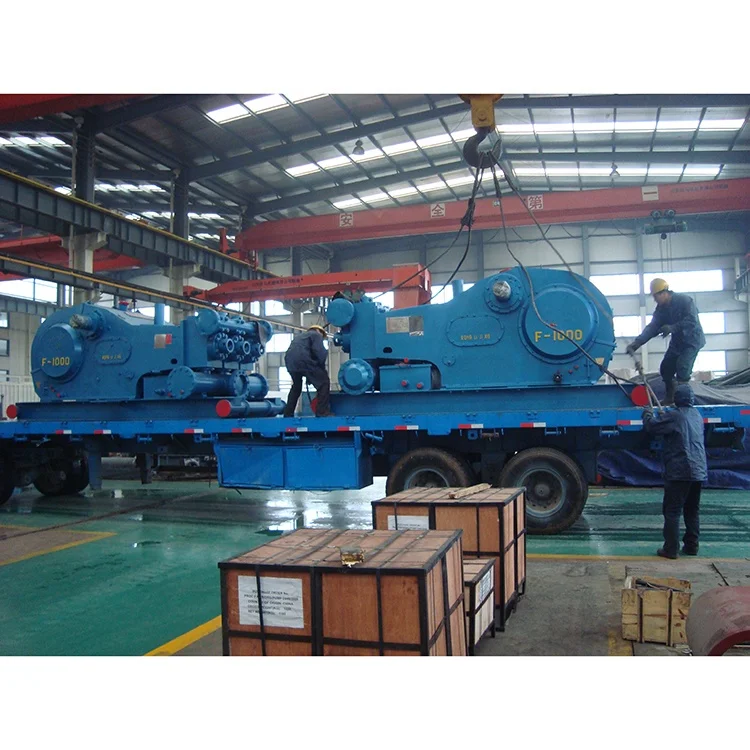

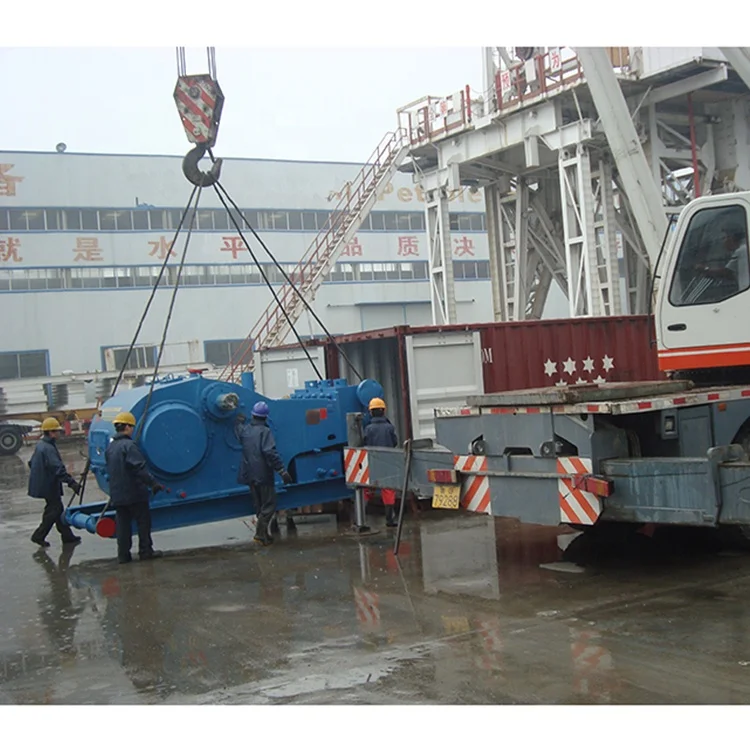

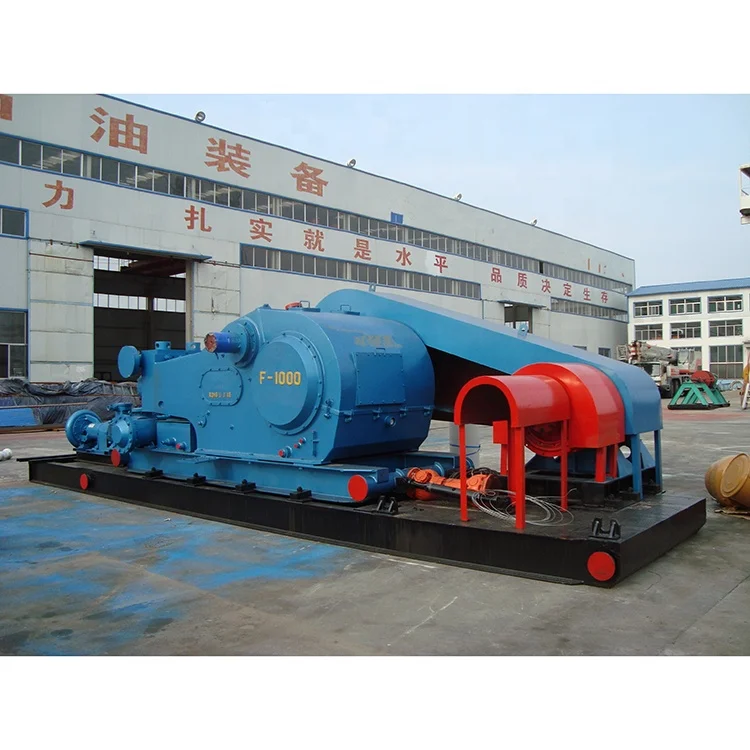

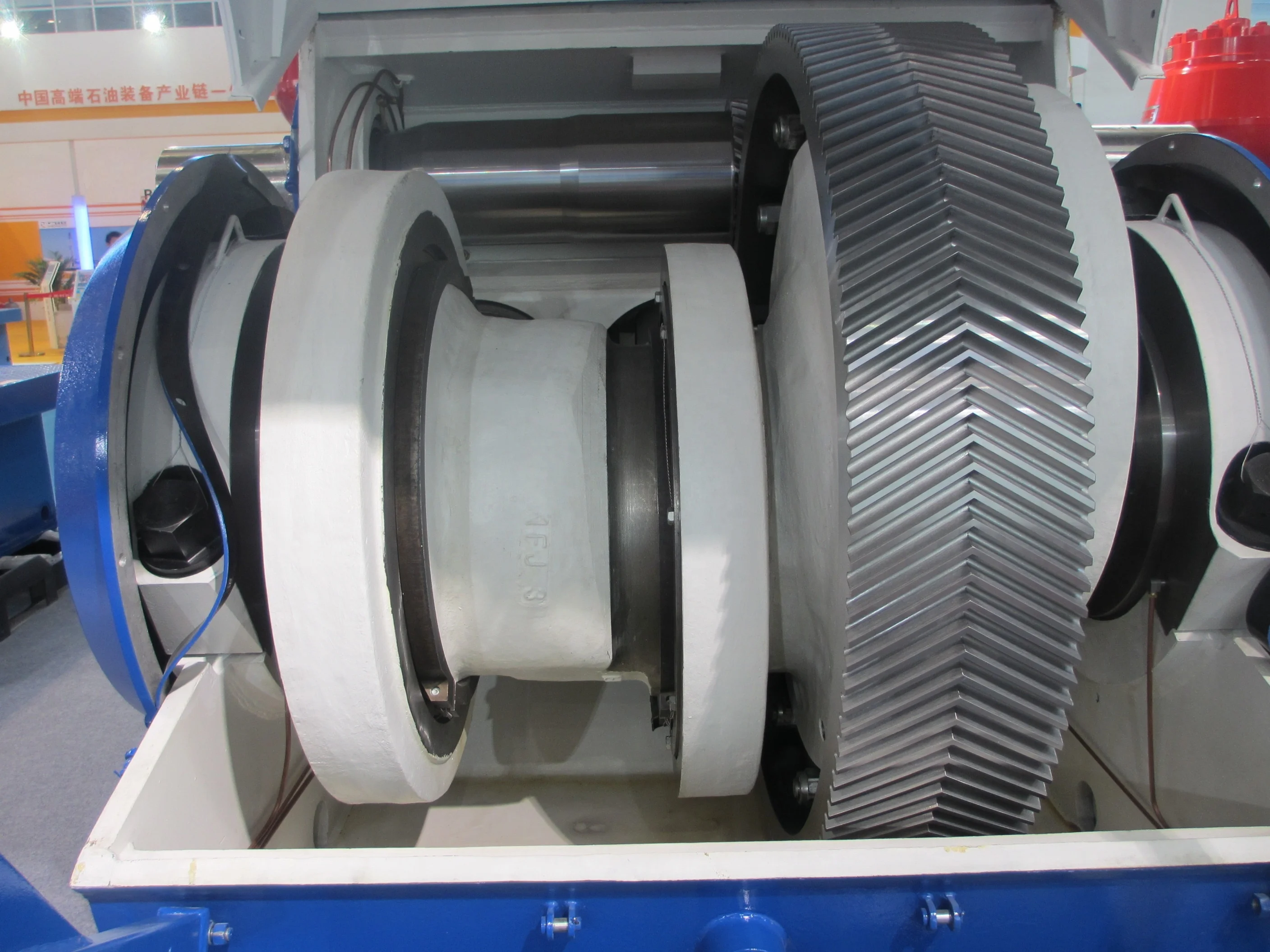

F1000 Color Customized Fast Deliver Duplex Mud Pump

F1000 Color Customized Fast Deliver Duplex Mud Pump

Category: Oil Field Equipment >>>
Supplier: Shandong Beyond Petroleum Equipment Co. Ltd.

Price:RUB 4,831,261.50

Quantity:

Product Overview

Description

Poster

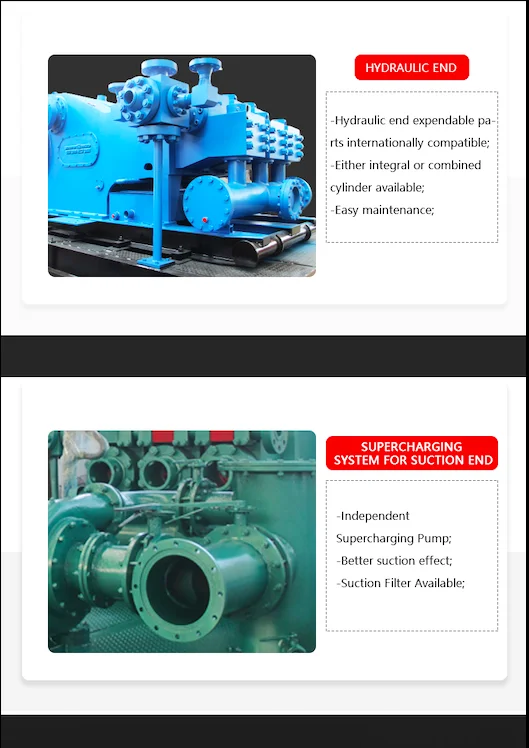

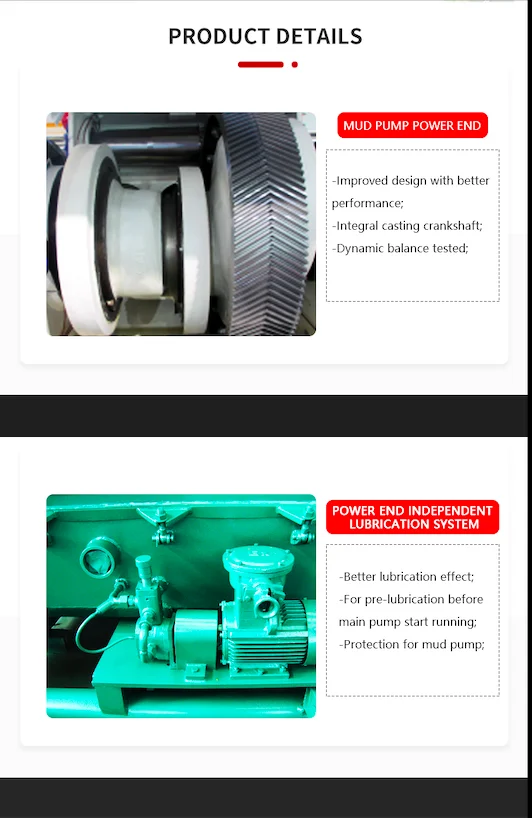

05-Product Details 04-Product Details 09-Introduction 10-Cert and Cooper

Product display

Item	F500	F800	F1000	F1300	F1600
Power Rating HP(kw)	500 (373)	800 (597)	1000 (746)	1300 (969)	1600 (1193)
Stroke RatingSPM	165	150	140	120	120
Stroke Length(in /mm)	7.5” /190.5	9”/228.6	10”/254	12”/305	12”/305
Gear Ratio	4.286	4.185	4.207	4.206	4.206
Inlet Dia. (in/mm)	8”/203	10”/254	12”/305	12”/305	12”/305
Outlet Dia. (in)	4” Flange 5000psi	5-1/8” Flange 5000psi	5-1/8” Flange 5000psi	5-1/8” Flange 5000psi	5-1/8” Flange 5000psi
Valve	API5#	API6#	API6#	API7#	API7#
Max. Liner (in/mm)	6-3/4”/170	6-3/4”/170	6-3/4”/170	7”/180	7”/180
Overall Dimension LWH(mm)	36582709 2231	39633025 2410	42673167 2580	46173260 2600	46153276 2688
Approx. Weight (kg)	9770	14500	18790	24572	24791

Hot Products

Company Introduction

Company Introduction

SHANDONG BEYOND PETROLEUM MACHINERY CO.,LTD. is established on request of customer and aimed to supply best product and service for the customer. It focuses on to supply best solutions for the overseas oilfield customer on equipment & spares maintenance and supply.

BEYOND products cover but not limited to: China-make oil drilling rigs, workover rigs, wellhead and downhole tools, drilling tools, OCTG and other related equipment and parts. Meanwhile, BEYOND can offer technical services, personnel training and maintenance guide towards China-made drilling rigs.

BEYOND believes that it will become your best cooperative partner in China.
