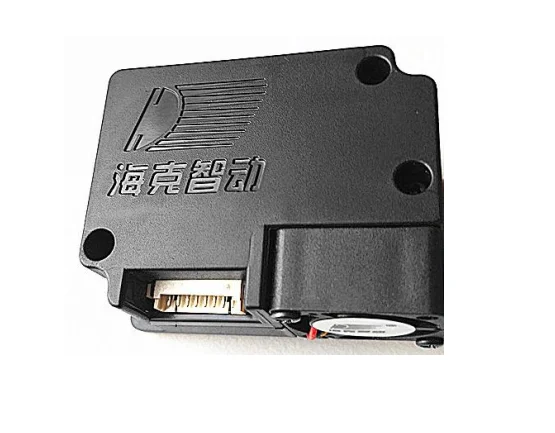

Hk-A5 is a digital universal particulate concentration sensor, which is used to obtain the number of suspended particulate matter (particulate concentration) of 0.3 to 10 microns per unit volume in the air, and output it in the form of a digital interface, as well as the mass data of each particle.The sensor can be embedded into various instruments (related to calculating the concentration of suspended particulate matter in the air) and environmental improvement equipment to provide timely and accurate data.
Main features:
1. Beautiful price
2. Fully calibrated
3. Quick response. Responsetime: ≤6S
4. Standard serial word input
5. Second-order curve multipoint calibration
6. Minimum resolution 0.3 μm
MAIN APPLICATIONS
Air quality detector
Air cleaner
Ventilation system/ Air conditioner
Environmental Monitoring
Smart home products
Internet of things

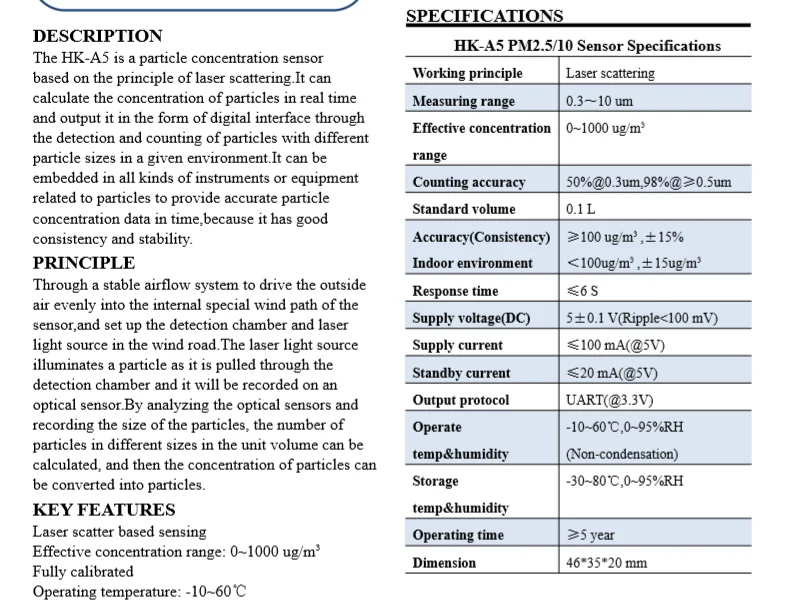

Name
PM2.5 Laser Sensor

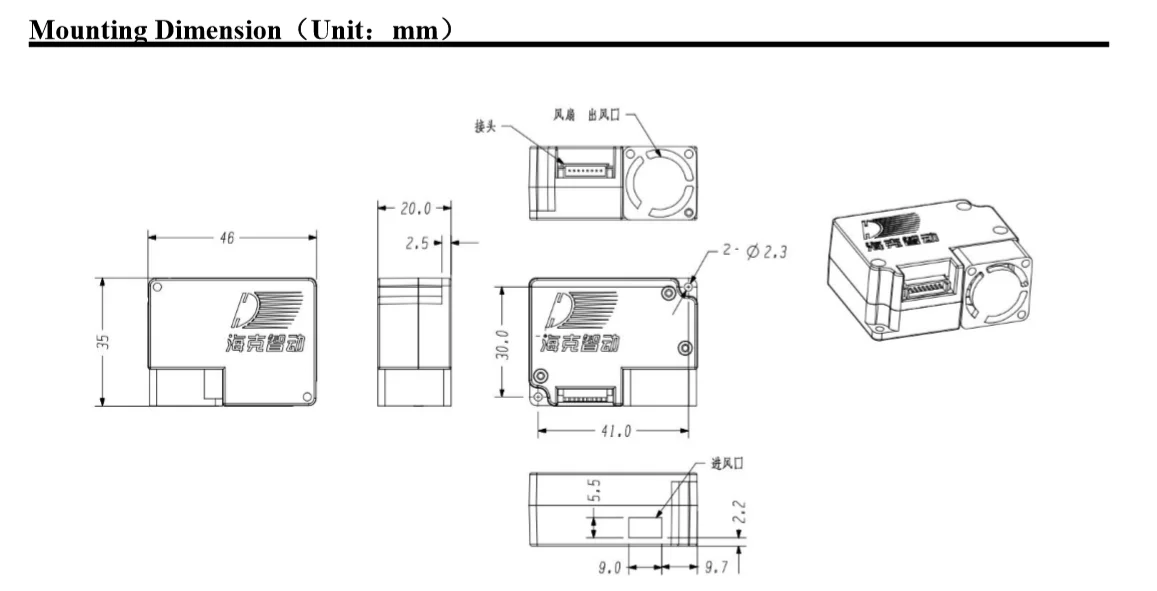

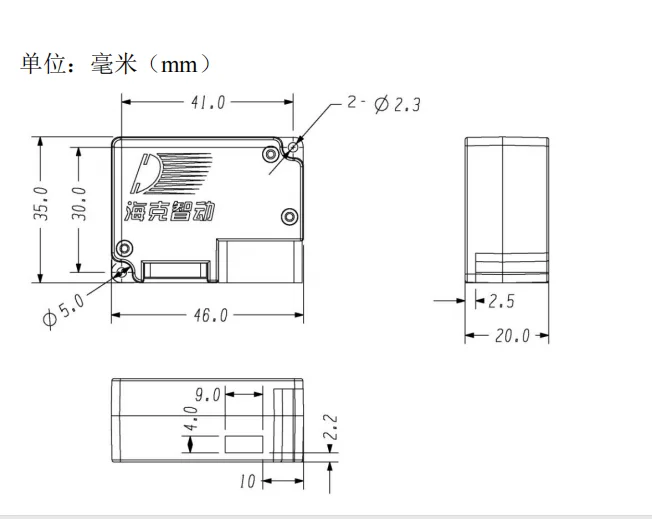

Dimension
46*35*22mm
Effective concentration range
0~1000ug/m³
Working principle
Laser scattering
Measuring range
0.3～10um
Accuracy
≥100ug/m³,±15%
Product Paramenters
Recommend Products
Company Profile & Certification & Factory& Exhibition
Certifications
FAQ
Q: How to place the order? A: Place order directly on Alibaba, but still don't forget to contact us. Email us about your order, we will get back to you soonest.
Q: How long would I get my order? A: For standard product, we will finish production and ship within 3-5 working days. For bulk OEM orders, usually15~20 working days and it depends on your design.
Q: How long would I receive my order? A: Usually sample orders would ship within 7days, bigger orders may take about15~25days, customized orders would take longer that you can consult us.
Q: Can you customize according to our designs and put our logo on the products? A: Yes, we support both standard and customized products and can put your logo on the products.We can do the ODM/OEM as your requirements. MOQ over 1000 pieces
Q: How about the warranty? A: We have 1 year warranty, but man-made damage is not included in warranty. And we supply remote technical support.
