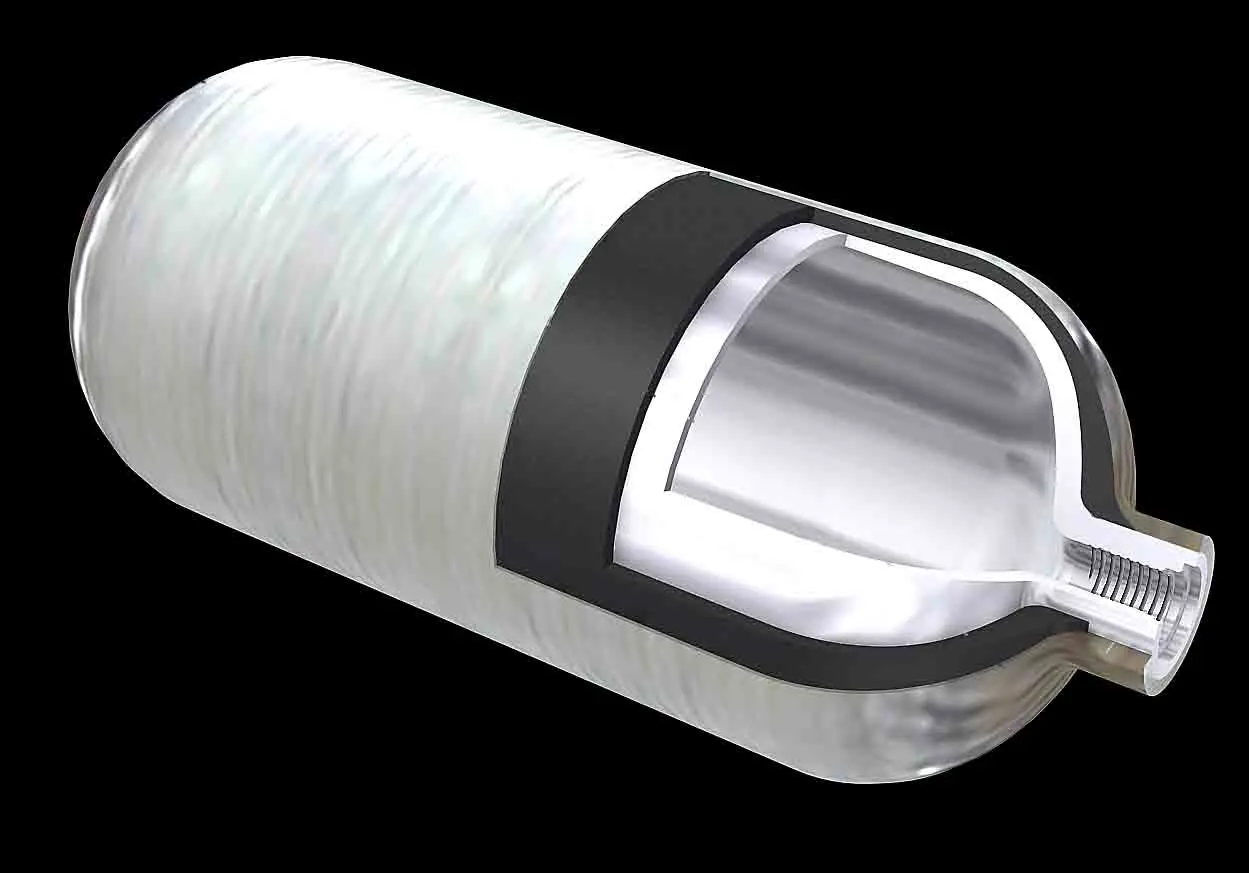

CLD Fully Wrapped Carbon Fiber Cylinder with Aluminum Alloy Liner, the first one to achieve domestic, are rated by Shenyang Science and Technology Bureau as the domestic con-generic leading products. They consist of seamless aluminum alloy liner, carbon fiber overwrap layer and fiberglass protective layer. The thickness of the liner wall is uniform and the shape of shoulder and base are produced with high precision and consistency. It provides effective respiratory protection for fire fighters and/or emergency workers in dangerous environments.
Recommend Products
Part No.
Water Capacity
(L)
Diameter
(mm)
Length
(mm)
Weight
(kg)
Service Pressure
(MPa)
CRP III-60-0.25-20-T
0.25
65
157
0.32
20
CRP III-60-0.3-20-T
0.3
65
180
0.35
20
CRP III-54-0.36-30-T
0.36
60
246
0.45
30
CRP III-54-0.37-30-T
0.37
60
251
0.48
30
CRP III-54-0.45-30-T
0.45
60
288
0.55
30
CRP III-93-1.2-20-T
1.2
100
280
0.9
20
CRP III-92-1.5-30-T
1.5
101
324
1.3
30
CRP III-101-1.5-20-T
1.5
108
270
0.9
20
CRP III-105-1.6-20-T
1.6
113
168
1.15
20
CRP III-106-2-20-T
2
113
320
1.6
20
CRP III-109-2-20-T
2
116
292
1.4
20
CRP III-92-2-30-T
2
101
405
1.4
30
CRP III-106-2-30-T
2
118
330
1.9
30
CRP III-112-2.2-20-T
2.2
120
320
1.4
20
CRP III-124-2.2-20-T
2.2
132
257
1.5
20
CRP III-120-2.4-20-T
2.4
128
306
1.45
20
CRP III-120-2.5-20-T
2.5
128
315
1.5
20
CRP III-123-2.7-20-T
2.7
130
305
1.55
20

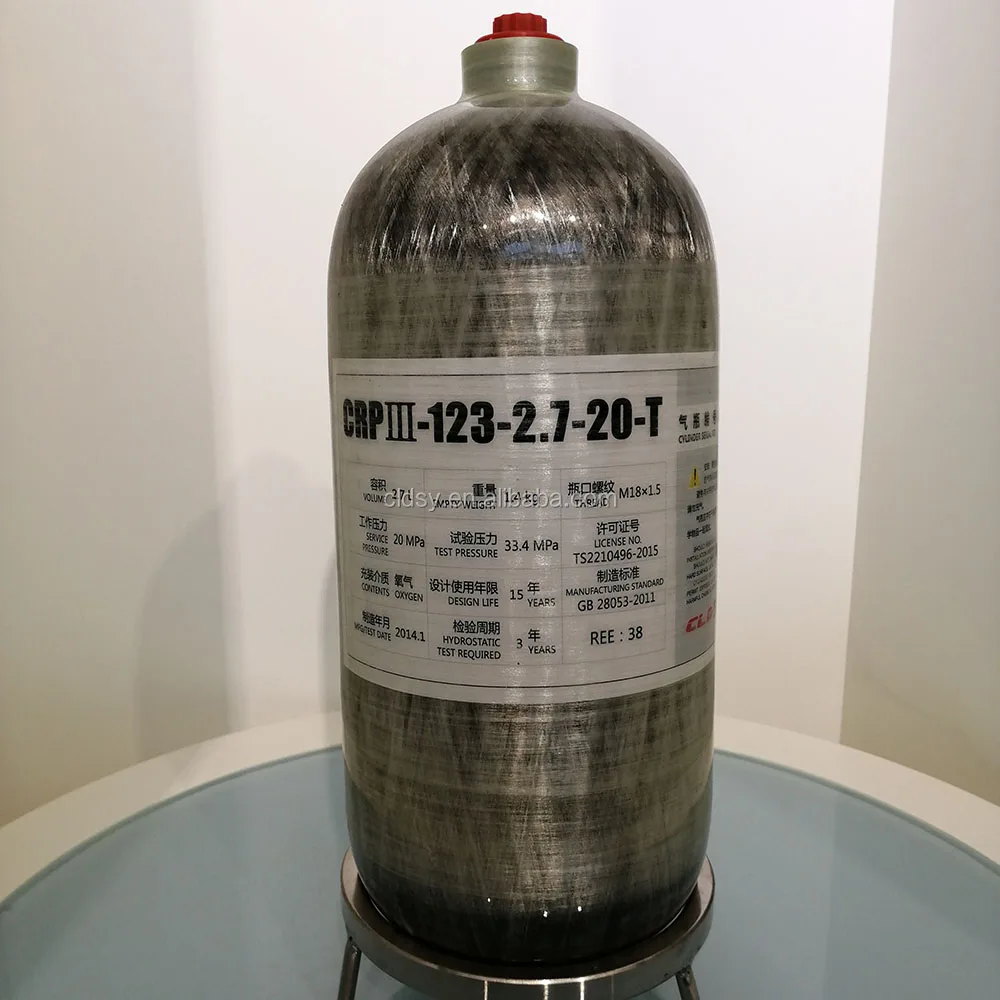

CRP III-124-2.7-20-T
2.7
132
315
1.55
20
CRP III-106-3-30-T
3
115
454
2
30
CRP III-107-3-30-T
3
116
450
2
30
CRP III-115-3-30-T
3
125
392
2
30
CRP III-125-3-30-T
3
136
352
2
30
CRP III-145-6.8-30-T
6.8
157
522
3.8
30
CRP III-145-6.8-40-T
6.8
160
531
4.8
40
CRP III-156-8-30-T
8
170
536
4
30
CRP III-156-8-40-T
8
174
537
5.5
40
CRP III-161-9-30-T
9
174
570
5.1
30
EFQC174-9-30
9
174
570
5.1
30
CRP III-182-12-30-T
12
196
605
6.5
30
EFQC196-12-30
12
196
605
6.5
30
FQC220-20-25
20
220
770
11
25
FQC222-20-30
20
222
770
11.2
30
FQC352-50-30
50
352
795
26.6
30
You could send message directly in this page if you need other size.
Certifications
Company Profile
Shenyang Gas Cylinder Safety Technology Co., Ltd
Shenyang Gas Safety Technology Co., Ltd. was found in 2002. Three major production bases are located in Shenyang China, one of the most important industrial centers in China. Our customers come from more than 60 countries such as the U.S., the U.K., France, Australia and etc. Our products have been approved by CE, CCS and other international certification, and our company has participated in drafting a lot of national standards. Moreover, we are the first drafting unit of GB/T 11640 ‘Seamless Aluminum Cylinder’ and GB/T 28053 ‘Aluminum Alloy Liner with Carbon Fiber Fully Wrapped Reinforced’.
