147x41 L wall aluminum enclosure box design electrical metal equipment enclosures

Product Overview

Description

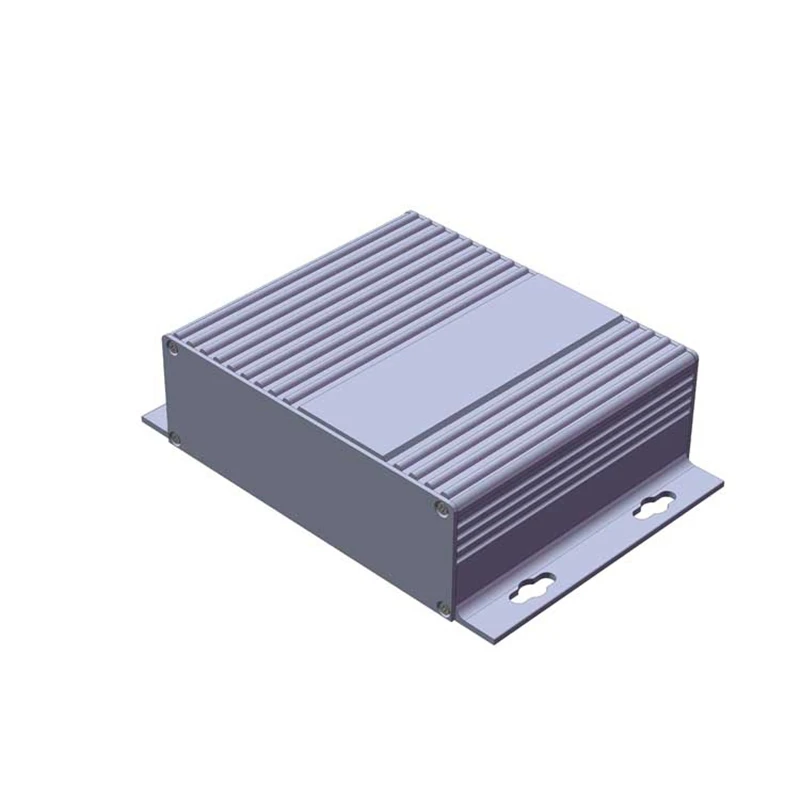

147x41-L wall aluminum enclosure box design electrical metal equipment enclosures

NO.PB027

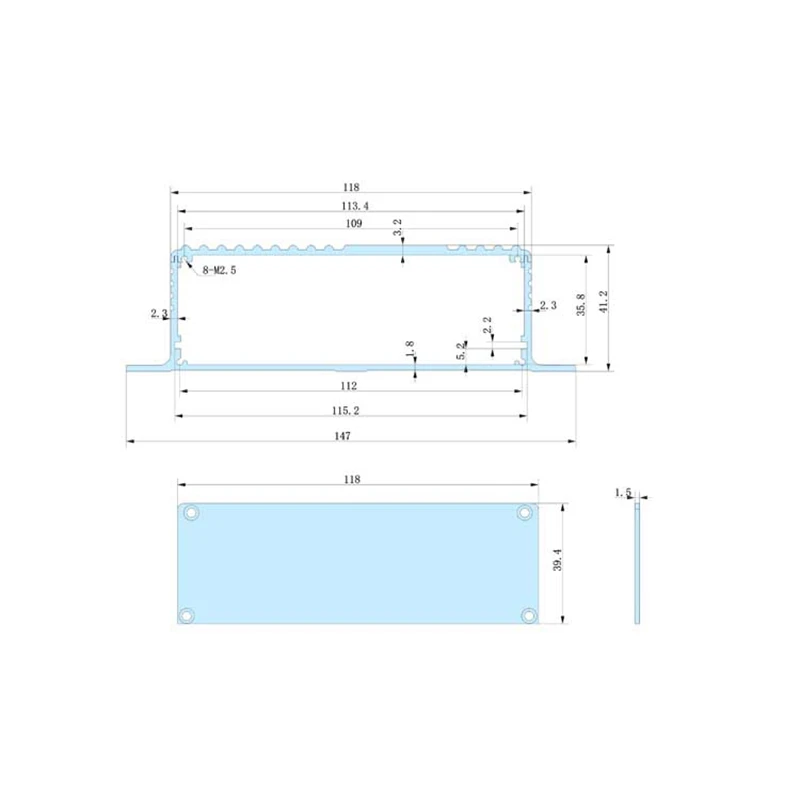

Dimensions from: W x H x L
Stock Length :100/150  mm

Type :Split

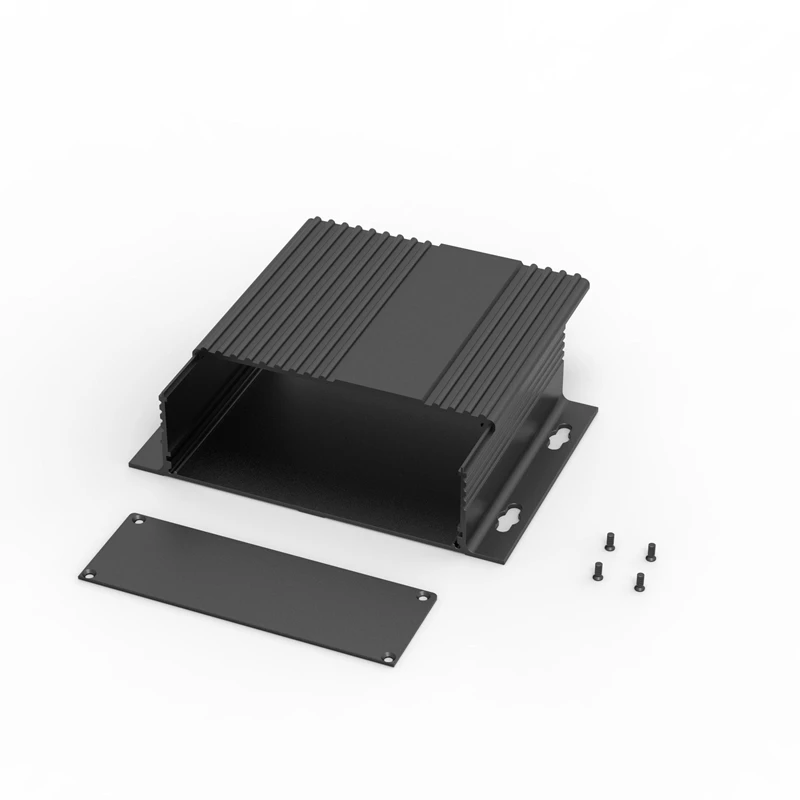

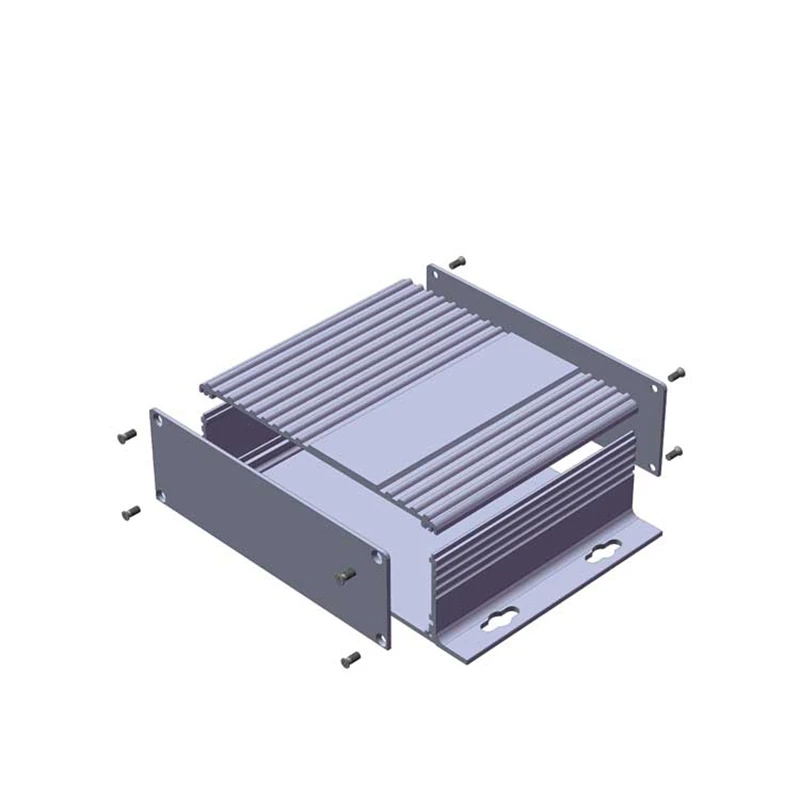

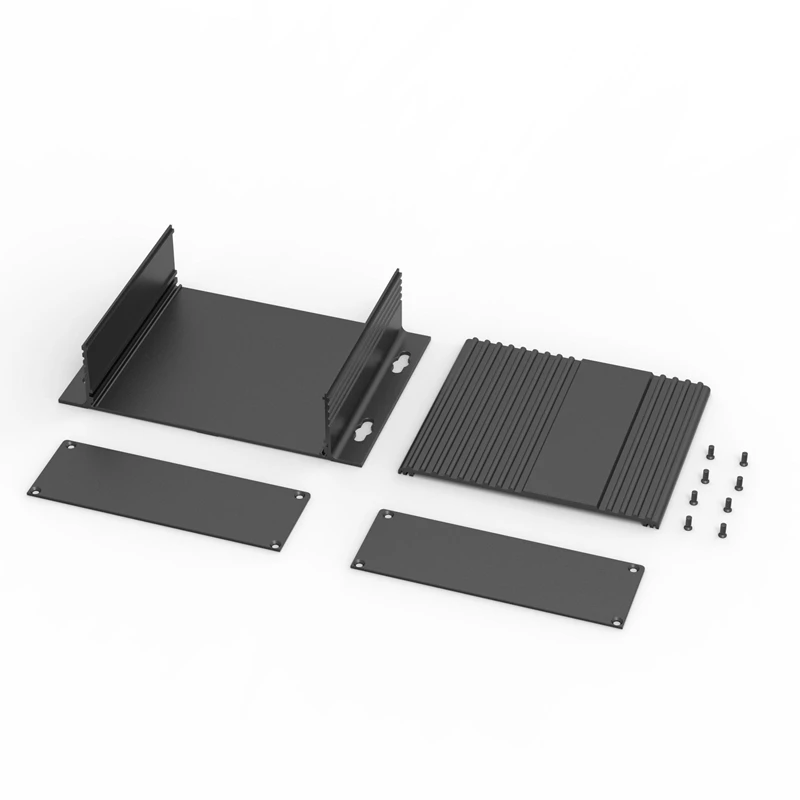

NO.	Part Name	Pcs	Material	Thickness	Finish / Color
1	Main Box	1	Alu Alloy 6063	1.5	Sandblast  , Silver
2	End Panel	2	Alu Alloy5052	1.5	Sandblast  , Silver
3	M3*8 Screw	8	Iron		Silver







Design has become a must-have soft power for many company's development. Pumay design team provides you

with precise design services . Starting from a completed CAD drawing is the quickest way to turn your drawing to

ENCLOSURE. All you have to do is send us the CAD file .

Below are the details we work with:

· .stp (STEP file)

· .igs (IGES file)

· .dwg (AutoCad 2D assembly)

· .dxf (AutoCad 2D assembly)

· .pdf

·  ai ( coreldraw ) for logo print

·  cdr ( coreldraw ) for logo print

· hand in made picture mark

sent us sample , according the real size to made it .



Our Service

1) Stock Sample will be provide in 2 days  .

2) Any inquiry will be replied in 2 hours

3) OEM and ODM are welcome

4) Strict inspection process

5) Supply certification of SGS ,ROSH and CE





FAQ

1. A: Can you sent me your drawing for us ?

Q: Drawings from website was just for reference, More correct information and some special requirements, please kindly contact us.

OEM/ODM orders are welcome. You are warmly welcome to develop new products with us. We will offer you the best products and reasonable prices.

2. A: Can you make OEM order ?

Q: Quantities for drill, screen printing or laser, must provide us the drawings. If not also can commissioned our company to design,

available to us simply soldered electronic components PCB boards .we will be according to the position of the electronic components for your reasonable design drill position.

3.A: How long it will take ?

Q: If you need create a new mold , for aluminum profile need 12-15 days , for front panel with hole mold need 7days . for the enclosure with any surface treatment need 5-7 days ,we will produce the product you order more than 15-25days after confirmed the sample.
