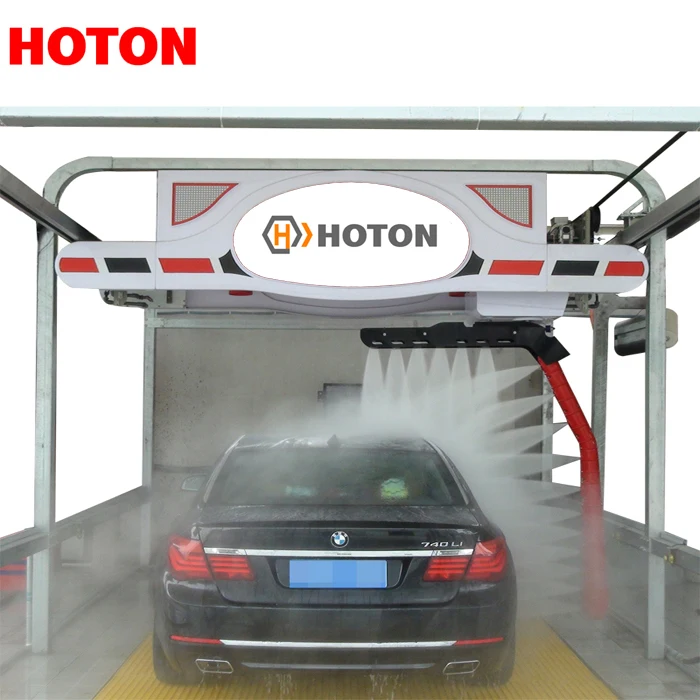

HCX9 Auto Car Wash Equipment
- Category: >>>
- Supplier: Shanghai Hoton Auto Equipment Co. Ltd.
Share on (62036244030):
Product Overview
Description
Feature:
HCX9 car washing machine has the functions of foam system, ground injection system, high pressure full swing washing, and so on. It enhances the impact strength, rinse without leaving dead corners, and Air drying system, cleanse your customers' cars.
*Customers can set chemicals consumption automatically on touch screen according to the dirty degree of vehicles.
*Customers can add or move any single step on touch screen
Key Features:
1. Intelligent unmanned systems, self-service card payment system.
2. Smart 360 technology.
3. Intelligent chemical mixing system.
4. Innovative suspension system non-resistance rails.
5. Unique embedded fast drying system.
6. Digital voice security alarm system.
7. Faulty self-checking system.
8. One key anti-frozen system
Specifications:
Technical Parameters | Car washing machine X9 |
Water pump station size | L*W*H=1200*800*600mm |
Chemical Station size | L*W*H= 1100*471*1351mm |
Rail length | 7500mm~8000mm adjustable |
Shipment weight / Volume | 2.6 Ton, 11CBM |
Standard machine installation size | L*W*H=7600*3800*3350mm |
CAR SIZE | 5900*2900mm |
Power Requirements | 380V/22Kw, 50Hz/60Hz |
Air Switch | 80A |
Water pump motor power | 15kw/80Bar |
Fan motor power | 20.5Kw / full pressure 11000Pa / air volume 23000 cubic meters / h |
Longitudinal motor power | 0.37Kw stepless frequency control |
Transversal motor power | 0.75Kw digital drive motor |
Rotary motor power | 0.75Kw digital drive motor |
Chemical system | 0.37KW |
Central processing unit PLC | industrial intellient digital control system |
Drive System | variable frequency speed control + digital driver |
Detection system | intelligent three-dimensional detection system |
Sensing System | Ultrasound+ Absolute value of the digital encoder |
Speed | 360 wash 28 seconds, energy saving 60% |
Wash liquid consumption | Depends on liquid proportioning |
Polish shampoo consumption | 10ml-40ml |
Crystal wax coating consumption | 18.5L could apply for 1000 cars |
Water consumption | Standard wash 94L/car, Fine wash 150L/car |
Electricity consumption | Standard wash 0.52 kW·h/car, Fine wash 0.99 kW·h/car |
