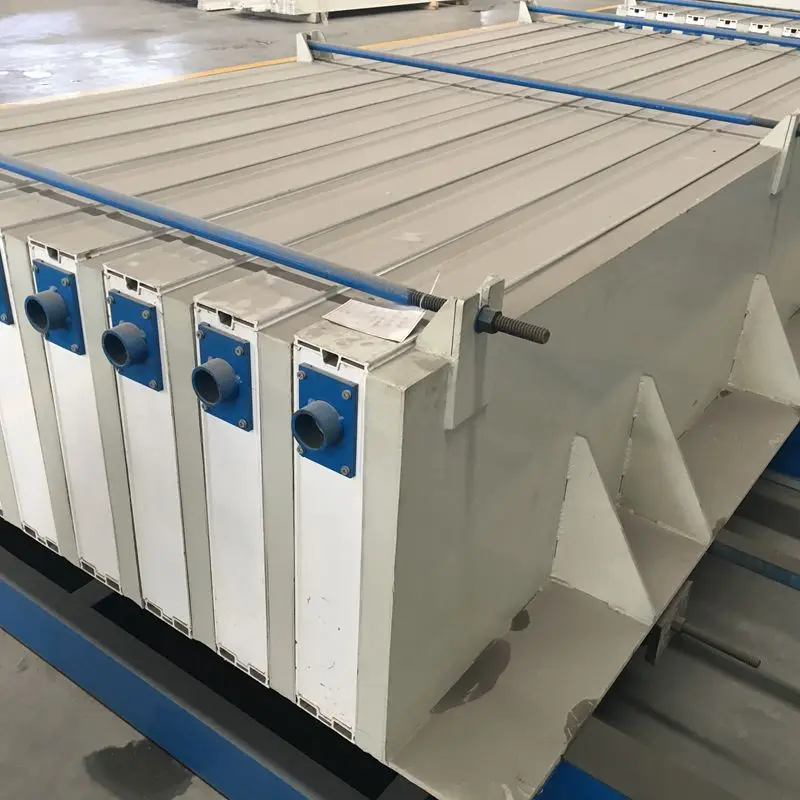

House Building prefabricated lightweight concrete wall panel machine

Our Unique Advantage

 Fine workmanship, high accuracy,guaranteed quality and low failure rate to help you produce qualified wallboard .and it equips with an accurate ingredient system which can save production costing .
Short mahcine testing time :normally our engineer only need about 10 to 15days to test the machine ,that means ,the machinery can produce qualified wallboard after 15days of installation and commission finished .in this way ,it can help you save many raw material cost .However some factory need more than one month to test the machine or even not successfully .
Oversea instollation and training :we will provide qualified and suitable wallboard formula to help clients occupy a leading position in the market,and also will assist the local experienced engineer to master the production process to ensure that customers can produce qualified wallboard .
perfect after-sale systerm : if you have problem on machine operation ,we will help you to contact our enginner at once and solve it within a short time .

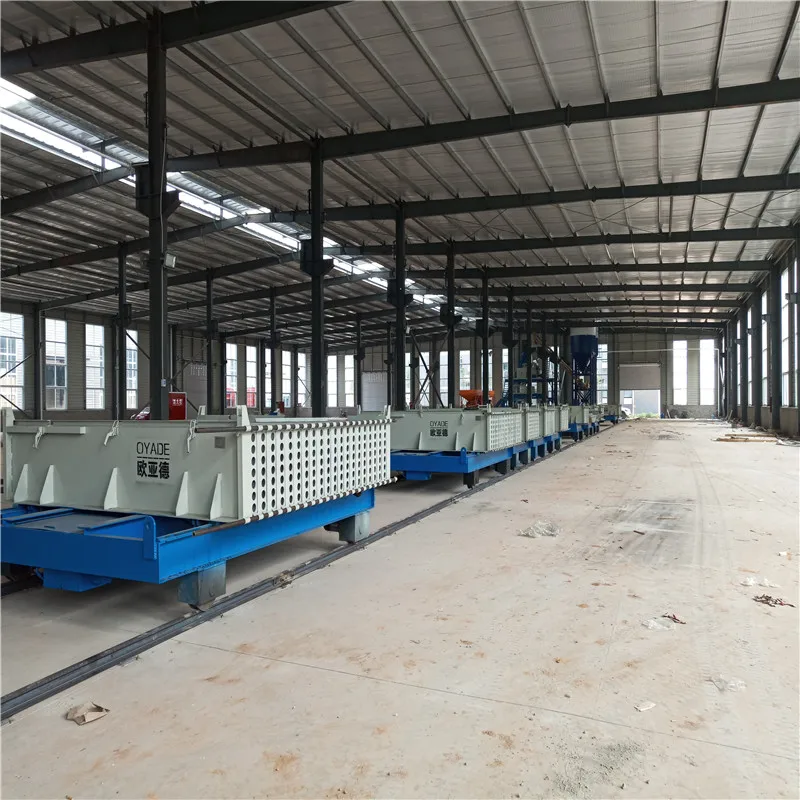

Brief introduce of the sample project

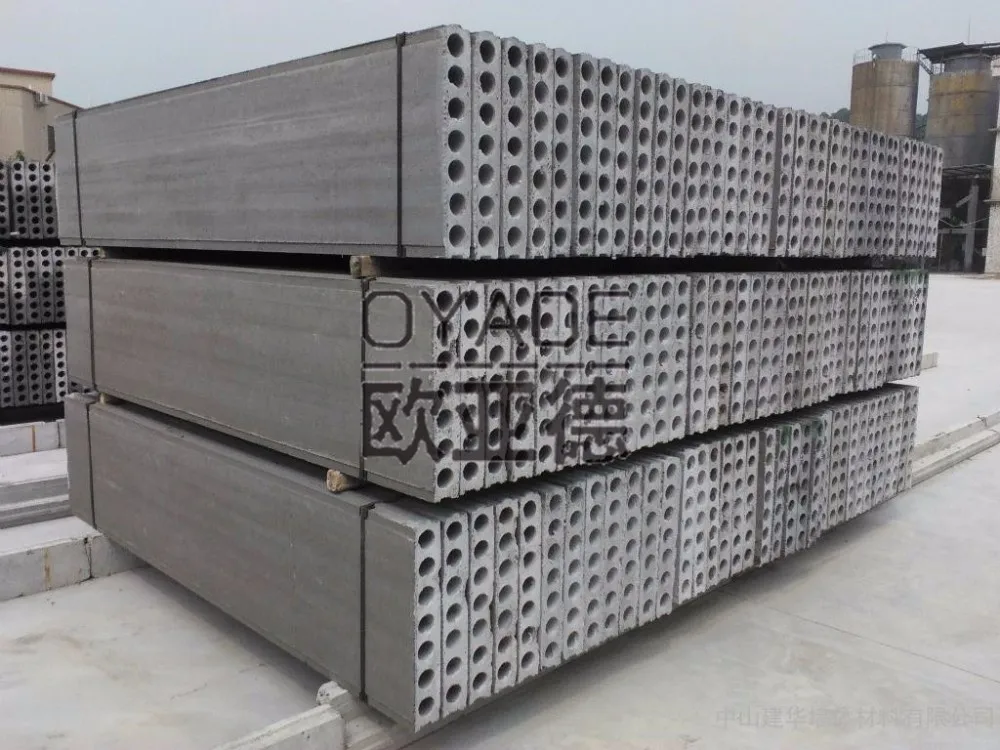

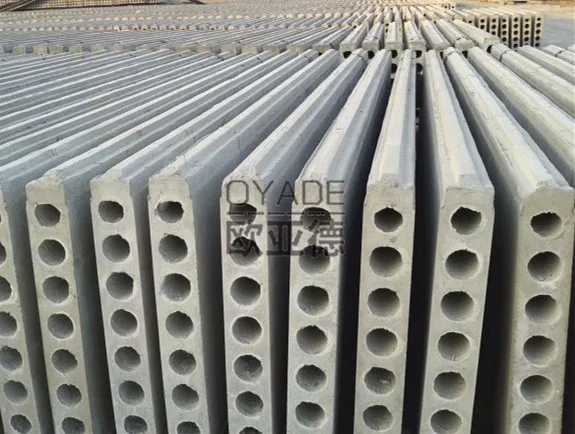

Product type : Hollow core wall panel
Type: horizontal type
Mould Car quantity :35unit
Plant size :Rquipment :30*73M ( better length:90-100M)
Storage area:20*73M
Workers :15-20person

Item name :Full automatic mixing systerm platform

Features: Measuring materials. Weighing system uses the gravity center of the pressure sensor structure measuring scale design, measuring scale adopts anti vibration and abrasion-proof , the accuracy of measurement is always guaranteed in construction process.

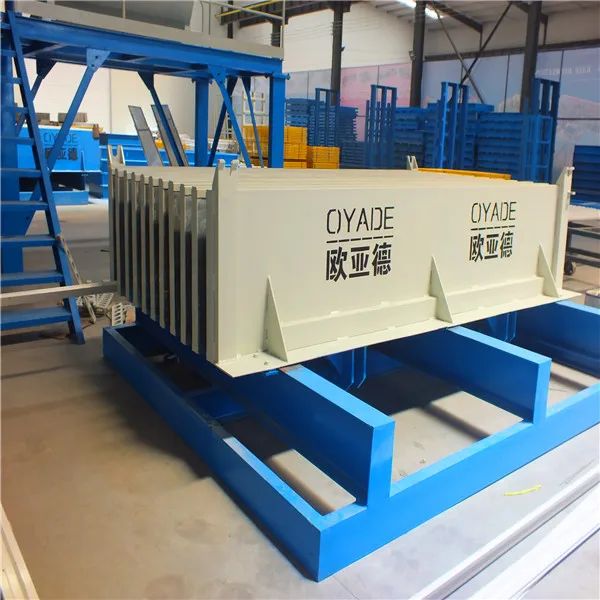

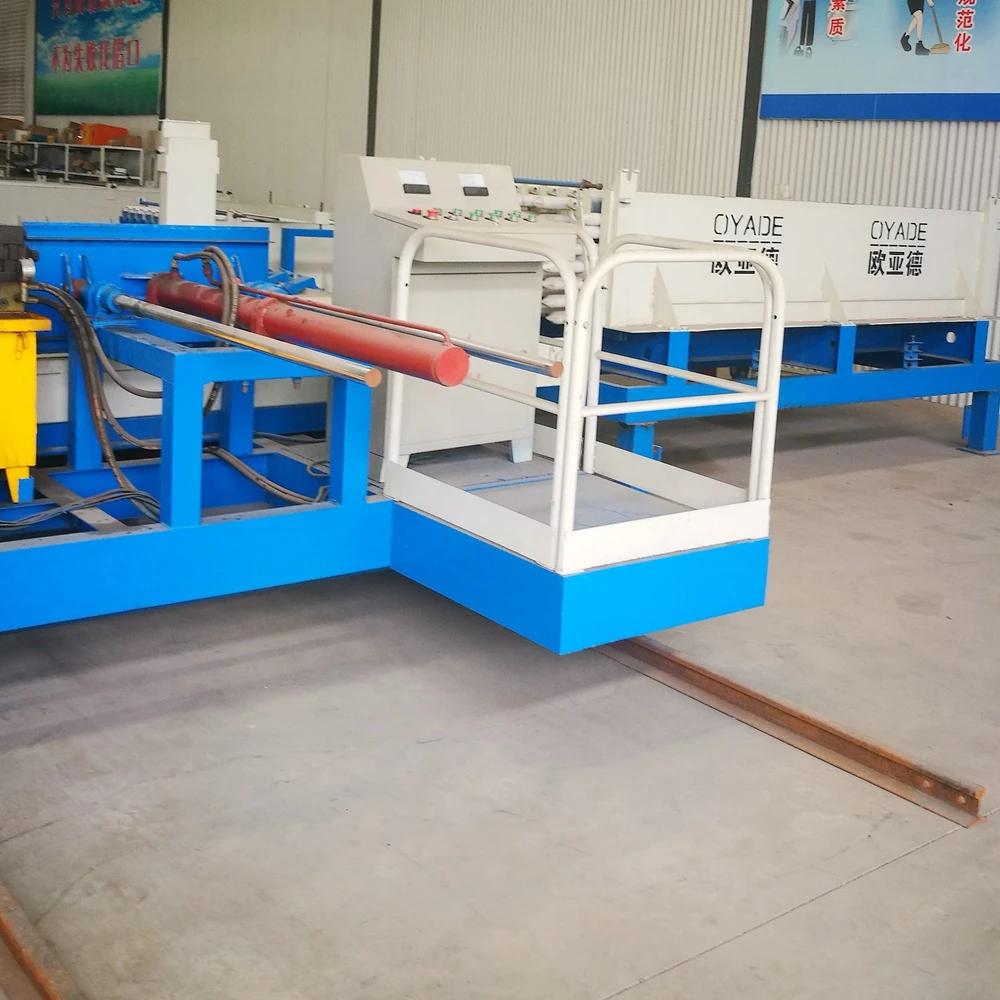

Forming machine

Advantage: the mould car use sufficient raw material ,each car weight can reach 3.5-5ton. So the mould car is not easy to deform , more durable , the finished panel is more flat .

If the mould car is not heavy enough , it will easy to deform during operation ,as a result the panel also will be deformed . Also short the service lif of the mould car

Why client choose us

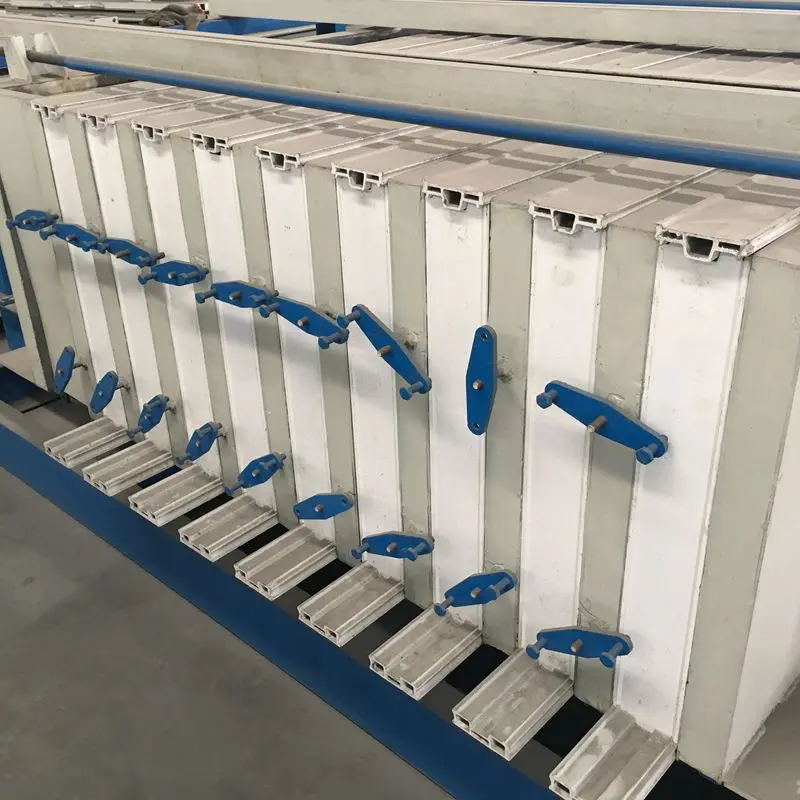

Raw plastic plug

1.Reduce friction damage and increase service life

2.The plug is thicker and can be stopped at any position for convenient adjustment.

Spray  putty before painting

Spray a layer of putty before painting, in this way to make sure the surface of the quipment more flat and more beautify .

Rubber strip

According to the customer slurry thin thick decision whether to match.Prevent slurry leakage

Forming system is  frequency control

Forming machine  operation is electric drive, no conversion device is required, self-contained electric control cabinet, motor is frequency conversion, the mould car move  speed is adjustable .

Add steaming device to achieve two shifts/day

After pouring slurry , the mould car will come into the curing room , stay there 4 hours ,then demould .

Fea

There are central air conditioning in the curing room , In order to  save money on electricity, we adopt underground water temperature .

Item name :Boiler and EPS foaming machine
