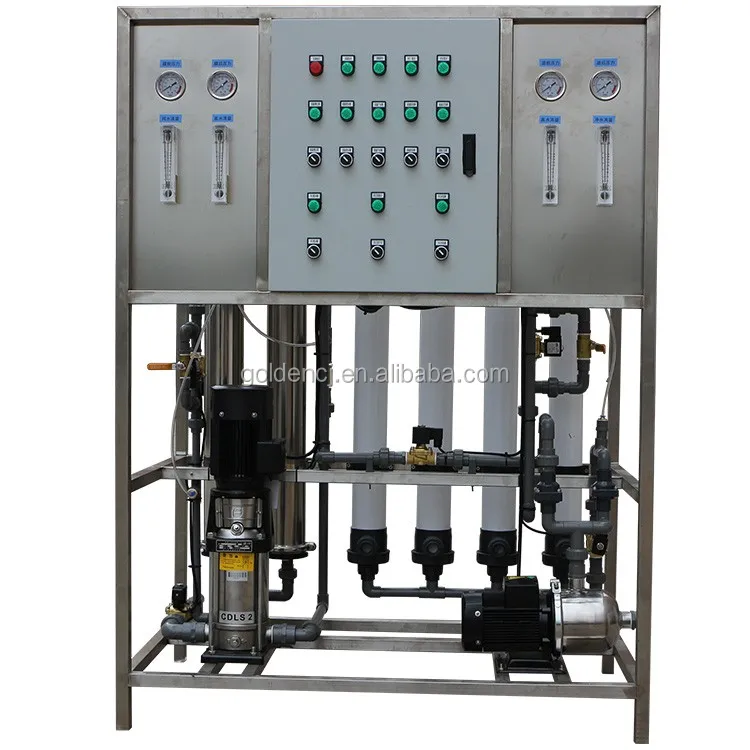

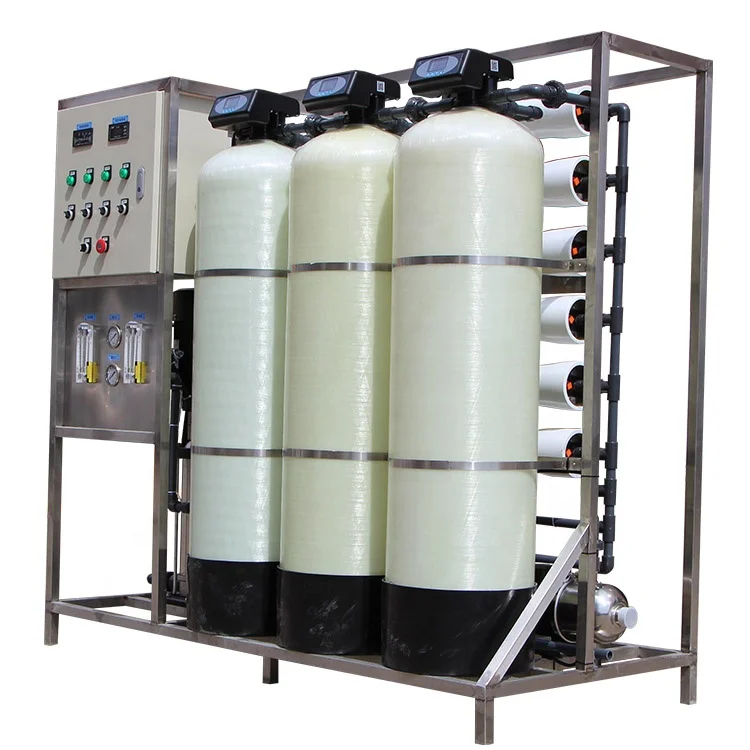

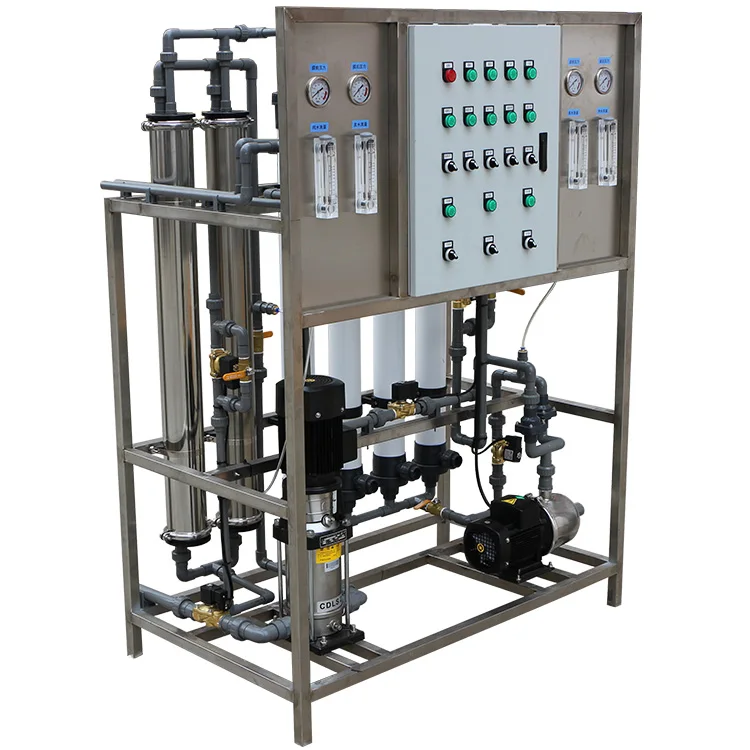

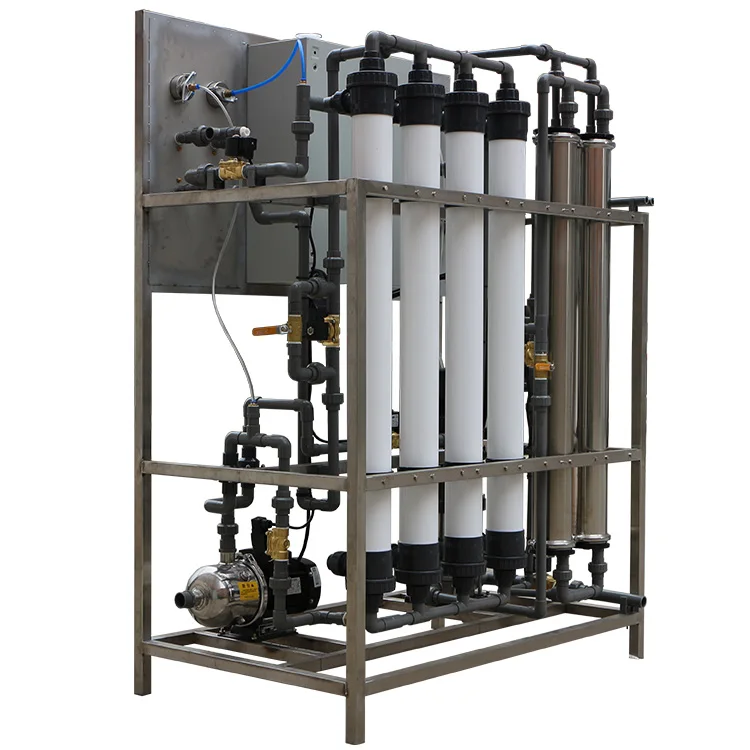

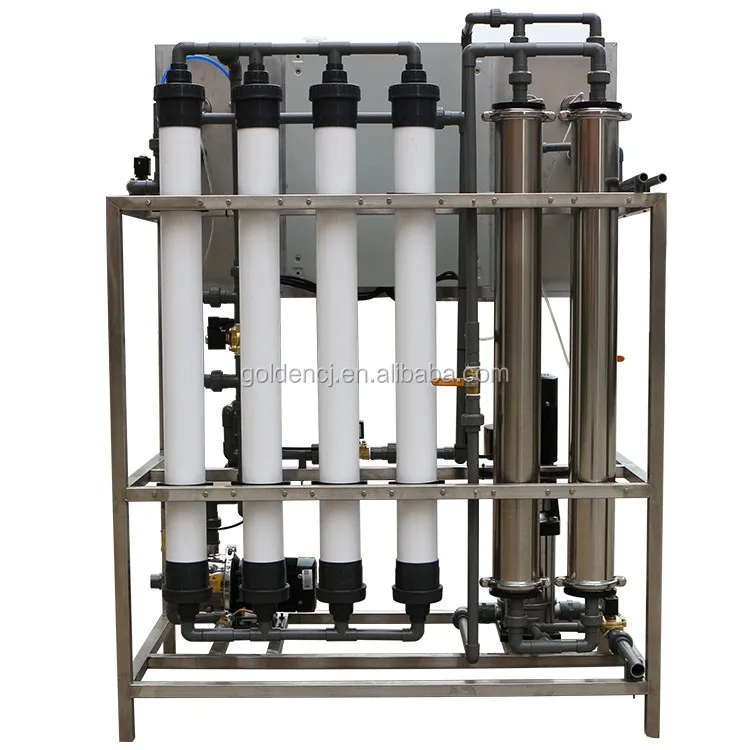

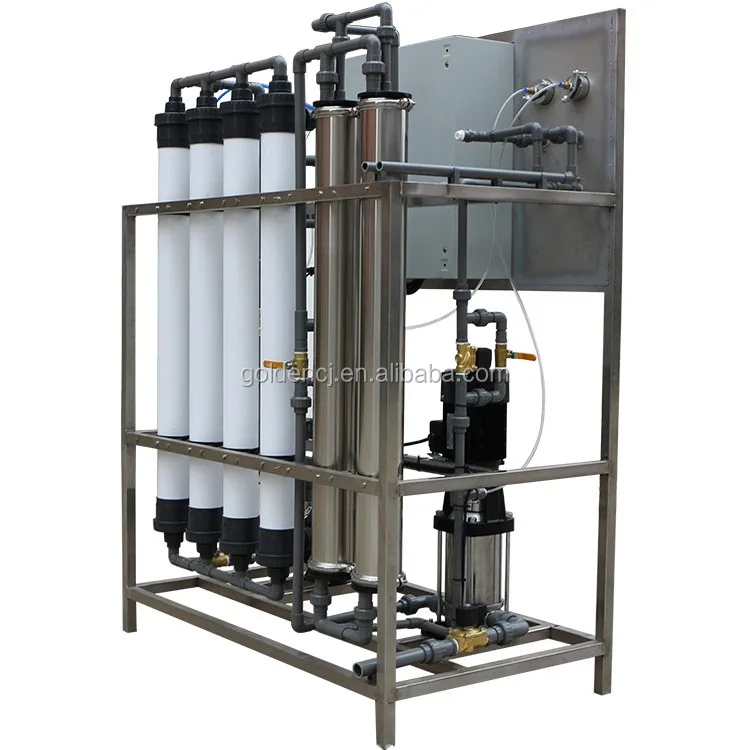

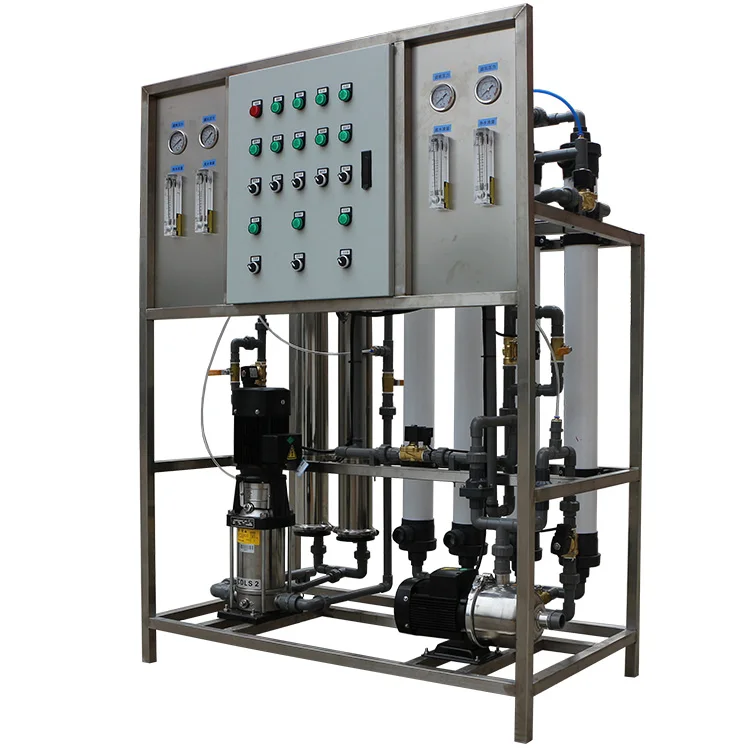

500LPH ultrafiltration RO system/UF RO waste water treatment plant

Brief introduction of ultrafiltration system

Ultrafiltration is a separation process using membranes with pore sizes in the range of 0.1 to 0.001 micron. Typically,ultrafiltration will remove high molecular-weight substances, colloidal materials, and organic and inorganic

polymeric molecules. Low molecular-weight organics and ions such as sodium, calcium, magnesium chloride, and sulfate are not removed(RO membraneb can move).

Flow Chart

raw water - raw water tank - raw water pump - sand filter - carbon filter - softener (optional) - security filter -ultrafiltration filter- high pressure pump - reverse osmosis system - water tank -booster pump-reverse osmosis system-pure water tank- UV sterilizer / ozone generator (optional) - water supply points

Q: What is ultrafiltration  filter?

A: ultrafiltration will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules. Low molecular-weight organics and ions such as sodium, calcium, magnesium chloride

Q: How Does Reverse Osmosis Work?

A: Reverse osmosis systems purify
water by forcing pressurized water
through a very fine, plastic membrane. If the raw water being treated comes from a well or another private source, disinfection and pre-filters (to remove chlorine and/or particulates/sediment) may be needed in advance of the R/O unit to remove contaminants that can foul or damage the membrane.

Q: How Do I Know What Size Unit to Buy?

A: R/O units are rated according to the amount of treated water neededper day or per hour. For example, one type of unit produces 5000 liters of treated water per day under its design conditions. In reality, conditions frequently vary. Consequently, you
should examine water conditions and buy a larger rated unit than needed if any problems.

Q: Material of reverse osmosis

system?

A: You can choose FRP filter + U-PVC pipe, stainless steel filter + U-PVC pipe or total stainless steel.

Q: What kind of water RO system can treat?

A: city water, underground water, river
water, spring water, lake water, brackish water, sea water...

Q: Is this machine easy to install? Will you arrange engineer to help me install?

A: This machine is very easy for installation. The machine you received is assembled. You will only need to put material inside to filters, and then backwash, fast rinse filters. It is very easy for you to follow our English instruction and video.

Q: What is packing of this

machine? Is it suitable for

shipment?

A: Machine will be packed by standard wooden case. It is suitablefor shipment. After you receive machine, you only need to open wooden case to pick up machine.

Q: What is warranty?

A: Our warranty is one year. If you have any problems in one year, just take photoes to show us. Our engineer team will help you to find problems. If any spare parts need toreplace, we will send you new one for free.

Q: How can I pay you?

A: After we confirmed order, I will send you contract sales with our company bank information. You can transfer money to our company bank account by T/T. Or you can place order online.
