China supply 12V 24V 36v 48v electric furniture desk industrial lifting column

 General Features:

Technical parameters:
1.Permanent magnet dc motor voltage:12/24VDC
2.Maximum push/pull:600KG/600KG
3.Standard Stroke:S=(50,100,150,600)mm,Can be customized stroke.

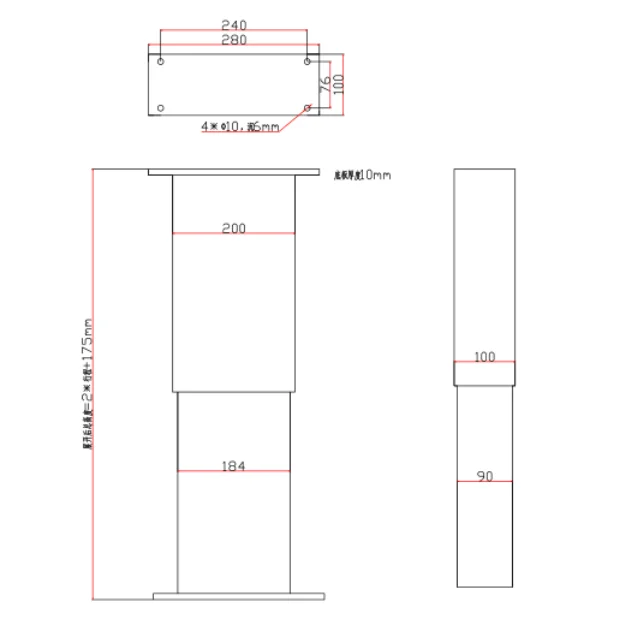

4.Minimum installation distance (the center distance between the upper and lower base plate is completely recovered by the inner tube):L=S(Stroke)+175mm;

The inner tube is fully extended to the center distance of the upper and lower floor=2*S(stroke)+175mm

5.no-load speed:max 20mm/s

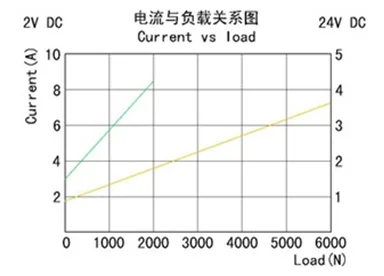

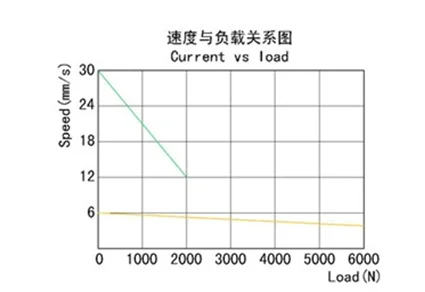

6.Rated load rate:5mm/s(400KG)-20mm/s(50KG)
7.Temperature:-26℃~65℃
8.Protection class:IP54
9.Built-in stroke switch
10.Low noise design, noise < 50dB

11.It can be equipped with wired or wireless remote control

Application
