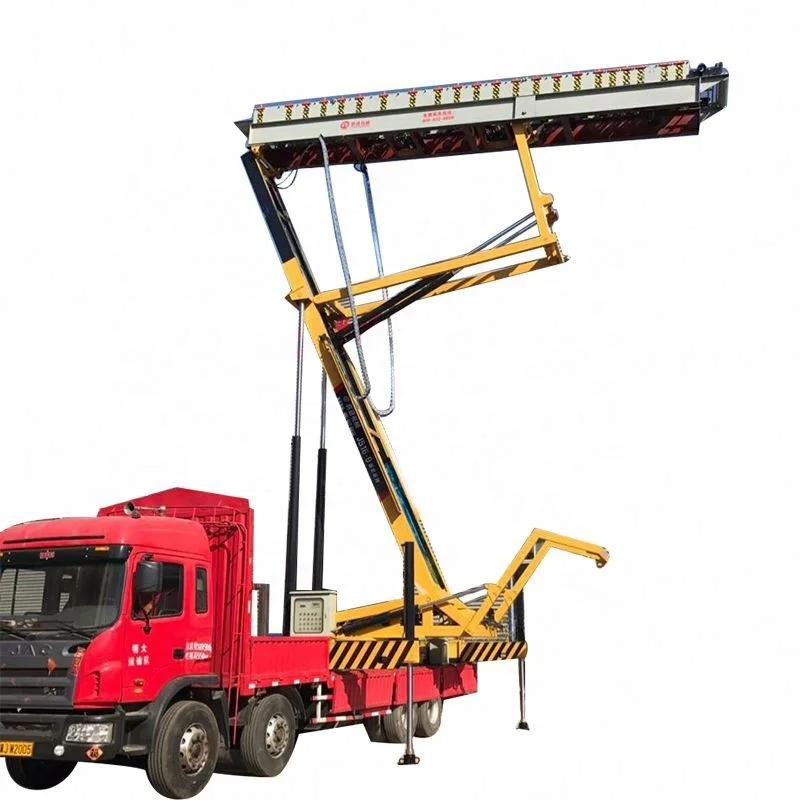

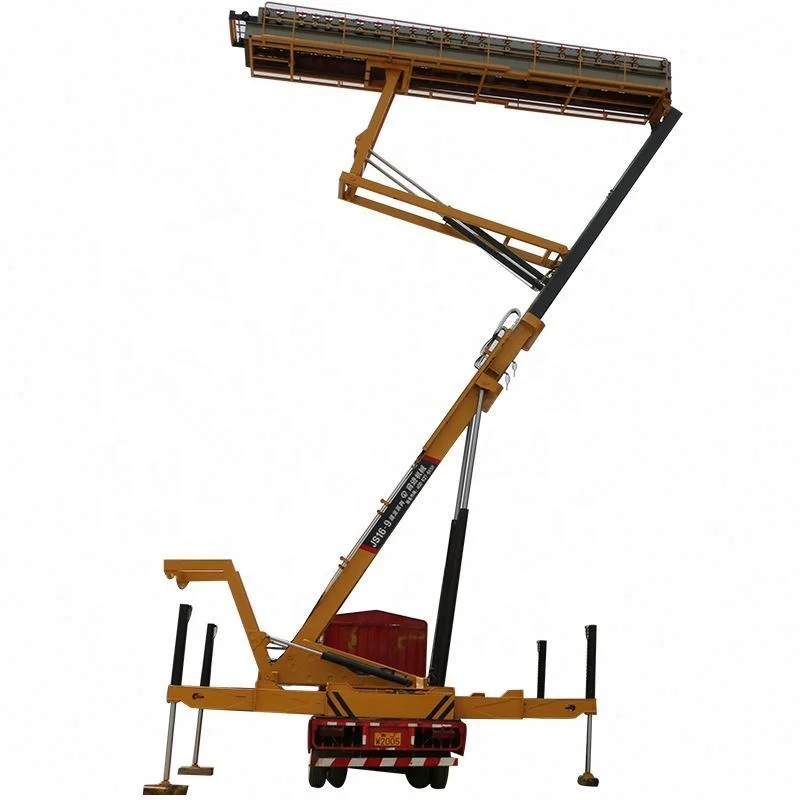

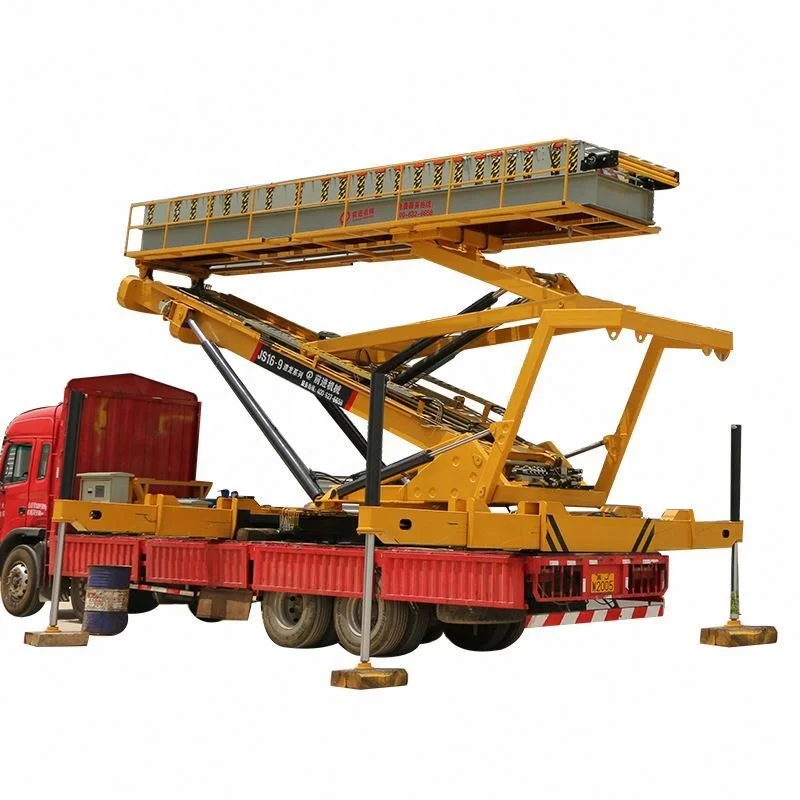

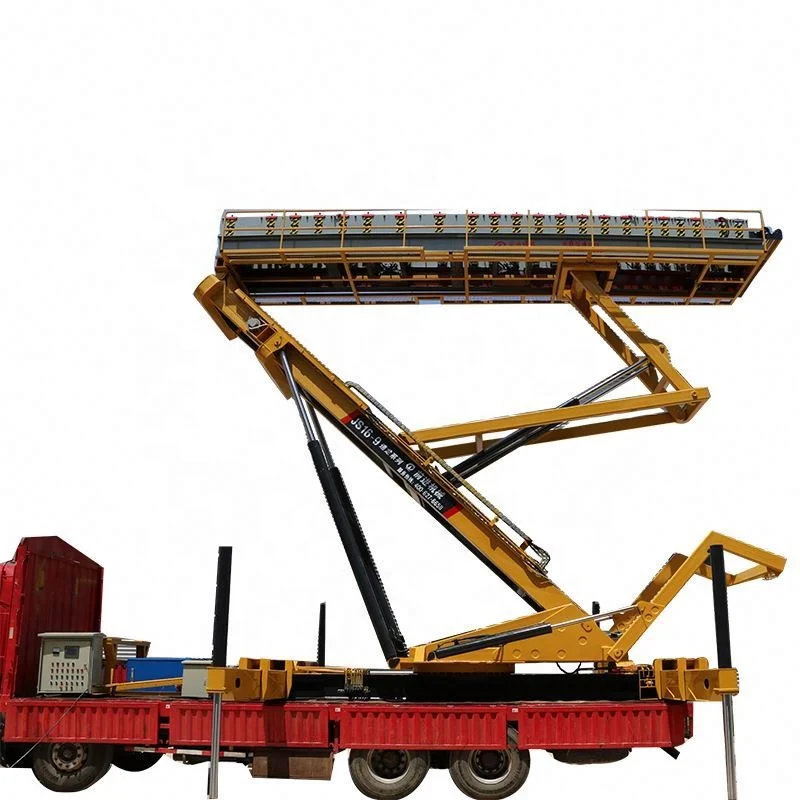

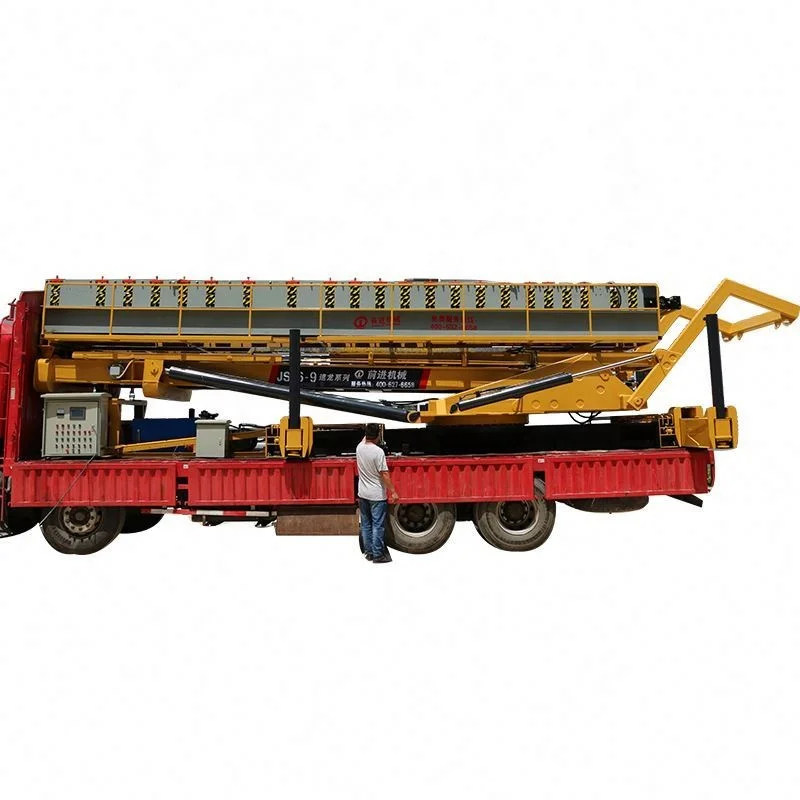

Roofing Machine Hydraulic Lifting Table Platform Truck
- Category: >>>
- Supplier: Hebei Forward Science And Technology Co. Ltd.
Share on (62036529601):
Product Overview
Description
Roofing Machine Hydraulic Lifting Table Platform Truck
| Category | Item | Specification | Note |
| KPP | Suitable machine type | Standing seam type, roofing sheet type, Voltage 380V, Motor 15KW driving, hydraulic cutting system | With electrical control unit and oil pump, pre-cutting/after-cutting both ok |
| Max lifting height | 16.5M | ||
| Rated lifting weight | 7T | ||
| Max Lifting Weight | 9T (Need to test before production) | ||
Suitable height of roofing sheet | 4m--17m | ||
| Suitable raw material | PPGI,GI,Aluminium Coil | ||
| Material thickness | 0.3mm--1.0mm | ||
| Output speed | 5m-35m/min | ||
| Output length | 1m-----160m | ||
| Lifting Radius | 1m--12m | Distance between truck and coil | |
| Turning Radius | 5000mm | ||
Installation size | Total length | 9.5M | |
| Total width | 2.2M | ||
| Total height | Lifting part 2.2M | ||
Total height (including truck) | Distance from ground to Top point 3.5M | ||
| Weight | Total weight | 13.5T | Without roofing machine & truck |
Product Category
Production Flow
Company Information
Sale Terms
- Payment Method
30% as deposit ,balance payment after inspection while before delivery.
- Production Period
30 days after the 30% deposit.
- Packing Method
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
- After-sell Service
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
- Installation
If installation is needed, the seller will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with charge free. The buyer should assist the seller to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.If installation is needed, the buyer shall make the following preparation before arrival of technicians.
Position the machine in the buyer’s factory.
Prepare necessary electric wiring.
Prepare material of trial running.
Provide labors for assistance and installation during installation.
Packaging & Shipping
FAQ
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
