P103 CN M Универсальный шарнирный компенсатор gimbal муфта

CN Type  Universal Joint/ Gimbal Coupling

CN-M/extension Type Universal Joint

Here shows picture of CN-M universal joint with extension function.

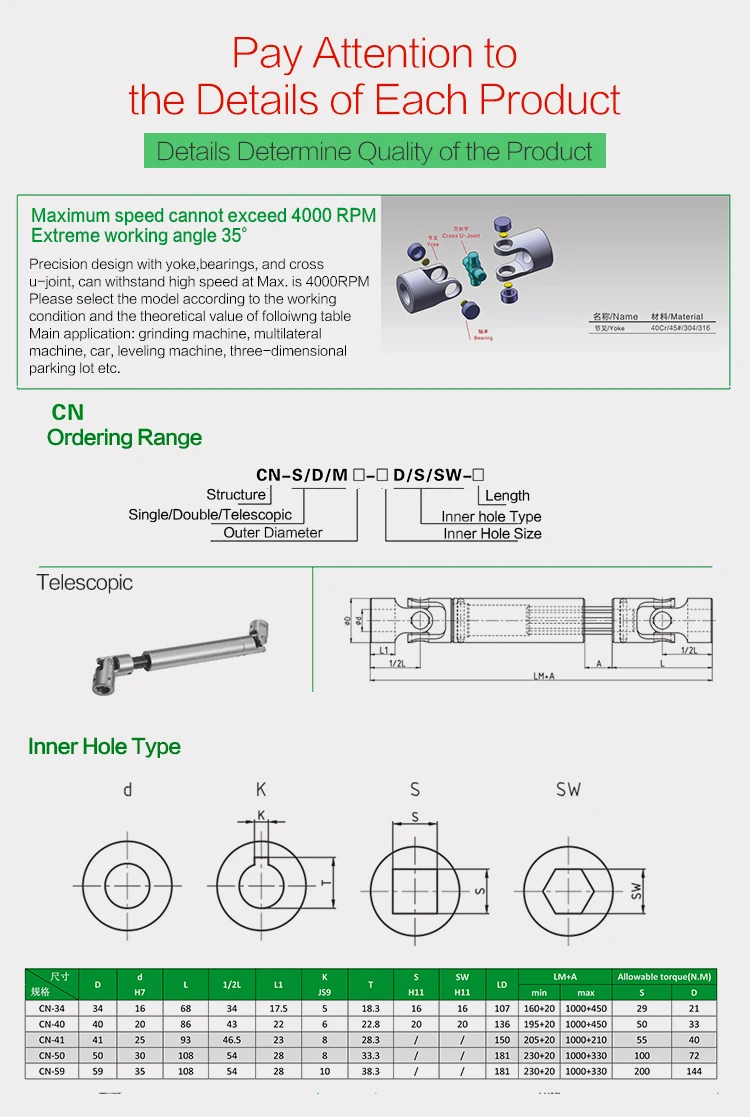

• Maximum articulation angle 35°
• Precision design with yoke,bearings, and cross u-joint, can withstand high speed at Max. is 4000RPM
• Please select the model according to the working condition and the theoretical value of folloiwng table

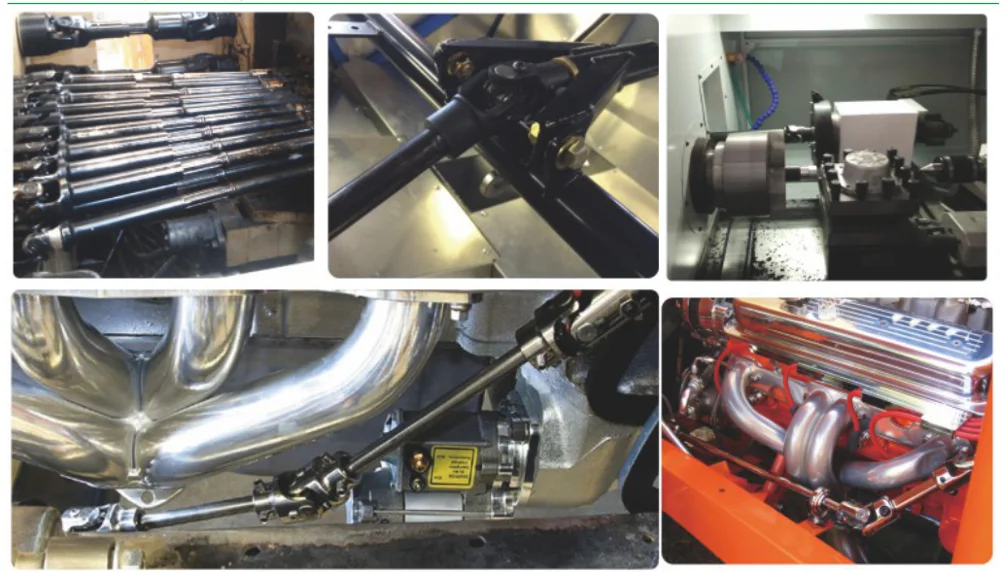

• Main application: grinding machine, multilateral machine, car, leveling machine, three-dimensional parking lot etc.

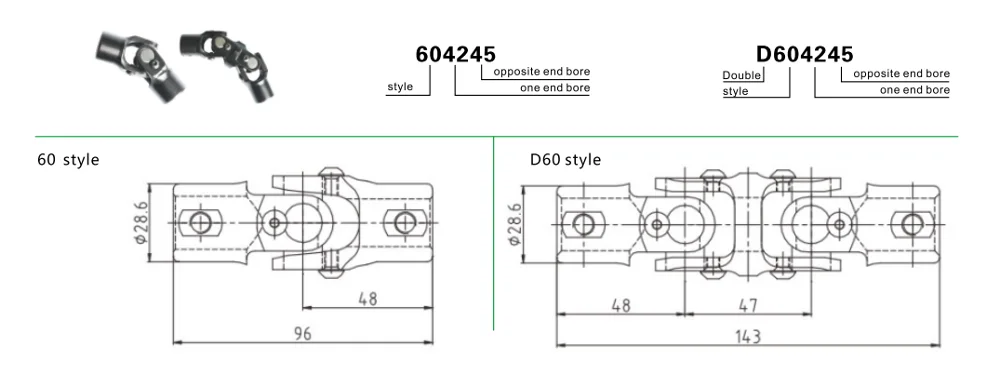

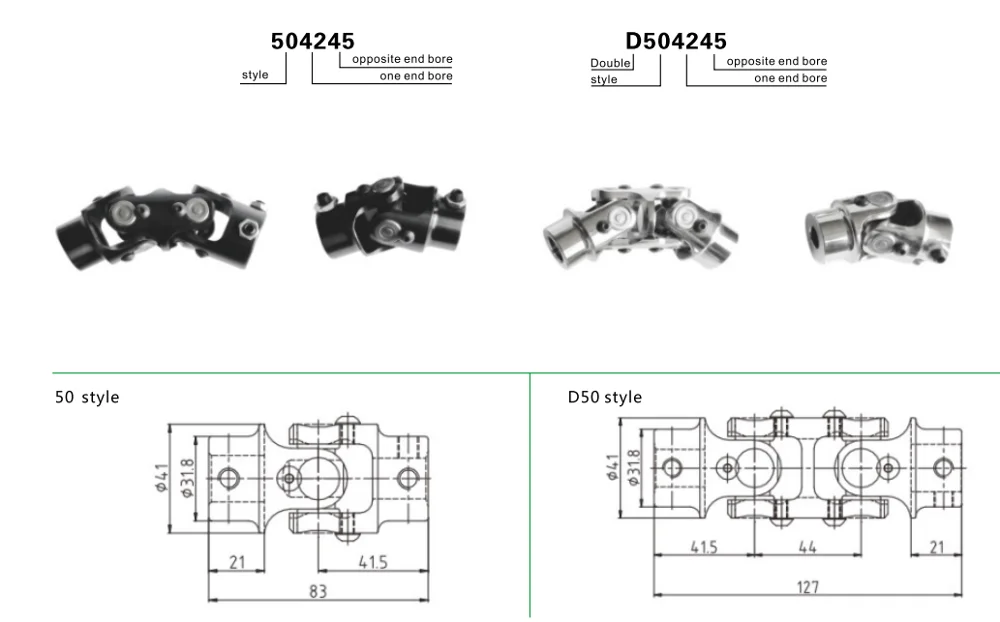

CN Type has single,double and extension type for your kind reference.
