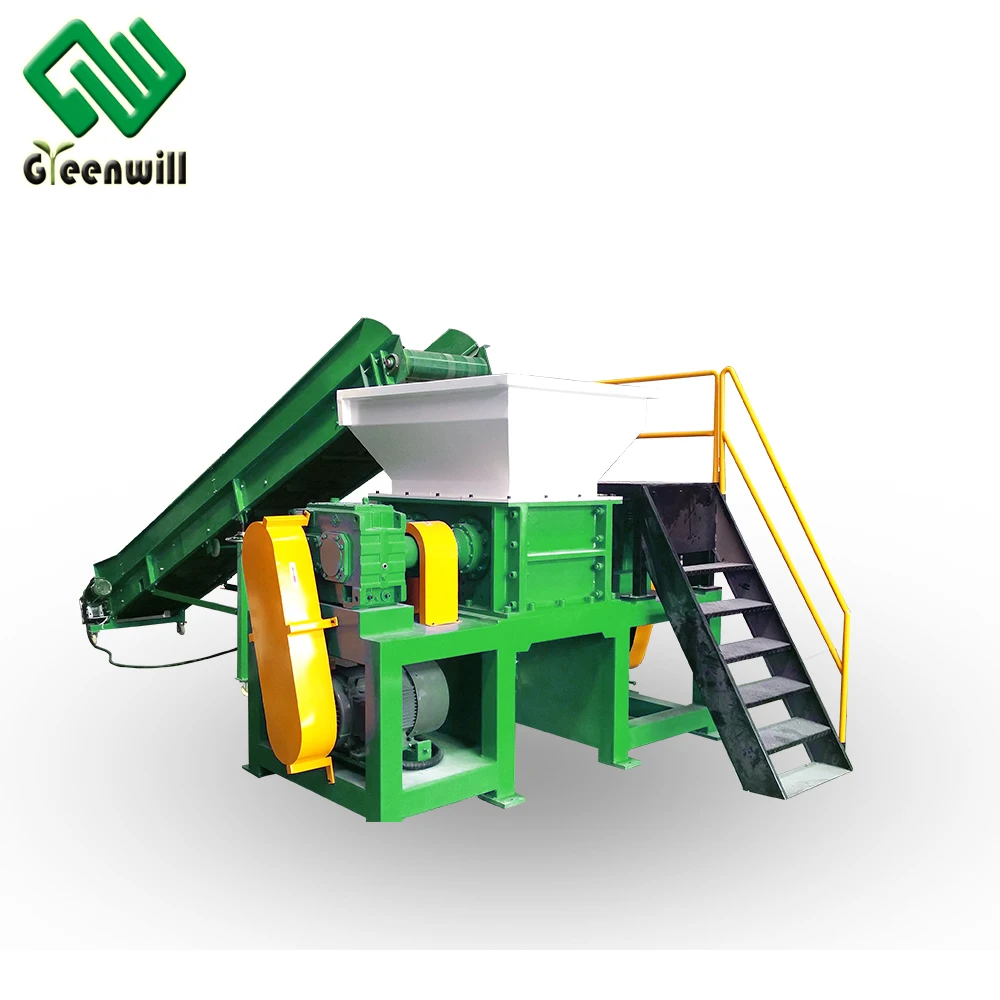

CE ISO certified waste plastic wood paper carton pipe drum shredder machine from biggest shredder factory

Product Overview

Description

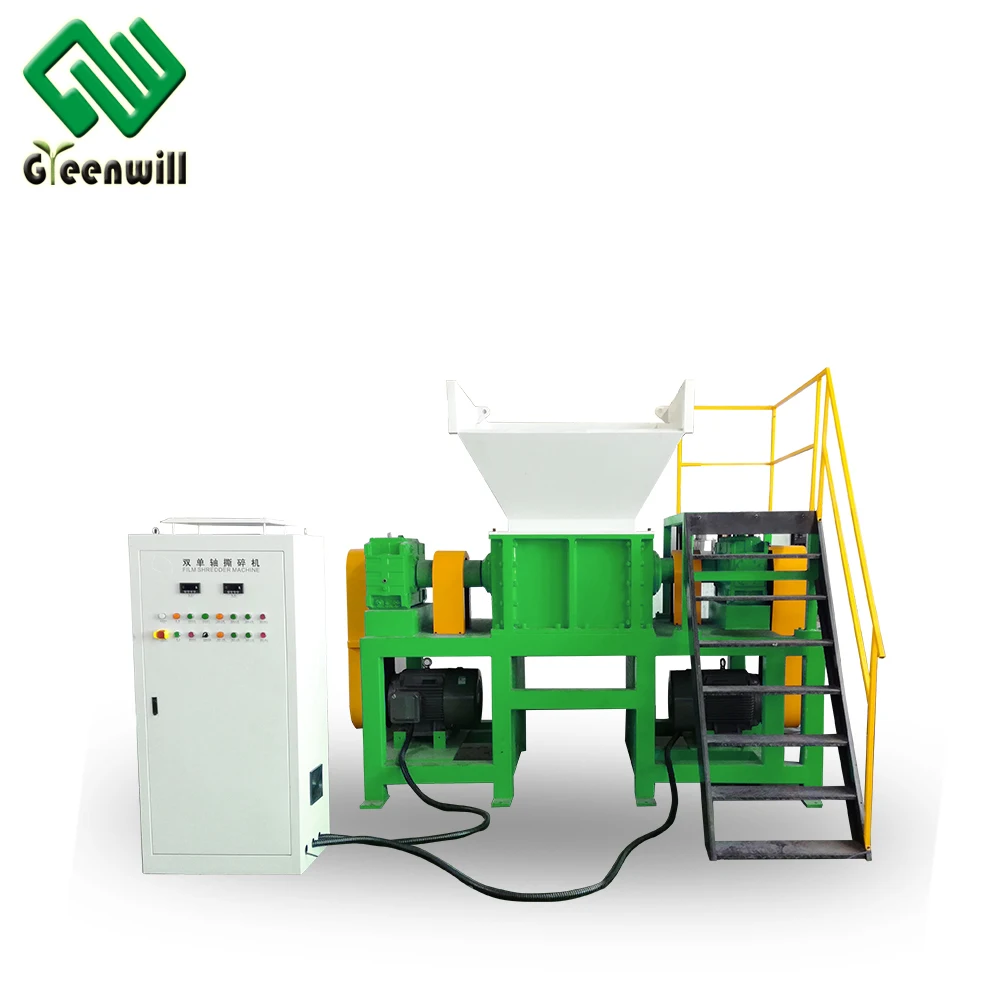

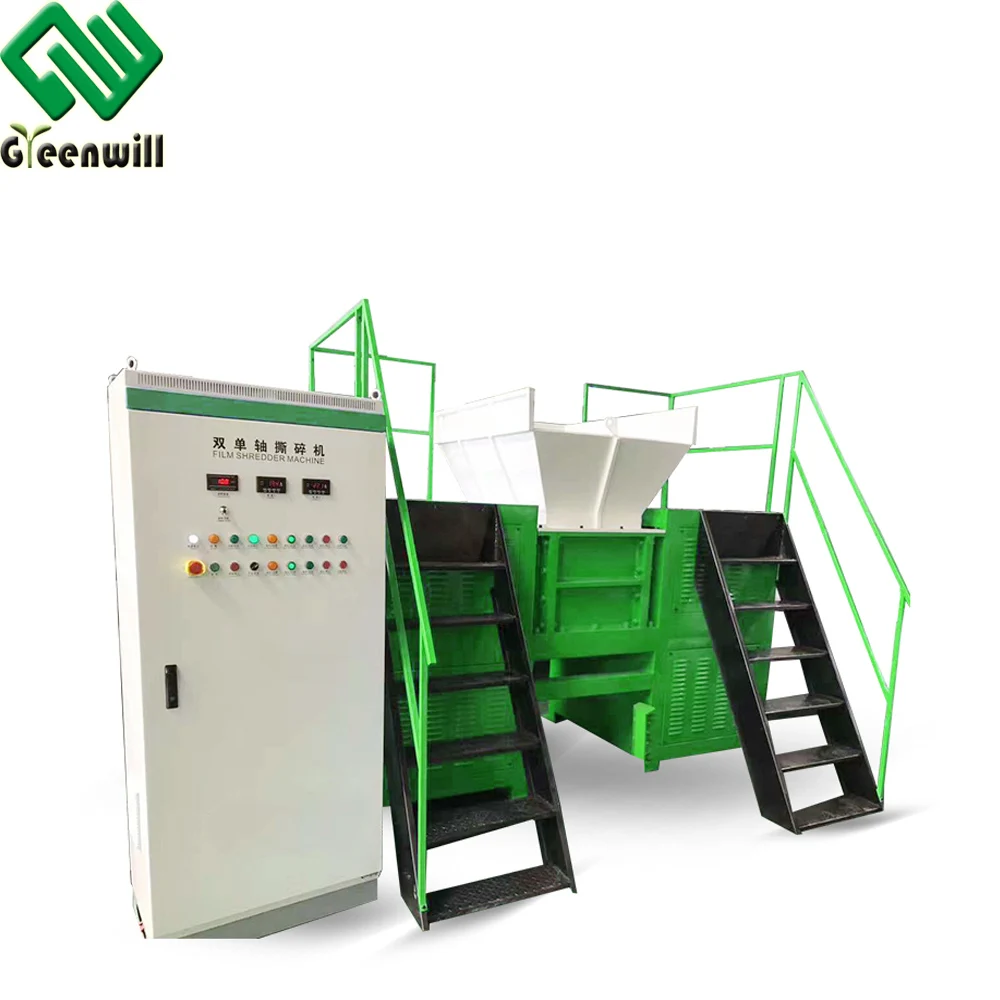

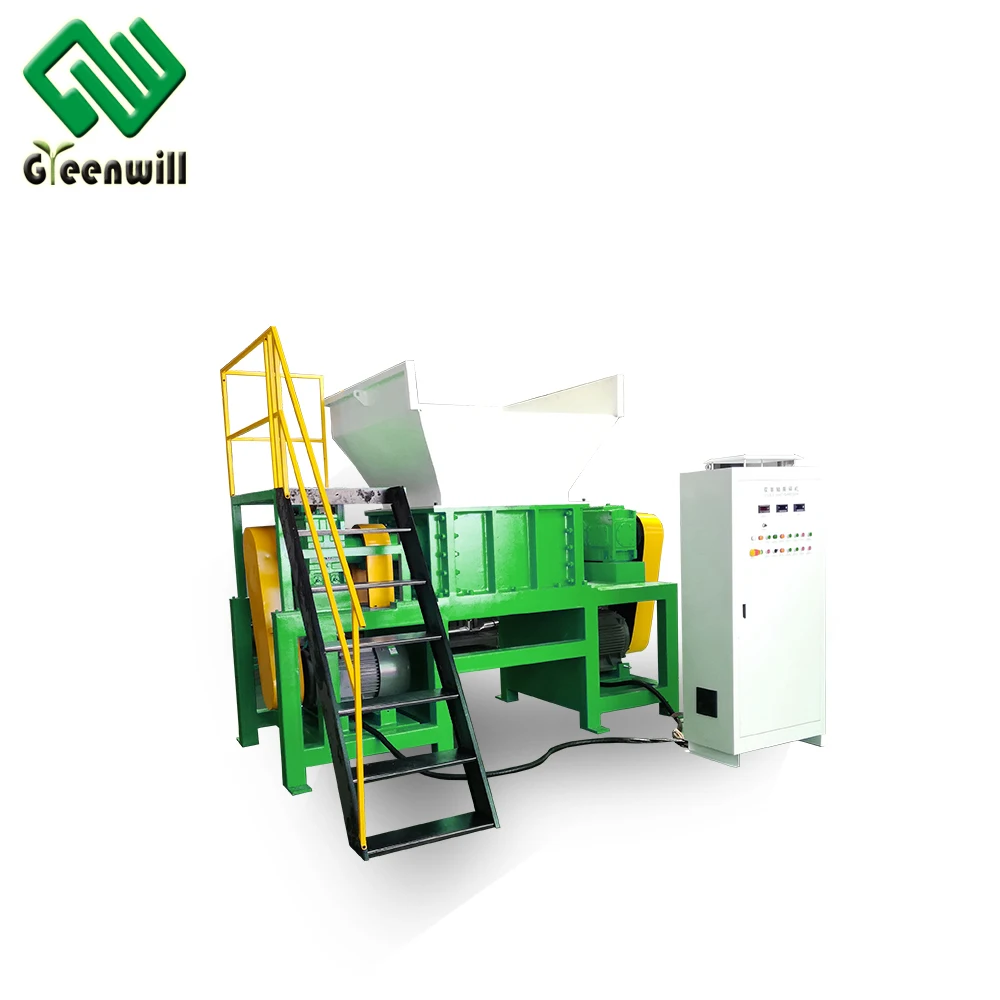

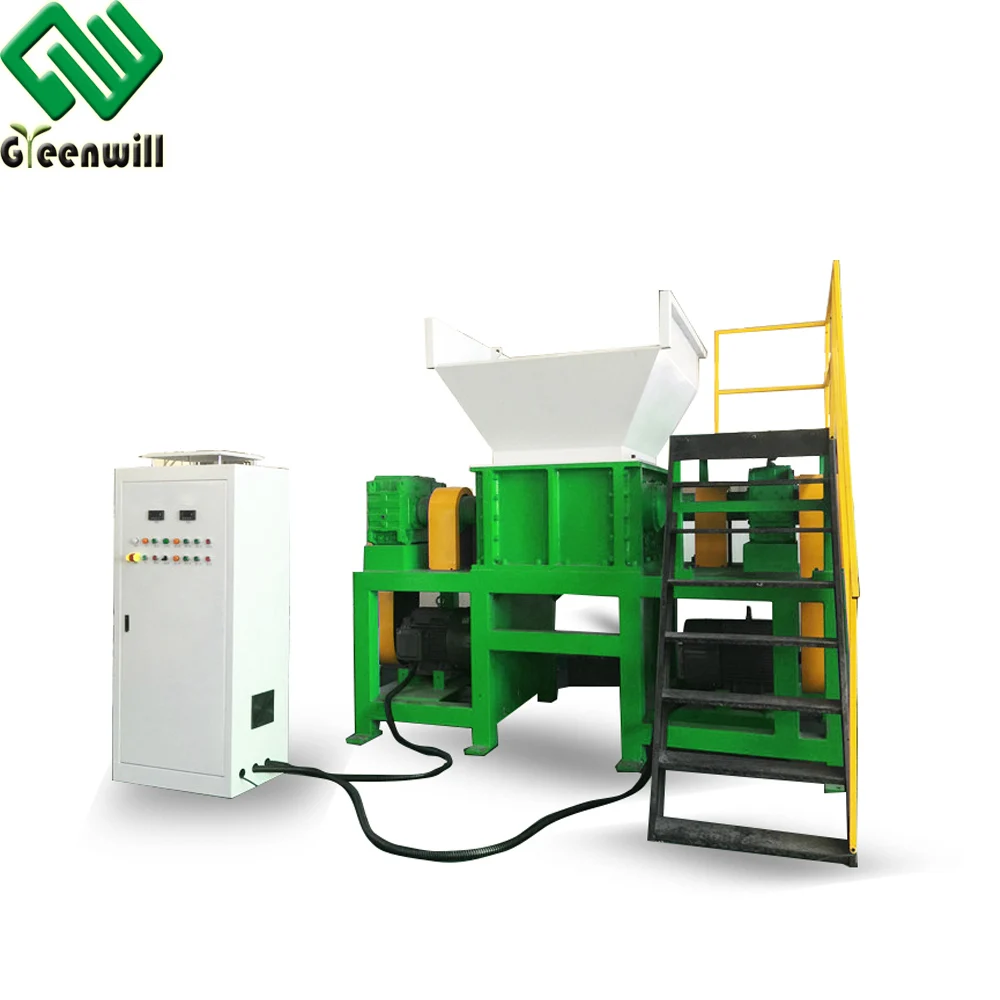

Big Industrial Double Shaft Shredder Machine



The double shaft shredding machine adopts advanced technology introduced from Europe, and has passed the CE certification of Quality System.

The shaft is of low speed, high torque, low noise and over-load protector. The machine is suitable to processed carton, very big size of plastic material, such as big diameter plastic pipe, plastic board, paper, hard and floppy disk, wood, tire, baled plastic film, small diameter copper wire and other things that the single shaft shredder can`t process.

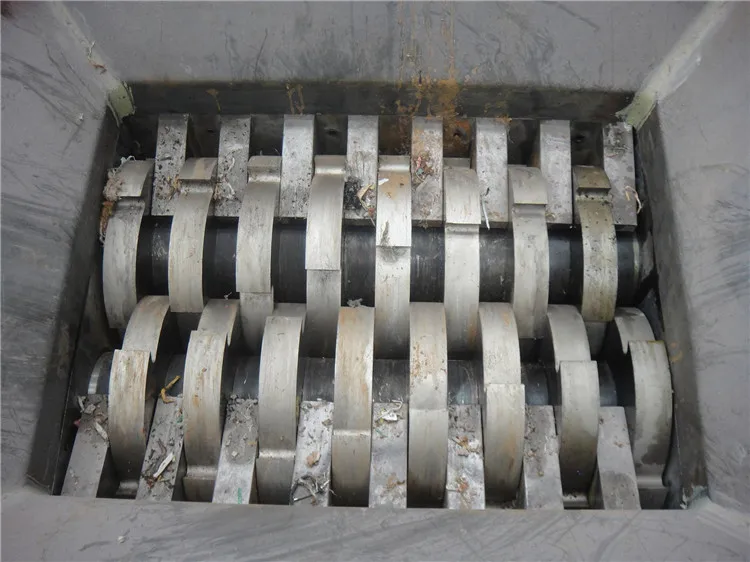

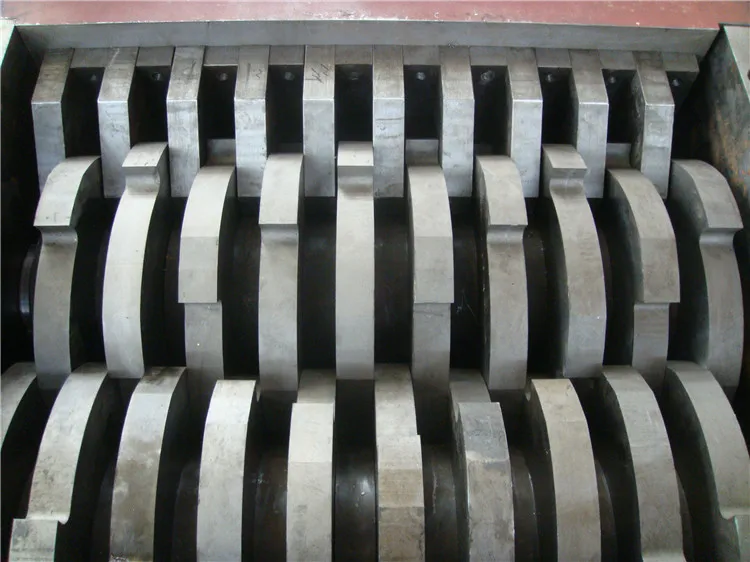

In addition, the double shaft shredder can also have a good effect on shredding the film in rolls, hollow barrels and so on. The shredder owns the characteristics of strong crushing ability and contra-rotation with the structure of close-lined rotary knives in double direction. The shredder is controlled by PLC system, the blade can be rotated in opposite direction, and also will close automatically if something unexpected happen, with very high safety service. The crusher has rotating blades and fixed blade, with powerful force to crush the object into very small size. There is mesh screen to control the scraps size.

Machine specification:



Item	Description	Specification
Mechanical specification
1	Model	GL1600B
2	Process target	Drip pipe, wood, waste paper book and so on
3	Size of feed mouth	2000×1400mm
4	Blade rotary diameter	550mm for each shaft
5	Rotary speed for blade (rpm)	30rpm
6	Blade material	SKD-11
7	Hardness of blade	HRC58-62
8	Qty of rotary blade	22pcs
9	Qty of fixed blade	22pcs
9	Size of shredding room	1200x820mm
10	Thickness of rotary blade	70mm
12	Wall thickness of crushing room	30mm
13	Material of crushing room	Q345B
14	Leg/frame of shredder	Q235B
15	Power of drive motor	90kw*2 sets  Siemens brand
16	Production capacity	Around 5000kg/hour
	Weight of the main machine	Around 13000kg
Electric Details
17	Brand of gearbox	Chinese famous brand
18	Brand of bearing	Timken brand(USA)
19	Over load protector	Yes it is including(two rotation direction)
20	PLC	Siemens brand
21	Contactor	Siemens brand
22	Electric Relay	Siemens brand



We have biggest plastic shredder for capacity 8000kg/h to 10000kg/h.

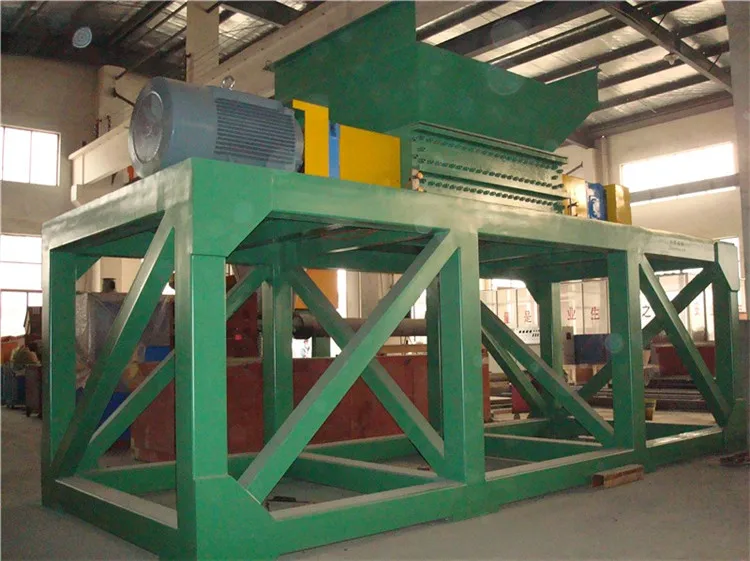

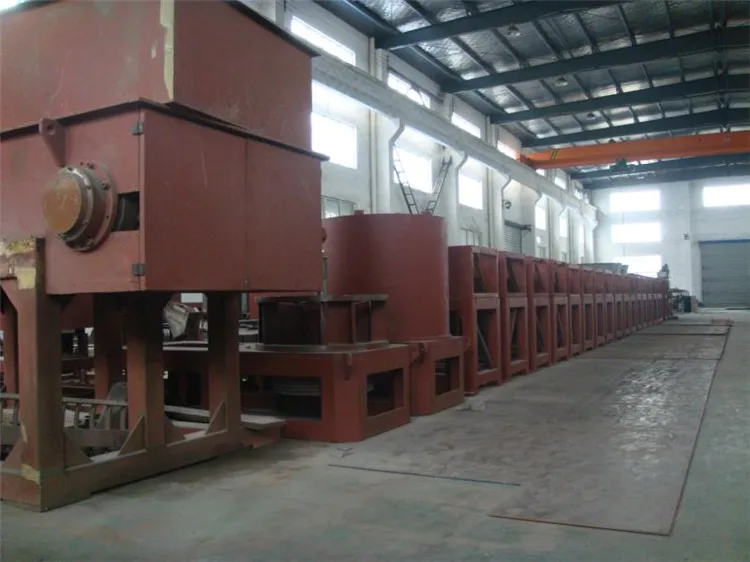

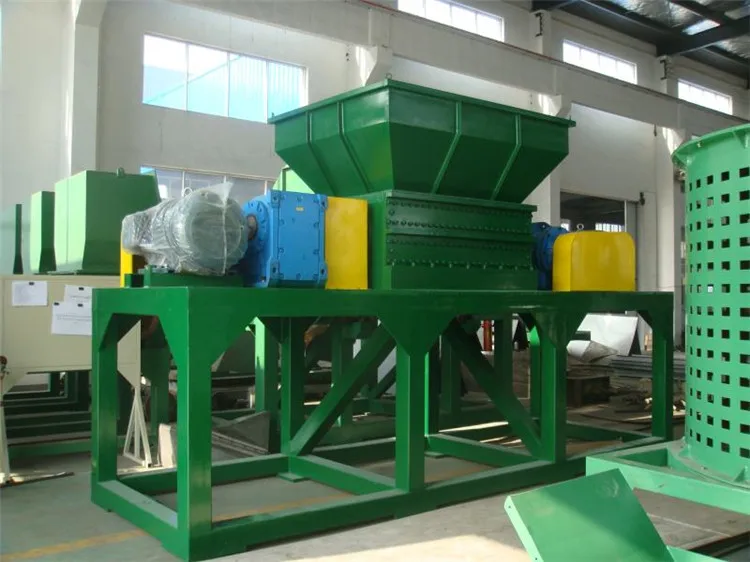

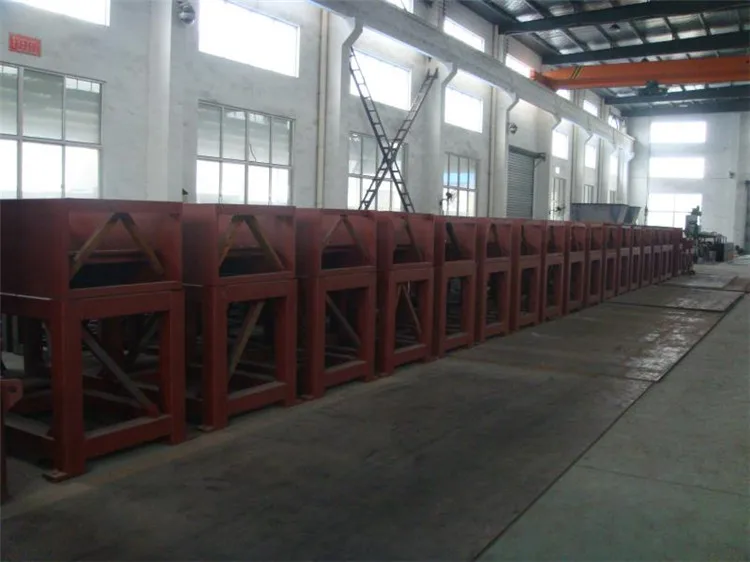

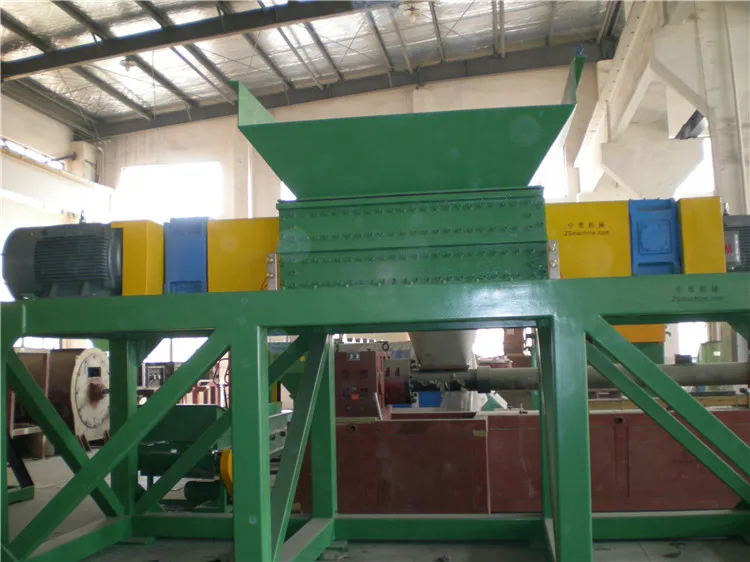

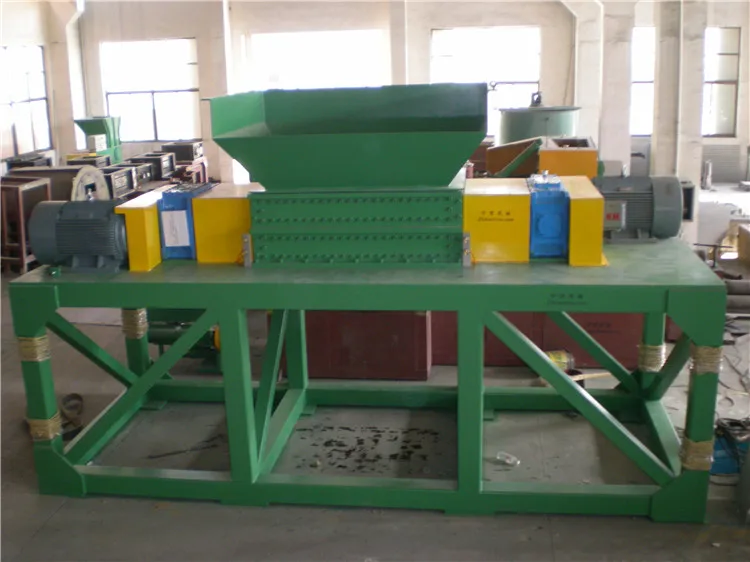

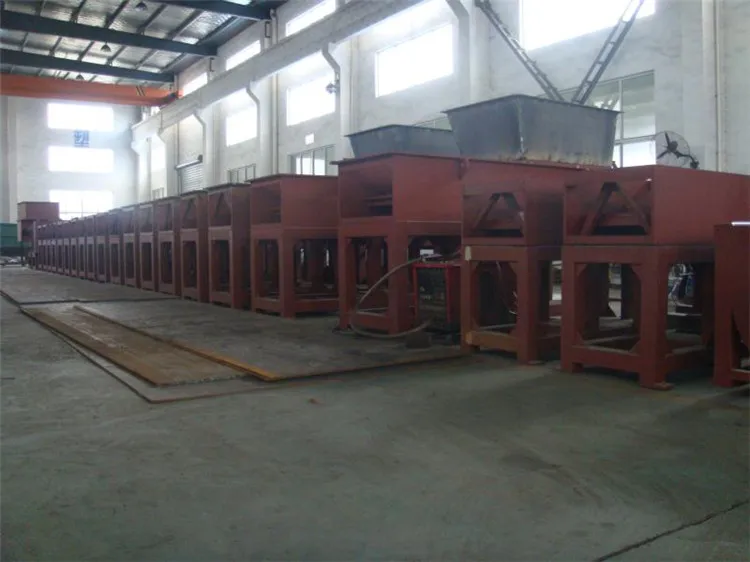

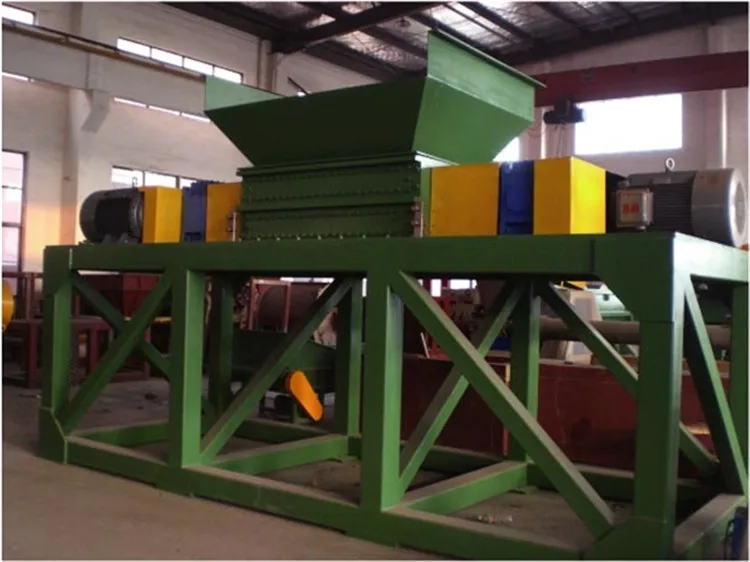

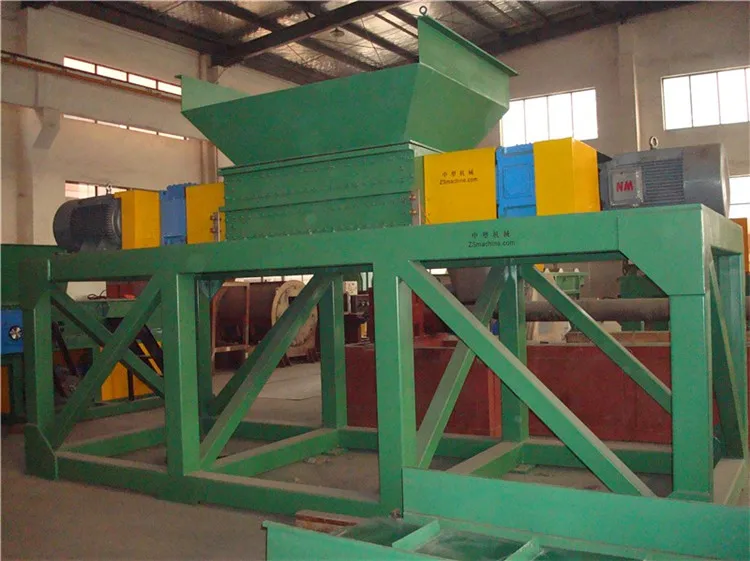

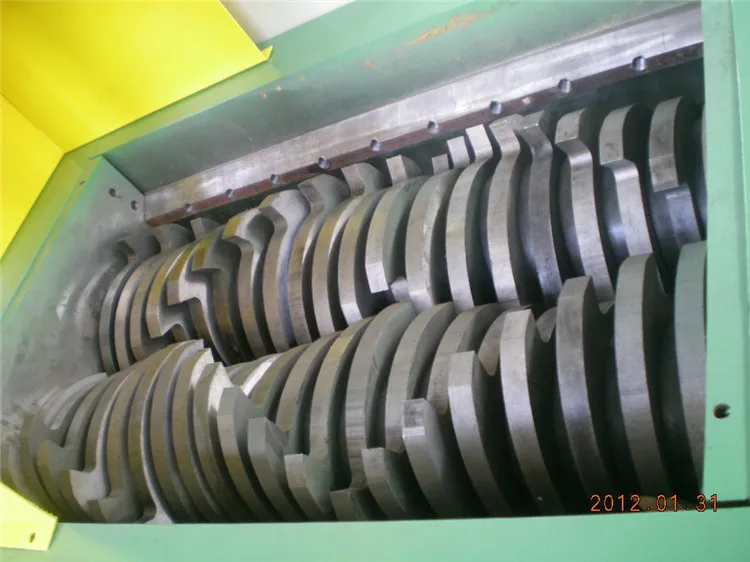

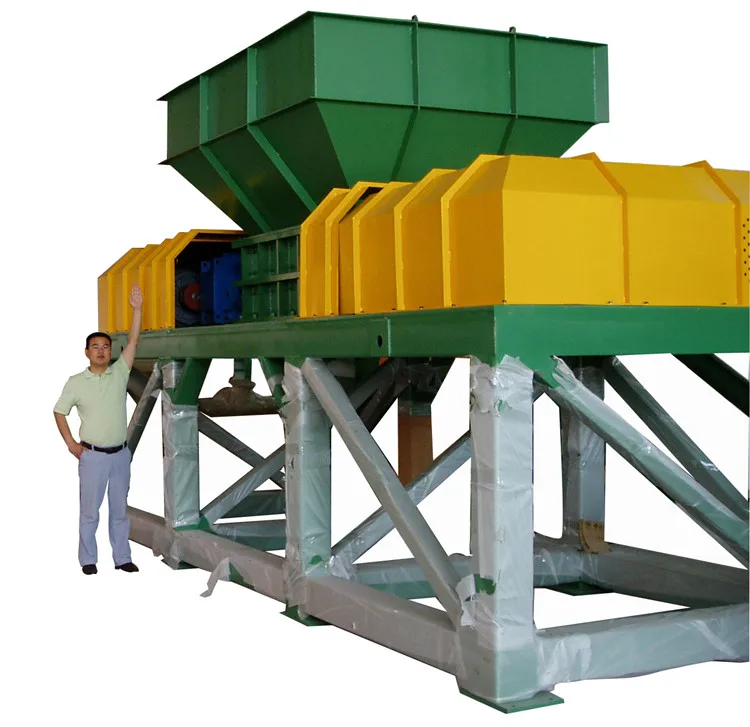

Industrial shredder machine photos:

























 Exhibition for industrial shredder machine:

 Packaging and shipping for industrial shredder machine:



Big capacity shredder contact information:

Name: Ivy Wu

Mobile&whatsapp&wechat:0086-18913511731
