Attention: The GCAN-601 module is too little and difficult to debug. We suggest you take a bottom board together which can shorten development time and get better after-service support.
The GCAN-601 is a communication converter that integrates with one CAN-Bus interface, one UART interface. The GCAN-601 can be directly connected to the UART interface of MCU, which can make a CAN-Bus communication without changing its original hardware.
In normal operation, the GCAN-601 module is in a state of real-time monitoring of the CAN bus and the UART bus. Once a data is received from one bus, it will immediately parse and load the data into its own buffer. According to the setting mode, the data on the bus will be sent to the other bus to realize the conversion of the data format.

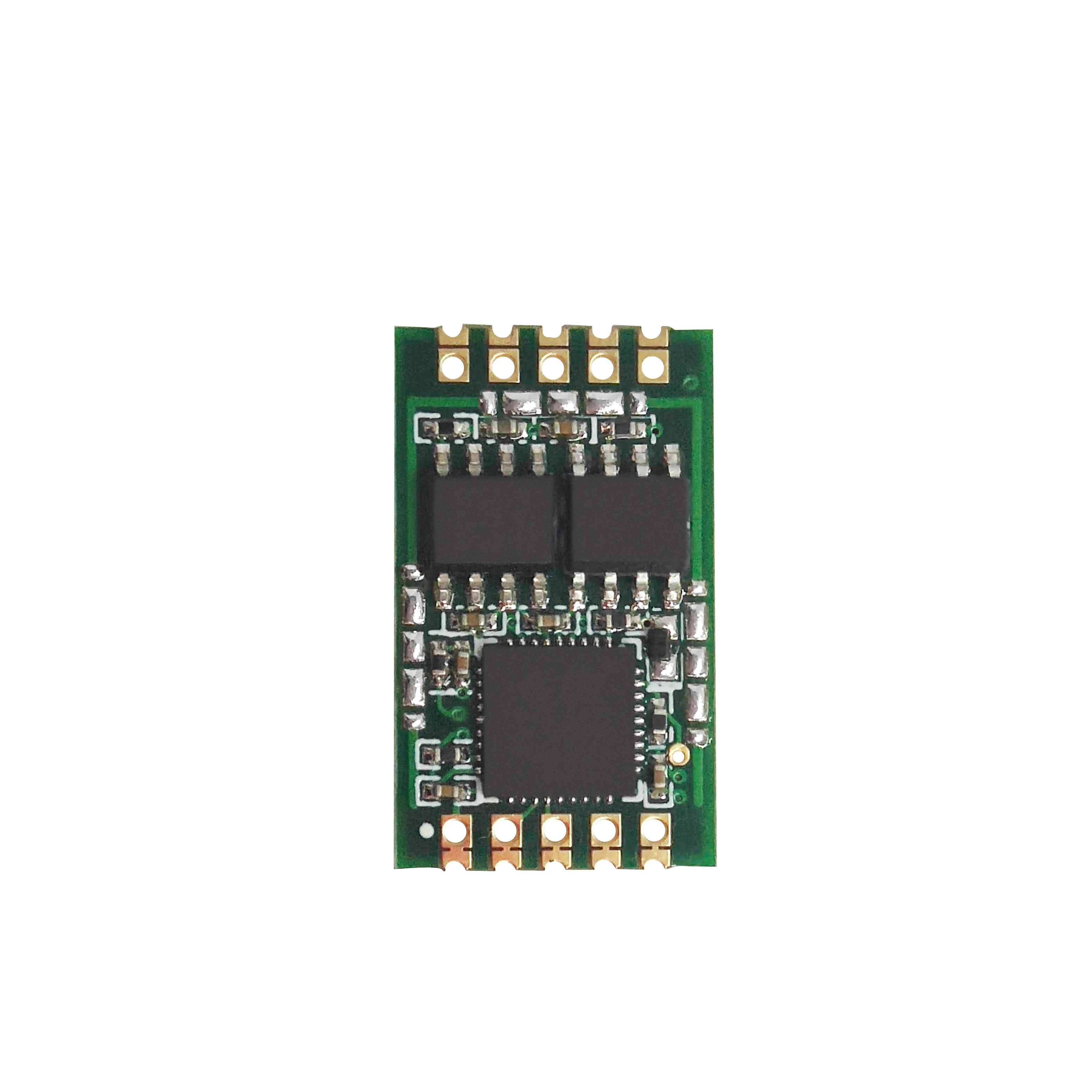

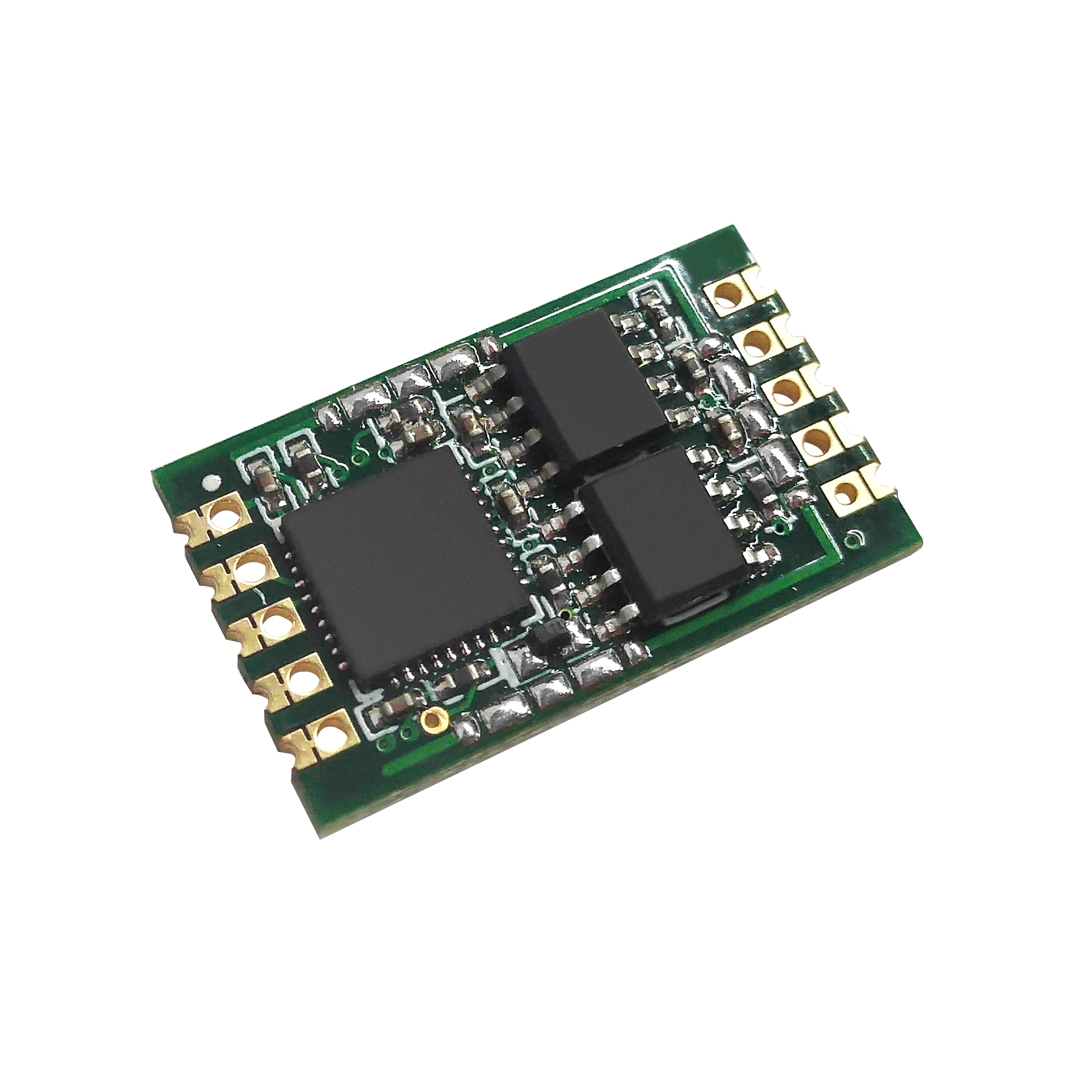

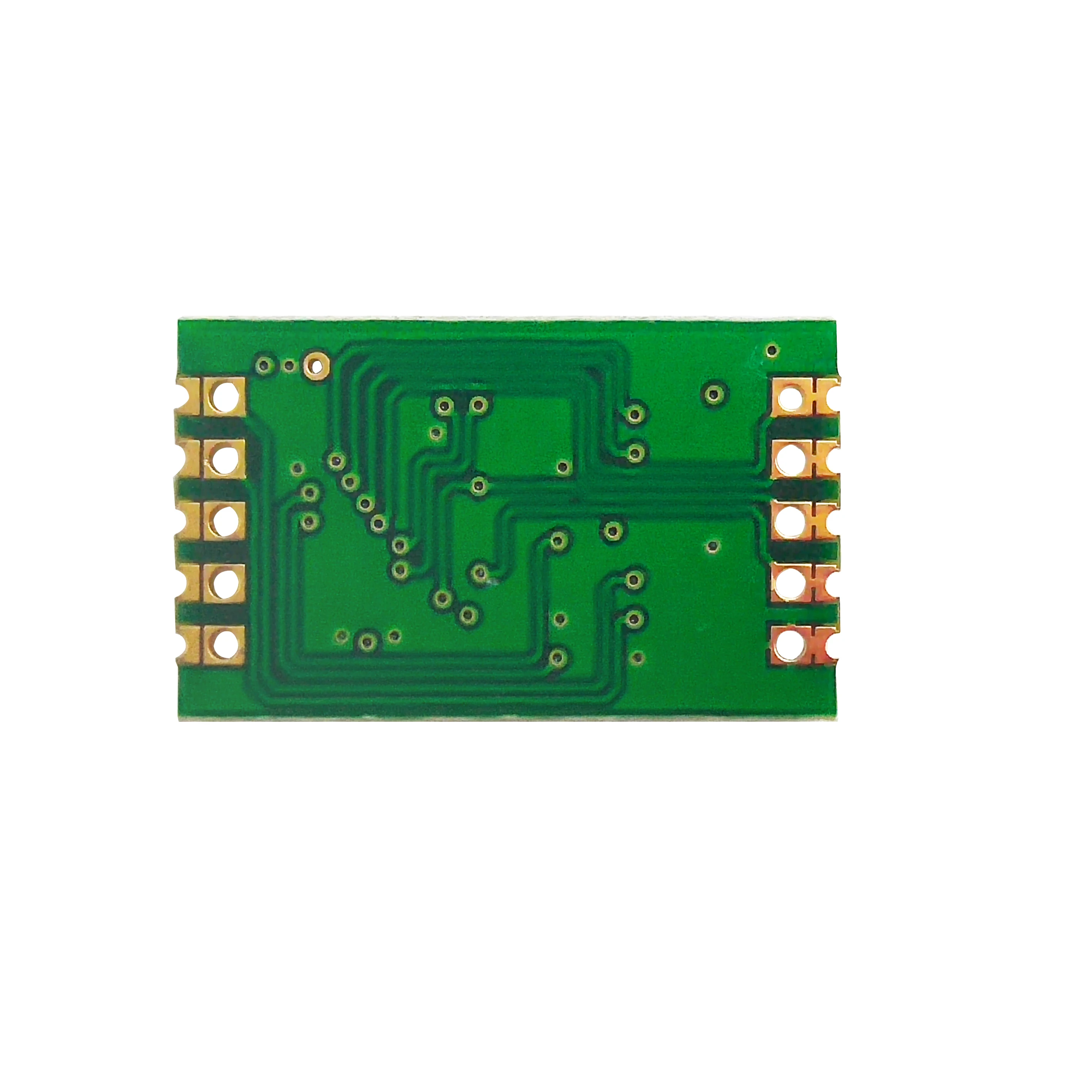

Detailed Images
Technical data

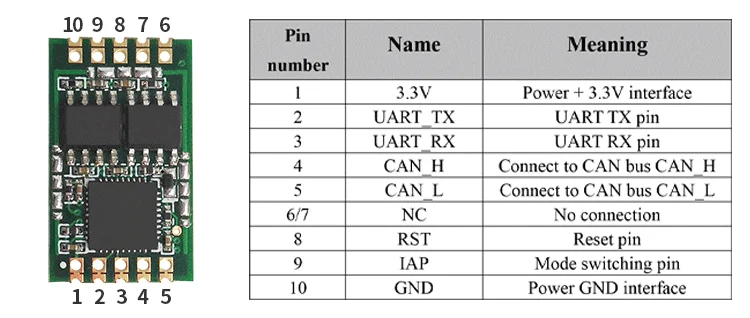

CONNECTION
Serial
Stamp hole solder plate/2.08 raw pin
CAN
Stamp hole solder plate/2.08 raw pin
INTERFACE FEATURE
Serial interface
UART
Serial port baud rate
600bps~921600bps
CAN interface
ISO 11898 standard, CAN2.0A/B
CAN baud rate
5k~1Mbps
POWER SUPPLY
Voltage
3.3V DC
Current
100mA (Max)
BASIC
Working temperature
-40℃~+85℃
Working humidness
15%~90%RH, without condensation
Dimensions
22mm *13mm, 10g
Why choose us

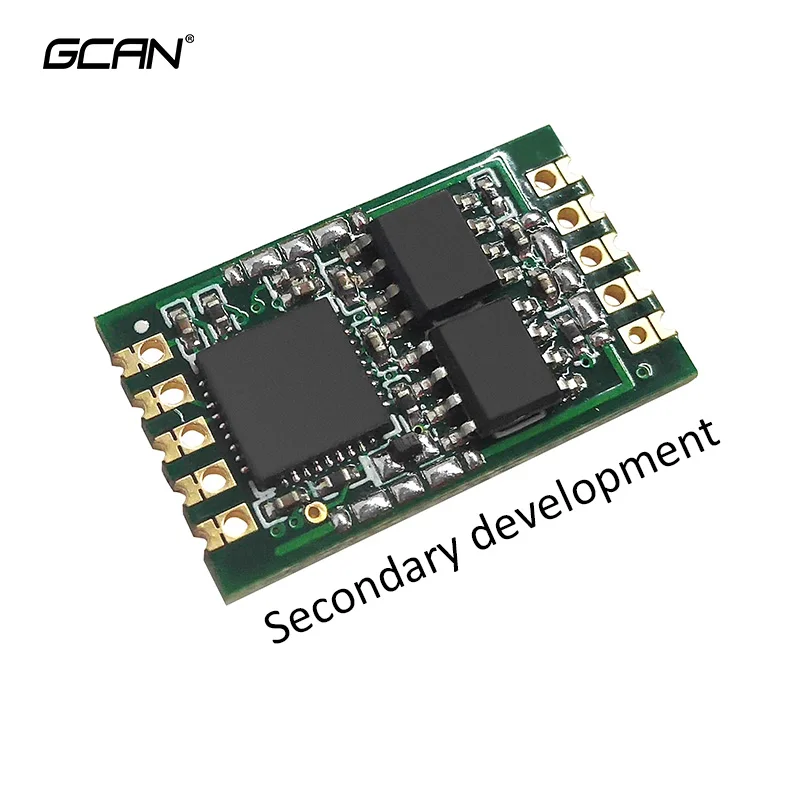

Secondary development
Support secondary development
Help you make the most suitable
device
Supply technical files
3 conversion modes
Transparent conversion
Transparent conversion
with identity
Format conversion
365 days Technical support
365*24h waiting for your message. Solving your problems and technical support after-sales.
Engineer team with rich experience
Filtering function
When the data is too much on
CAN bus side for serial bus,
the filter function is a best
sulotion.
Support RS232/485
UART interface
Support RS232/485
more choices for you
Embedded module
Little volume make GCAN-601 easy
to be embedded to any board.

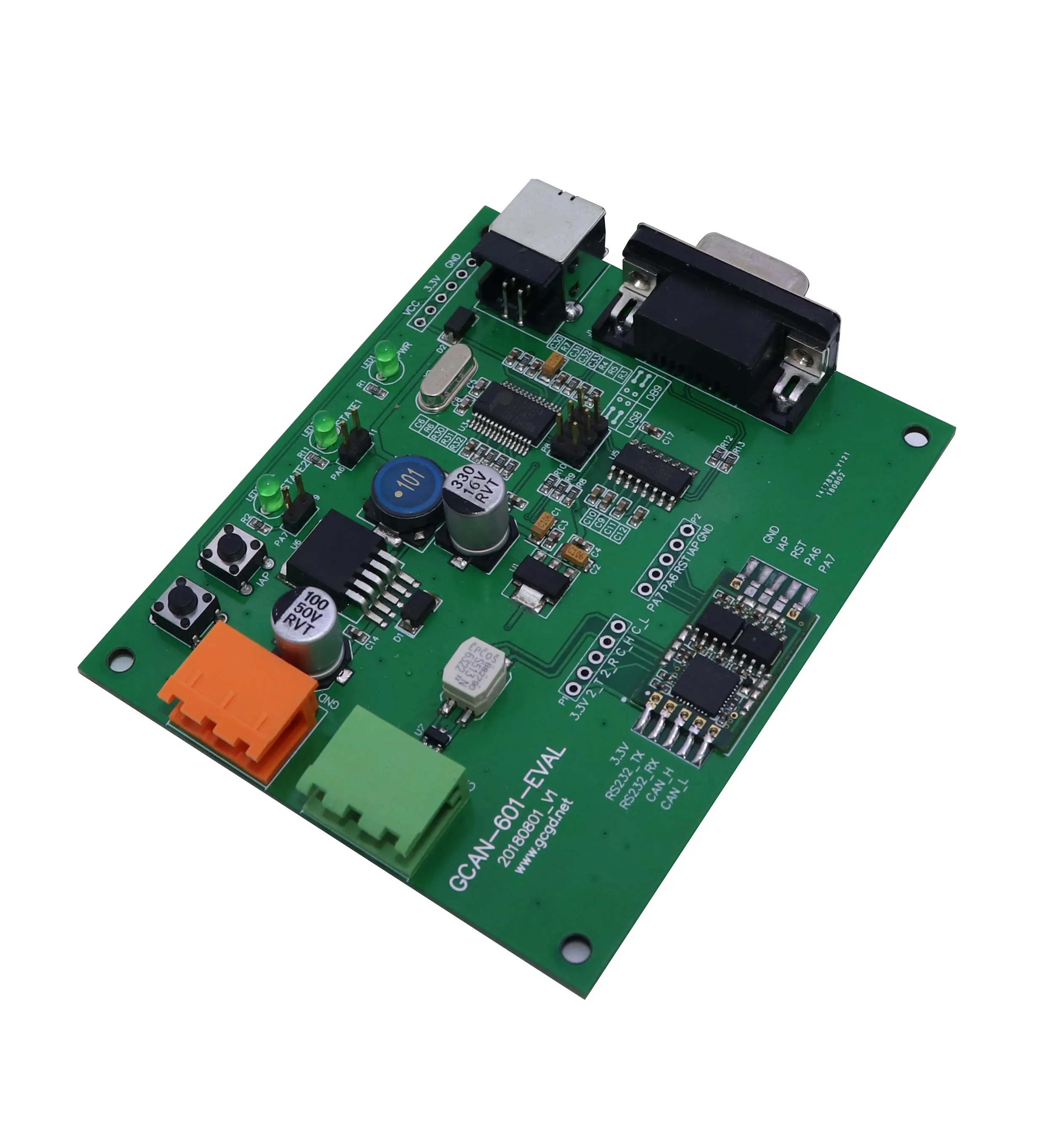

With bottom board, dubugging will
be much more convenient.

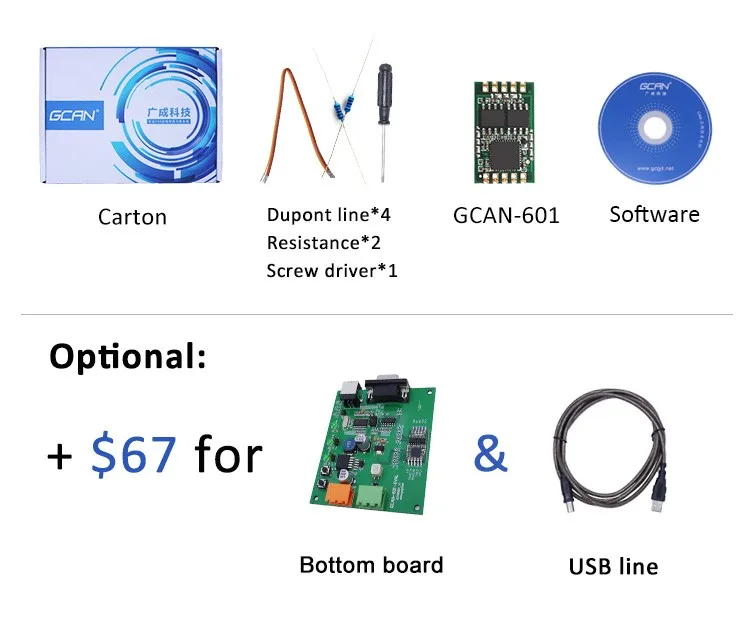

Packing & Delivery
Packing in carton or according to your requirement.
Delivery time: In 3 days after payment.
