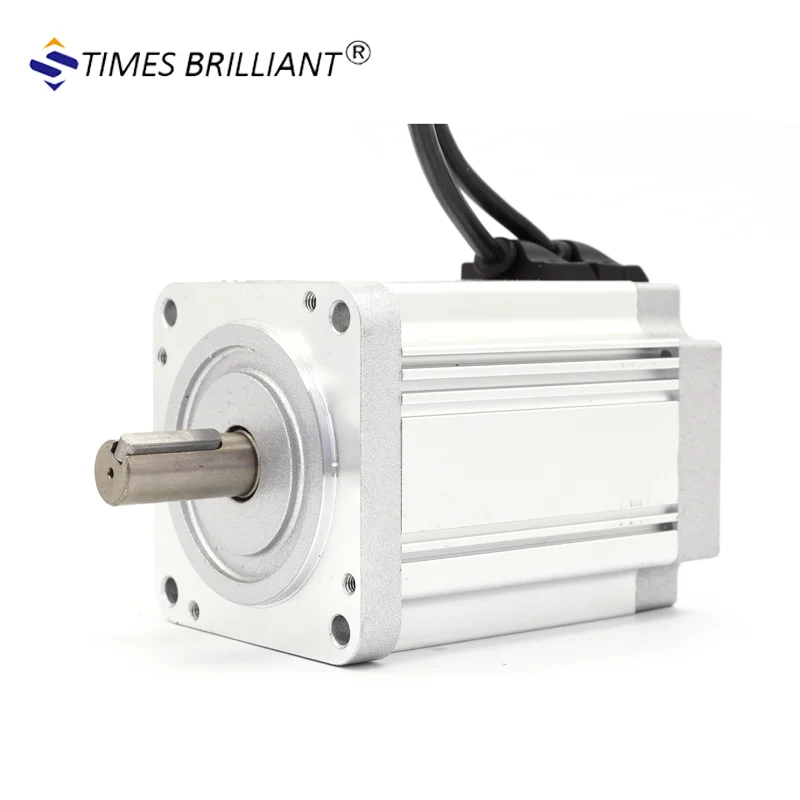

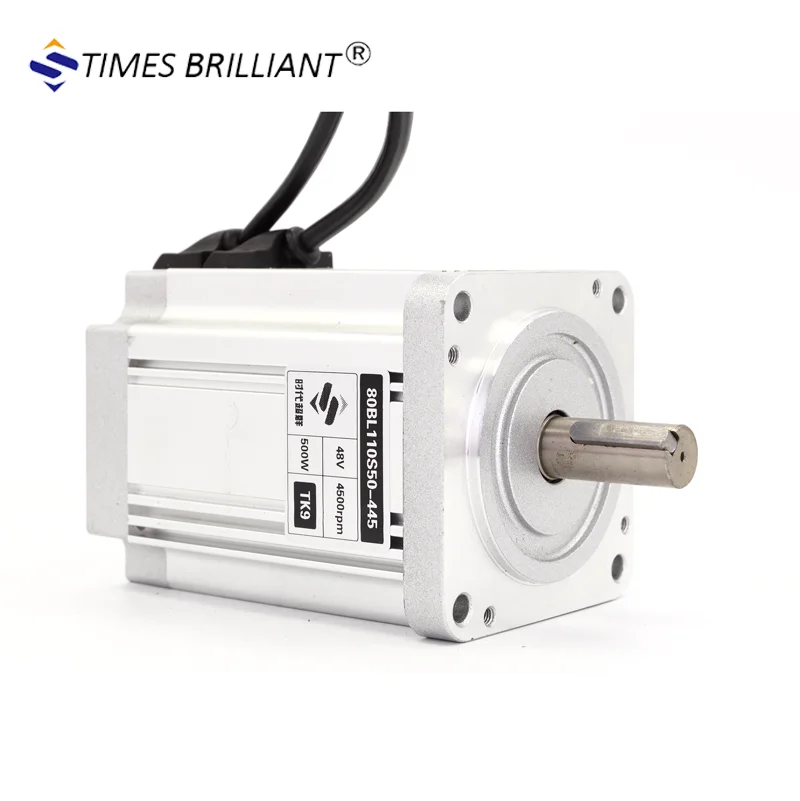

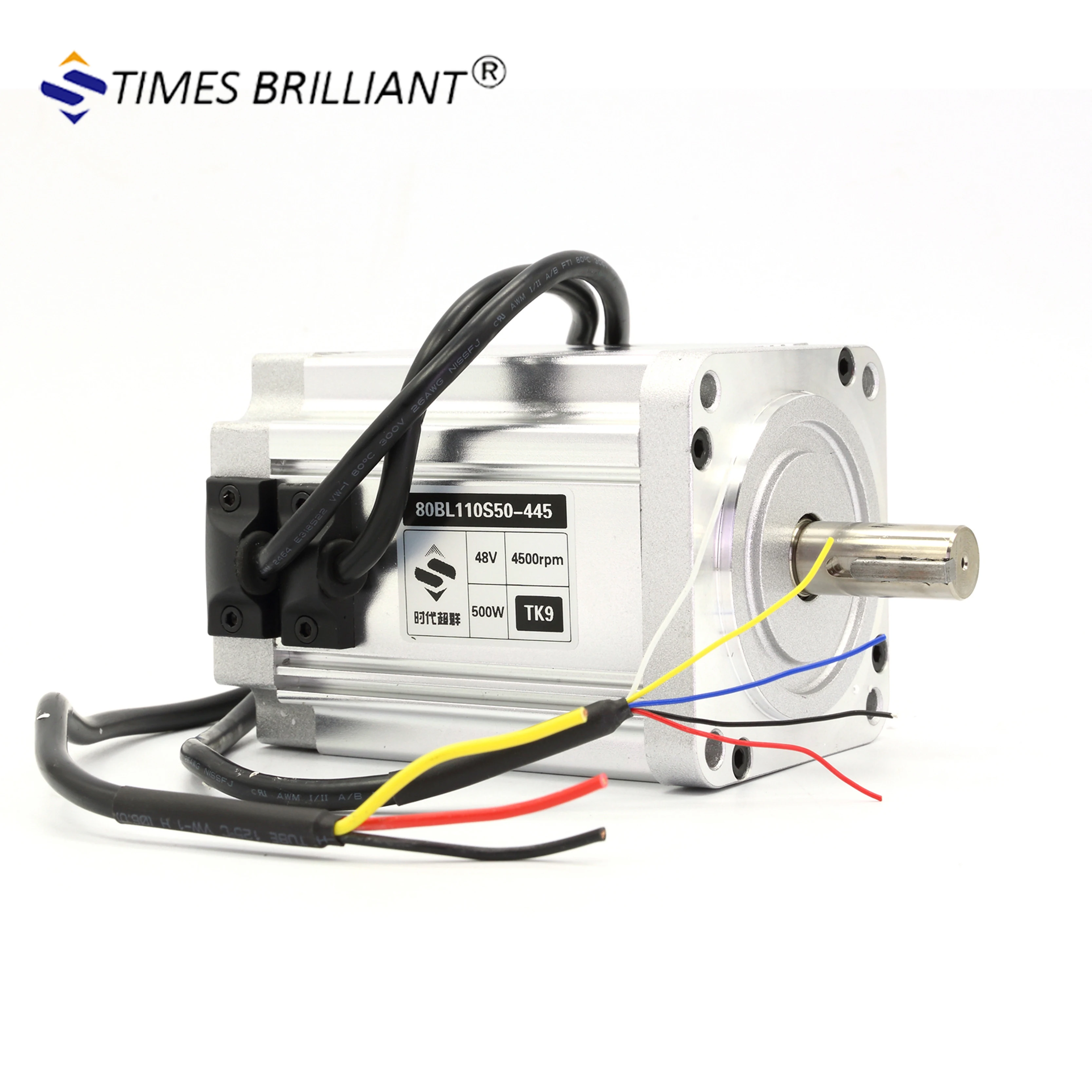

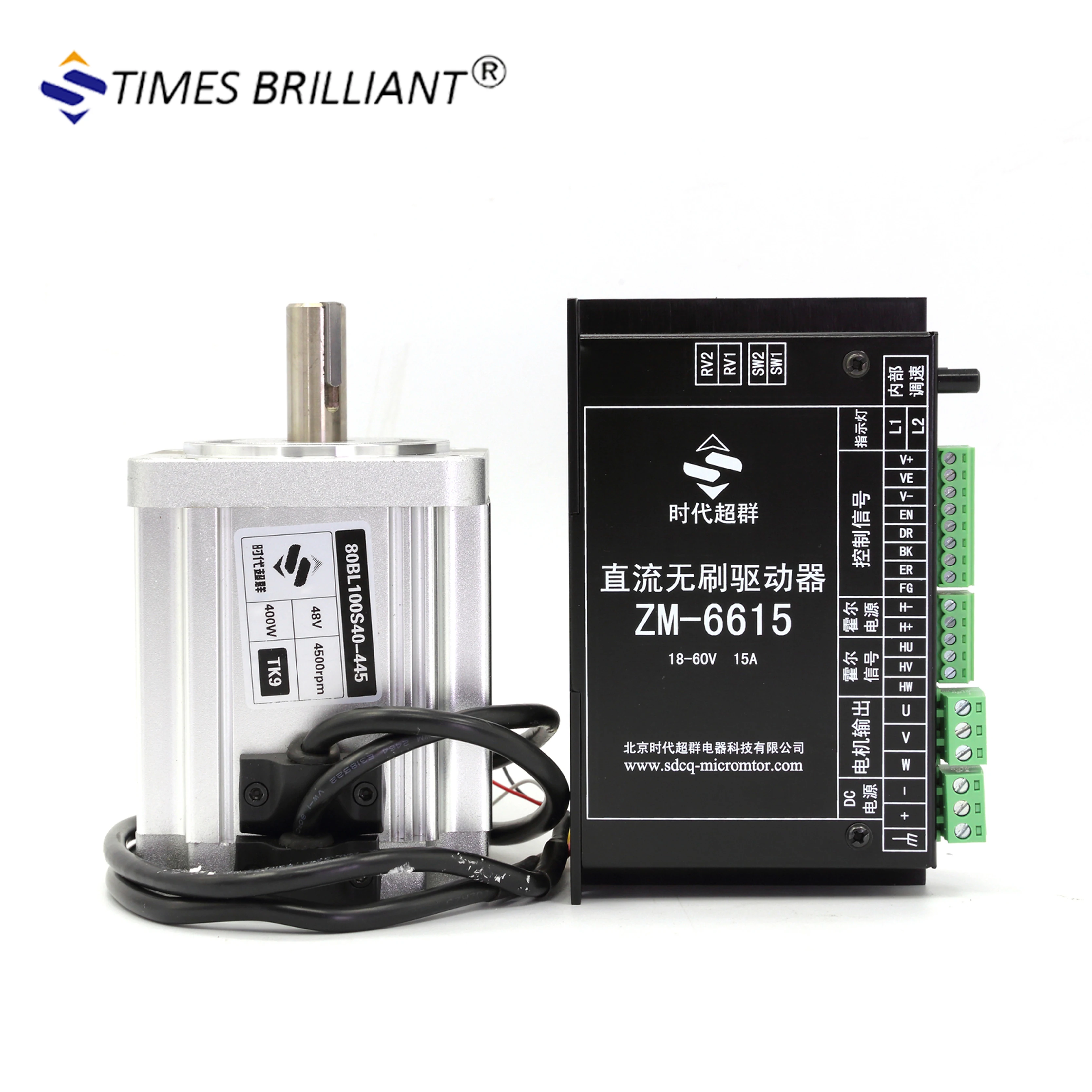

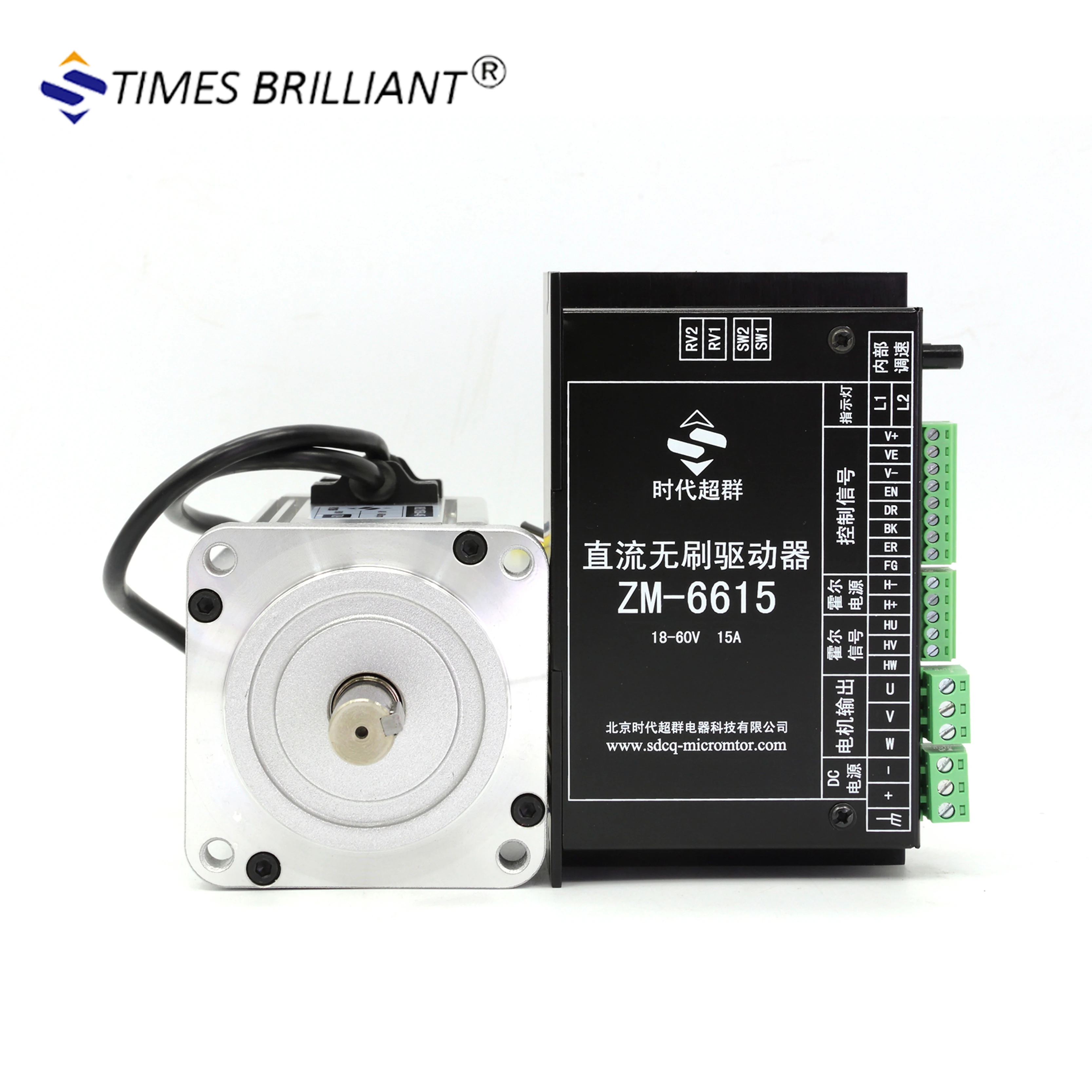

China supplier High speed 250W to 500W bldc 48V brushless dc motor with controller kit for Milling Drilling

Product Overview

Description

China supplier High speed 250W to 500W bldc 48V brushless dc motor with controller kit for Milling Drilling



Note: the motor with magnetic ,so magnetic inspection fee will be incurred during transportation. Please contact shop assistant to supplement it.large quantities can dispense with it



Model	Voltage   V	Rated Power  W	Rated Torque  N.M	Rated Speed rpm	No Load Speed rmp	Rated Current A	No Load Current A	Poles
80BL126S40-330TKA	36	400	1.27	3000	3600	15	1.5	2
80BL100S40-430TK9	48	400	1.27	3000	4000	12	1.2	2
80BL100S40-445TK9	48	400	0.85	4500	6000	10.8	1.1	2
80BL110S50-430TK9	48	500	1.6	3000	4000	14.8	1.5	2
80BL110S50-445TK9	48	500	1.1	4500	6000	13.8	1.3	2
