High Frequency 400hz Three Phase Transformer With CE Certificate
- Category: >>>
- Supplier: Chongqing WS Import And Export Co. Ltd. [Chongqing China]Chongqing
Share on (62036628183):
Product Overview
Description
Product Description

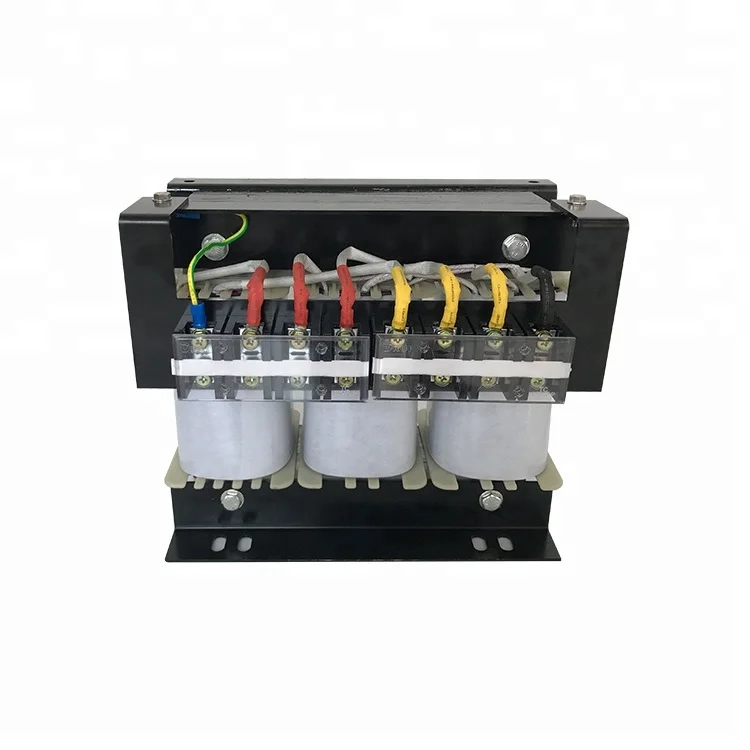

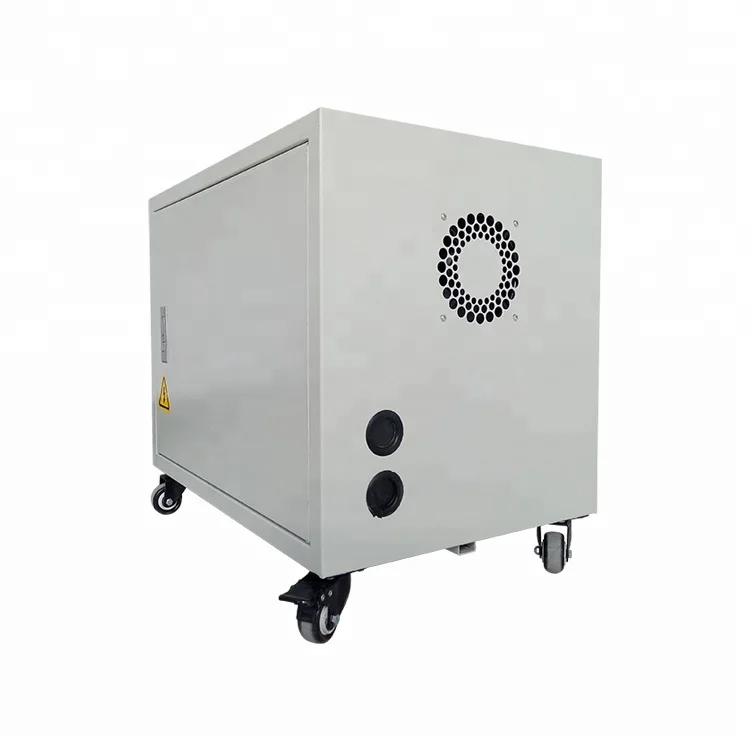

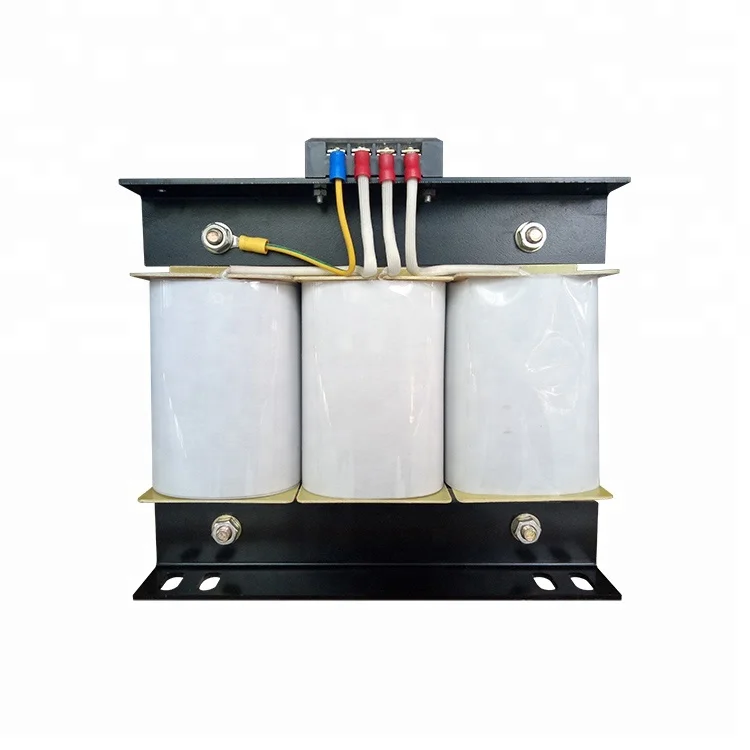

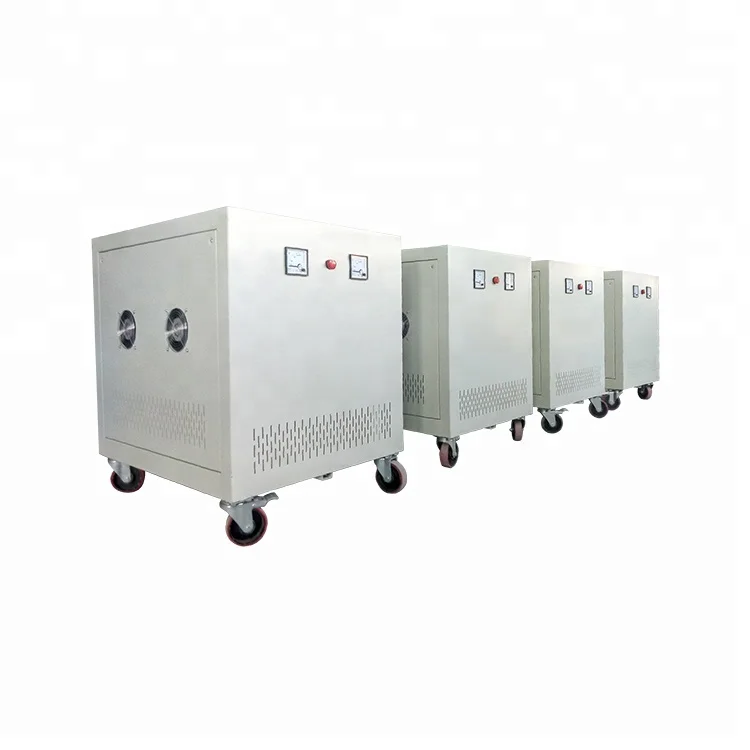

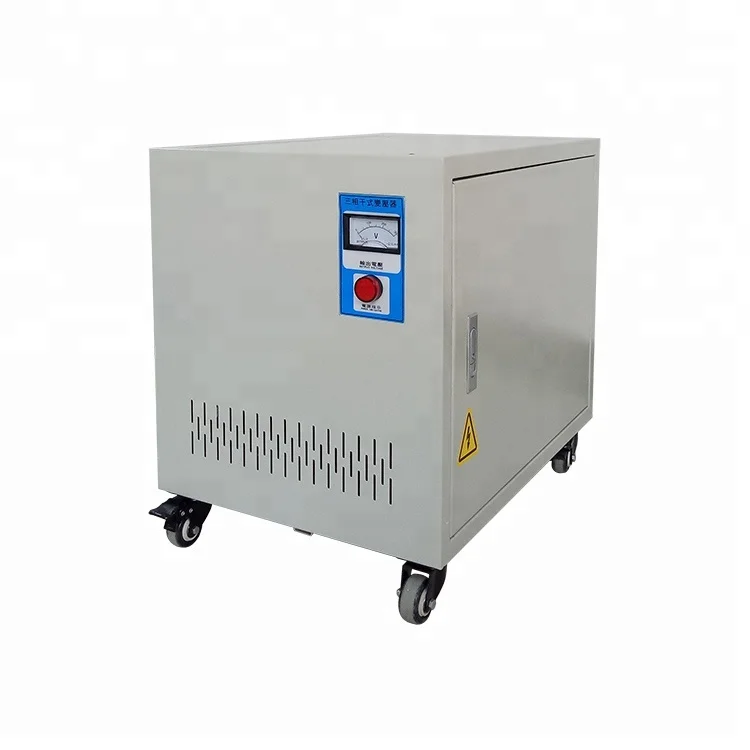

High Frequency 400hz Three Phase Transformer With CE Certificate
400hz Three Phase Transformer is made with pure copper coils(three winding) and silicon steel core. This transformer is widely used in industrial mechanical equipment, medical devices, lighting equipment and so on.\
Specifications
| Input Voltage | 415V AC (customized) | Output Voltage | 220V AC (cuatomized) |
| Noise | ≤50dB | Temperature Raise | ≤50℃(in -25-45℃ environment) |
| Cooling | Air Cooling | Winding Material | Pure Copper |
| Insulation Grade | F/H(can be customized) | Efficiency | ≥98% |
| Insulation Resistance | ≥150MΩ | Impedance Voltage | ≤4% |
| Structure | Vertical | Service Life | 30 years |
| Core Type | EI Type | Core Material | Cold Rolled Silicon Steel Sheet |
| Altitude Requirement | ≤2000M | Output Voltage Accuracy | ±1% |
| Overload Capacity | 1.2 times of rated power | Waveform Distortion | Distortionless |
| Working Temperature | -25-45℃ | Working Humidity | ≤95% Relative Humidity |
Application
400hz Three Phase Transformer is mainly used for industrial machines, laboratory equipment, meters and instruments, medical devices and so on.
