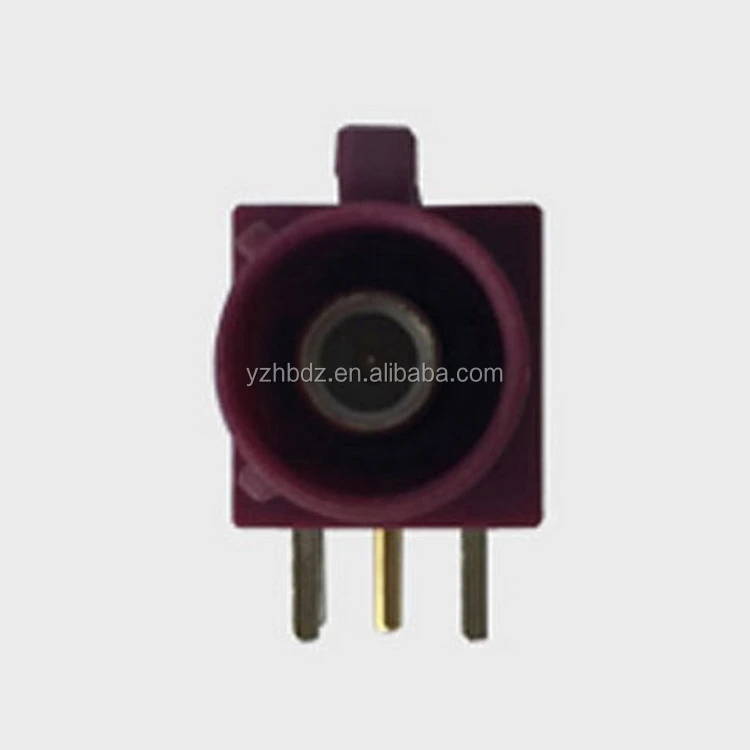

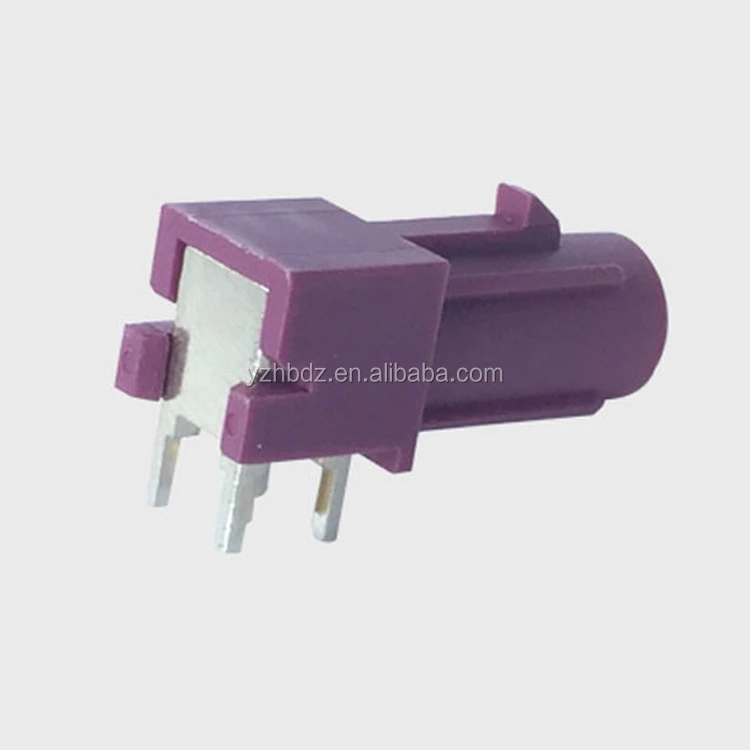

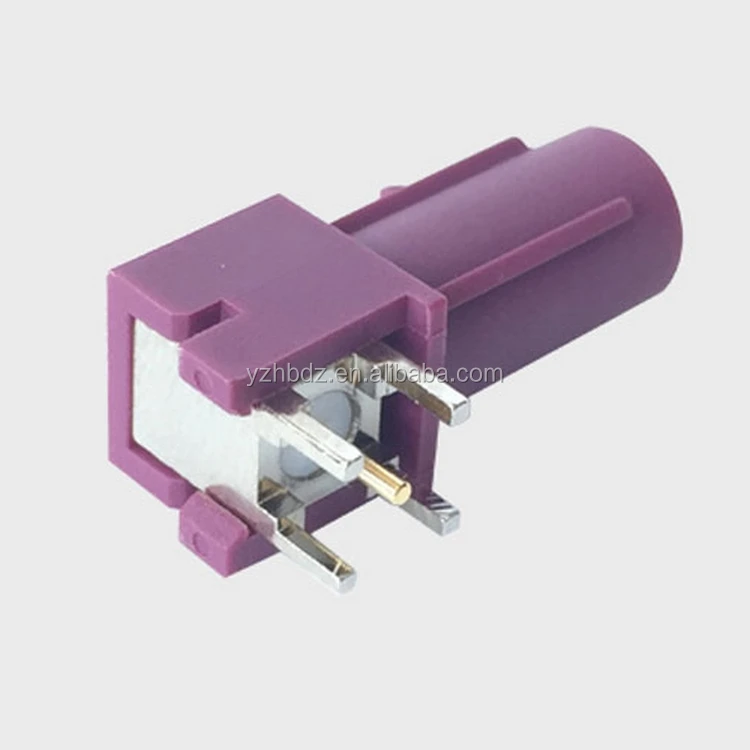

HongBo Hot Selling Car Connector FAKRA SMB D Male Connector Fakra HSD Mounting Connector For PCB

Product Overview

Description

Product applicable standard: IEC60169-1 IEC60169-10.

The scope of use: FAKRA connector is currently widely used in automotive parts, used in: navigation systems, remote control, car phone, car TV, audio equipment, antennas and other functions, for the corresponding color or adapter bayonet connector And the socket, some connectors can be rotated 360° inside the plastic sleeve, which is convenient for the internal wiring of the car and reduces the pressure on the cable.

1. Product design level: universal connector (level 2)

    1.1 Working voltage: 335V

    1.2 Working temperature: -40 ° C ~ +85 ° C

    1.3 Operating frequency range: DC-4GHZ

    1.4 Characteristic impedance: 50Ω

2. Electrical performance:

    2.1 VSWR: <1.3

    2.2 Contact resistance: inner conductor ≤ 6MΩ outer conductor ≤ 1MΩ

    2.3 insulation resistance: 1000MΩ

    2.4 dielectric withstand voltage: 1000V (in accordance with MIL-PRF-39012 paragraph 3.17)

3. Mechanical properties:

    3.1 Shell retention: >110N (in accordance with MIL-PRF-39012 paragraph3.5 Axial Force)

    3.2 Insertion force: 25N maximum (in accordance with MIL-PRF-39012 paragraph3.5 Axial Force)

    3.3 Pull-out force: 25N maximum (in accordance with MIL-PRF-39012 paragraph3.5 Axial Force)

    3.4 Mechanical life: >50 times (frequency 10 times / MIN)

      (in accordance with MIL-PRF-39012 paragraph 3.15)

    3.5SMB connector mechanical life: >500 times (frequency 12 times / MIN)

4. Environmental performance:

    4.1 Temperature resistance: ambient temperature -40 ° C ~ 85 ° C

    4.2 Salt spray resistance: >48H

    4.3 moisture resistance: 95% relative humidity +40 ° C

5. Mutual matching relationship: can be matched with FAKRA the same type of accessories.

6. Installation method: the right rear and the insert engagement clamp.

7. Storage conditions: in the warehouse of temperature -10 ~ +35 ° C, relative humidity: not more than 80%, no corrosive gas such as acid or alkali in the surrounding air.
