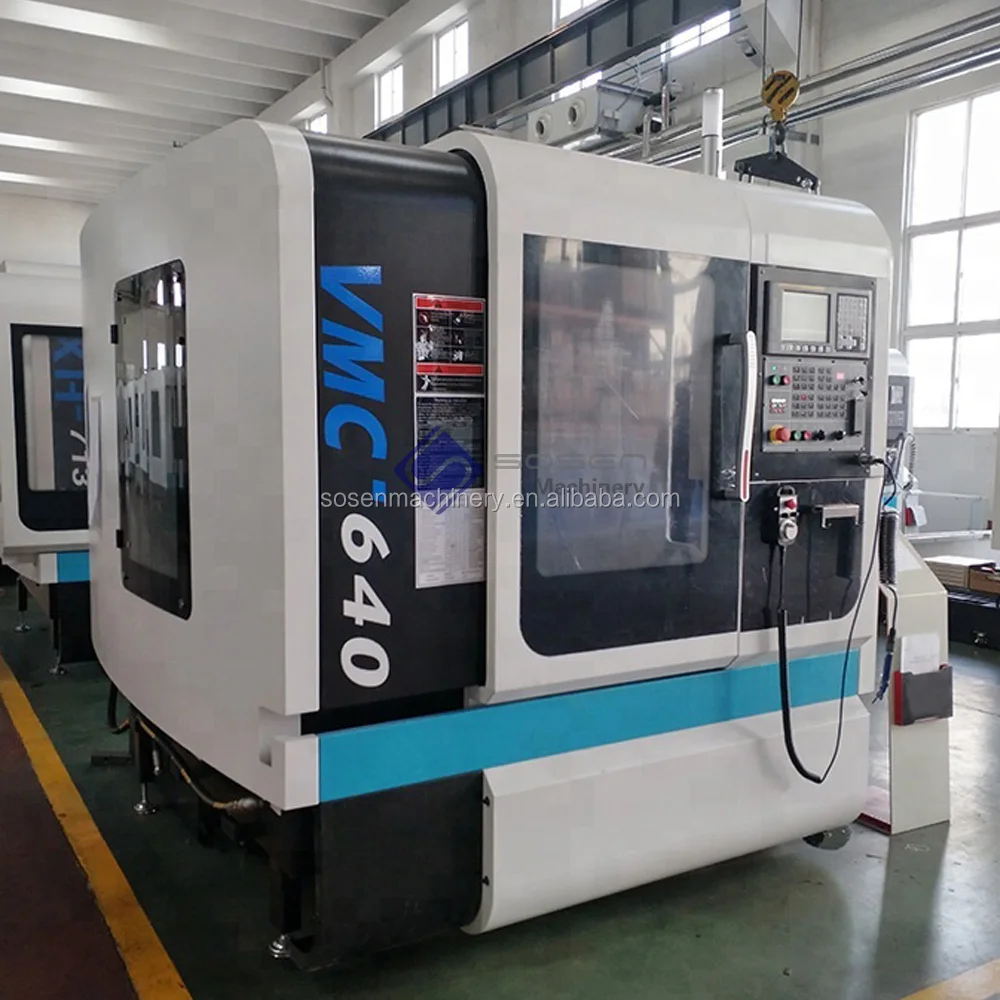

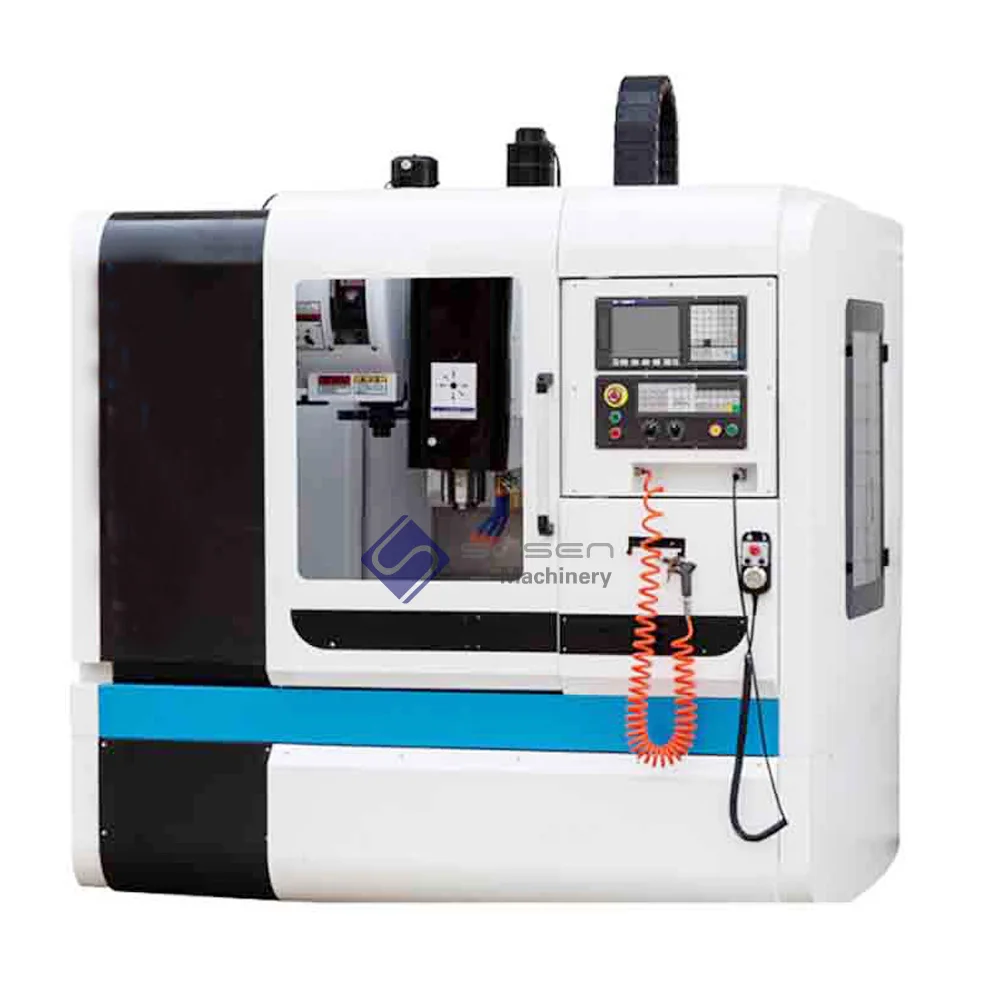

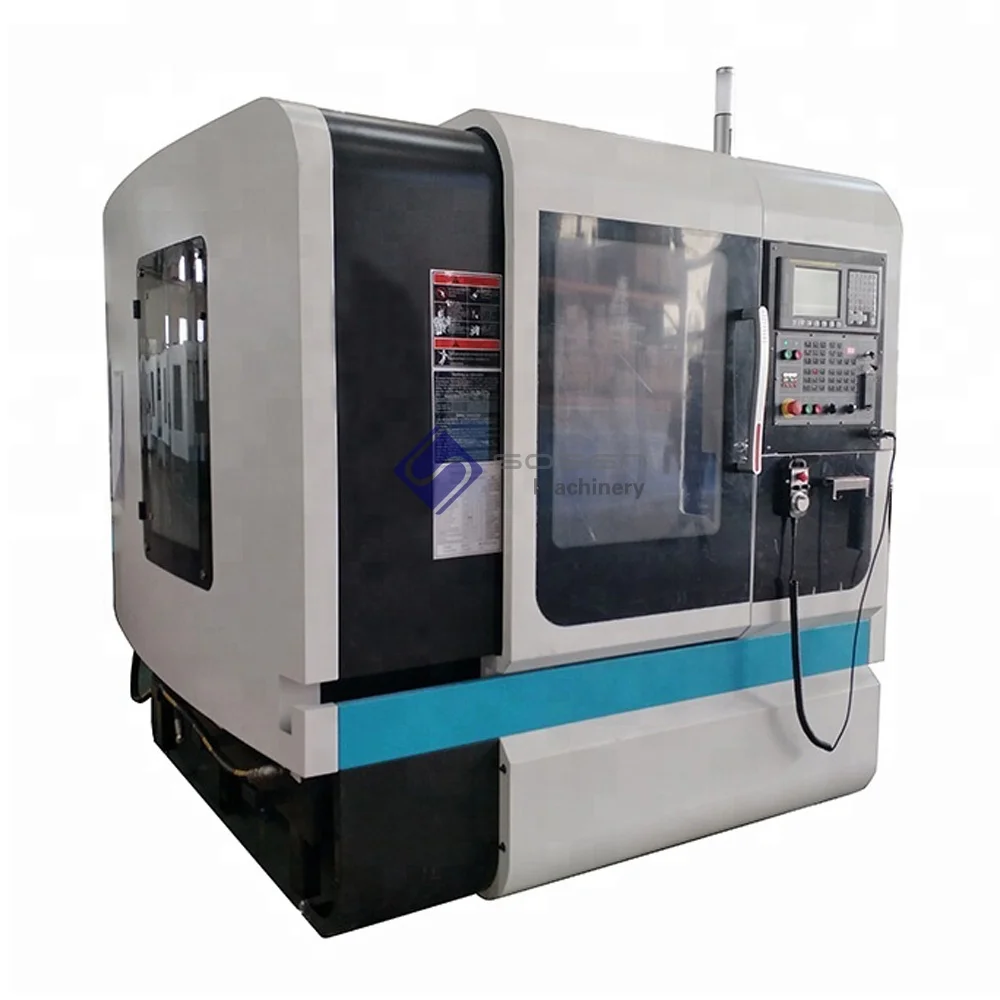

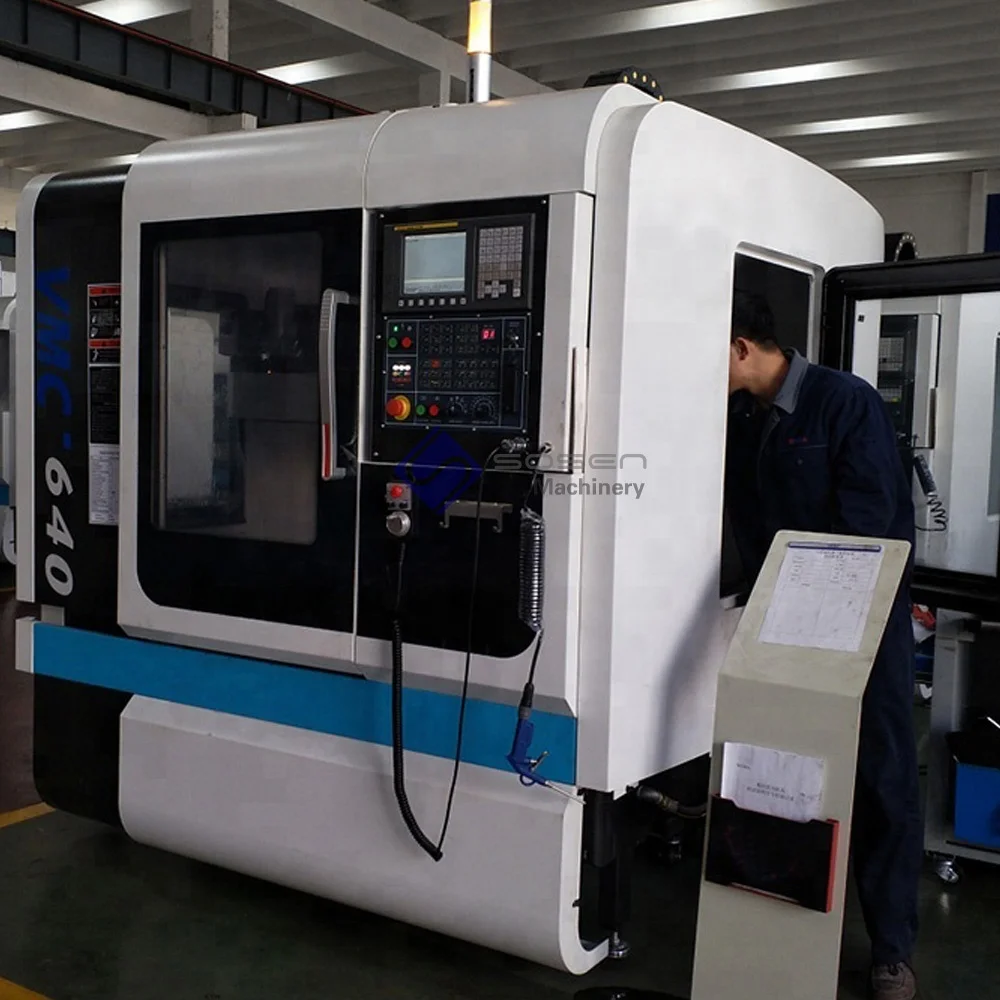

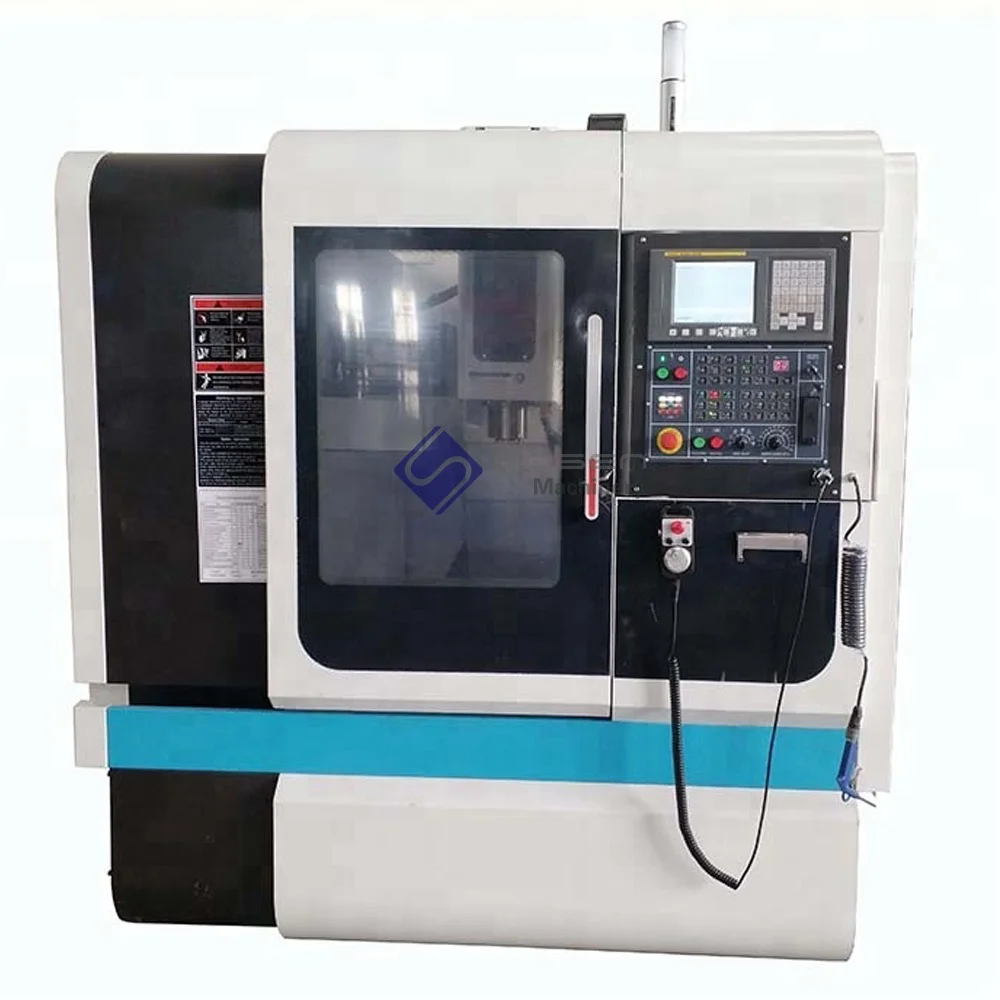

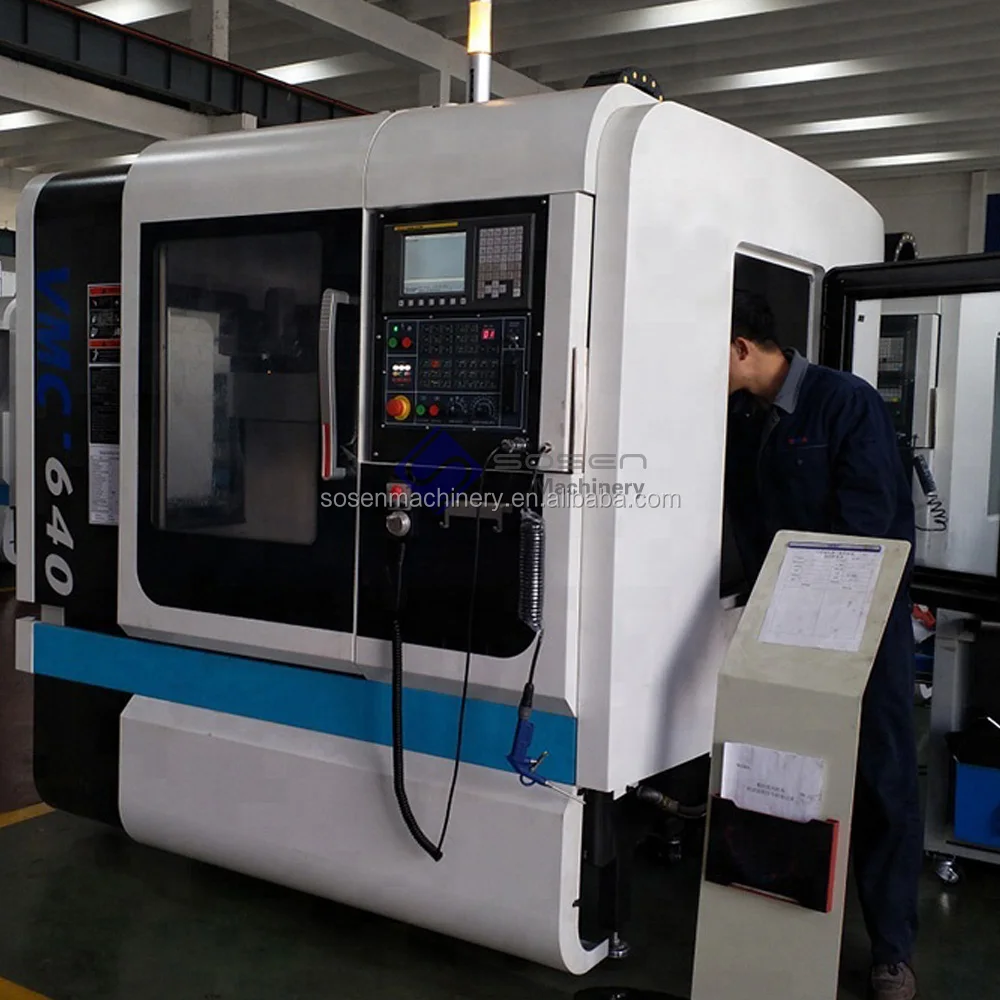

VMC640 CNC VMC Vertical Machine Center Price with GSK FANUC controller
Product Description
Features:
1)VMC640 CNC Vertical Machine Center with Taiwan spindle 8000rpm,highest speed setting 6000rpm before delivery .
2)VMC640 is with X,Y linear guide ways, Z box guide ways
3)The whole machine is with closed protection and electric cabinet, safe and beautiful.
4)VMC640 CNC VMC Vertical Machine Center Price with GSK FANUC controller is with Taiwan ball screw, Japan NACHI bearing.
5)It's with cross slide structure, herringbone column.
6)There are strengthing ribs and supporting plate inside bed, column, slider, table and spindle box.
7)Motors and lead screws are direct connection.
Specifications:
| CNC VMC Vertical Machining Center | Unit | VMC640 |
| Table size | mm | 920x400 |
| T slot | no | 3 |
| Centre distance | mm | 120 |
| Max. load of worktable | kg | 300 |
| Longitudinal travel | mm | 650 |
| Cross travel | mm | 400 |
| Vertical travel | mm | 500 |
| spindle nose to table surface | mm | 120-620 |
| Spindle taper | BT40 | |
| Speed Range | rpm | 40-6000 |
| spindle motor power | kw | 5.5(servo) |
| cuttiing feed X/Y/Z | mm / min | 1-10000 |
| rapid feed X/Y/Z | mm / min | 30/30/18 |
| tool magazine capacity | piece | 16 |
| tool magazine type | drum-type | |
| Max. tool diameter | mm | Φ130(adjancent tool empty) |
| Max. tool length | mm | 300 |
| Max. tool weight | kg | 8 |
| Tool changing time (tool-tool/cut-cut) | s | 3/7 |
| positioning accuracy | mm | ±0.005/300 JIS |
| repeat positioning accuracy | mm | ±0.003 JIS |
| air pressure | 0.5-0.7Mpa | |
| overall dimensions(LxWxH) | mm | 2180x2052x2600 |
| N/W | kg | 3200 |
Standard Accessories:

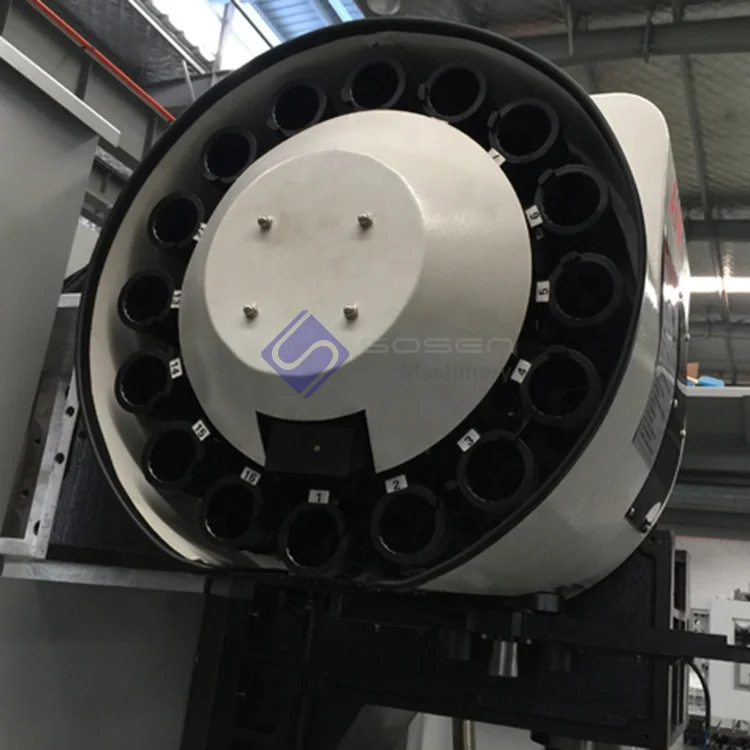

1)Umbrella-type 16 pcs Tools magazine from Taiwan.

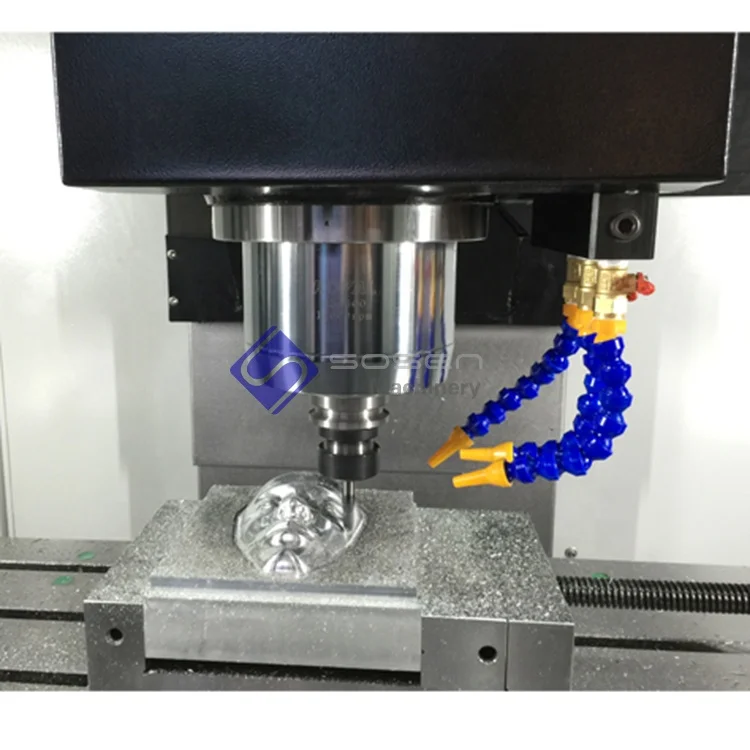

2)BT40 spindle unit with 8000rpm spindle unit
3)X,Y-axis with Linear guide way, Z-axis box guide way.
4)Full protection
5)Work light
6)Coolant
7)Electric Hand wheel
8)Centralized auto-lubrication system

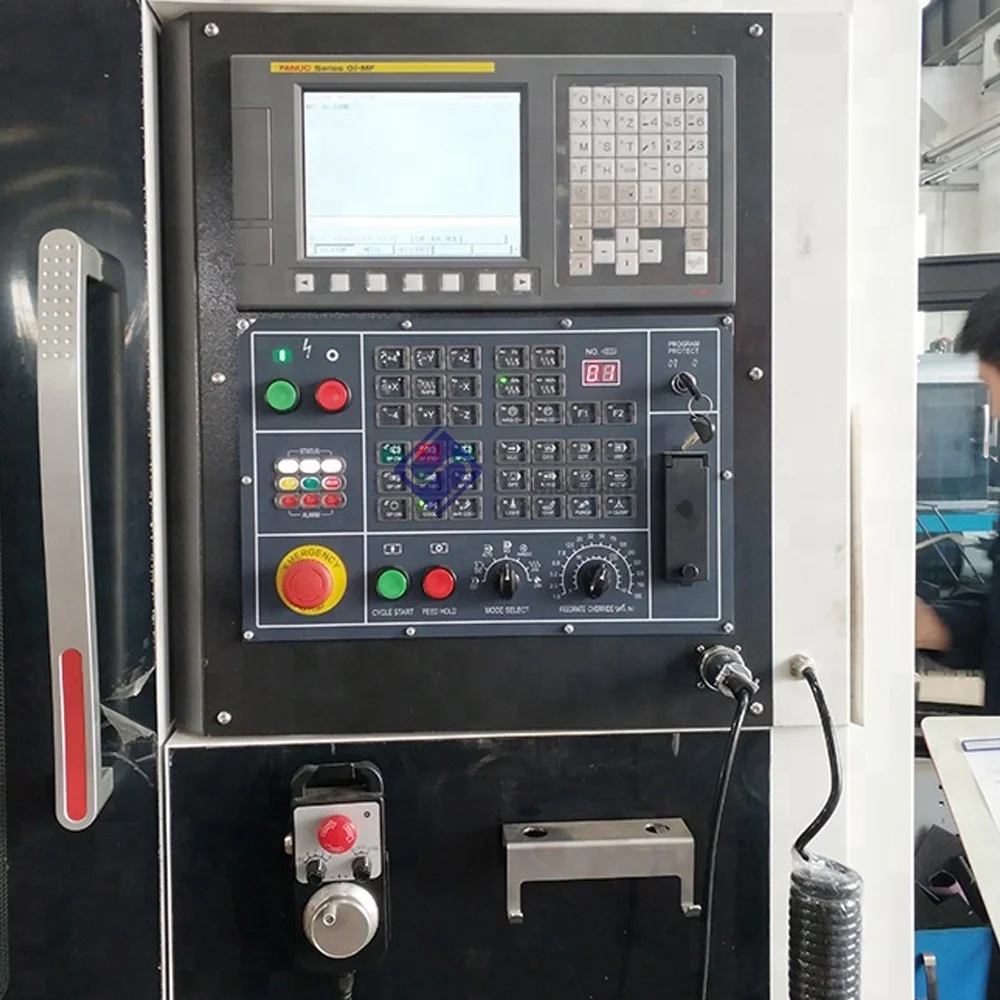

9) CNC controller
Optional Accessories:
1) Electro-magnetic door clock.
2) Disc type Tool magazine with 16 tools
3) Spiral type chip conveyor
4) The 4th axis Rotary worktable
5) 10000 rpm spindle with oil coolant
6) coolant through spindle of Taiwan
7) other kinds of CNC controller also can be ordered, such as SIEMENS and FANUC
FAQ
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we’re Alibaba Gold Suppliers, Alibaba Assessed Supplier, Alibaba Trade Assurance Supplier.
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact our SOSEN sales representative for details.
Q8.How about your after-sale service?
Our after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 3 days.
Q9.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
