Transforms any glass/acrylic panel or store window into an interactive touch screen display. Ideal for integration within the gaming/vending industry, digital signage and table top applications
Features
*Light weight, suitable to be laminated to glass, acrylic or photographic film. *Transparent, no frame, durable and safe. *Accurate positioning *No mechanical or pressure-sensitive elements, durable and stable *Not sensitive to outer light, the change of light would not affect. *Premium quality transparent multi-touch foils (up to 40 touch points) *Simple & quick to install – removable & reusable cling liner *Multi touch function – glass up to 12mm thick *High resolution controller *1 year comprehensive warranty *Includes full installation kit – software, controller board & cable.

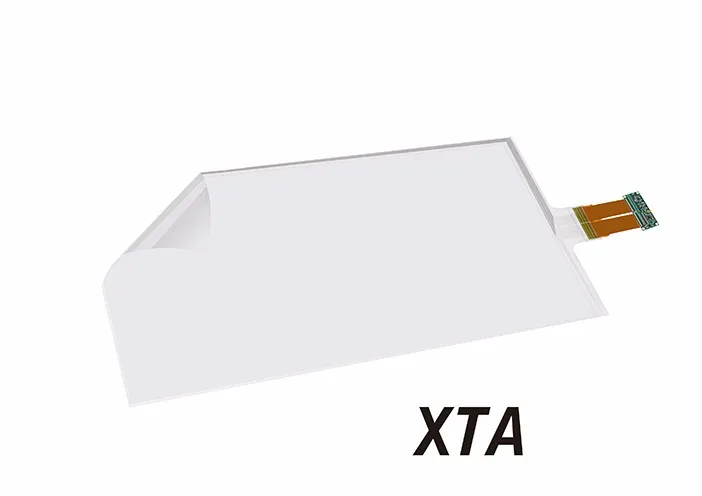

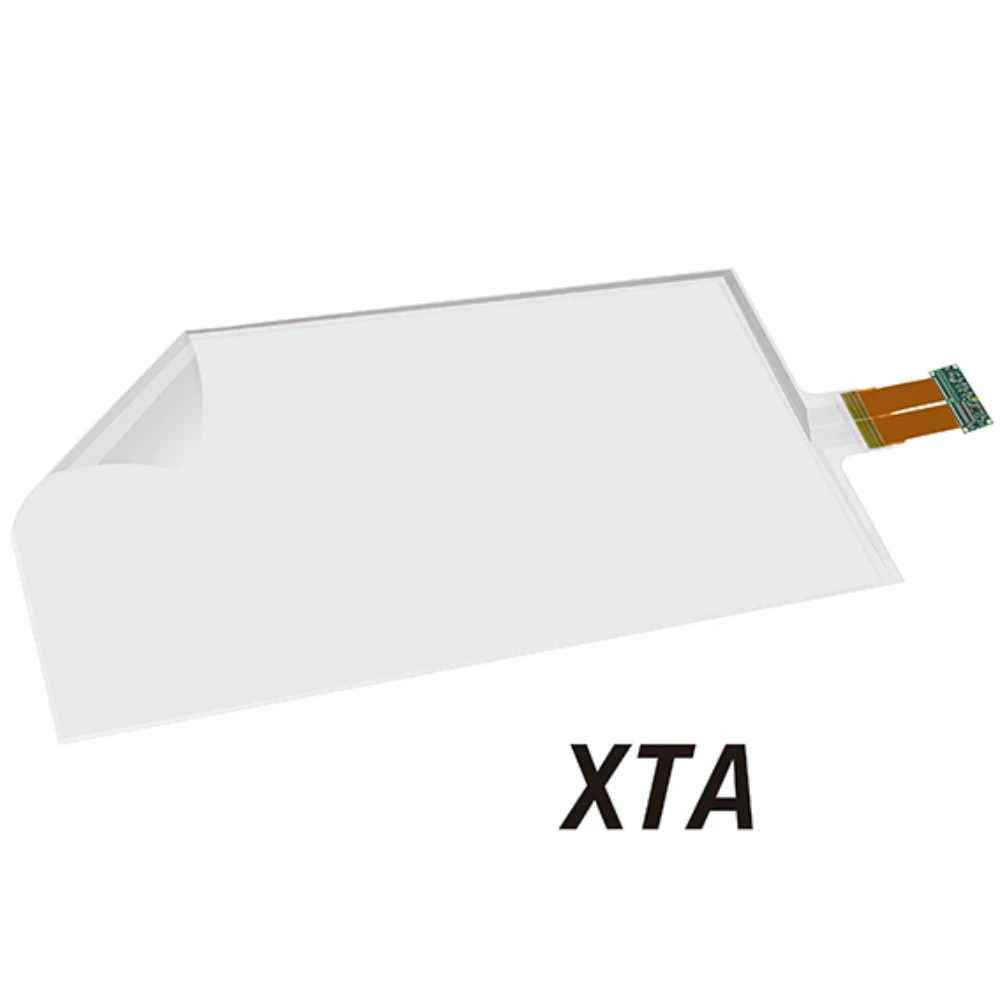

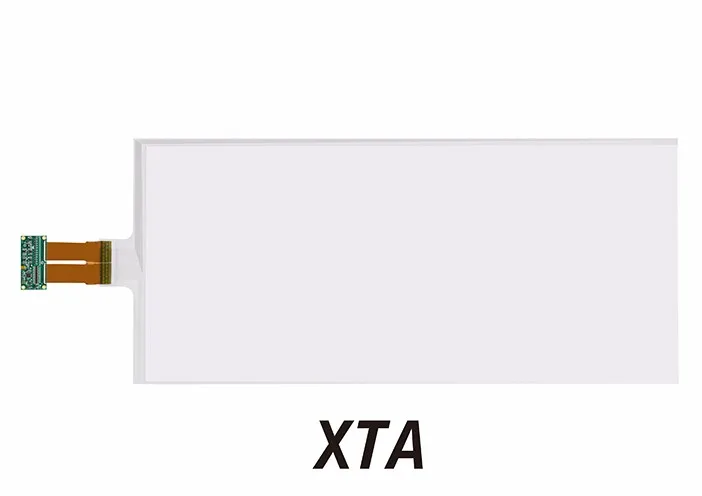

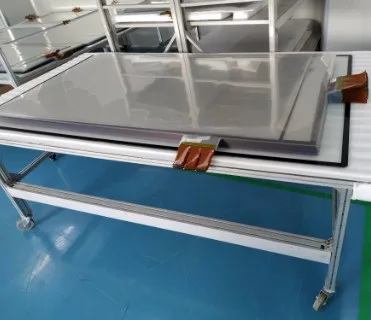

Detailed Image
Specification
Parameteres Item
Technical specification for XT series projected capacitive touch foil
Series
XTM
XTA
XTB
XTC
Touch points
12
20
30
40
Sizes
10.1''-32''
42~ 65
55''-86''
86''-200''
Deviation
≤0.5mm
≤0.5mm
≤0.5mm
≤0.5mm
Sensor
TX : 24(MAX) RX : 48(MAX)
TX : 56(MAX) RX : 96(MAX)
TX80 RX142
TX136
RX240
FPS
130
120
120
Power Consumption
1W
0.5W
1.15W
Driver
No need
Windows
Win7/8/8.1/10
Andriod
Kernel3.10 or higher
Linux
Kernel3.10 or higher
Interface
USB2.0,UART
Power supply
USB(5V+/-5%DC)
Customize
Customizable
Waterproof
YES
Calibration
Software calibration
Certificates
CE,ilac-MRA,CNAS,CAL,CMA,FCC,ROHS,ISO
Packing list
touch foil*1 , controller*1 , USB line*1
Thickness
≤200um
Transmittance
>93%
Voltage
5V
Transmission
USB2.0
Transmit distance
≤50m (Add USB signal amplifier, etc.)
Safe distance
2mm(Distance beteween LCD& foil)
Operating Temperature
-20℃ ~ 70℃
Storage temperature
-20℃ ~ 80℃
Ambient lightness
Full-angle anti-glare illumination
Touch gesture
Click,Drag,Zoom,Rotate
Sensing range
≤10mm

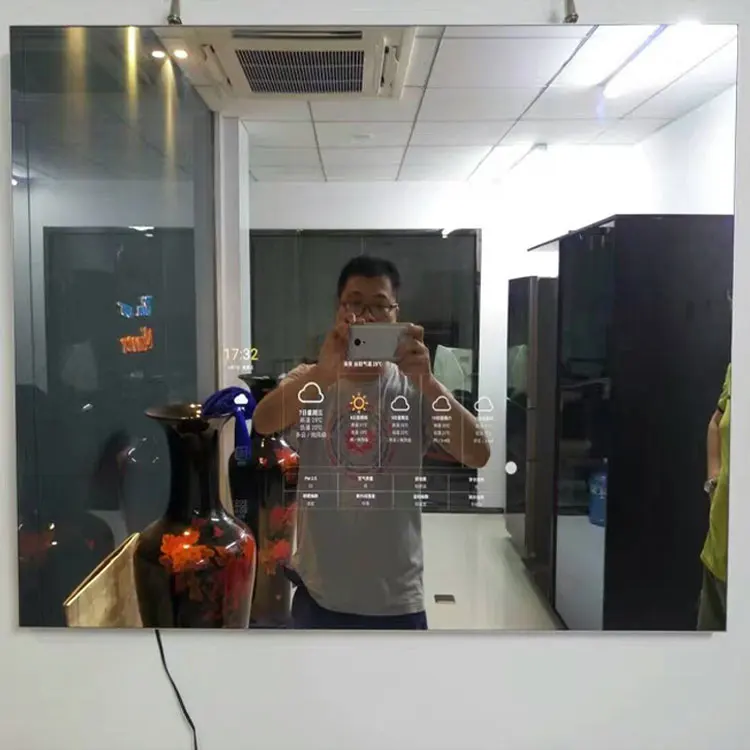

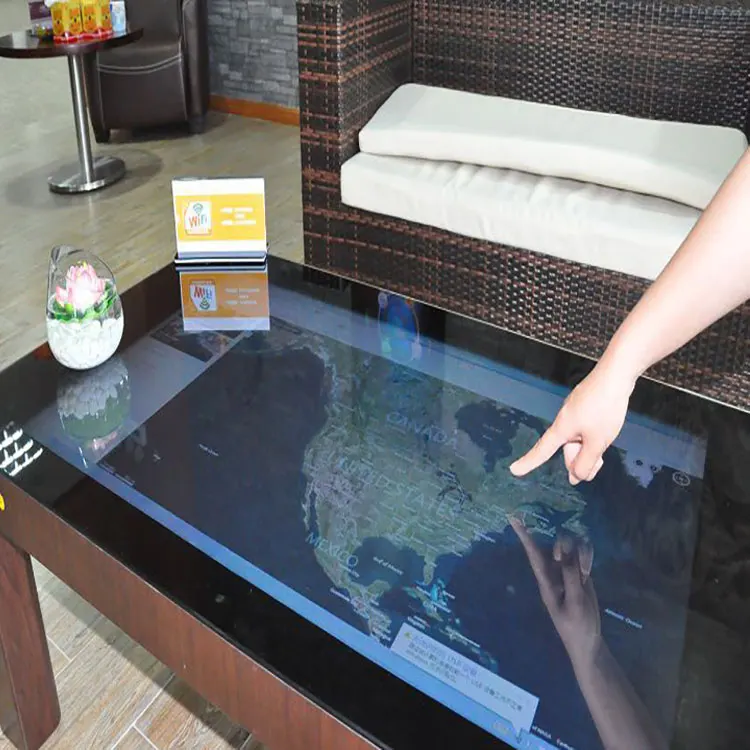

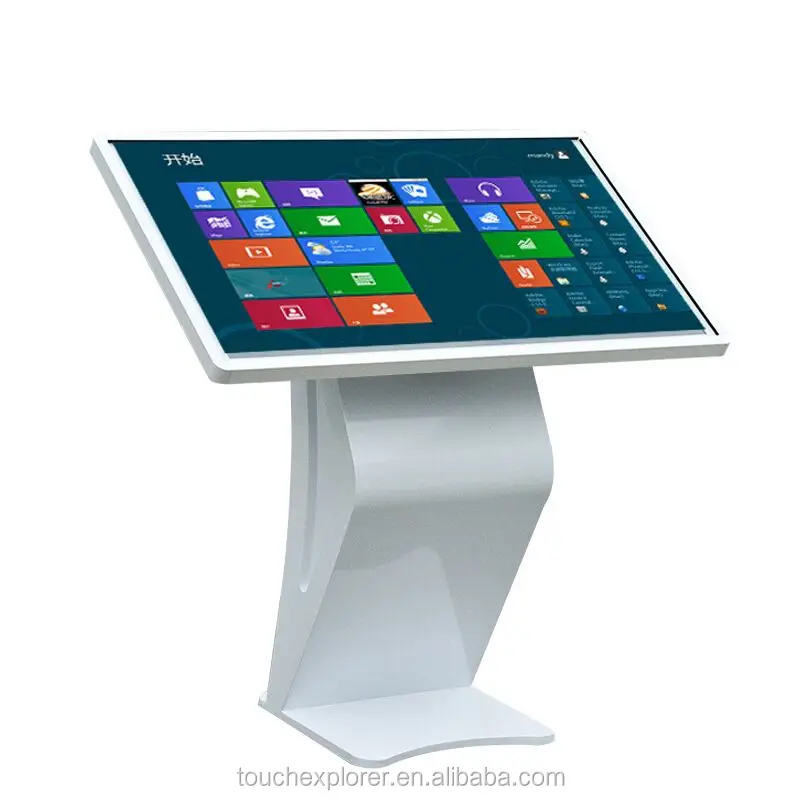

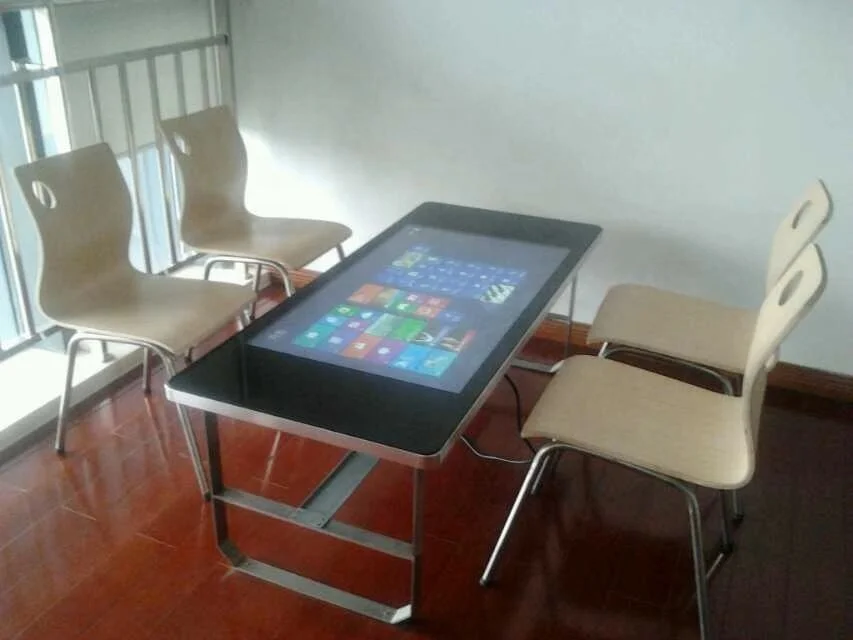

Application

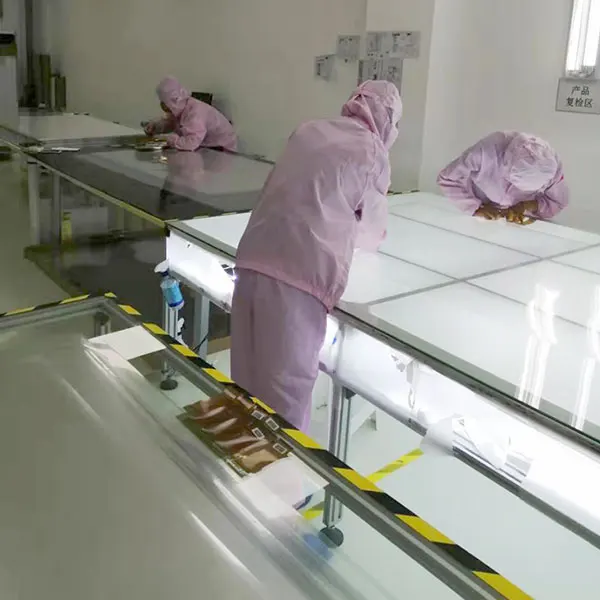

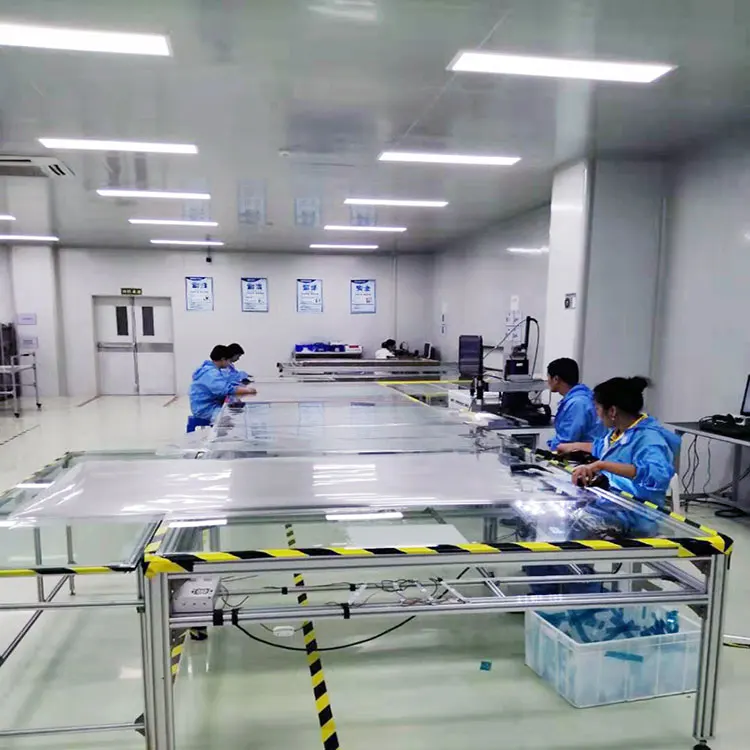

Our Company
Touch Explorer Photoelectric Co., Ltd is Wholly owned subsidiary of SuZhou TouchPlanet Techonology Co.,ltd.
What we do!? 1.Capacitive moultitouch foil. Transforms any glass or store window into an interactive touch screen display. Ideal for integration within the gaming/vending industry, education,entertainment,meeting,digital signage and table top application. Size:10''-180''.
2.Control circuit board. Our independently developed controller board for all sizes of touch foils.Maximum of touch points can reach 40. With advantage of 30% higher speed than others.
Why choose us!?
We are new member of Alibaba.but we have done quite long and well in touch foil fields.

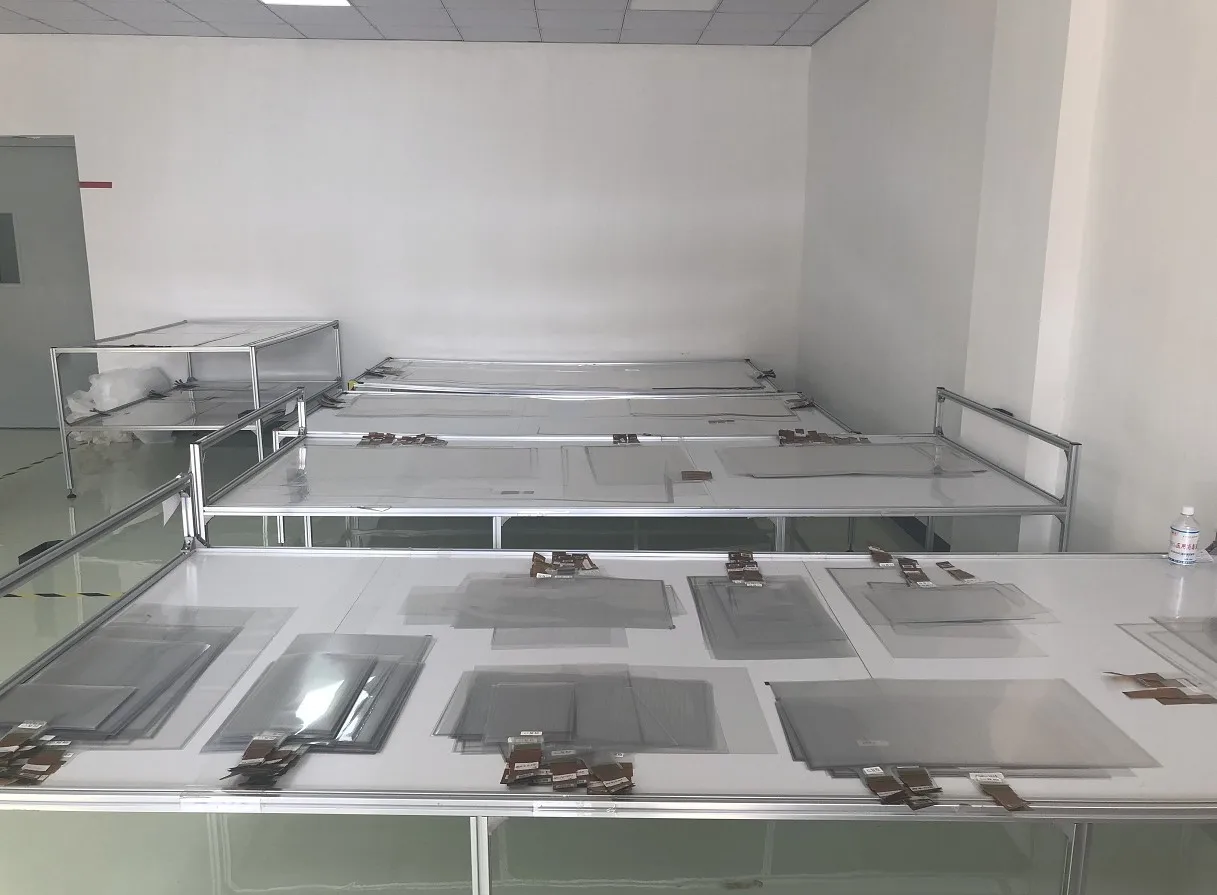

1.Self developed priting machine with high accuracy and low cost.
2.Raw material import from Japan and Germany.
3.Customise any big size as your requirement.
4.Capacity of 400sets per day.(eg.86'')
5.Easy to debug within 1 minute.
6.Multi touch functionality (40 touch points) is supported on laminate or toughened glass up to 12mm thick.
FAQ
Q: What operation system it support ? A: WIN7 /WIN8 /Linux (Ubuntu 2.04.4,kernel version:3.11.0-15-generic) / Android4.2 or above ( kernel version>A20->3.3.0,RK3188->3.0.36)
Q: What is your MOQ? A: 1pcs
Q: Which certificates passed ? A: CE,FCC,RoHs.
Q: How proceed the order? A: online or offline
Q: What is your guarantee period? A: 1year touch foil warranty.
Q: What is your delievey time ? A: Sample order : within 5 days, 5-12 working days for bulk production after confirmed
Payment terms: TT, Western Union, PAYPAL, Trade Assurance.
1) For sample order : 100% T/T, Western Union, Paypal. 2) For bulk order more than ten thousand dorllors : 30% T/T in advance. 70% Blance before delivery.
